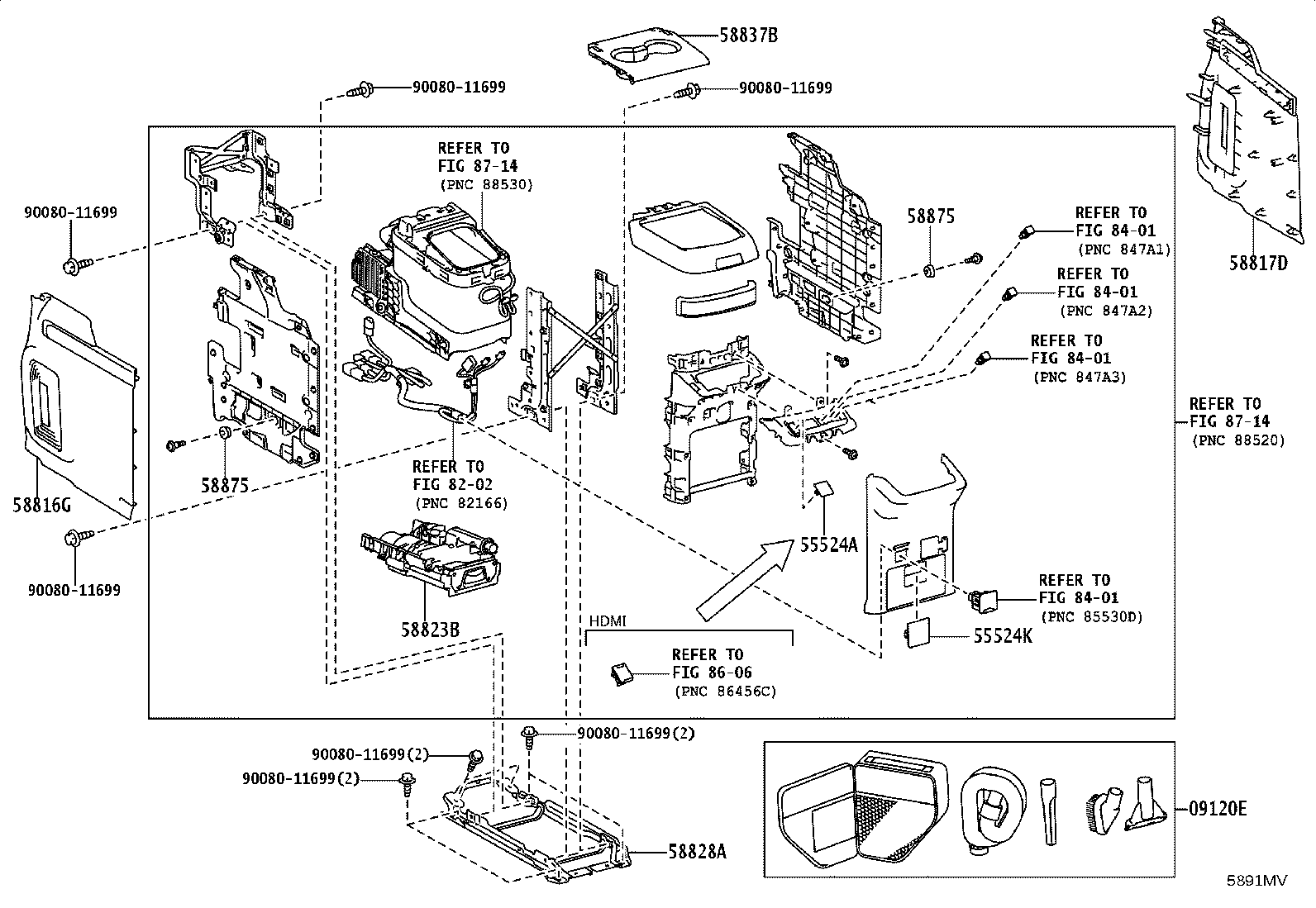

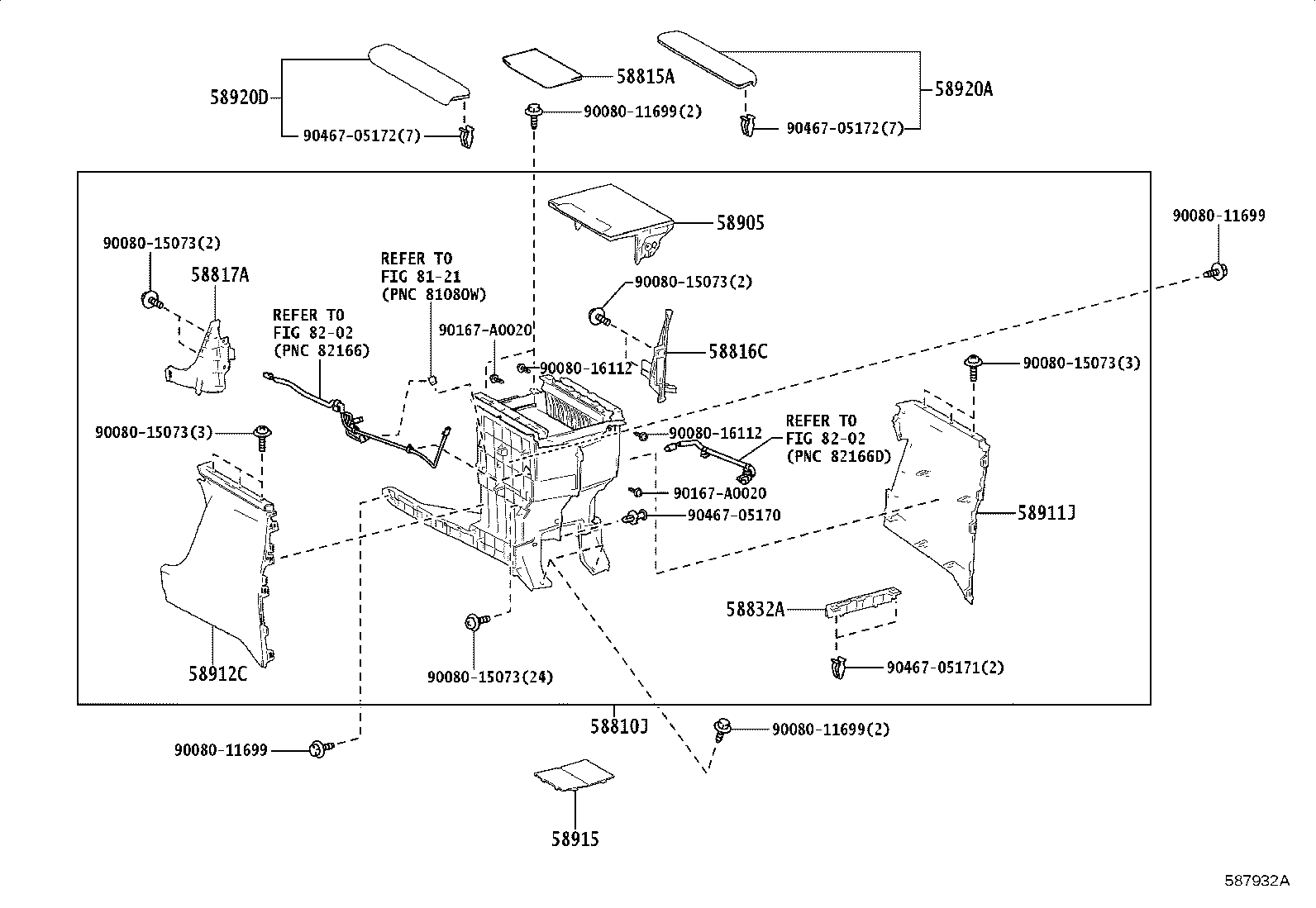

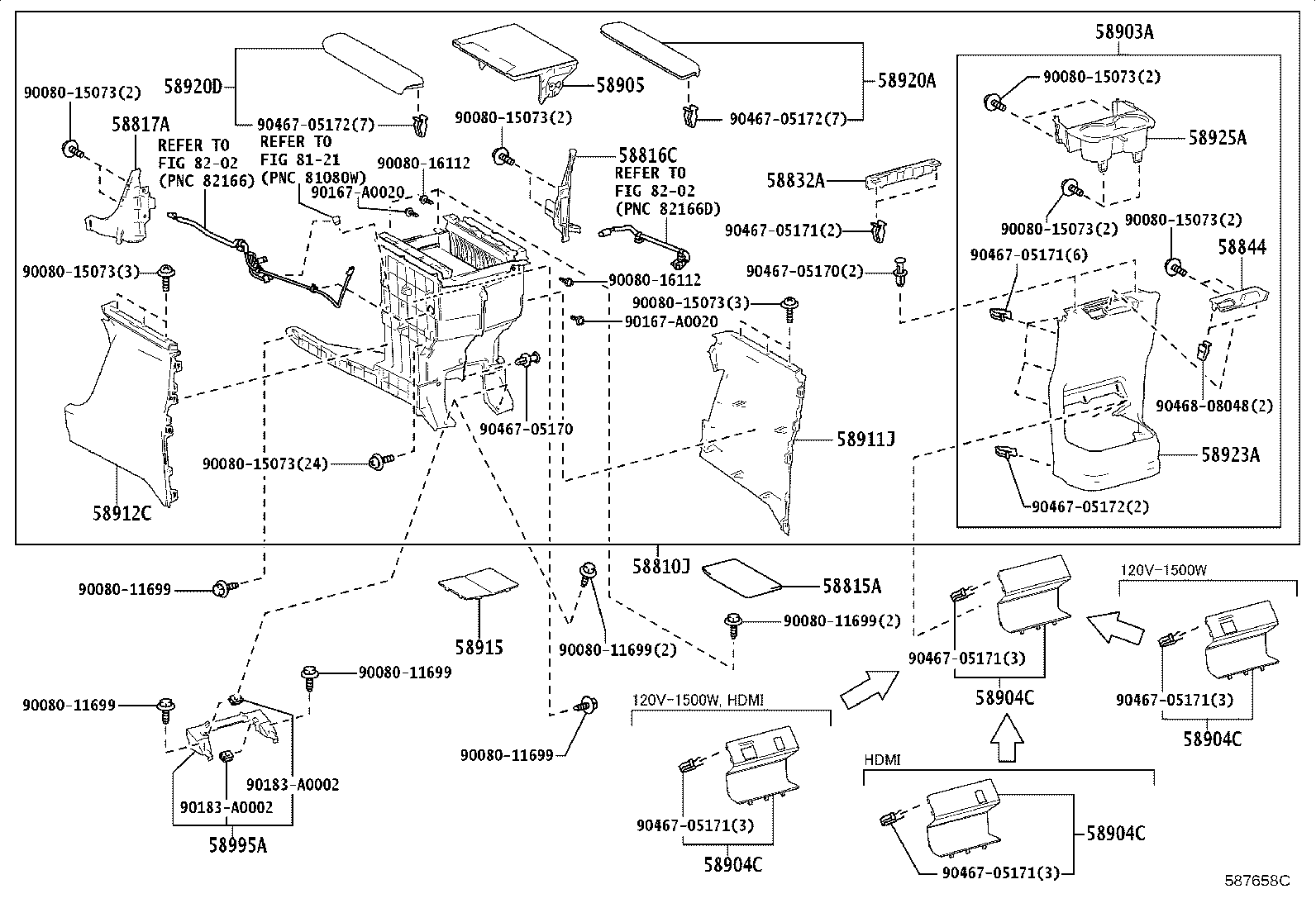

Console Box & Bracket
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 09120E | Bag, Tool |
| 55396B | Bracket, Console Mounting, NO.4 |
| 55398A | Bracket, Console Mounting, NO.6 |
| 55434H | Panel, Instrument Panel Finish, Lower Center |
| 55443G | Knob, Instrument Panel Box Door |
| 55445K | Tray, Instrument Panel |
| 55524A | Cover, Switch Base Hole |
| 55524K | Cover, Switch Bace Hole |
| 55539A | Cover, Spare Switch Hole |
| 55620E | Holder Assy, Instrument Panel Cup |
| 55625B | Tray, Instrument Panel Cup Holder |
| 58280B | Boot Assy, Shift Lever |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58815A | Carpet, Console Box |
| 58816C | Insert, Console Box, Front NO.1 |
| 58816D | Insert, Console Box, Front NO.1 |
| 58816E | Clip, Console Box Insert, Front |
| 58816G | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58817B | Insert, Console Box, Front NO.2 |
| 58817D | Insert, Console Box, Front NO.2 |
| 58821C | Panel, Console, Upper |
| 58822A | Panel, Console, Upper Rear |
| 58823B | Box, Console Compartment |
| 58828A | Bracket, Console Box, Lower |
| 58831A | Garnish, Console Upper Panel, Front |
| 58832A | Garnish, Console Upper Panel, Rear |
| 58833B | Garnish, Console Upper Panel, NO.1 |
| 58837B | Box, Console Cup Holder |
| 58844 | Bezel, Console Box |
| 58875 | Spacer, Console Box |
| 58901A | Box Sub-assy, Console, Rear |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904C | Panel Sub-assy, Console Rear End, NO.2 |
| 58905 | Door Sub-assy, Console Compartment |
| 58911J | Panel, Box Side, NO.1 |
| 58912C | Panel, Box Side, NO.2 |
| 58913A | Panel, Box, NO.3 |
| 58915 | Panel, Box Bottom |
| 58916 | Mat, Box Bottom |
| 58920A | Armrest Assy, Rear Console |
| 58920D | Armrest Assy, Rear Console |
| 58923A | Panel, Console Rear End |
| 58925A | Pocket, Console Box, Rear |
| 58959B | Cushion, Console Compartment Door |
| 58991 | Bracket, Console Box Mounting, Upper |
| 58991G | Clip |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
