Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09
Inside Trim Board

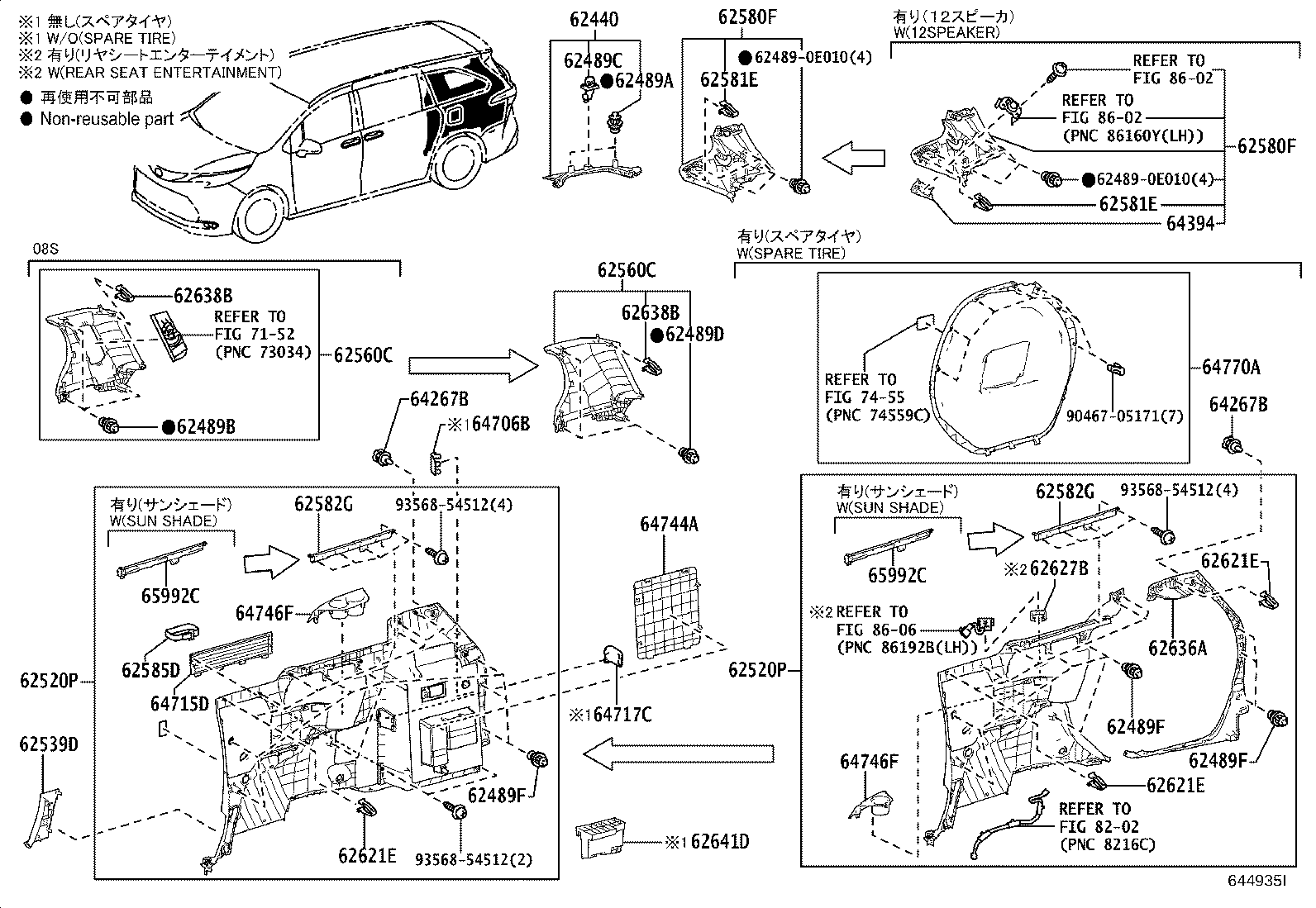

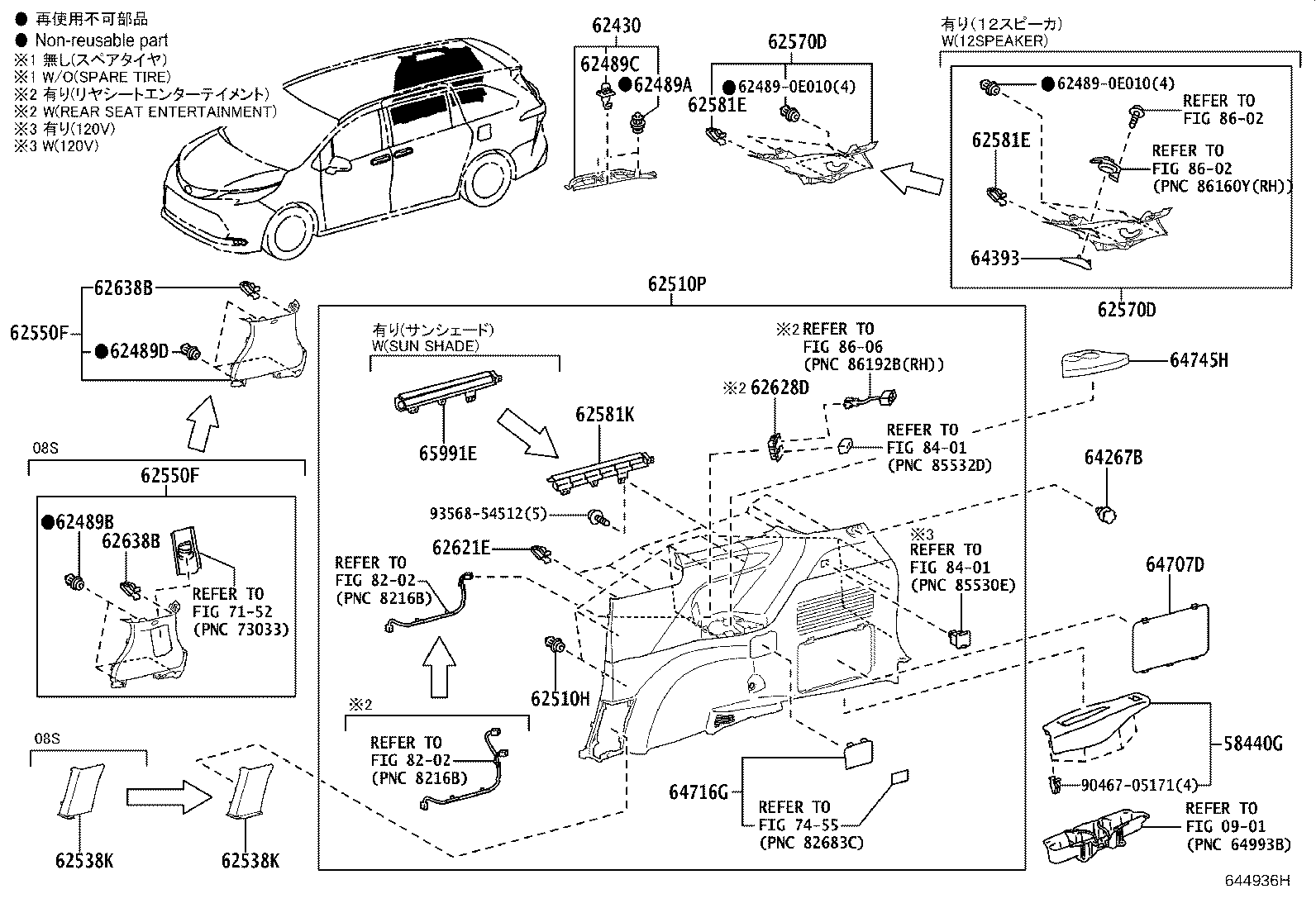

74 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58440G | Cover Assy, Jack |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180B | Bolt, W/Washer |
| 62180C | Clip, Curtain Shield Airbag |
| 62189A | Spacer, Curtain Shield Airbag Clip |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62217H | Clip, Center Piller Garnish |
| 62217J | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62381B | Weatherstrip, Roof Side Rail, RH |
| 62382B | Weatherstrip, Roof Side Rail, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62423 | Cover, Center Pillar Garnish, Lower RH |
| 62424F | Cover, Center Pillar Garnish, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62489B | Clip, Roof Side Inner Garnish |
| 62489C | Clip, Roof Side Inner Garnish |
| 62489D | Clip, Roof Side Inner Garnish |
| 62489F | Clip, Roof Side Inner Garnish |
| 62510H | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62538K | Cover, Quarter Trim, Lower Front RH |
| 62539D | Cover, Quarter Trim, Lower Front LH |
| 62550F | Garnish Assy, Rear Window Side, RH |
| 62560C | Garnish Assy, Rear Window Side, LH |
| 62570D | Garnish Assy, Rear Window Side, NO.2 RH |
| 62580F | Garnish Assy, Rear Window Side, NO.2 LH |
| 62581E | Garnish, Quarter Pillar, RH |
| 62581K | Garnish, Rear Window Side |
| 62582G | Cover, Quarter Pillar, LH |
| 62585D | Band, Quarter Trim Pocket |
| 62621E | Clip |
| 62627B | Cover, Quarter Trim |
| 62628D | Cover, Side Trim, NO.2 LH |
| 62636A | Panel, Quarter Trim, Upper LH |
| 62638B | Clip |
| 62641D | Pad, Quarter Trim, Rear |
| 64267B | Hook, Package Holder Net |
| 64393 | Grille, Rear Speaker, NO.2 RH |
| 64394 | Grille, Rear Speaker, NO.2 LH |
| 64706B | Cover Sub-assy, Luggage Compartment Trim, Rear |
| 64707D | Cover Sub-assy, Quarter Trim Jack |
| 64715D | Cover, Luggage Compartment Trim, Side, LH |
| 64716G | Cover, Luggage Compartment Trim, Rear |
| 64717C | Cover, Luggage Compartment Trim, Front |
| 64744A | Door, Deck Side Box, LH |
| 64745H | Holder, Deck Side Trim Cup, RH |
| 64746F | Holder, Deck Side Trim Cup, LH |
| 64770A | Cover Assy, Spare Wheel |
| 65991E | Curtain, Rear Window, RH |
| 65992C | Curtain, Rear Window, LH |
| 67913B | Plate, Front Door Scuff, RH |
| 67914B | Plate, Front Door Scuff, LH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67917D | Clip, Rear Door Scuff Plate |
| 67918E | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
