Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

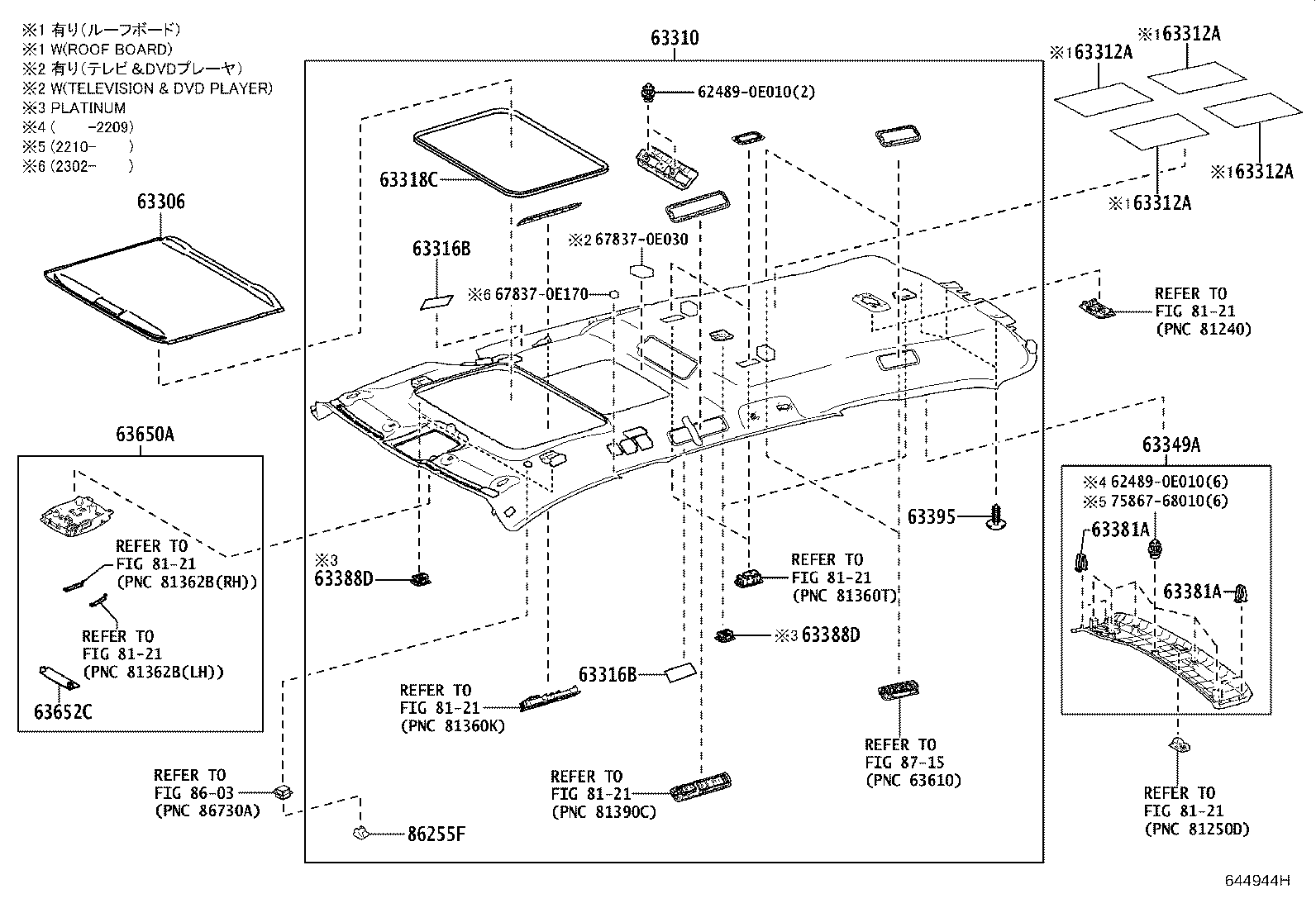

Figure 644943E 644943E 2020-11 → — Figure 644944H 644944H 2020-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63312A Headlining, Roof, NO.2
63316B Fabric, Roof Headlining, Front
63318C Moulding, Sun Roof Opening Trim
63349A Garnish, Roof Headlining, Rear
63381A Clip, Headlining Retainer
63388D Bracket, Roof Headlining Retainer, NO.2
63395 Clip, Roof Headlining Trim
63650A Box Assy, Roof Console
63652C Cover, Roof Console Box
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
