Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09
Seat Belt

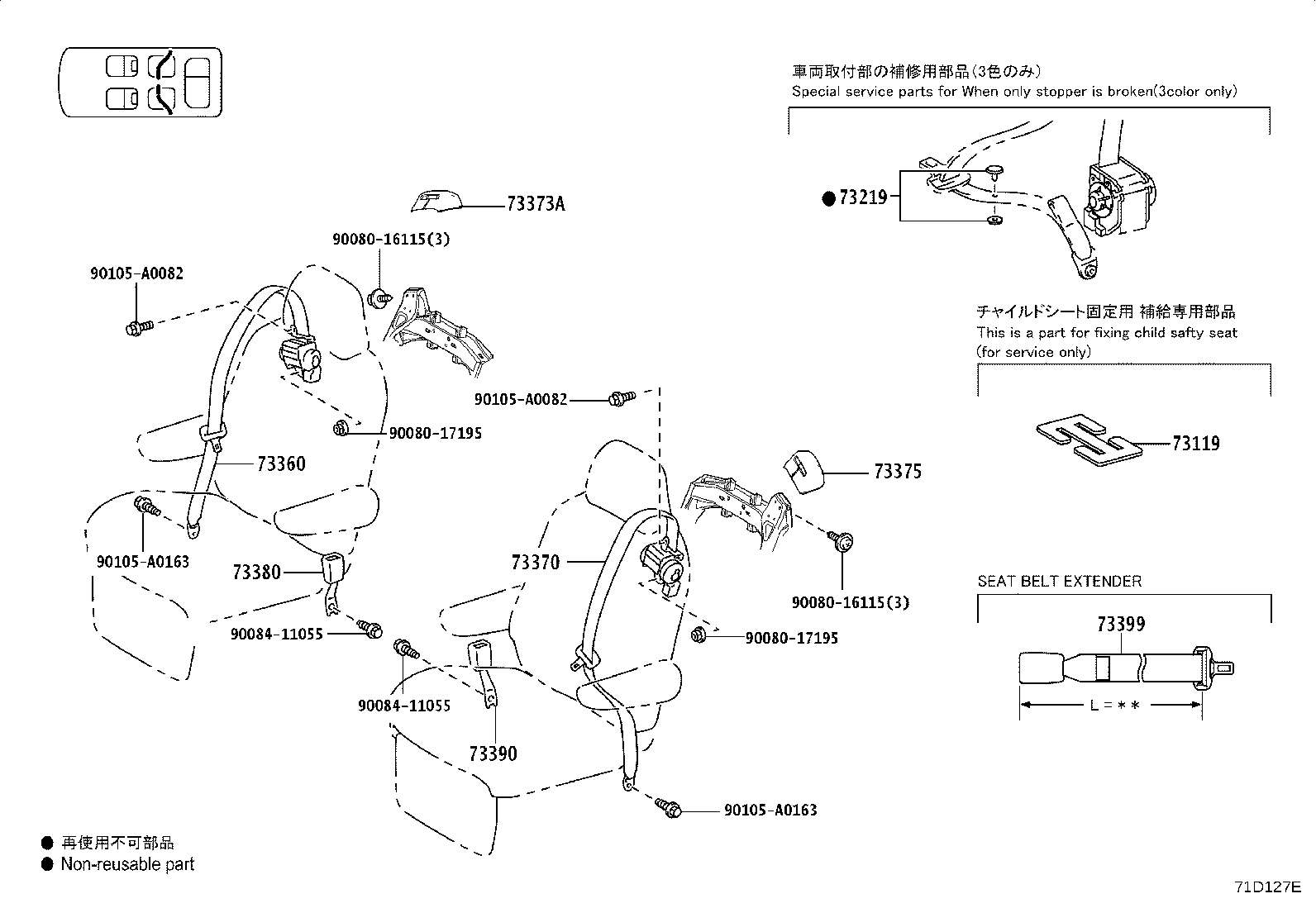

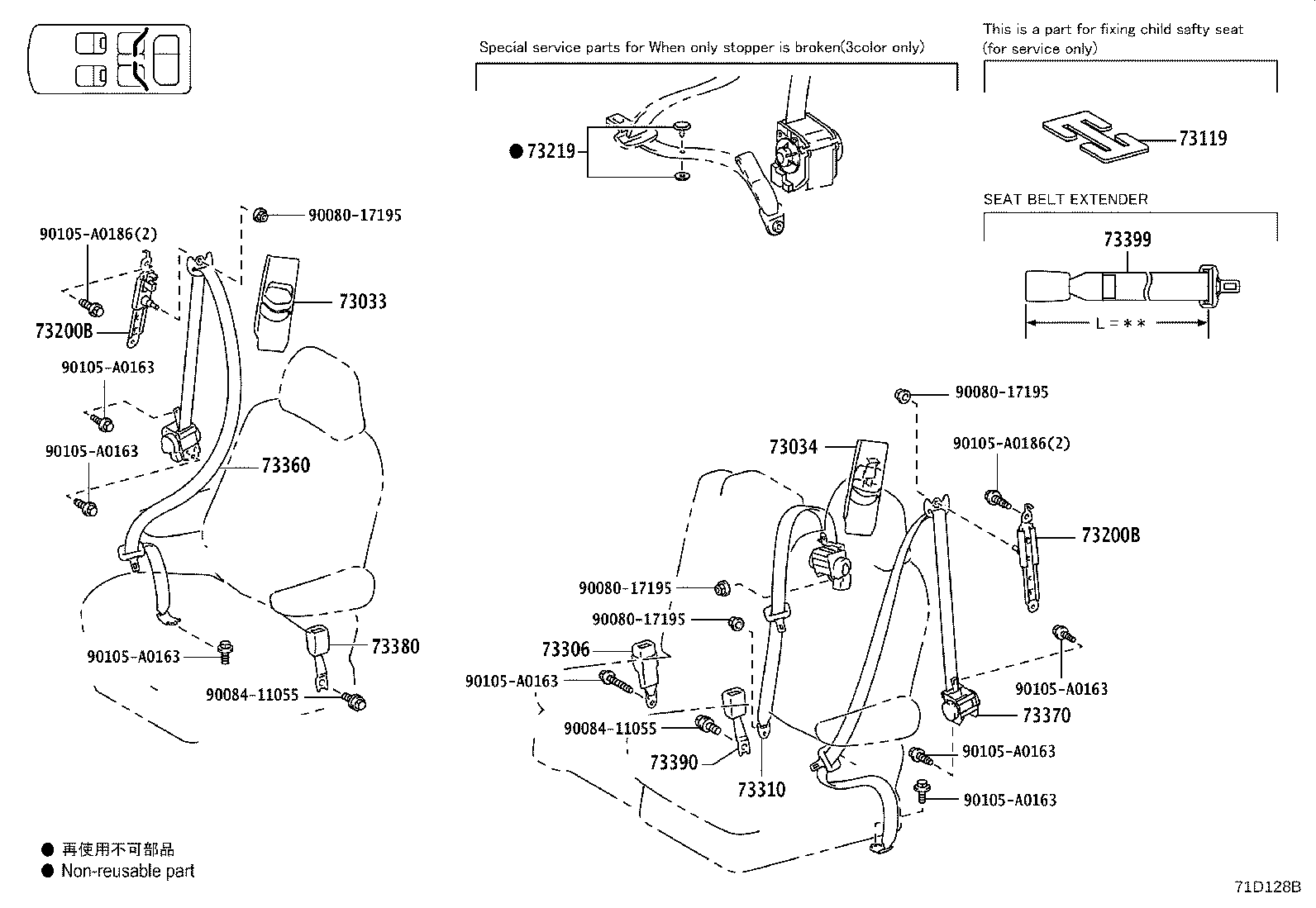

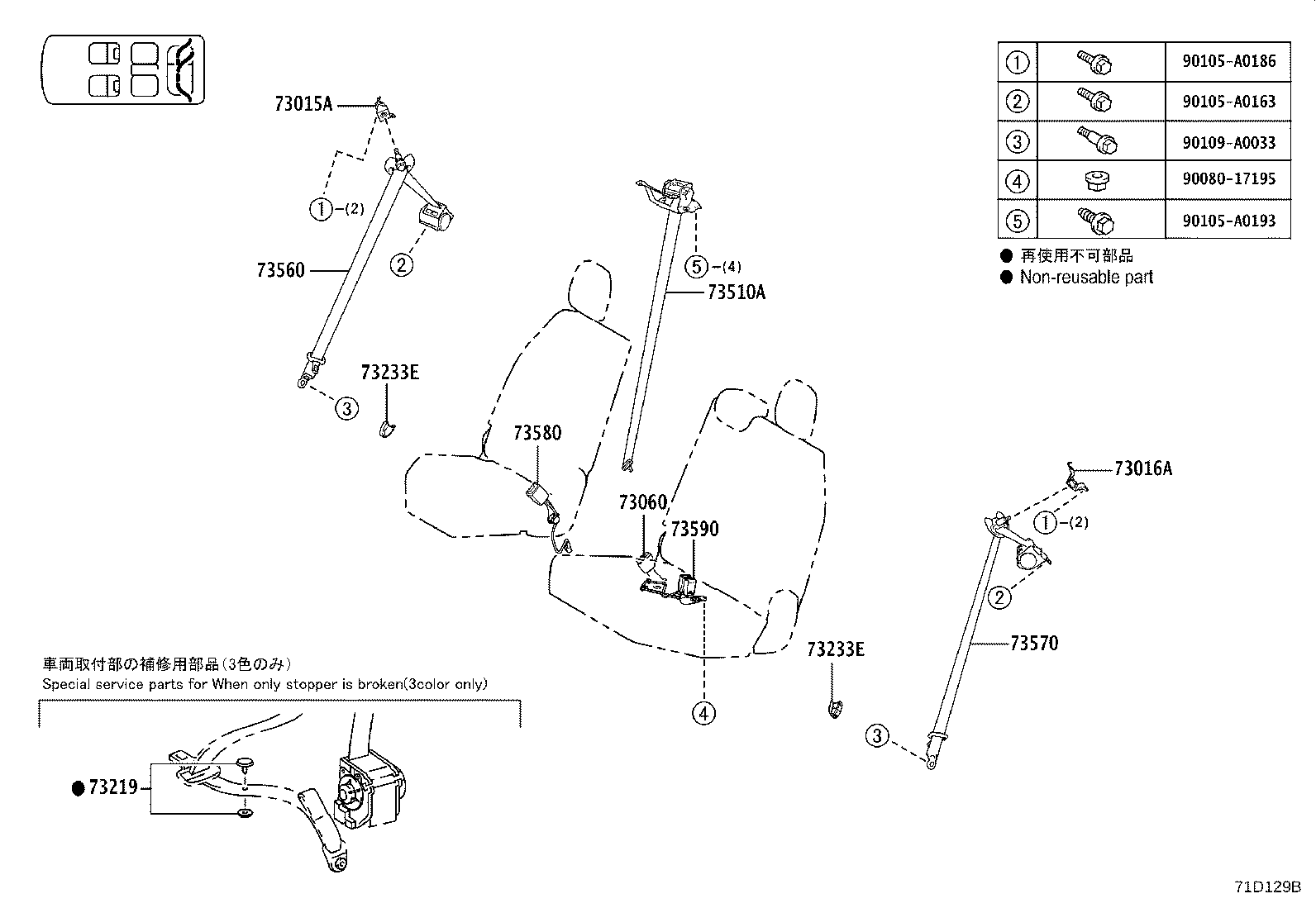

32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73015A | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016A | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73033 | Plate Sub-assy, Rear Shoulder Belt Anchor, RH |
| 73034 | Plate Sub-assy, Rear Shoulder Belt Anchor, LH |
| 73060 | Belt Assy, Rear NO.2 Seat Lap, Center W/Inner LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73200B | Adjuster Assy, Rear Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73214 | Plate, Front Seat Belt Anchor |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73233E | Cover, Rear Outer Seat Belt |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73306 | Belt Sub-assy Seat, Inner |
| 73310 | Belt Assy, Rear Seat 3 Point Type, RH |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73373A | Cover, Rear Seat Shoulder Belt, RH |
| 73375 | Cover, Rear Seat Shoulder Belt, LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
| 73399 | Extender, Seat Belt |
| 73510A | Belt Assy, Rear NO.2 Seat, 3 Point Type |
| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580 | Belt Assy, Rear NO.2 Seat, Inner RH |
| 73590 | Belt Assy, Rear NO.2 Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
