Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09

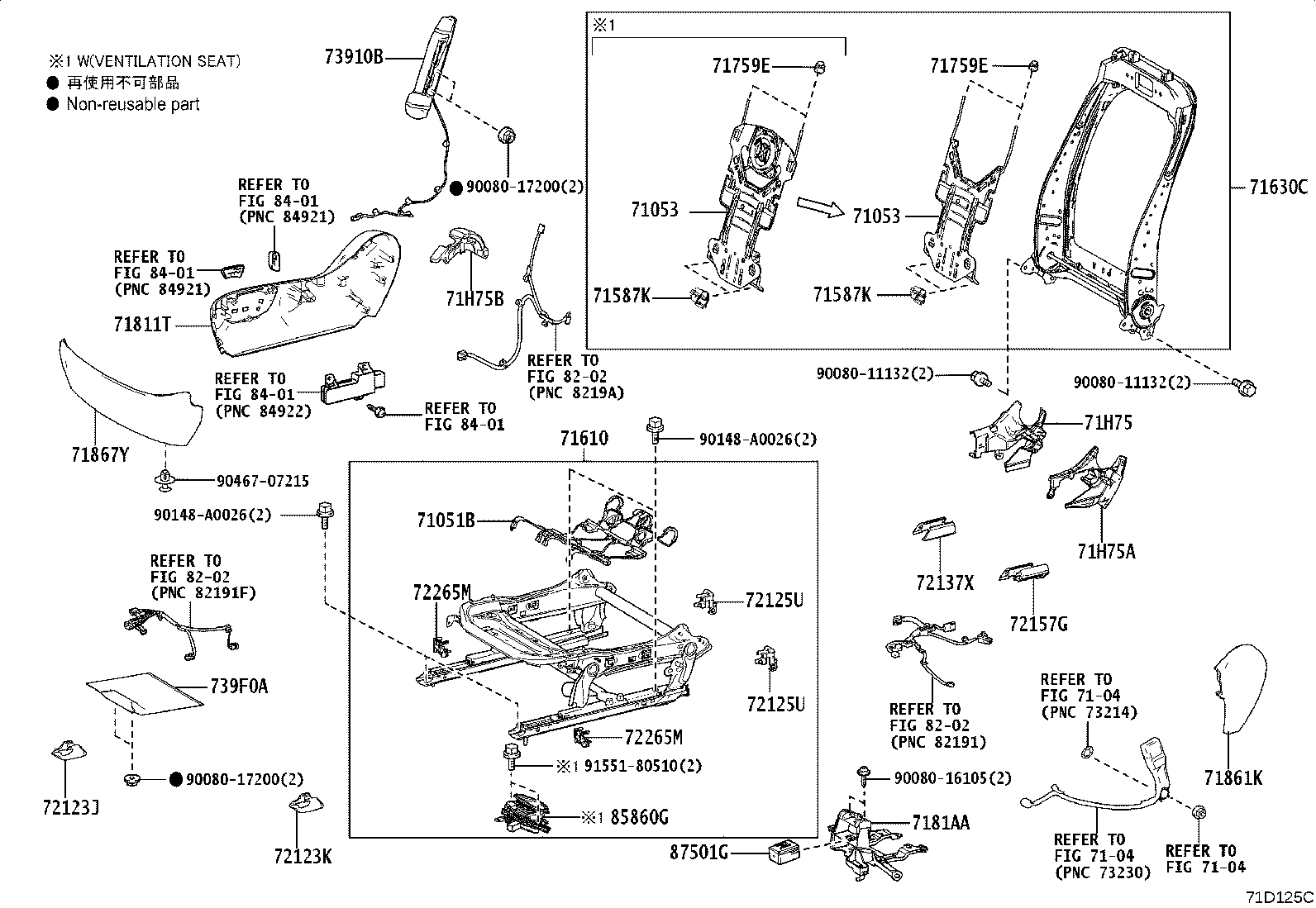

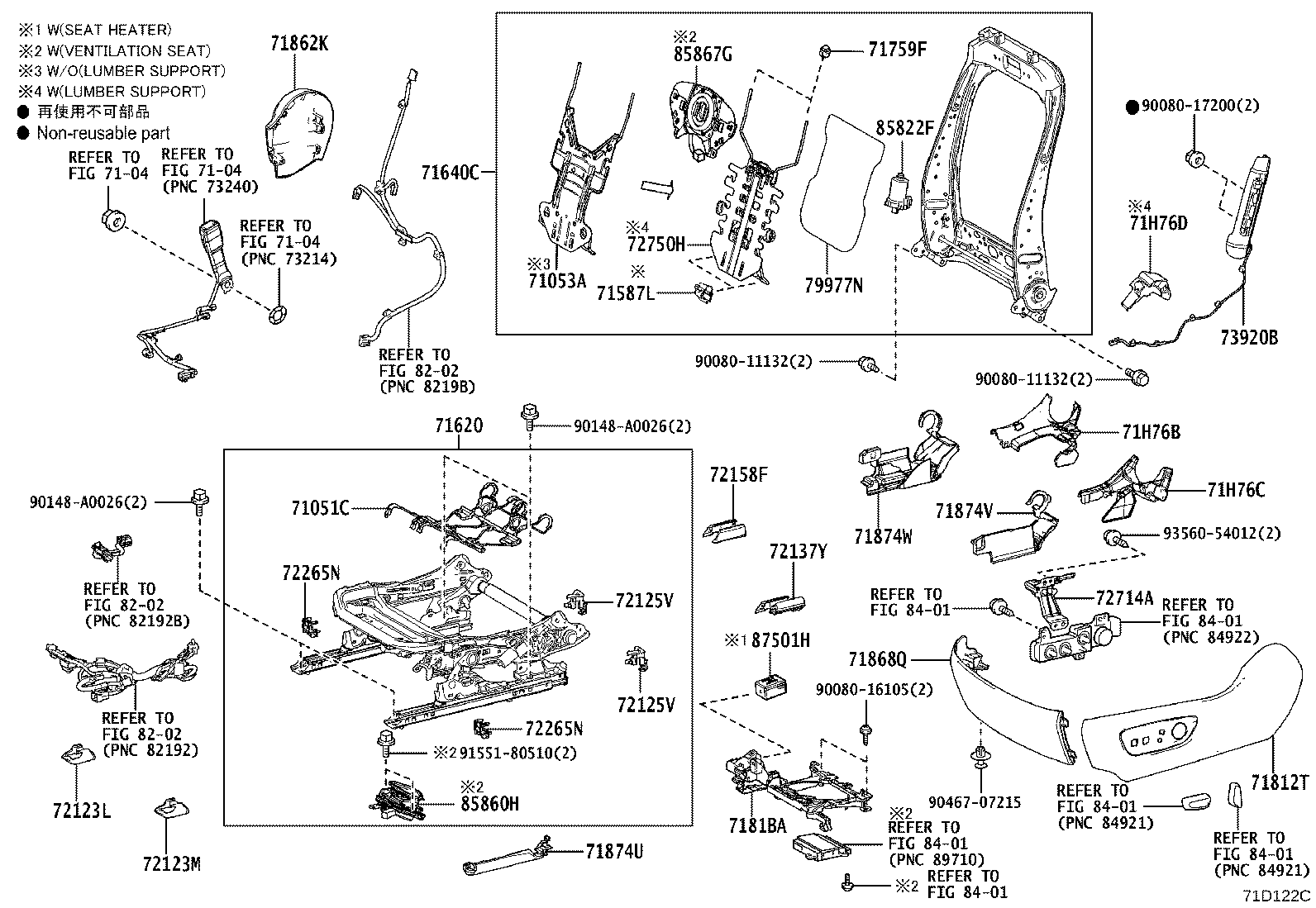

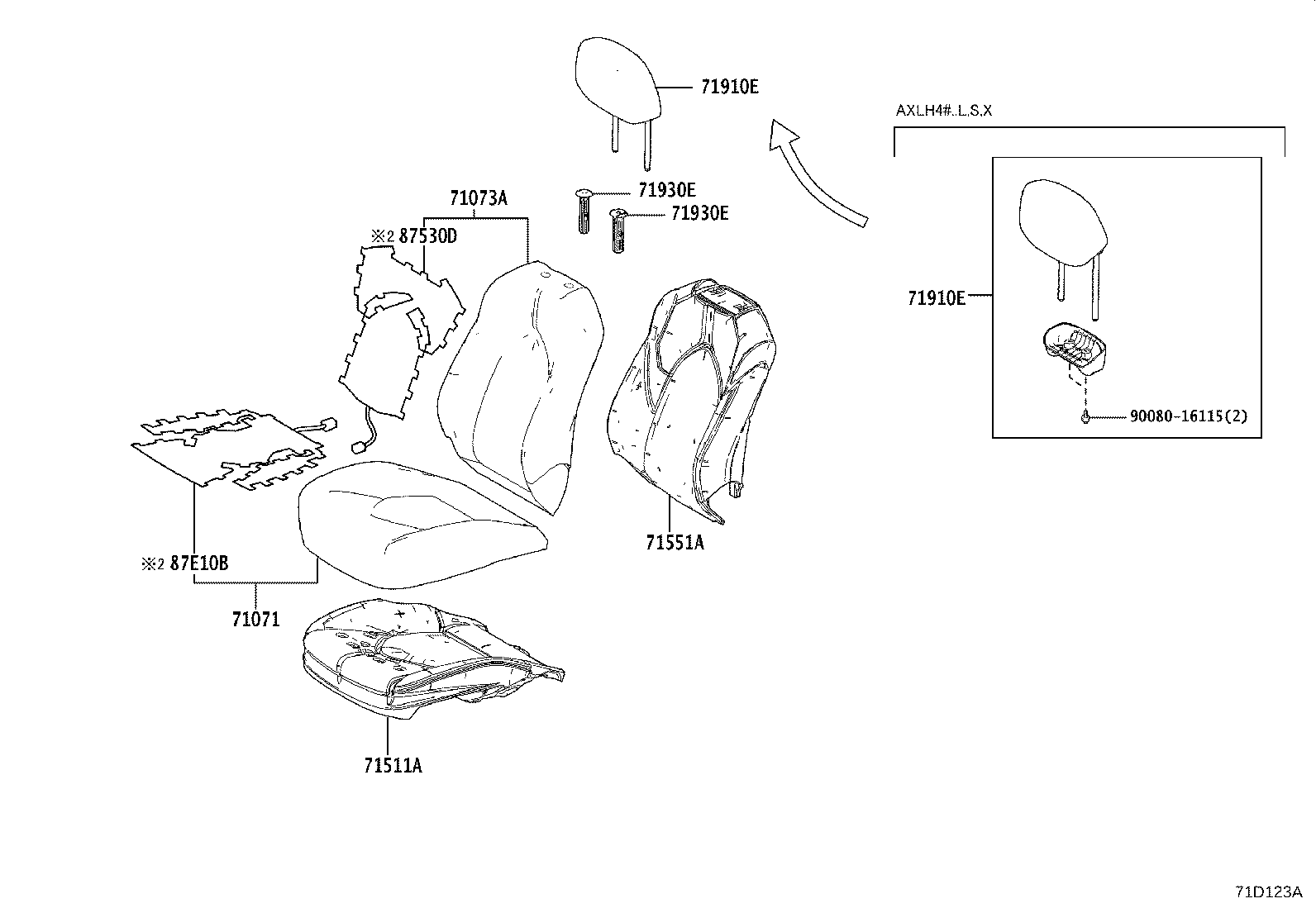

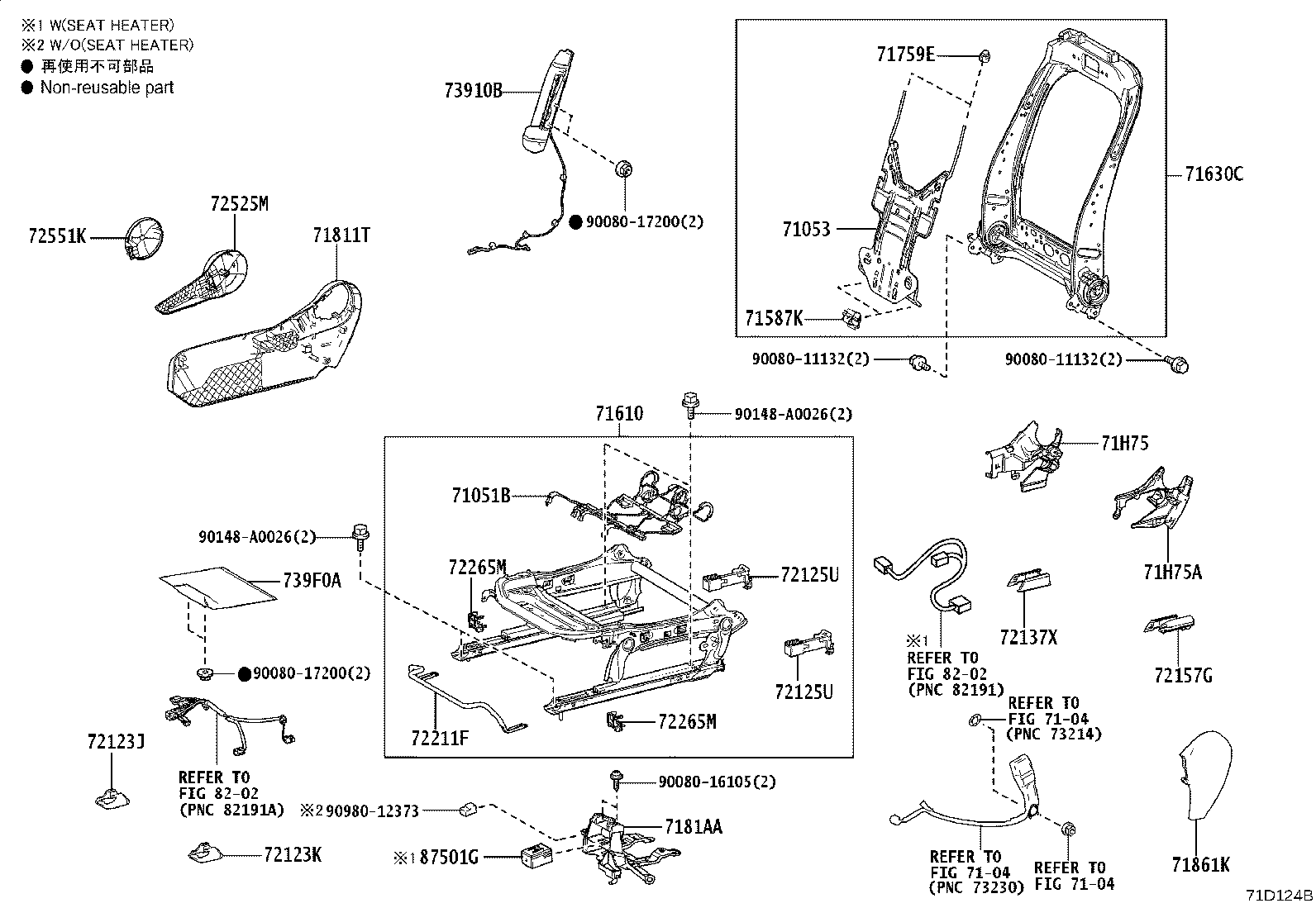

Front Seat & Seat Track
72 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051B | Spring Sub-assy, Front Seat Cushion, RH |
| 71051C | Spring Sub-assy, Front Seat Cushion, LH |
| 71053 | Spring Sub-assy, Front Seatback, RH |
| 71053A | Spring Sub-assy, Front Seatback, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71587K | Protector, Front Seatback Edge, RH |
| 71587L | Protector, Front Seatback Edge, LH |
| 71610 | Spring Assy, Front Seat Cushion, RH |
| 71620 | Spring Assy, Front Seat Cushion, LH |
| 71630C | Spring Assy, Front Seatback, RH |
| 71640C | Spring Assy, Front Seatback, LH |
| 71759E | Hook, Front Seatback, RH |
| 71759F | Hook, Front Seatback, LH |
| 71811T | Shield, Front Seat Cushion, RH |
| 71812T | Shield, Front Seat Cushion, LH |
| 7181AA | Holder, Front Seat Cushion Wire Harness, RH |
| 7181BA | Holder, Front Seat Cushion Wire Harness, LH |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71867Y | Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT) |
| 71868Q | Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT) |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71874V | Shield, Front Seat Cushion, Lower LH, Outer |
| 71874W | Shield, Front Seat Cushion, Lower LH, Inner |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71H75 | Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT) |
| 71H75A | Cover, Reclining Adjuster Inside, RH Inner(FOR RH SEAT) |
| 71H75B | Cover, Reclining Adjuster Inside, RH(FOR RH SEATBACK FRAME) |
| 71H76B | Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT) |
| 71H76C | Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT) |
| 71H76D | Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME) |
| 72123J | Cover, Seat Track Bracket, Outer Front RH |
| 72123K | Cover, Seat Track Bracket, Inner Front RH |
| 72123L | Cover, Seat Track Bracket, Inner Front LH |
| 72123M | Cover, Seat Track Bracket, Outer Front LH |
| 72125U | Cover, Seat Track, Upper Rear RH |
| 72125V | Cover, Seat Track, Upper Rear LH |
| 72137X | Cover, Seat Track Bracket, Outer Rear RH |
| 72137Y | Cover, Seat Track Bracket, Outer Rear LH |
| 72157G | Cover, Seat Track Bracket, Inner Rear RH |
| 72158F | Cover, Seat Track Bracket, Inner Rear LH |
| 72211F | Handle, Seat Track Adjusting, RH |
| 72265M | Cover, Seat Track Upper Rail, RH |
| 72265N | Cover, Seat Track Upper Rail, LH |
| 72525M | Handle, Reclining Adjuster Release, RH |
| 72551K | Cover, Reclining Hinge, RH |
| 72714A | Bracket, Seat Adjuster Shield Clamp, LH |
| 72750H | Adjuster Assy, Lumbar Support, LH |
| 73910B | Airbag Assy, Front Seat, RH |
| 73920B | Airbag Assy, Front Seat, LH |
| 739F0A | Airbag Assy, Front Seat Cushion, RH |
| 79977N | Felt, Seatback |
| 85822F | Motor Assy, Power Seat Reclining, LH |
| 85860G | Blower Assy, Seat Cushion Climate Control, RH |
| 85860H | Blower Assy, Seat Cushion Climate Control, LH |
| 85867G | Blower, Seatback Climate Control, LH |
| 87501G | Control Sub-assy, Seat Heater, RH |
| 87501H | Control Sub-assy, Seat Heater, LH |
| 87530D | Heater Assy, Front Seatback, RH |
| 87530E | Heater Assy, Front Seatback, LH |
| 87E10B | Heater Assy, Front Seat Cushion, RH |
| 87E10C | Heater Assy, Front Seat Cushion, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
