Toyota Sienna

2020-11 → present · chassis AXLH4# · catalogue 622440 · United States

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

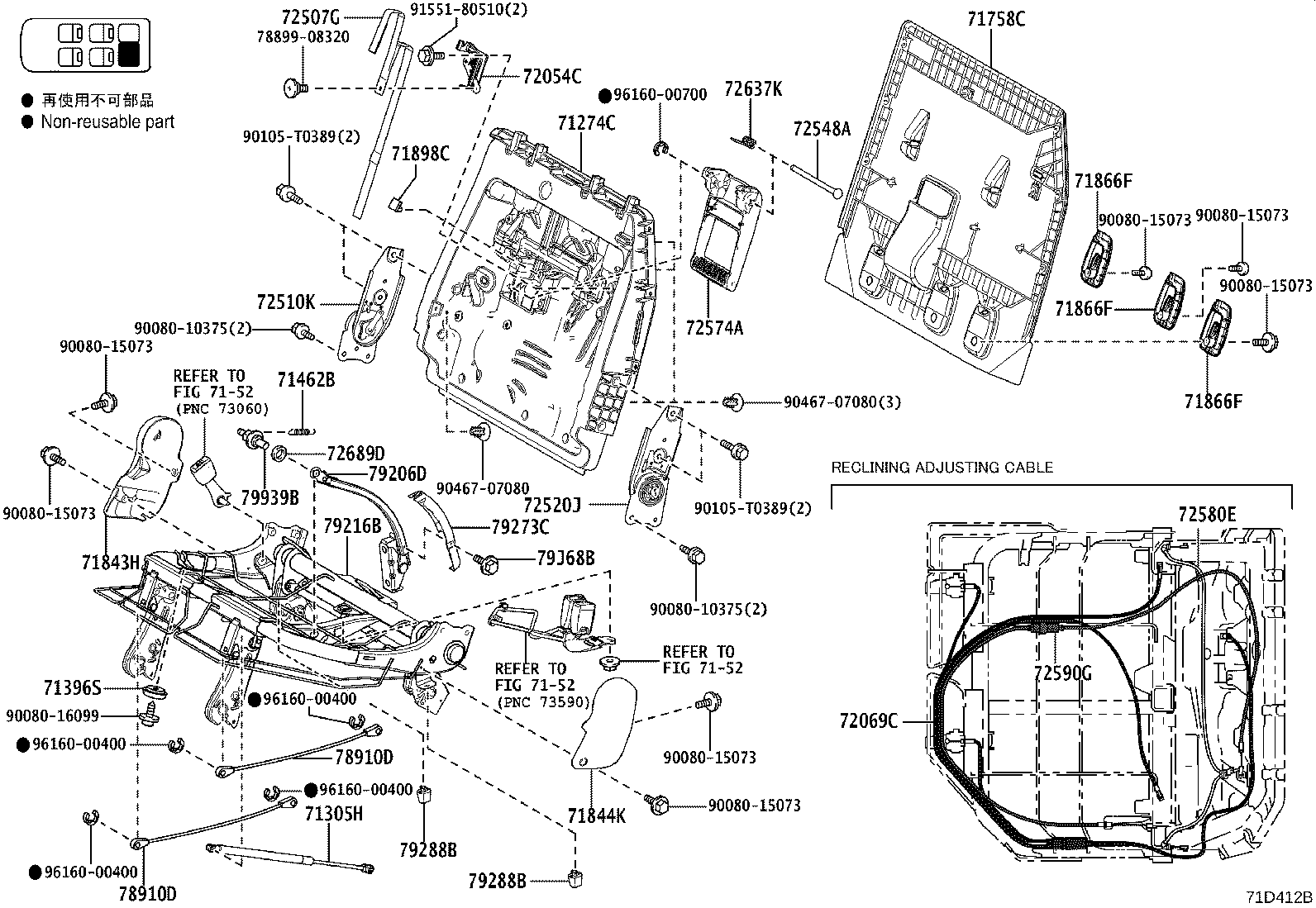

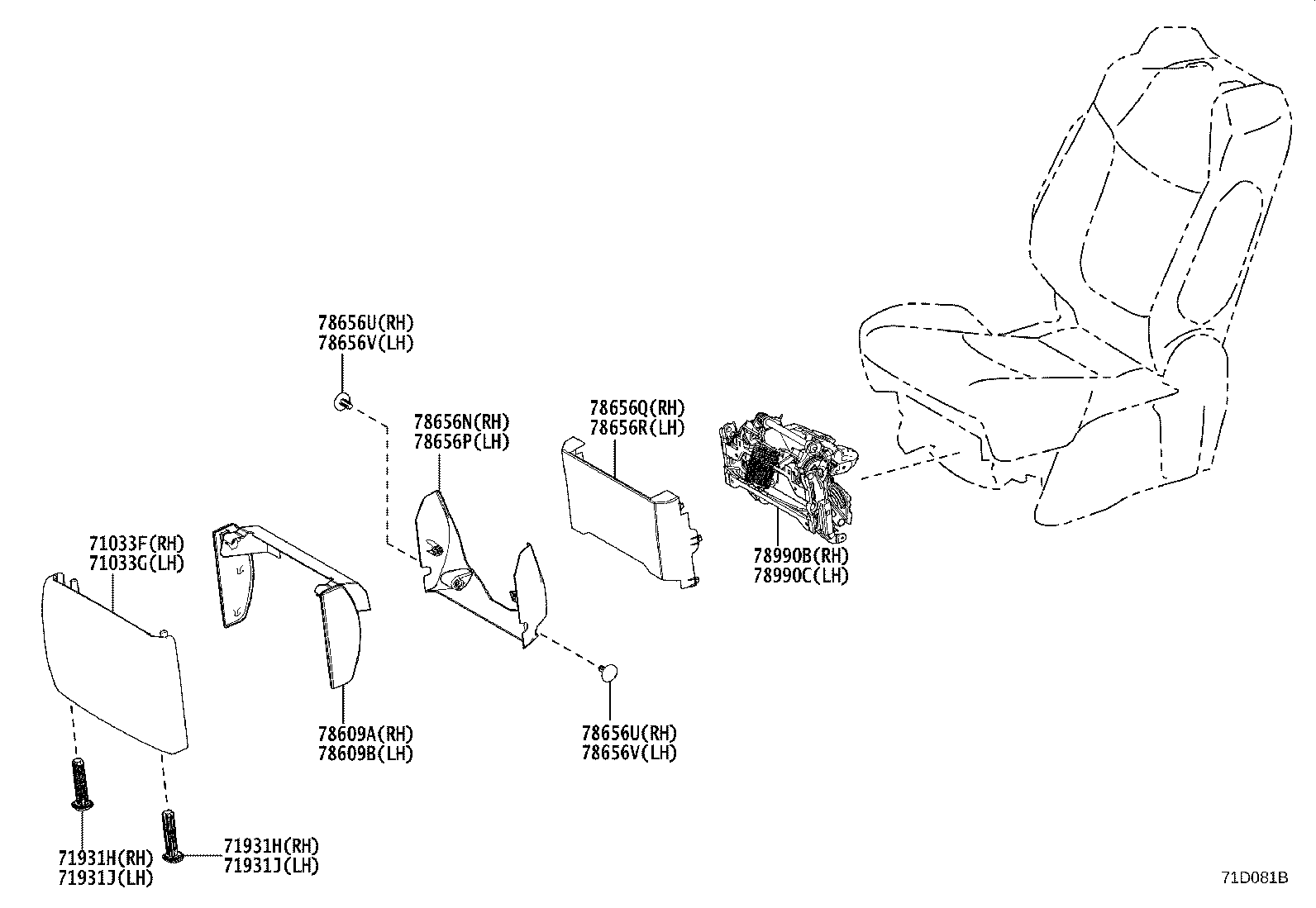

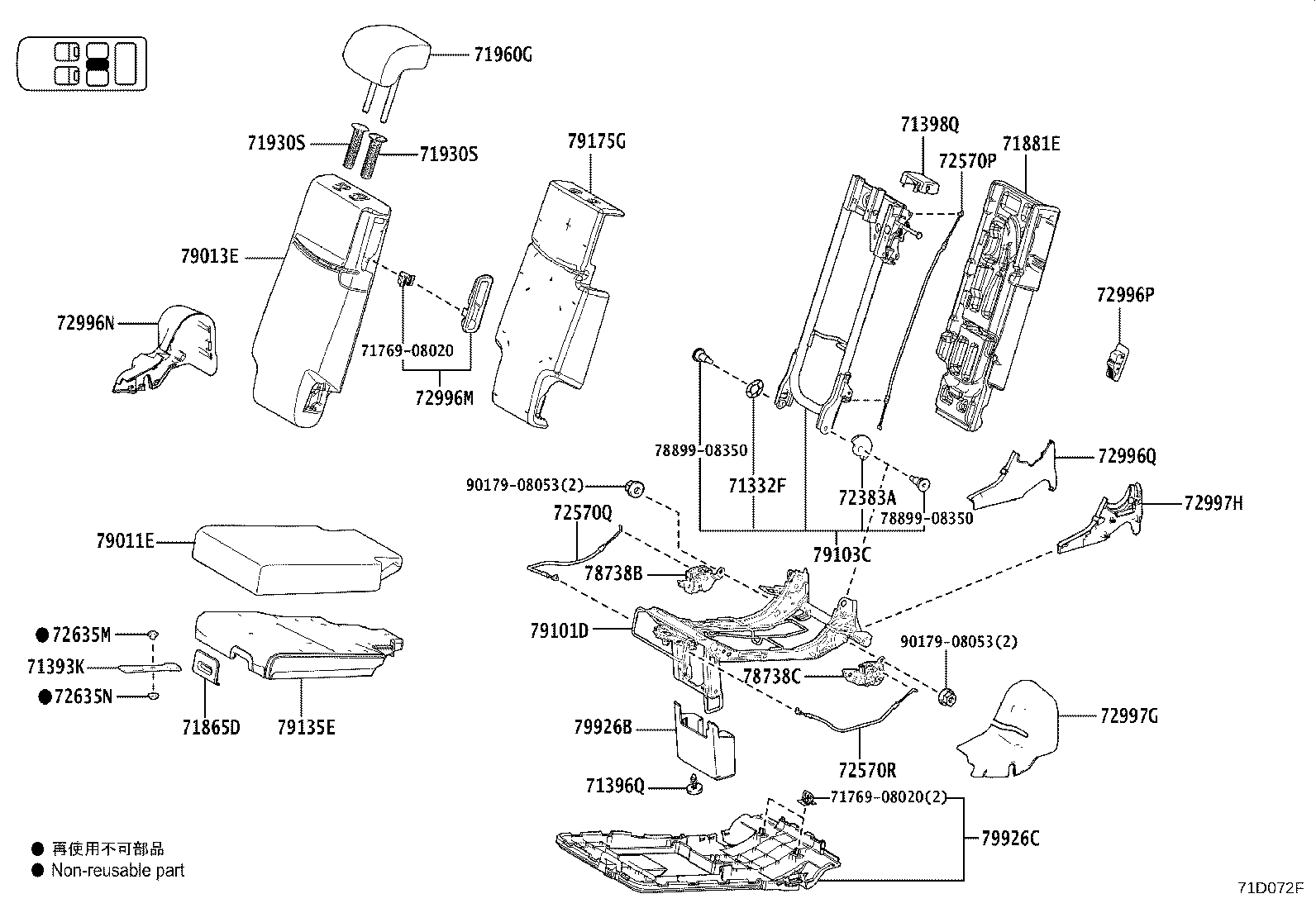

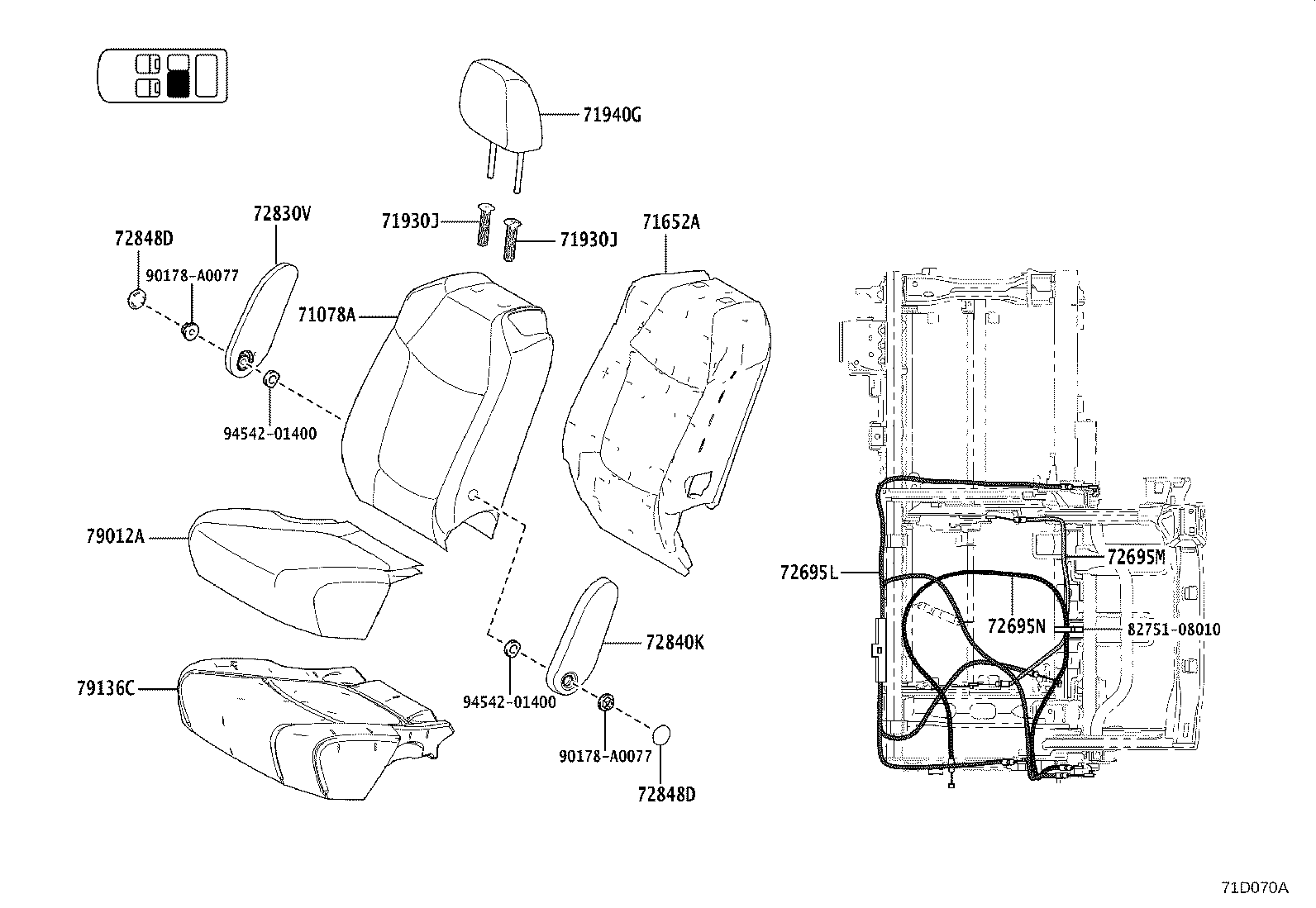

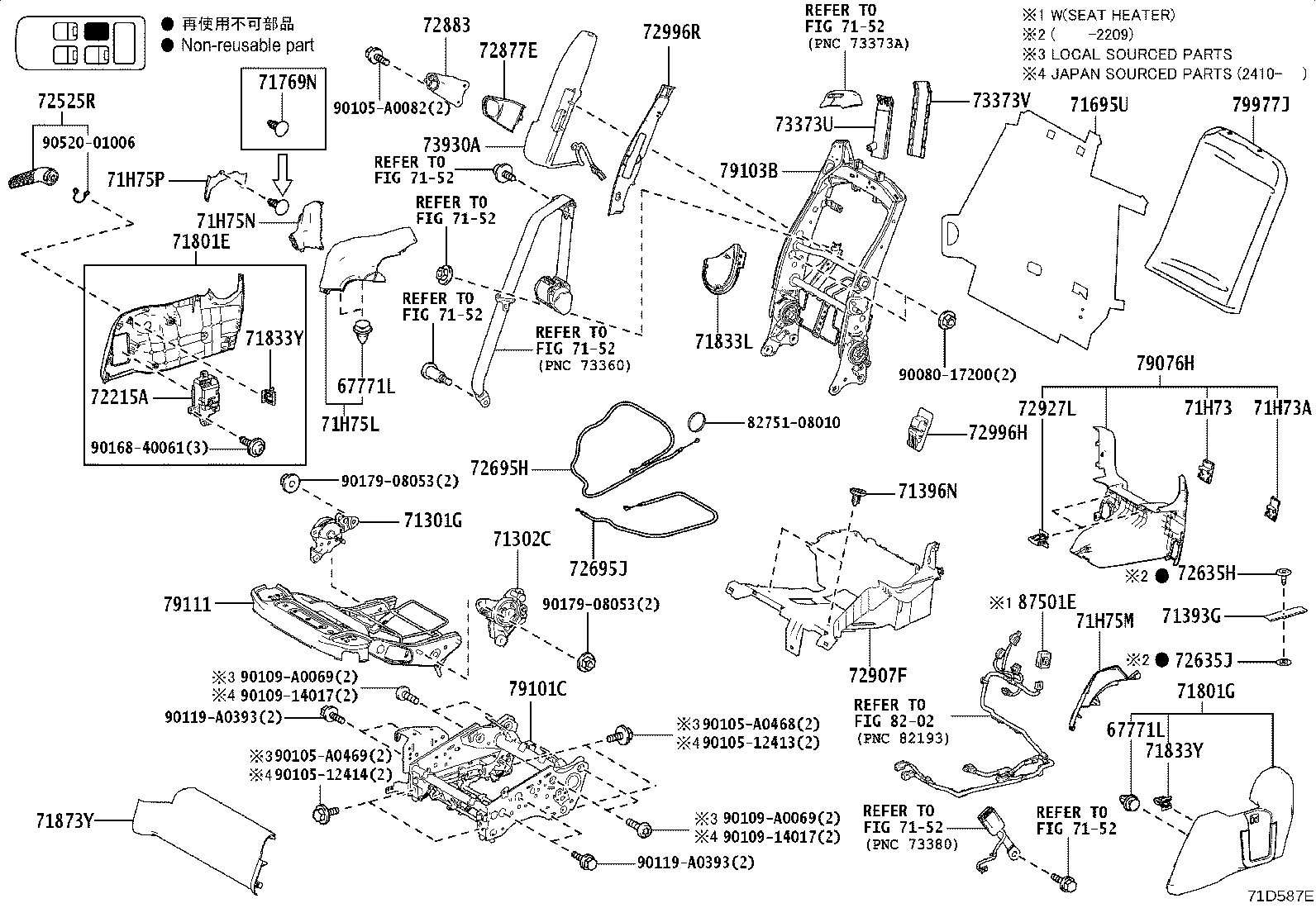

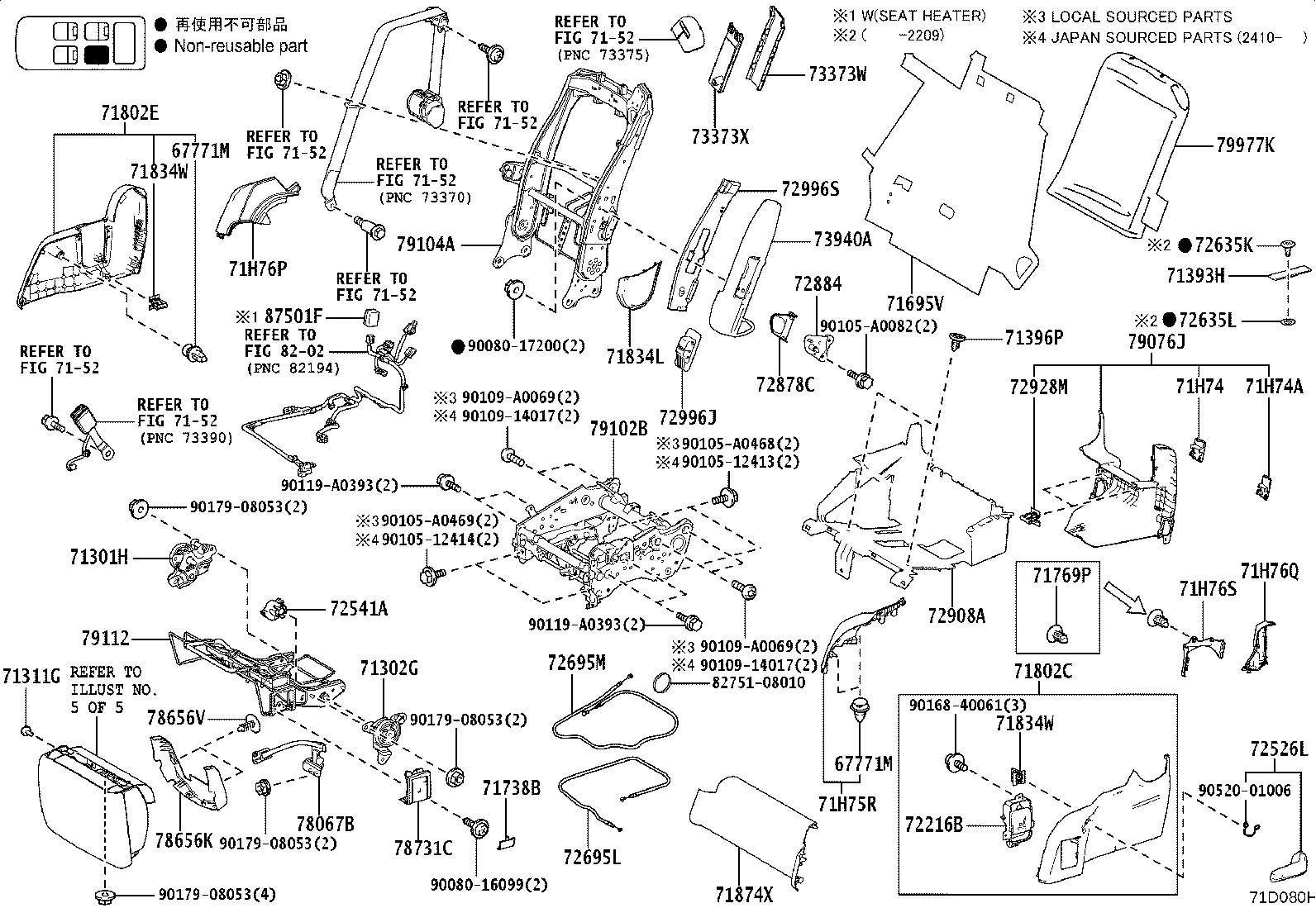

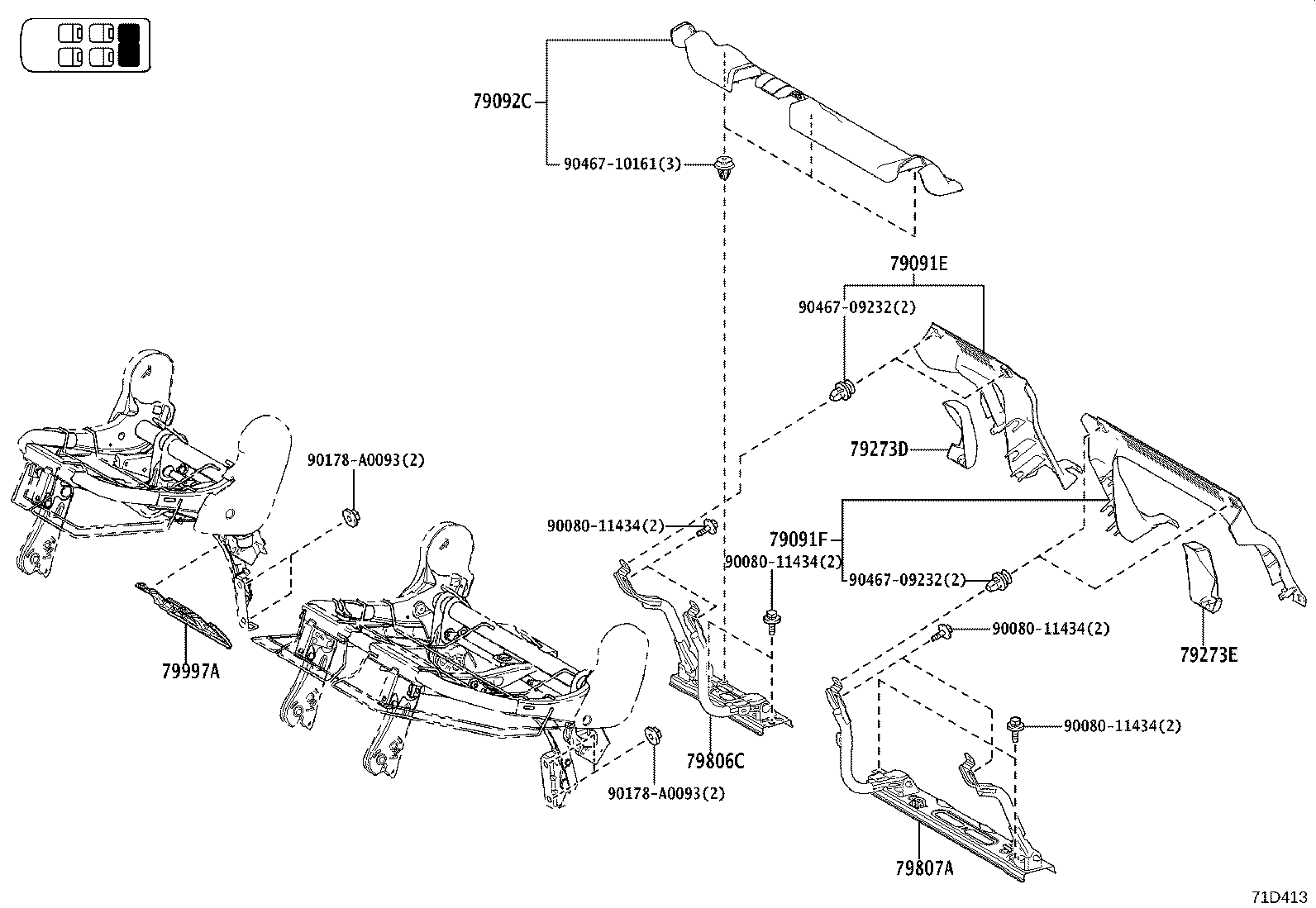

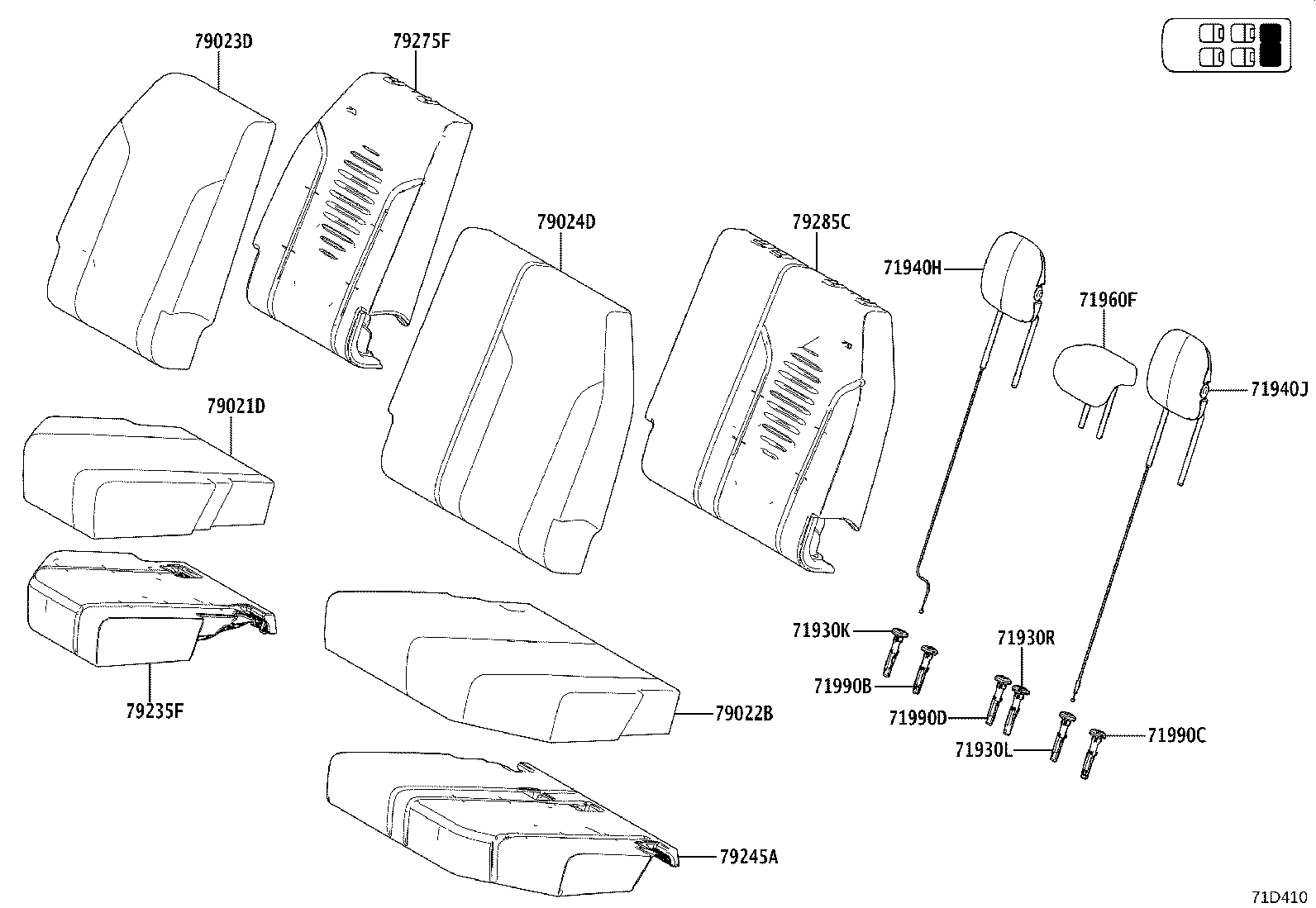

Rear Seat & Seat Track

277 part groups · 17 illustrations

Illustrations

Part groups

PNC	Description
67771L	Retainer, Reclining Adjuster Cover, RH
67771M	Retainer, Reclining Adjuster Cover, LH
71033F	Leg Sub-assy, Rear Seat Cushion, RH
71033G	Leg Sub-assy, Rear Seat Cushion, LH
71077	Cover Sub-assy, Rear NO.1 Seatback, RH
71078A	Cover Sub-assy, Rear NO.1 Seatback, LH
71273A	Panel, Rear NO.2 Seatback, RH
71274C	Panel, Rear NO.2 Seatback, LH
71301G	Hinge Sub-assy, Rear NO.1 Seat, RH(FOR RH SEAT)
71301H	Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
71302C	Hinge Sub-assy, Rear NO.1 Seat, LH(FOR RH SEAT)
71302G	Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
71305G	Stay Sub-assy, Rear NO.2 Seat(FOR RH SEAT)
71305H	Stay Sub-assy, Rear NO.2 Seat(FOR LH SEAT)
71307H	Bracket Sub-assy, Rear NO.1 Seat Cushion Holder(FOR LH SEAT)
71311F	Pin, Rear Seat Hinge, RH
71311G	Pin, Rear Seat Hinge, LH
71332F	Spacer, Rear Seatback Hinge
71393G	Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H	Band, NO.1 Seat Cushion(FOR LH SEAT)
71393J	Band, Rear NO.1 Seat Cushion(FOR LH SEAT)
71393K	Band, Rear NO.1 Seat Cushion, Center
71393L	Band, Rear NO.1 Seatback, LH
71396N	Cushion, NO.1 Seat Support, Rear(FOR RH SEAT)
71396P	Cushion, NO.1 Seat Support, Rear(FOR LH SEAT)
71396Q	Cushion, NO.1 Seat Support, Center
71396R	Cushion, NO.2 Seat Support, Rear(FOR RH SEAT)
71396S	Cushion, NO.2 Seat Support, Rear(FOR LH SEAT)
71398Q	Cover, Center Seat Hinge, Upper LH
71462A	Spring, Rear Seat Cushion, NO.2(FOR RH SEAT)
71462B	Spring, Rear Seat Cushion, NO.2(FOR LH SEAT)
71651A	Pad, Rear NO.1 Seatback, RH
71652A	Pad, Rear NO.1 Seatback, LH
71695U	Protector, NO.1 Seatback Stay(FOR RH SEAT)
71695V	Protector, NO.1 Seatback Stay(FOR LH SEAT)
71708F	Strap Sub-assy, Seat Cover
71738A	Cover, Seat Fastener, RH
71738B	Cover, Seat Fastener, LH
71757B	Cover, Rear NO.2 Seatback Board, RH
71758C	Cover, Rear NO.2 Seatback Board, LH
71769N	Clip, Rear Seat Cover, RH
71769P	Clip, Rear Seat Cover, LH
71801E	Cover Sub-assy, NO.1 Seat Reclining Adjuster, RH
71801G	Cover Sub-assy, Reclining Adjuster, RH Inner
71802C	Cover Sub-assy, Reclining Adjuster, LH
71802E	Cover Sub-assy, Reclining Adjuster, LH Inner
71833L	Cover, Rear Seat Reclining, RH
71833S	Cover, Rear Seat Reclining, NO.1 RH
71833Y	Clip, NO.1 Seat Reclining Cover(FOR RH SEAT)
71834L	Cover, Rear Seat Reclining, LH
71834S	Cover, Rear Seat Reclining, NO.1 LH
71834W	Clip, NO.1 Seat Reclining Cover(FOR LH SEAT)
71843G	Cover, NO.2 Seat Reclining, NO.2 RH Outer
71843H	Cover, NO.2 Seat Reclining, NO.2 RH Inner
71844F	Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844K	Cover, Rear NO.2 Seat Reclining, NO.2 LH
71865D	Bezel, Rear NO.1 Seat Cover, NO.1 Center
71866E	Bezel, Rear NO.2 Seat Cover, NO.2(FOR RH SEAT)
71866F	Bezel, Rear NO.2 Seat Cover, NO.2(FOR LH SEAT)
71873Y	Shield, Rear Seat Cushion, Lower
71874X	Shield, Rear Seat Cushion, Lower LH
71881E	Board, Rear NO.1 Seatback, Center
71898C	Hook, Seat Cover
71930H	Support Assy, NO.1 Seat Headrest, RH
71930J	Support Assy, NO.1 Seat Headrest, LH
71930K	Support Assy, NO.2 Seat Headrest, RH
71930L	Support Assy, NO.2 Seat Headrest, LH
71930R	Support Assy, Rear NO.2 Seat Headrest, Center
71930S	Support Assy, Rear NO.1 Seat Headrest, Center
71931H	Support, NO.1 Seat Footrest(FOR RH SEAT)
71931J	Support, NO.1 Seat Footrest(FOR LH SEAT)
71940F	Headrest Assy, NO.1 Seat, RH
71940G	Headrest Assy, NO.1 Seat, LH
71940H	Headrest Assy, NO.2 Seat, RH
71940J	Headrest Assy, NO.2 Seat, LH
71960F	Headrest Assy, Rear NO.2 Seat, Center
71960G	Headrest Assy, Rear NO.1 Seat, Center
71990B	Support Assy, Rear NO.2 Seat Headrest, RH
71990C	Support Assy, Rear NO.2 Seat Headrest, LH
71990D	Support Assy, Rear NO.2 Seat Headrest, Center
71H73	Shield, Rear Seat Cushion, Lower RH
71H73A	Shield, Rear NO.1 Seat Cushion, Lower
71H74	Shield, Rear Seat Cushion, Lower LH
71H74A	Shield, NO.1 Seat Cushion, Lower LH
71H74E	Shield, NO.1 Seat Cushion, Lower LH(FOR LH SEAT)
71H74F	Shield, Rear Seat Cushion, Lower Center
71H75L	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M	Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75N	Cover, Reclining Adjuster Inside, RH NO.3(FOR RH SEAT)
71H75P	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75R	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H76P	Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71H76Q	Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT)
71H76S	Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
72053E	Lever Sub-assy, Reclining Remote Control, RH
72054C	Lever Sub-assy, Reclining Remote Control, LH
72069B	Cable Sub-assy, Rear Seatback Lock Control(FOR RH SEAT)
72069C	Cable Sub-assy, Rear Seatback Lock Control(FOR LH SEAT)
72215A	Lever, NO.1 Seat Track Handle Control, RH
72216B	Lever, NO.1 Seat Track Handle Control, LH
72383A	Pulley, Reclining Handle, NO.1
72507F	Handle Sub-assy, Rear Seat Reclining Release
72507G	Handle Sub-assy, Reclining Release, LH
72510J	Adjuster Assy, Reclining Seat, RH(FOR RH SEAT)
72510K	Adjuster Assy, Reclining Seat, RH(FOR LH SEAT)
72520H	Adjuster Assy, Reclining Seat, LH(FOR RH SEAT)
72520J	Adjuster Assy, Reclining Seat, LH(FOR LH SEAT)
72525N	Handle, NO.1 Seat Reclining Adjuster Release, RH
72525R	Handle, Reclining Adjuster Release, RH
72526L	Handle, Reclining Adjuster Release, LH
72541	Link, Reclining Control, RH
72541A	Link, Reclining Control, LH
72548	Pin, Reclining Control Link, RH
72548A	Pin, Reclining Control Link, LH
72570G	Cable Assy, NO.2 Seat Reclining Adjusting, RH
72570P	Cable Assy, Reclining Adjusting, Center NO.1
72570Q	Cable Assy, Reclining Adjusting, Center NO.2
72570R	Cable Assy, Reclining Adjusting, Center NO.3
72574A	Lever, Reclining Control, LH
72574B	Lever, Reclining Control, RH
72580E	Cable Assy, Reclining Adjusting, LH
72590F	Cable Assy, Reclining Remote Control, RH
72590G	Cable Assy, Reclining Remote Control, LH
72603B	Lock Sub-assy, Rear NO.1 Seat Cushion(FOR LH SEAT)
72603C	Lock Sub-assy, Rear NO.1 Seatback(FOR LH SEAT)
72635H	Hook, Rear NO.1 Seatback Lock, NO.1(FOR RH SEAT)
72635J	Hook, Rear NO.1 Seatback Lock, NO.2(FOR RH SEAT)
72635K	Hook, Rear NO.1 Seatback Lock, NO.1(FOR LH SEAT)
72635L	Hook, Rear NO.1 Seatback Lock, NO.2(FOR LH SEAT)
72635M	Hook, Rear NO.1 Seat Cushion Lock, Center NO.1
72635N	Hook, Rear NO.1 Seat Cushion Lock, Center NO.2
72637J	Spring, Seatback, RH
72637K	Spring, Seatback, LH
72668M	Bezel, Rear Seatback Lock, Lower LH NO.2
72668N	Bezel, Rear NO.1 Seatback Lock, Lower(FOR LH SEAT)
72689C	Roller, Rear Seat Cushion, Lower
72689D	Roller, Rear Seat Cushion, Lower(FOR LH SEAT)
72695H	Cable, Rear NO.1 Seat Lock Control, RH
72695J	Cable, Rear NO.1 Seat Lock Control, RH(FOR SLIDE)
72695K	Cable, Rear NO.1 Seat Lock Control, RH(FOR RECLINING)
72695L	Cable, Rear NO.1 Seat Lock Control, LH(FOR SLIDE)
72695M	Cable, Rear NO.1 Seat Lock Control, LH
72695N	Cable, Rear NO.1 Seat Lock Control, LH(FOR RECLINING)
72735A	Lever, Rear NO.1 Seat Reclining Release, RH
72736A	Lever, Rear NO.1 Seat Reclining Release, LH
72749G	Spacer, Rear Seat Reclining, RH
72749H	Spacer, Rear Seat Reclining, LH
72830U	Armrest Assy, Rear Seat, RH
72830V	Armrest Assy, Rear NO.1 Seat, RH
72840J	Armrest Assy, Rear Seat, LH
72840K	Armrest Assy, Rear NO.1 Seat, LH
72848C	Cap, NO.1 Seat Armrest, NO.1 RH
72848D	Cap, NO.1 Seat Armrest, NO.1 LH
72877E	Cover, NO.1 Seat Armrest, RH
72878C	Cover, NO.1 Seat Armrest, LH
72883	Bracket, Rear Seat Center Armrest, RH
72884	Bracket, Rear Seat Center Armrest, LH
72907F	Cover Sub-assy, Rear NO.1 Seat Cushion Under, RH
72908A	Cover Sub-assy, Rear NO.1 Seat Cushion Under, LH
72927F	Cover, Rear Seat Cushion Under, RH
72927H	Cover, Rear NO.1 Seat Cushion Under, RH NO.1
72927J	Cover, Rear NO.1 Seat Cushion Under, RH NO.2
72927K	Cover, Rear NO.1 Seat Cushion Under, RH NO.3
72927L	Clip (FOR REAR SEAT CUSHION UNDER COVER)
72928E	Cover, Rear Seat Cushion Under, LH
72928G	Cover, Rear NO.1 Seat Cushion Under, LH NO.1
72928H	Cover, Rear NO.1 Seat Cushion Under, LH NO.2
72928J	Cover, Rear NO.1 Seat Cushion Under, LH NO.3
72928K	Cover, Rear NO.1 Seat Cushion Under, LH NO.4
72928L	Cover, Rear NO.1 Seat Cushion Under, LH NO.5
72928M	Clip, Rear NO.1 Seat Cushion Under Cover
72996H	Cover, Rear Seatback
72996J	Cover, Rear Seatback, NO.2
72996M	Cover, Rear NO.1 Seatback, Center NO.1(FOR LH SEAT)
72996N	Cover, Rear NO.1 Seatback, Center NO.2(FOR LH SEAT)
72996P	Cover, Rear NO.1 Seatback, Center NO.3(FOR LH SEAT)
72996Q	Cover, Rear NO.1 Seatback, Center NO.4(FOR LH SEAT)
72996R	Cover, Rear NO.1 Seatback, RH
72996S	Cover, Rear NO.1 Seatback, LH
72997G	Cover, Rear NO.1 Seatback, LH NO.1
72997H	Cover, Rear NO.1 Seatback, LH NO.2
72998E	Clip, Rear Seat Cushion Cover, LH
73115A	Clip, Belt Comfort, NO.1
73373U	Cover, NO.1 Seat Shoulder Belt, RH NO.1
73373V	Cover, NO.1 Seat Shoulder Belt, RH NO.2
73373W	Cover, NO.1 Seat Shoulder Belt, LH NO.2
73373X	Cover, NO.1 Seat Shoulder Belt, LH NO.1
73375N	Cover, Rear NO.1 Seat Shoulder Belt, LH NO.1
73375S	Cover, Rear NO.1 Seat Shoulder Belt, LH NO.2
73930A	Airbag Assy, Rear Seat, RH
73940A	Airbag Assy, Rear Seat, LH
78067A	Bracket Sub-assy, Rear Seat Legrest, Outer(FOR RH SEAT)
78067B	Bracket Sub-assy, Rear Seat Legrest, Outer(FOR LH SEAT)
78608C	Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D	Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78608F	Cable Sub-assy, Legrest Lock Control, NO.2(FOR RH SEAT)
78608G	Cable Sub-assy, Legrest Lock Control, NO.3(FOR RH SEAT)
78608J	Cable Sub-assy, Legrest Lock Control, NO.2(FOR LH SEAT)
78608K	Cable Sub-assy, Legrest Lock Control, NO.3(FOR LH SEAT)
78609A	Cover Sub-assy, Rear Seat Legrest Lock(FOR RH SEAT)
78609B	Cover Sub-assy, Rear Seat Legrest Lock(FOR LH SEAT)
78656J	Cover, Rear Seat Legrest, RH
78656K	Cover, Rear Seat Legrest, LH
78656N	Cover, Rear Seat Legrest, RH NO.2
78656P	Cover, Rear Seat Legrest, LH NO.2
78656Q	Cover, NO.1 Seat Legrest, RH NO.3
78656R	Cover, NO.1 Seat Legrest, LH NO.3
78656U	Clip, NO.1 Seat Legrest Cover(FOR RH SEAT)
78656V	Clip, NO.1 Seat Legrest Cover(FOR LH SEAT)
78731B	Lever, Sub Seat Cushion(FOR RH SEAT)
78731C	Lever, Sub Seat Cushion(FOR LH SEAT)
78738B	Lock, Sub Seat Cushion, NO.1
78738C	Lock, Sub Seat Cushion, NO.2
78807D	Frame Sub-assy, Assistant Seatback, NO.1
78807E	Frame Sub-assy, Assistant Seatback, NO.2
78910C	Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910D	Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78990B	Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C	Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B	Cover Sub-assy, NO.1 Seat Cushion, RH
79011E	Cover Sub-assy, NO.1 Seat Cushion
79012A	Cover Sub-assy, NO.1 Seat Cushion, LH
79013E	Cover Sub-assy, NO.1 Seatback, Center
79021D	Cover Sub-assy, NO.2 Seat Cushion, RH
79022B	Cover Sub-assy, NO.2 Seat Cushion, LH
79023D	Cover Sub-assy, NO.2 Seatback, RH
79024D	Cover Sub-assy, NO.2 Seatback, LH
79076H	Cover Sub-assy, NO.1 Seat Leg, RH
79076J	Cover Sub-assy, NO.1 Seat Leg, LH
79076T	Cover Sub-assy, NO.1 Seat Leg(FOR LH SEAT)
79091E	Garnish Sub-assy, Rear Seat Leg Side, RH
79091F	Garnish Sub-assy, Rear Seat Leg Side, LH
79092C	Garnish Sub-assy, Rear Seat Leg Side, NO.2
79101C	Frame Sub-assy, NO.1 Seat Cushion, RH
79101D	Frame Sub-assy, NO.1 Junior Seat, RH
79102B	Frame Sub-assy, NO.1 Seat Cushion, LH

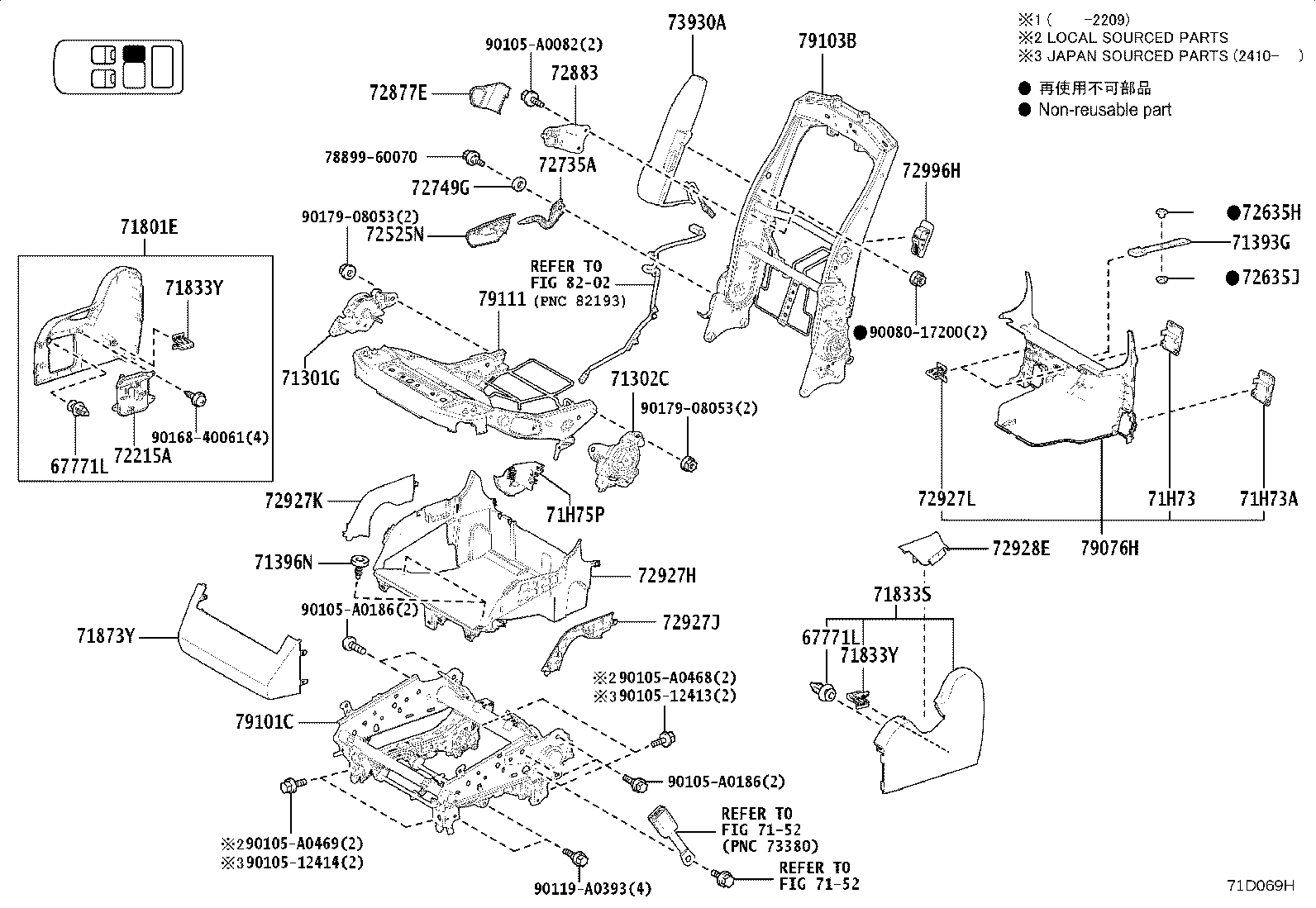

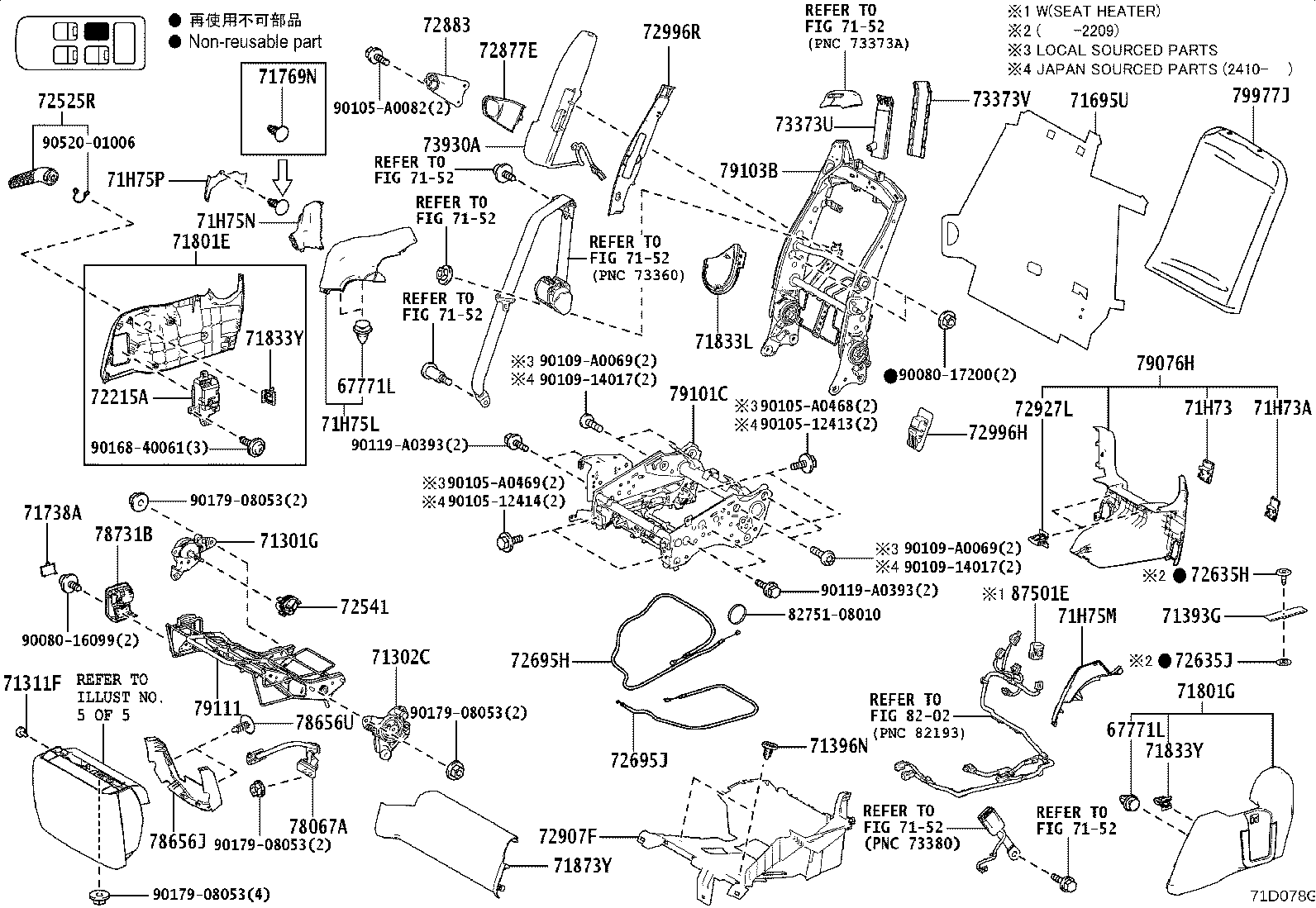

79103B	Frame Sub-assy, NO.1 Seatback, RH
79103C	Frame Sub-assy, NO.1 Seatback, Center

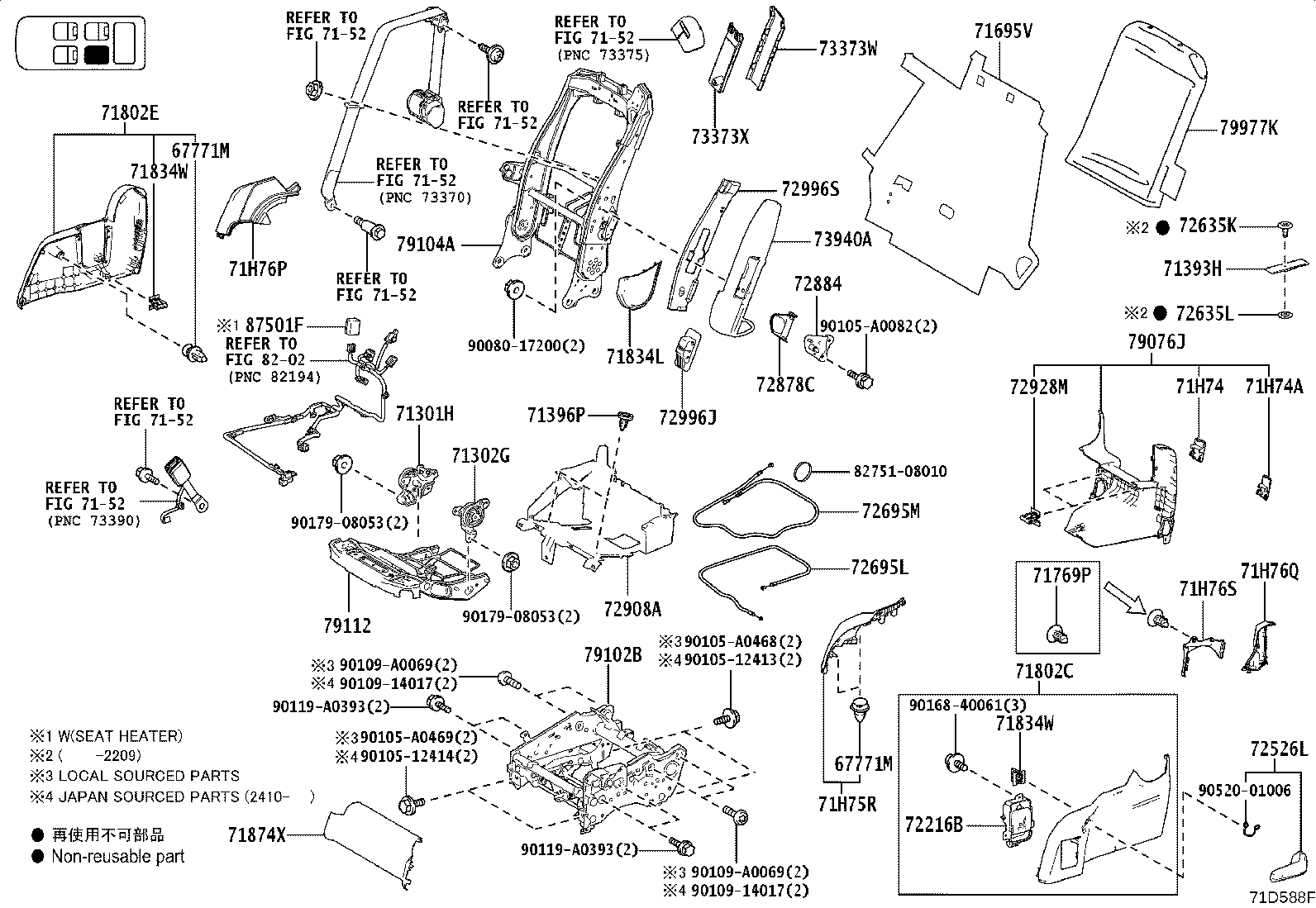

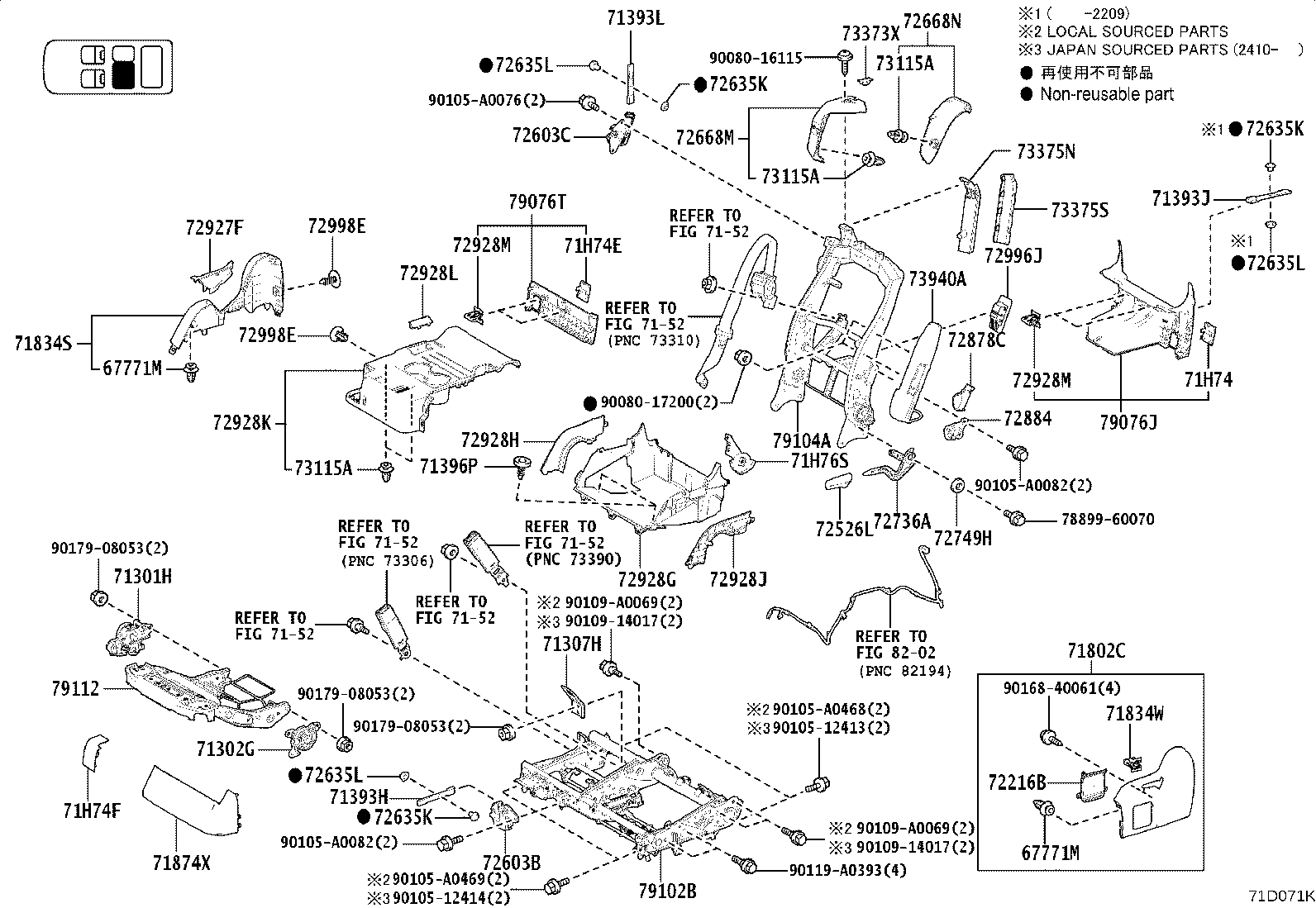

79104A	Frame Sub-assy, NO.1 Seatback, LH
79111	Frame, NO.1 Seat Cushion Side, RH
79112	Frame, NO.1 Seat Cushion, LH
79135C	Pad, NO.1 Seat Cushion, RH
79135E	Pad, NO.1 Seat Cushion, Center
79136C	Pad, NO.1 Seat Cushion, LH
79175G	Pad, NO.1 Seatback, Center
79205C	Leg Sub-assy, NO.2 Seat, RH
79206D	Leg Sub-assy, NO.2 Seat, LH

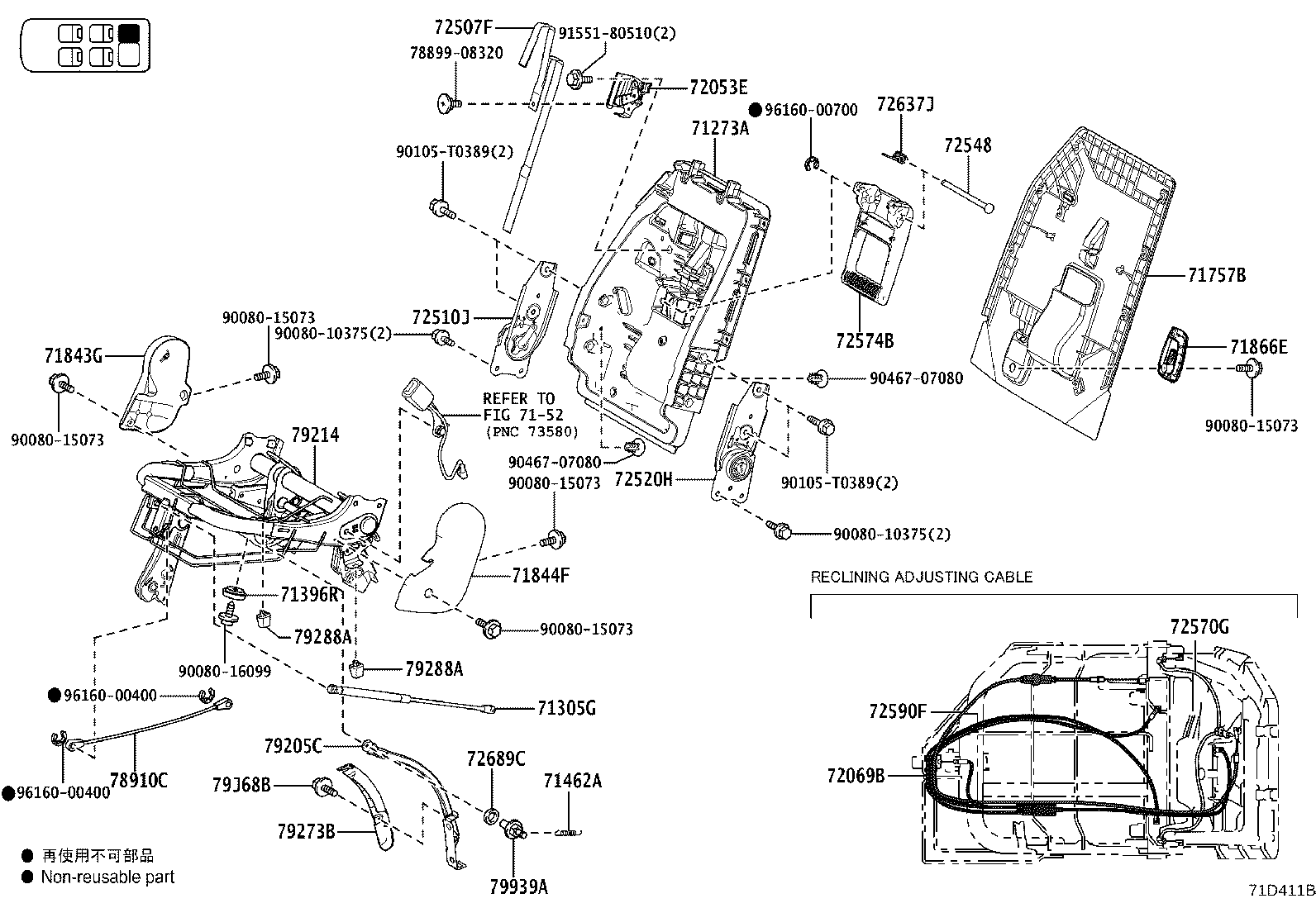

79214	Frame, NO.2 Seat Cushion, Rear RH
79216B	Frame, NO.2 Seat Cushion, Rear LH
79235F	Pad, NO.2 Seat Cushion, RH
79245A	Pad, NO.2 Seat Cushion, LH
79273B	Cover, NO.2 Seat Hinge, NO.3
79273C	Cover, NO.2 Seat Hinge, NO.4
79273D	Cover, NO.2 Seat Hinge, Rear RH
79273E	Cover, NO.2 Seat Hinge, Rear LH
79275F	Pad, NO.2 Seatback, RH
79285C	Pad, NO.2 Seatback, LH
79288A	Stopper, NO.2 Seat Cushion(FOR RH SEAT)
79288B	Stopper, NO.2 Seat Cushion(FOR LH SEAT)
79806C	Leg Sub-assy, Fold Seat, Rear RH
79807A	Leg Sub-assy, Fold Seat, Rear LH
79926B	Cover, Seat Leg Garnish, Center NO.1(FOR LH SEAT)
79926C	Cover, Seat Leg Garnish, Center NO.2(FOR LH SEAT)
79939A	Pin, Seat Hinge, RH
79939B	Pin, Seat Hinge, LH
79977J	Felt, Seatback
79977K	Felt, Seatback, NO.2
79997A	Protector, Seat Leg Box, NO.1
79J68B	Clip
87501E	Control Sub-assy, Seat Heater, RH
87501F	Control Sub-assy, Seat Heater, LH
87510Y	Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z	Heater Assy, Rear NO.1 Seat Cushion, RH

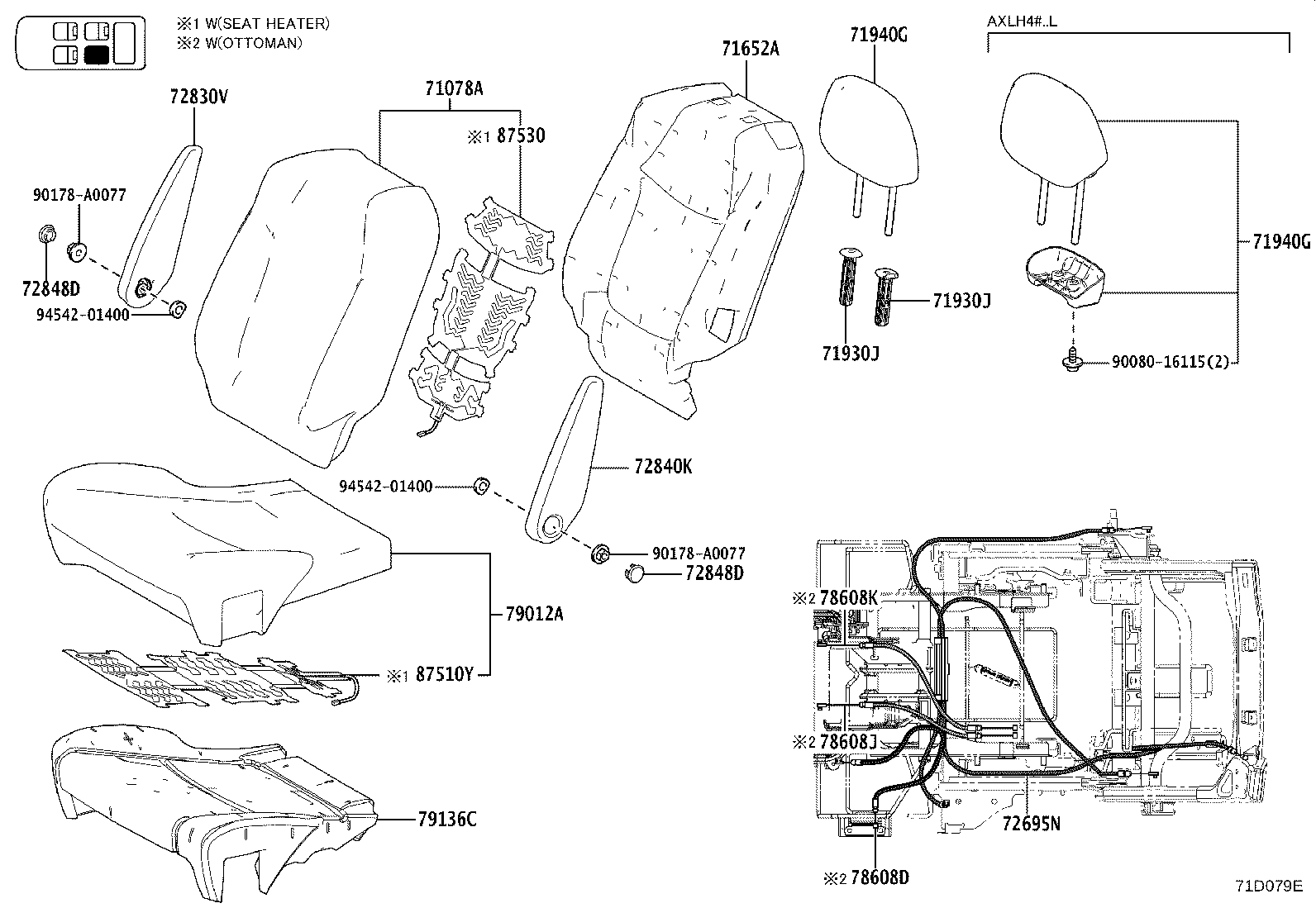

87530	Heater Assy, Rear NO.1 Seatback, LH
87530A	Heater Assy, Rear NO.1 Seatback, RH

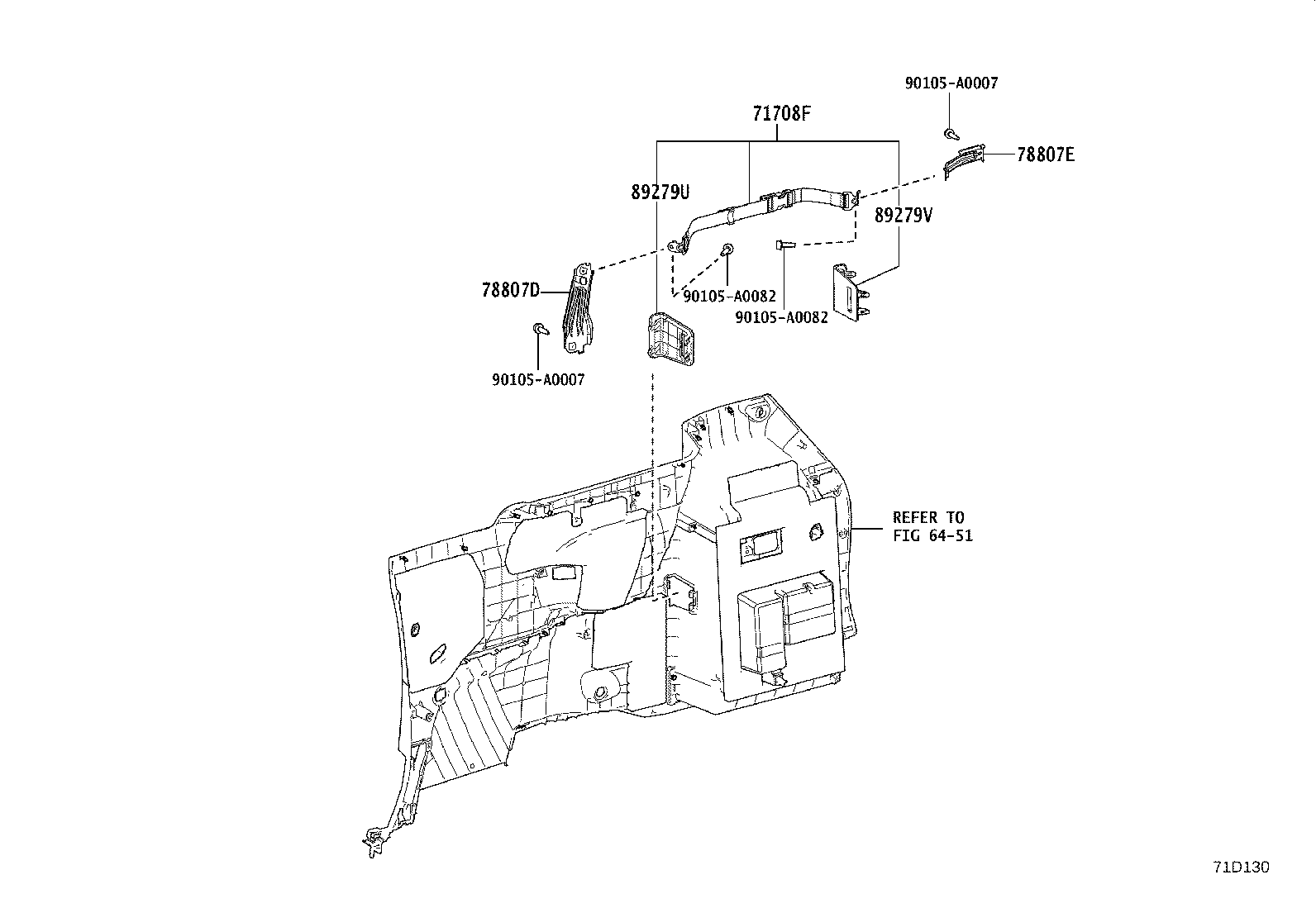

89279U	Cover, NO.2
89279V	Cover, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
