Toyota Sienna

2020-11 → present · chassis AXLH4# · catalogue 622440 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

14 part groups · 4 illustrations

Illustrations

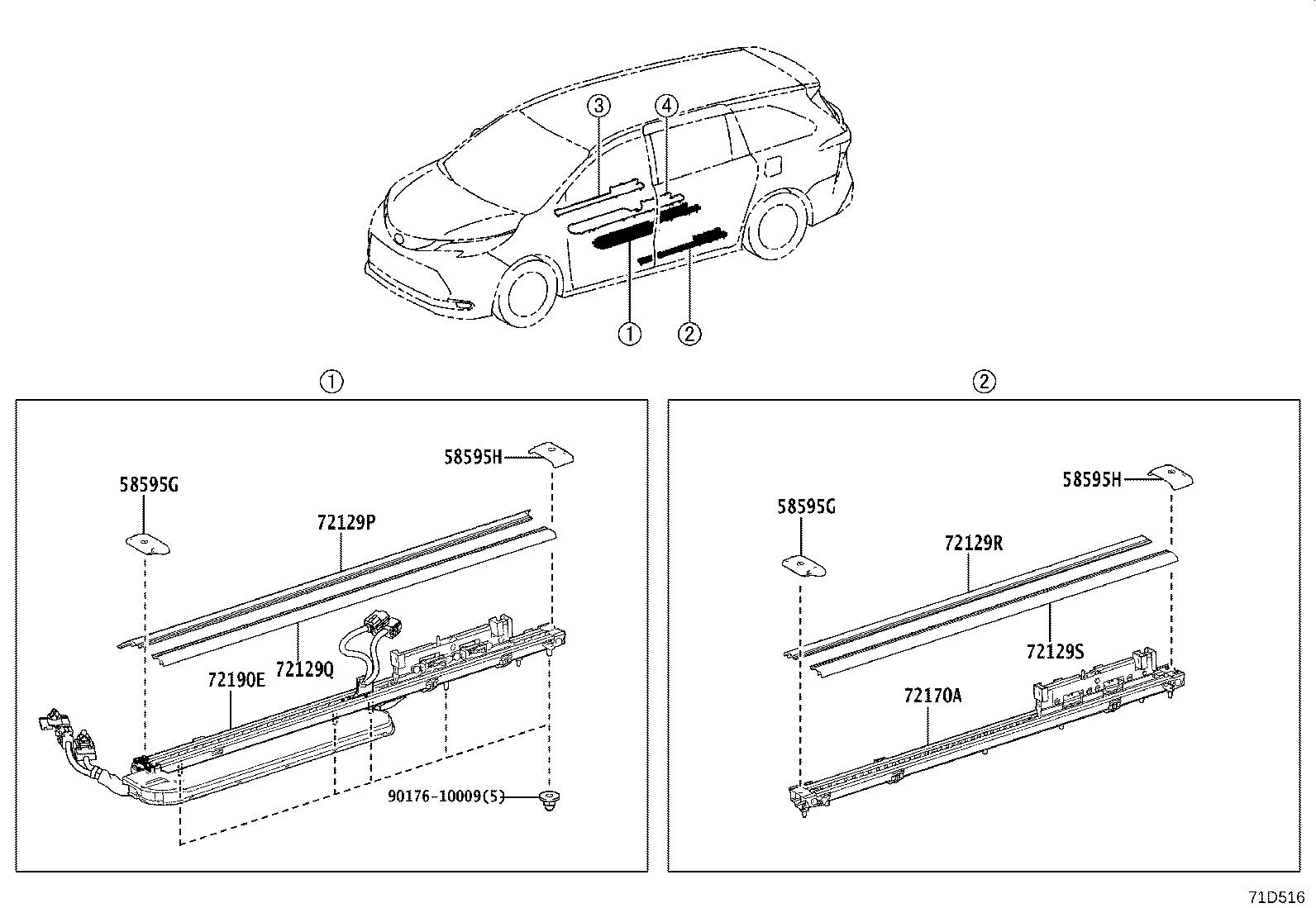

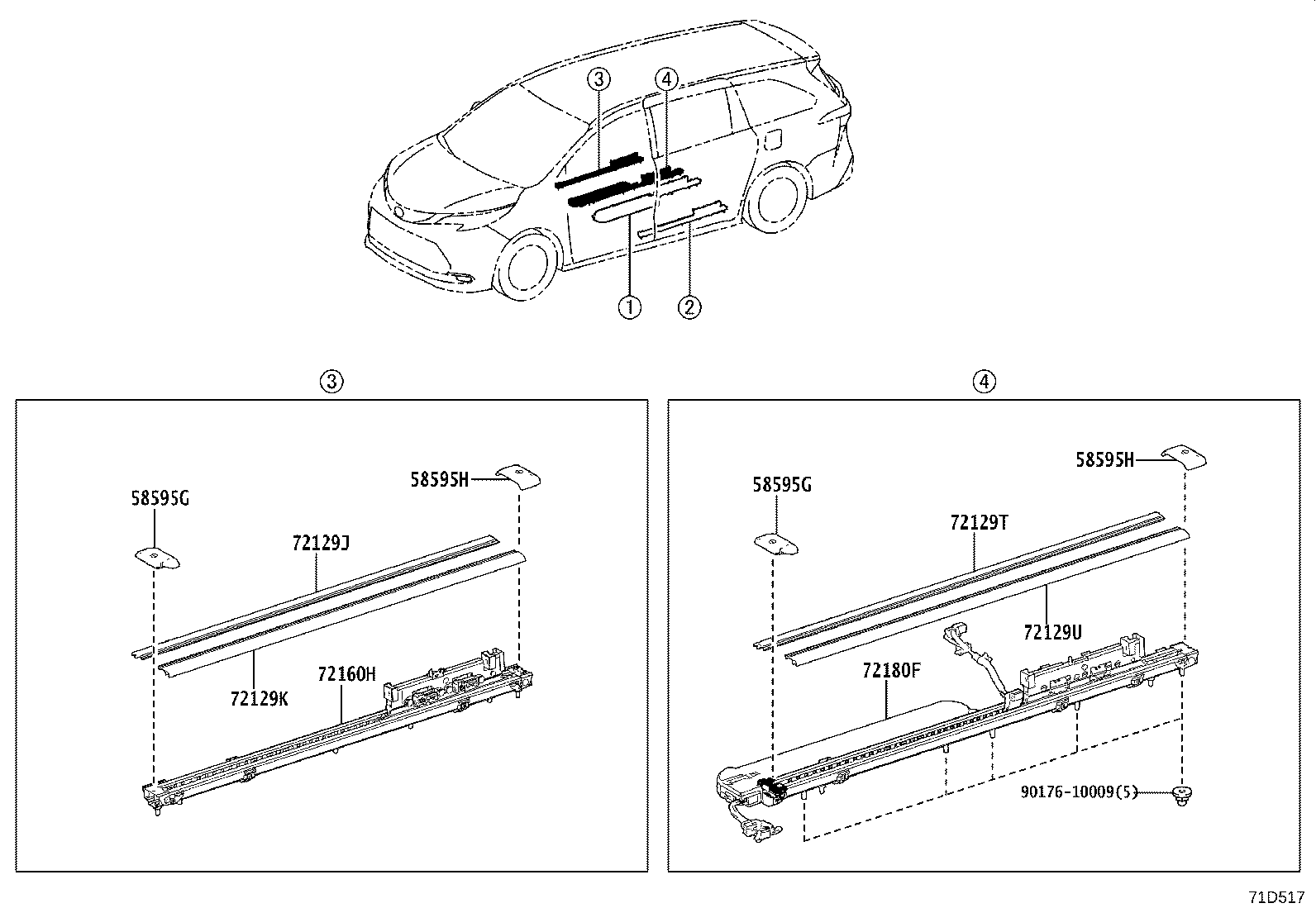

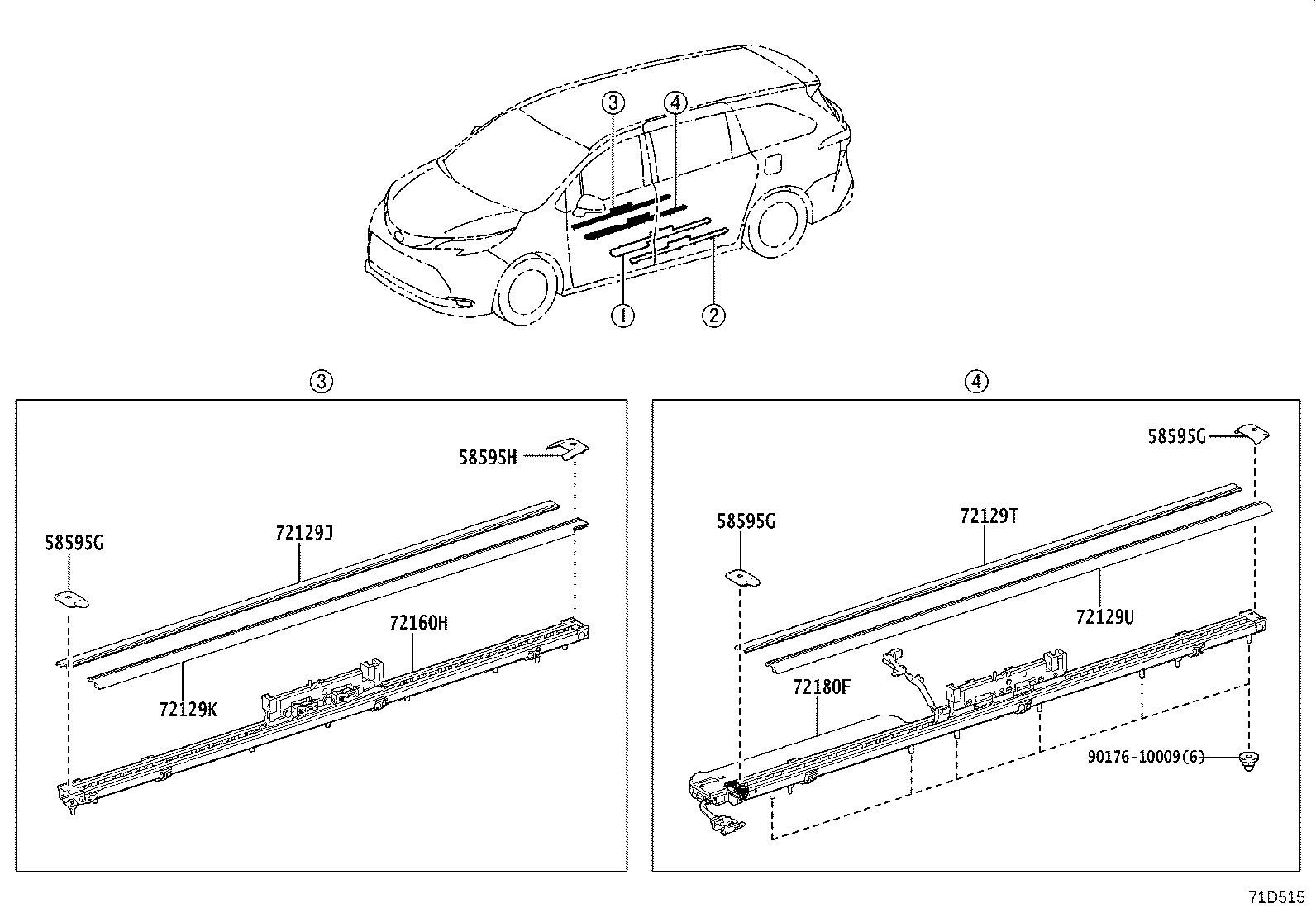

Figure 71D514 71D514 2020-11 → — Figure 71D515 71D515 2020-11 → — Figure 71D516 71D516 2020-11 → — Figure 71D517 71D517 2020-11 → —

Part groups

PNCDescription
58595G Moulding, Floor Carpet, NO.1
58595H Moulding, Floor Carpet, NO.2
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72190E Track Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
