Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09
Armrest & Visor
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74230A | Panel Assy, Front Door Armrest Base, RH |
| 74240A | Panel Assy, Front Door Armrest Base, LH |

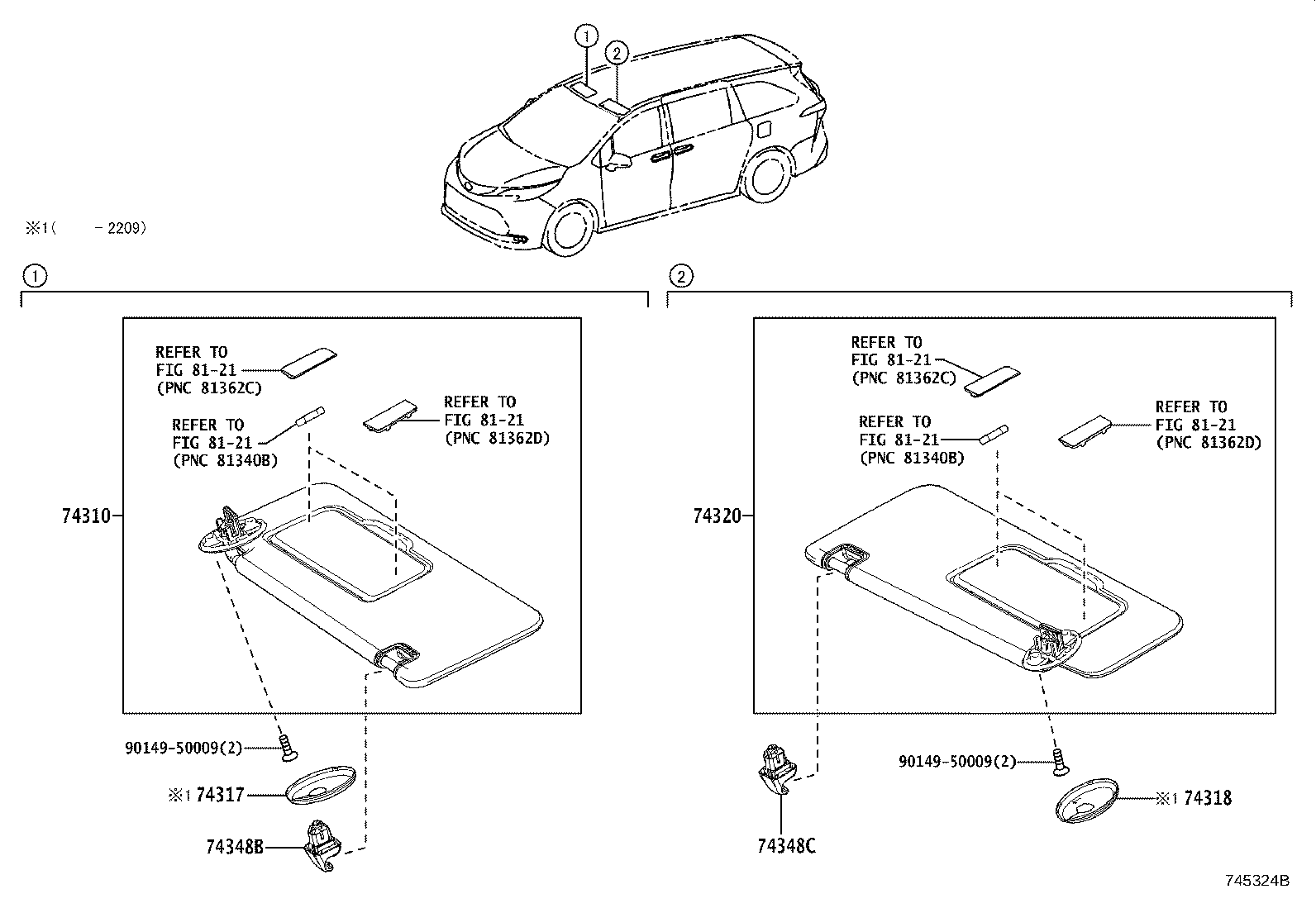

| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |

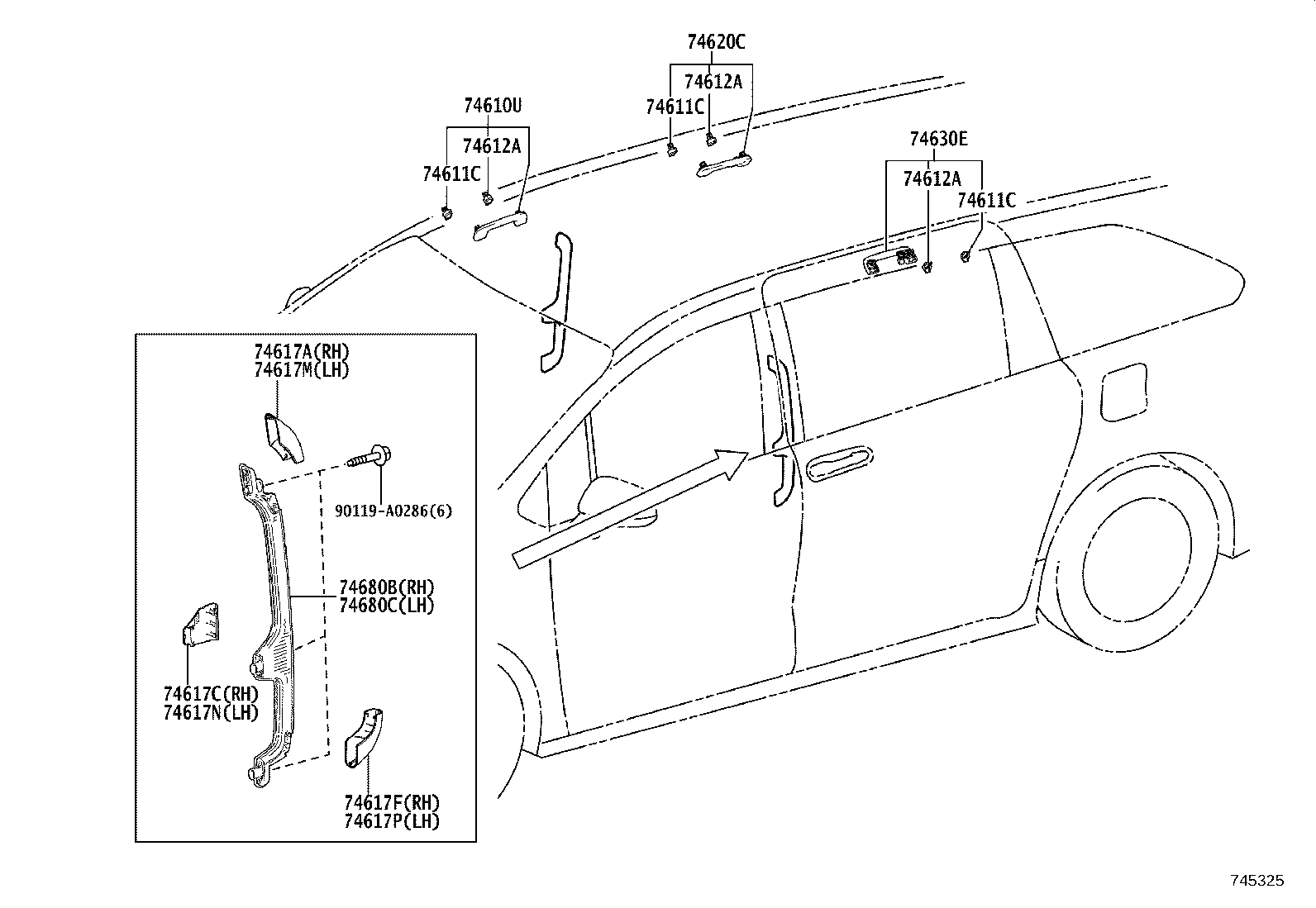

| 74610U | Grip Assy, Assist |
| 74611C | Cover, Assist Grip, LH |
| 74612A | Cover, Assist Grip, RH |
| 74617A | Plug, Assist Grip |
| 74617C | Plug, Assist Grip |
| 74617F | Plug, Assist Grip |
| 74617M | Plug, Assist Grip, NO.1 LH |
| 74617N | Plug, Assist Grip, NO.2 LH |
| 74617P | Plug, Assist Grip, NO.3 LH |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74680B | Grip Assy, Pillar Assist, RH |
| 74680C | Grip Assy, Pillar Assist, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
