Toyota Sienna
2020-11 → present · chassis AXLH4# · catalogue 622440 · United States
Supported model
Data version 2024-09
Camera & Rear Monitor Display

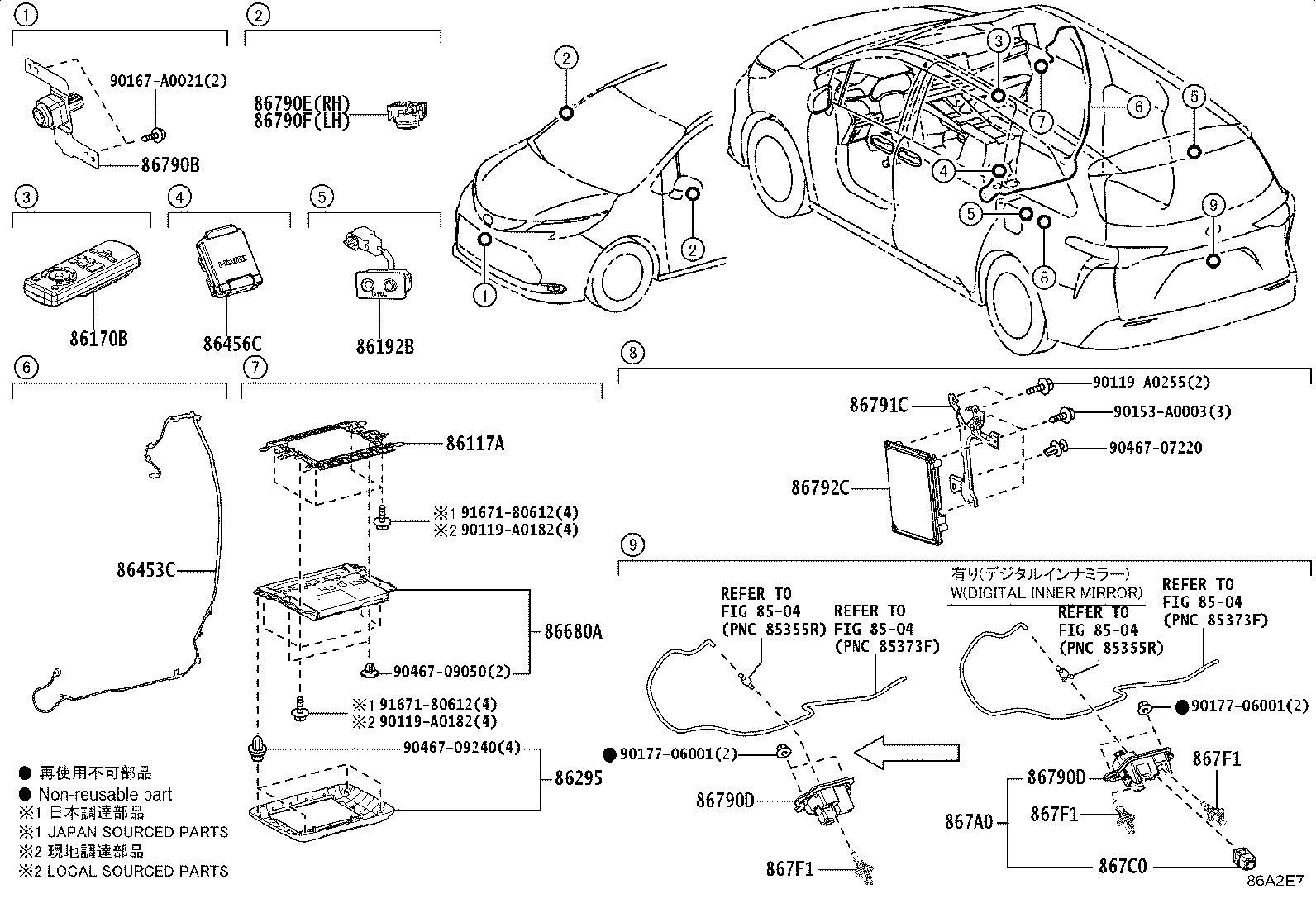

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86117A | Bracket, Television Display, A |
| 86170B | Switch & Volume Assy, Television |
| 86192B | Terminal, Headphone |
| 86295 | Base, Television |
| 86453C | Wire, Multi-media Module |
| 86456C | Cover, Multi-media Module |
| 86680A | Display Assy, Television |
| 86790B | Camera Assy, Television, FR |
| 86790D | Camera Assy, Television, RR |
| 86790E | Camera Assy, Television, Side RH |
| 86790F | Camera Assy, Television, Side LH |
| 86791C | Bracket, Computer Parking Assist, NO.1 |
| 86792C | Computer, Parking Assist |
| 867A0 | Camera Assy, Television & Inner Rear View Mirror |
| 867C0 | Camera Assy, Inner Mirror |
| 867F1 | Nozzle, Camera Cleaner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
