Toyota Sienna

2020-11 → present · chassis AXLH4# · catalogue 622440 · United States

Supported model Data version 2024-09

Heating & Air Conditioning - Cooler Piping

38 part groups · 6 illustrations

PNC	Description

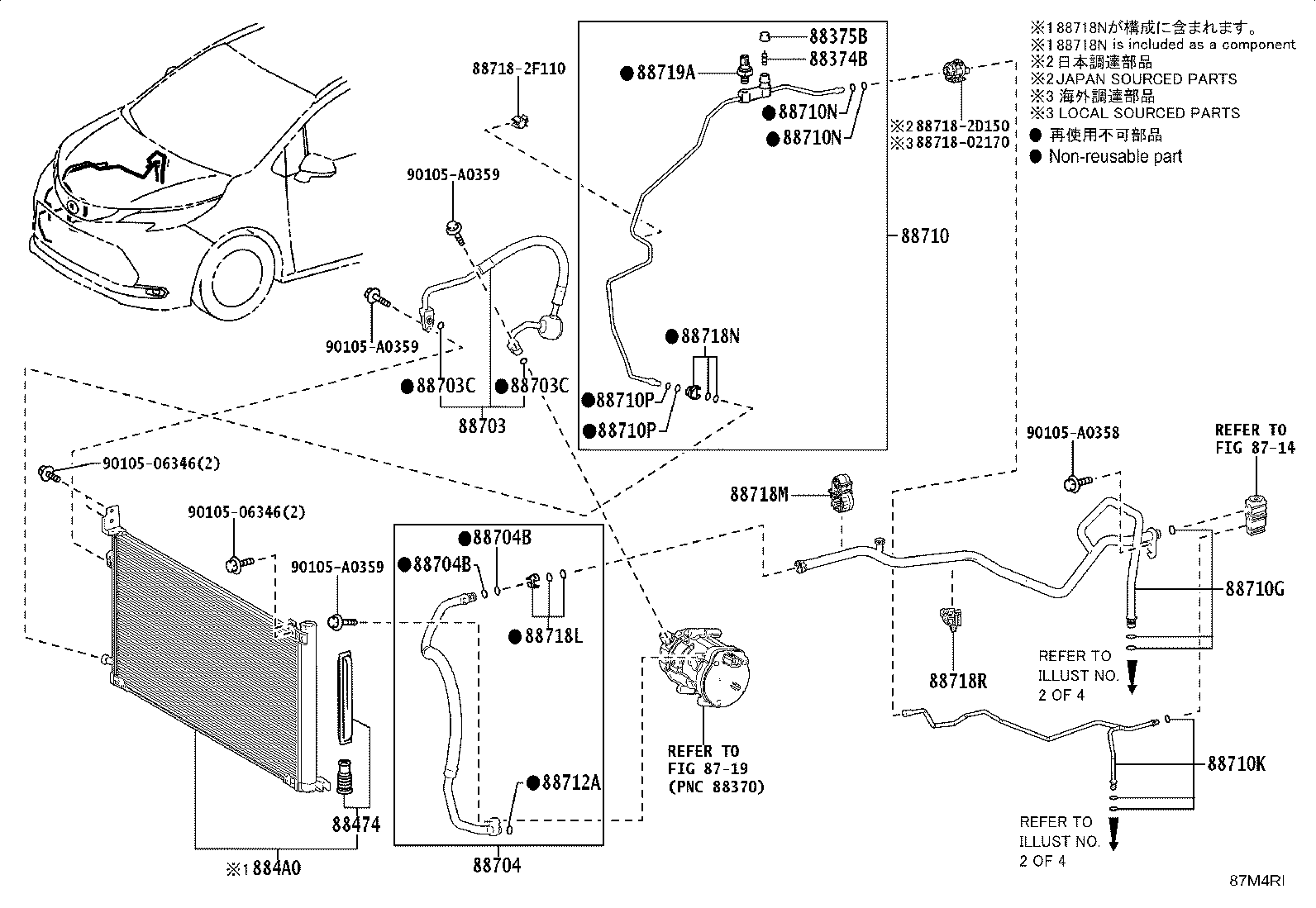

88374B	Valve, Service, NO.1
88374C	Valve, Service, NO.2
88375B	Cap, Service Valve, NO.1
88375D	Cap, Service Valve, NO.2
88474	Dryer, Cooler
884A0	Condenser Assy, Cooler
88703	Hose Sub-assy, Discharge
88703C	Ring, O(FOR DISCHARGE HOSE)
88704	Hose Sub-assy, Suction
88704B	Ring, O(FOR SUCTION HOSE)
88706G	Ring, O(FOR LIQUID TUBE)
88707D	Ring, O(FOR SUCTION TUBE)
88710	Tube Assy, Air Conditioner
88710G	Tube & Accessory Assy, Air Conditioner, NO.2
88710K	Tube & Accessory Assy, Air Conditioner, NO.3
88710N	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710P	Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88710R	Ring, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88710S	Ring, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
88712A	Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)

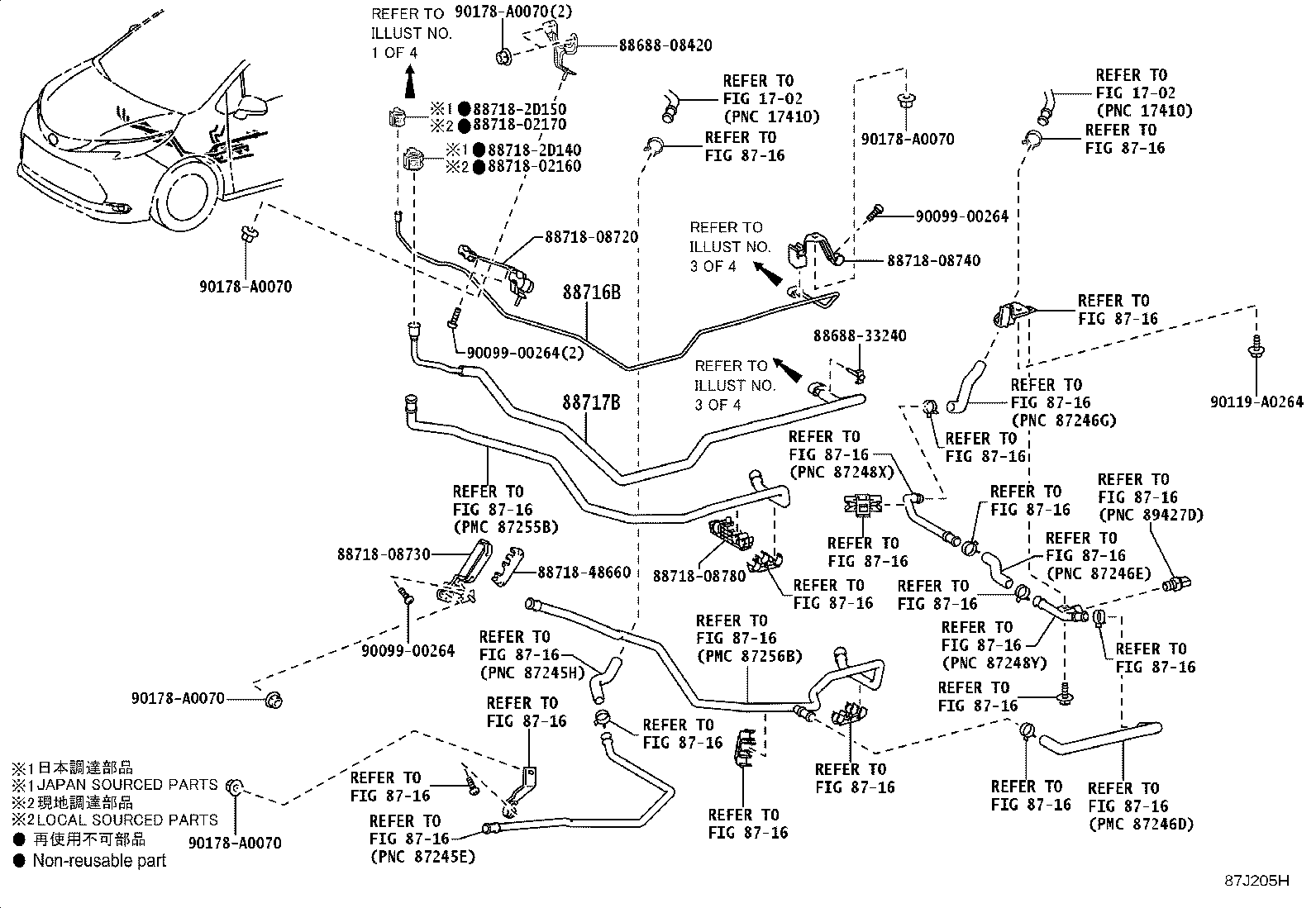

88716B	Pipe, Cooler Refrigerant Liquid, B
88716C	Pipe, Cooler Refrigerant Liquid, C
88716D	Pipe, Cooler Refrigerant Liquid, D
88716U	Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717B	Pipe, Cooler Refrigerant Suction, B
88717C	Pipe, Cooler Refrigerant Suction, C
88717D	Pipe, Cooler Refrigerant Suction, D
88717H	Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717W	Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2
88718L	Clamp, Piping
88718M	Clamp, Piping
88718N	Clamp, Piping
88718Q	Clamp, Piping
88718R	Clamp, Piping
88719A	Sensor, Air Conditioner Pressure

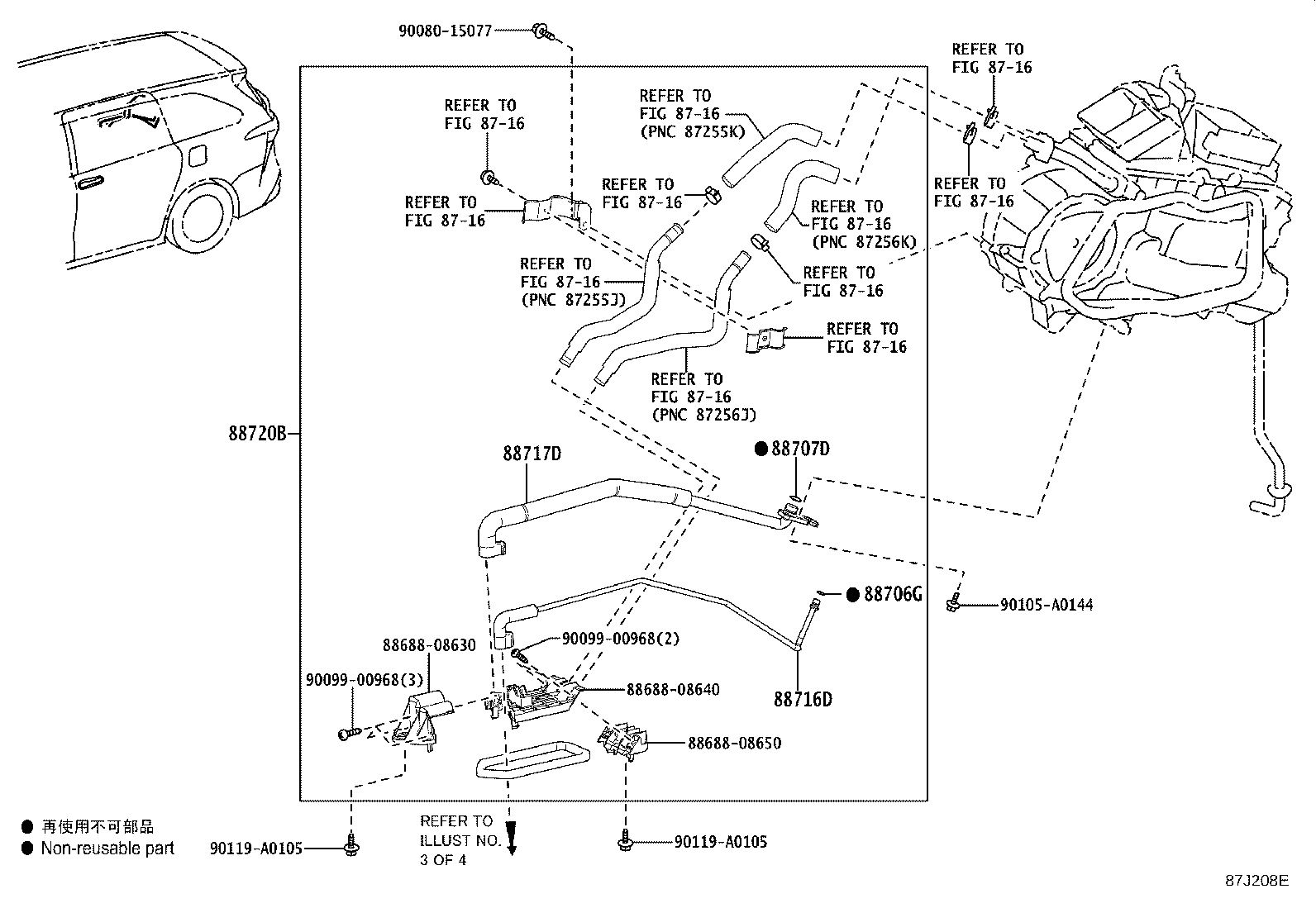

88720B	Hose & Accessory, Air Conditioner

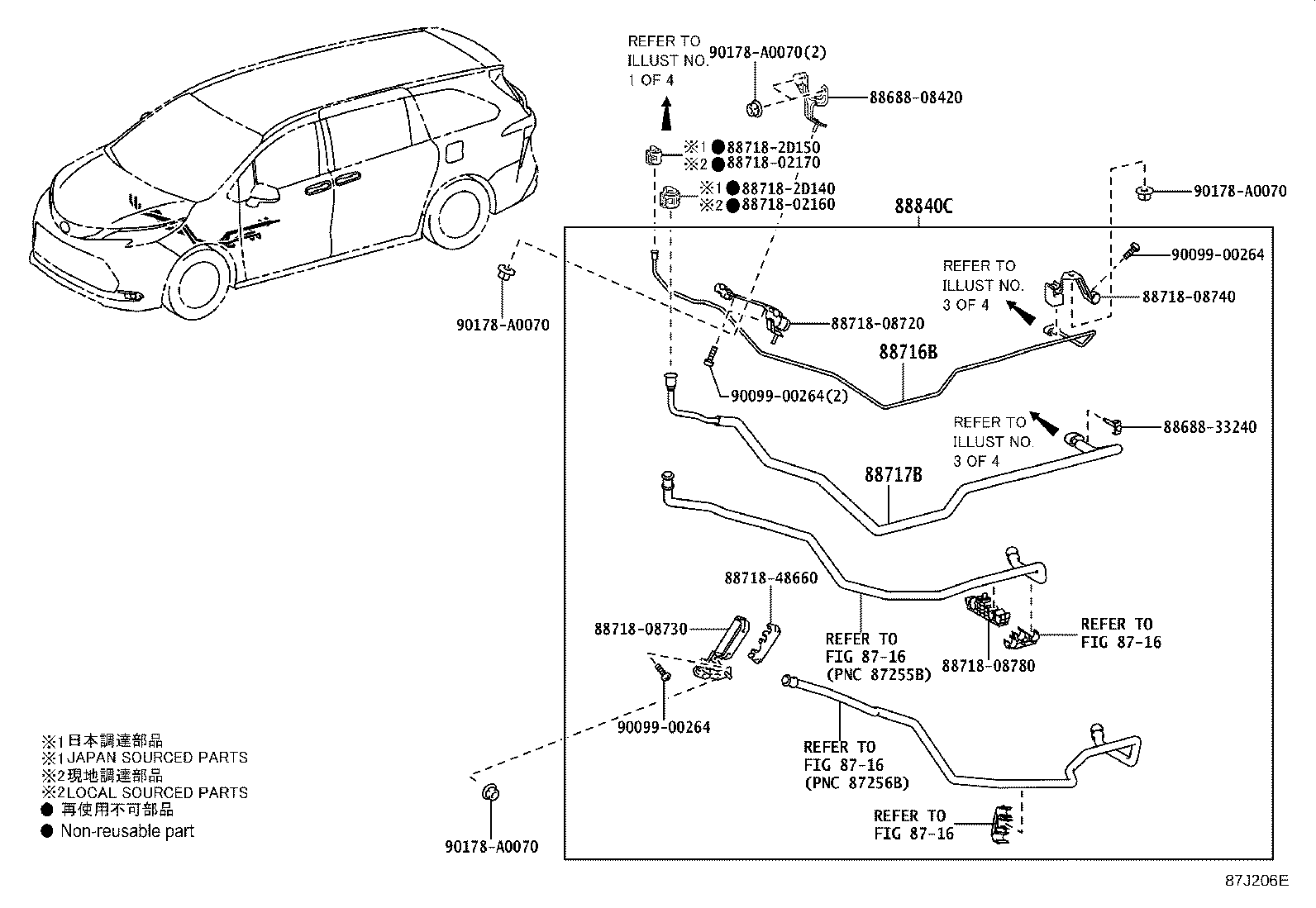

88840C	Accessory Assy, Air Conditioner, NO.1

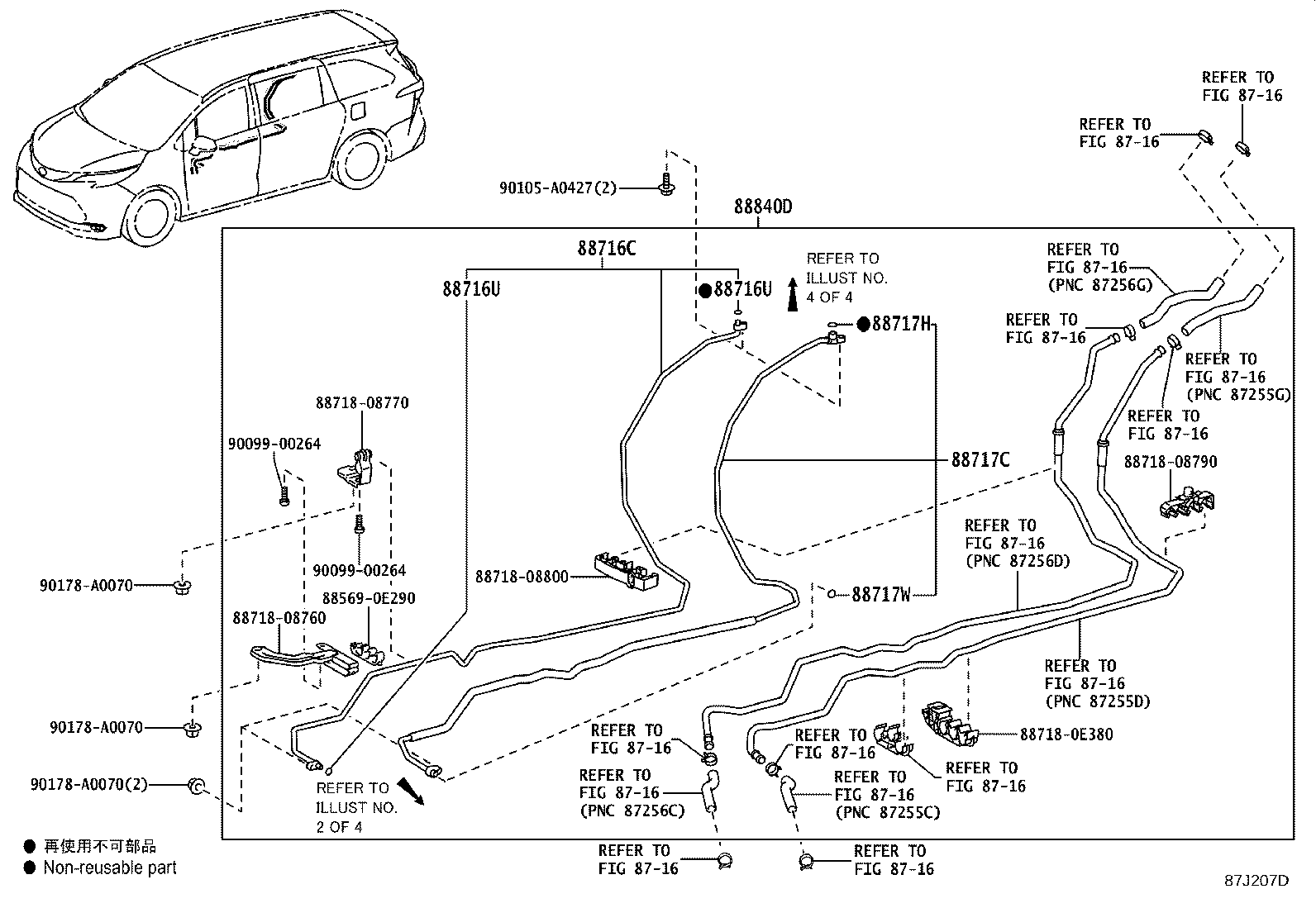

88840D	Accessory Assy, Air Conditioner, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
