Toyota Van
1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · United States
Discontinued model
Data version 1988-12

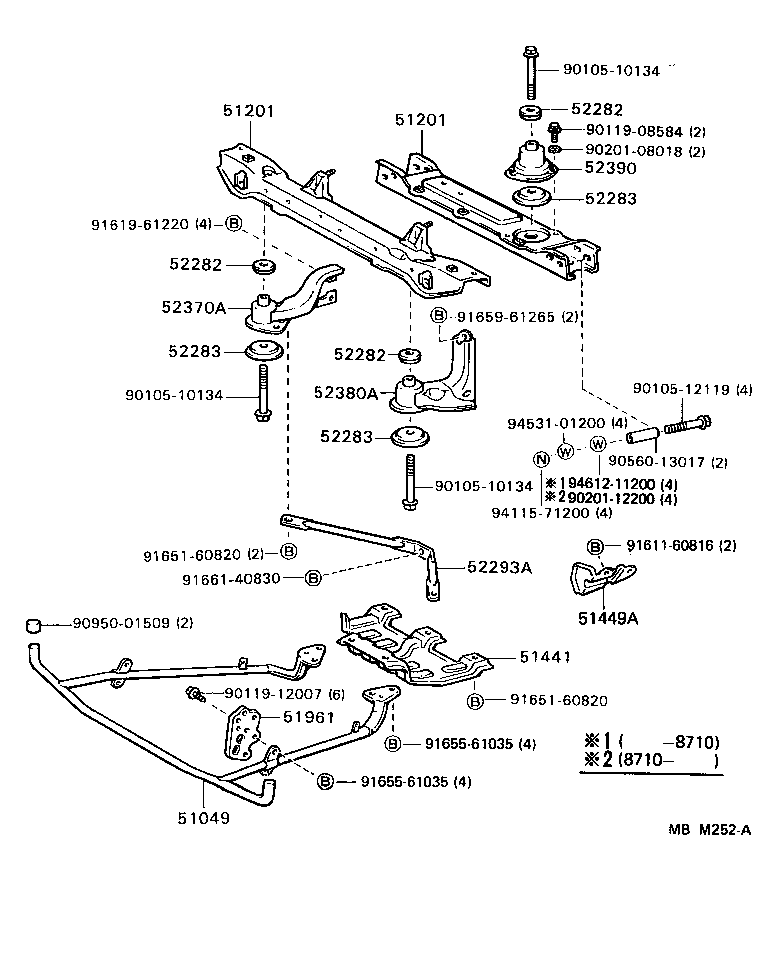

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51049 — Bar Sub-assy, Under Guard, Front | ||||
| 51049-95D00 |
Bar Sub-assy, Under Guard, Front
1986-08 → 1986-12
ended
|
YR3# | — | |
| 51049-95D02 |
Bar Sub-assy, Under Guard, Front
1986-12 → 1988-08
ended
|
YR3# | — | |
| 51201 — Crossmember Sub-assy, Front Suspension | ||||
| 51201-95D01 note |
Crossmember Sub-assy, Front Suspension
1986-08 → 1988-08
ended
|
YR3# | — | |
| 51203-95D00 note |
Crossmember Sub-assy, Front Suspension
1986-08 → 1987-08
ended
|
YR3# | — | |
| 51203-95D01 note |
Crossmember Sub-assy, Front Suspension
1987-08 → 1988-08
ended
|
YR3# | — | |
| 51221-28900 |
Crossmember Sub-assy, Front Suspension
1983-08 → 1985-08
ended
|
YR2# | — | |
| 51221-28901 |
Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08
ended
|
YR2# | — | |
| 51221-28902 note |
Crossmember Sub-assy, Front Suspension
1985-08 → 1988-08
ended
|
YR2# | — | |
| 51441 — Cover, Engine Under, NO.1 | ||||
| 51441-87001 note |
Cover, Engine Under, NO.1
1983-08 → 1984-06
ended
|
YR2# | — | |
| 51441-87002 note |
Cover, Engine Under, NO.1
1984-06 → 1988-08
ended
|
YR2# | — | |
| 51441-95D00 |
Cover, Engine Under, NO.1
1986-08 → 1988-08
ended
|
YR3# | — | |
| 51449A — Cover, Engine Side Under, LH | ||||
| 51449-95D00 |
Cover, Engine Side Under, LH
1986-12 → 1988-08
ended
|
YR3# | — | |
| 51961 — Hook, NO.1 | ||||
| 51963-14040 |
Hook, NO.1
1983-08 → 1985-08
ended
|
YR2# | — | |
| 51970-87001 note |
Hook, NO.1
1985-08 → 1988-08
ended
|
YR2# | — | |
| 51970-95D00 note |
Hook, NO.1
1986-08 → 1988-08
ended
|
YR3# | — | |
| 51980-87001 note |
Hook, NO.1
1985-08 → 1988-08
ended
|
YR2# | — | |
| 51980-95D00 note |
Hook, NO.1
1986-08 → 1988-08
ended
|
YR3# | — | |
| 52282 — Stopper, Differential Support Member, Upper | ||||
| 52282-95D00 |
Stopper, Differential Support Member, Upper
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52282-95D01 |
Stopper, Differential Support Member, Upper
1987-07 → 1988-08
ended
|
YR3# | — | |
| 52283 — Stopper, Differential Support Member, Lower | ||||
| 52283-95D00 note |
Stopper, Differential Support Member, Lower
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52283-95D01 note |
Stopper, Differential Support Member, Lower
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52283-95D02 note |
Stopper, Differential Support Member, Lower
1987-07 → 1988-08
ended
|
YR3# | — | |
| 52283-95D03 note |
Stopper, Differential Support Member, Lower
1987-07 → 1988-08
ended
|
YR3# | — | |
| 52293A — Brace, Front Differential Support | ||||
| 52293-95D00 |
Brace, Front Differential Support
1986-08 → 1988-08
ended
|
YR3# | — | |
| 52370A — Support Assy, Front Differential, Front RH | ||||
| 52370-95D00 |
Support Assy, Front Differential, Front RH
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52370-95D02 |
Support Assy, Front Differential, Front RH
1987-08 → 1988-08
ended
|
YR3# | — | |
| 52370-95D03 |
Support Assy, Front Differential, Front RH
1987-07 → 1987-08
ended
|
YR3# | — | |
| 52380A — Support Assy, Front Differential, Front LH | ||||
| 52380-95D00 |
Support Assy, Front Differential, Front LH
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52380-95D02 |
Support Assy, Front Differential, Front LH
1987-08 → 1988-08
ended
|
YR3# | — | |
| 52380-95D03 |
Support Assy, Front Differential, Front LH
1987-07 → 1987-08
ended
|
YR3# | — | |
| 52390 — Support Assy, Front Differential, Rear | ||||
| 52390-95D00 |
Support Assy, Front Differential, Rear
1986-08 → 1987-07
ended
|
YR3# | — | |
| 52390-95D02 |
Support Assy, Front Differential, Rear
1987-08 → 1988-08
ended
|
YR3# | — | |
| 52390-95D03 |
Support Assy, Front Differential, Rear
1987-07 → 1987-08
ended
|
YR3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
