Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · United States

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Standard Tool

9 part groups · 2 illustrations

Illustrations

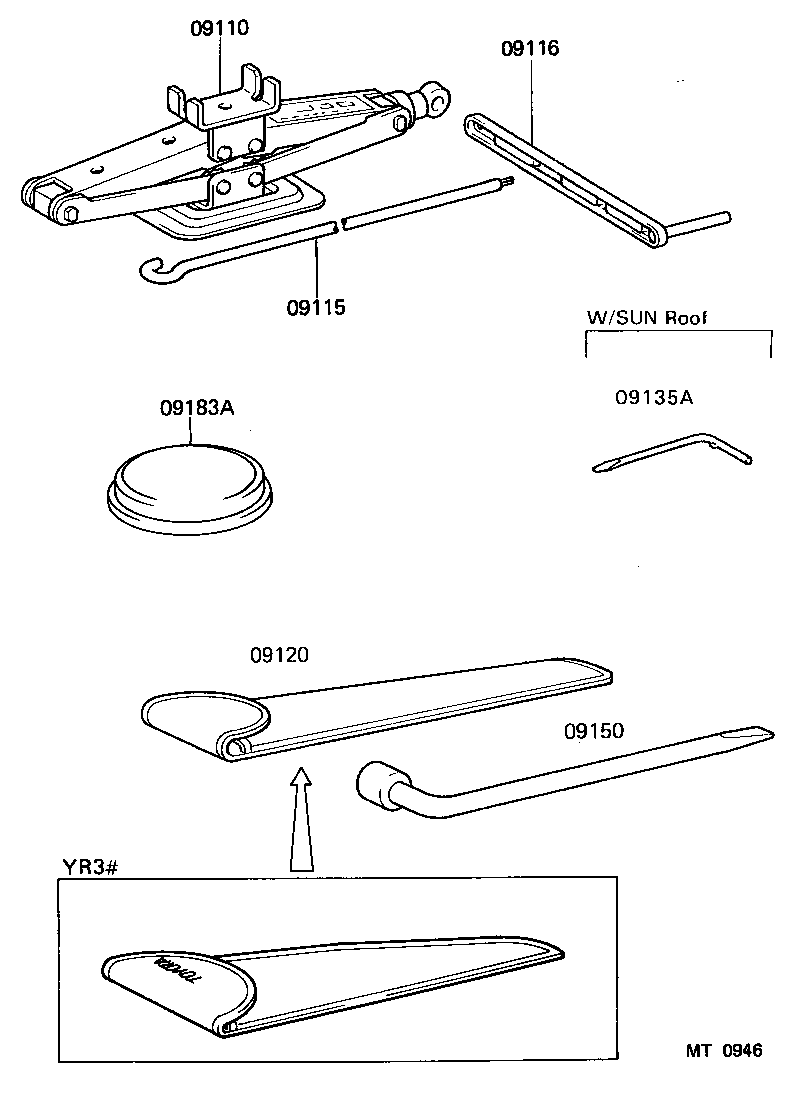

Figure MT0883 MT0883 1983-08 → 1985-09 Figure MT0946 MT0946 1985-09 → —

Part groups

PNCDescription
09101 Tool Set, Standard W/O Jack
09110 Jack Assy
09113 Handle, Jack
09115 Rod Sub-assy, Jack Handle
09116 Lever, Jack Handle
09120 Bag, Tool
09135A Bit, Screw Driver
09150 Wrench, Hub Nut Box
09183A Replacer, Wheel Cap
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
