Toyota Van

1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · United States

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

100 part groups · 6 illustrations

Illustrations

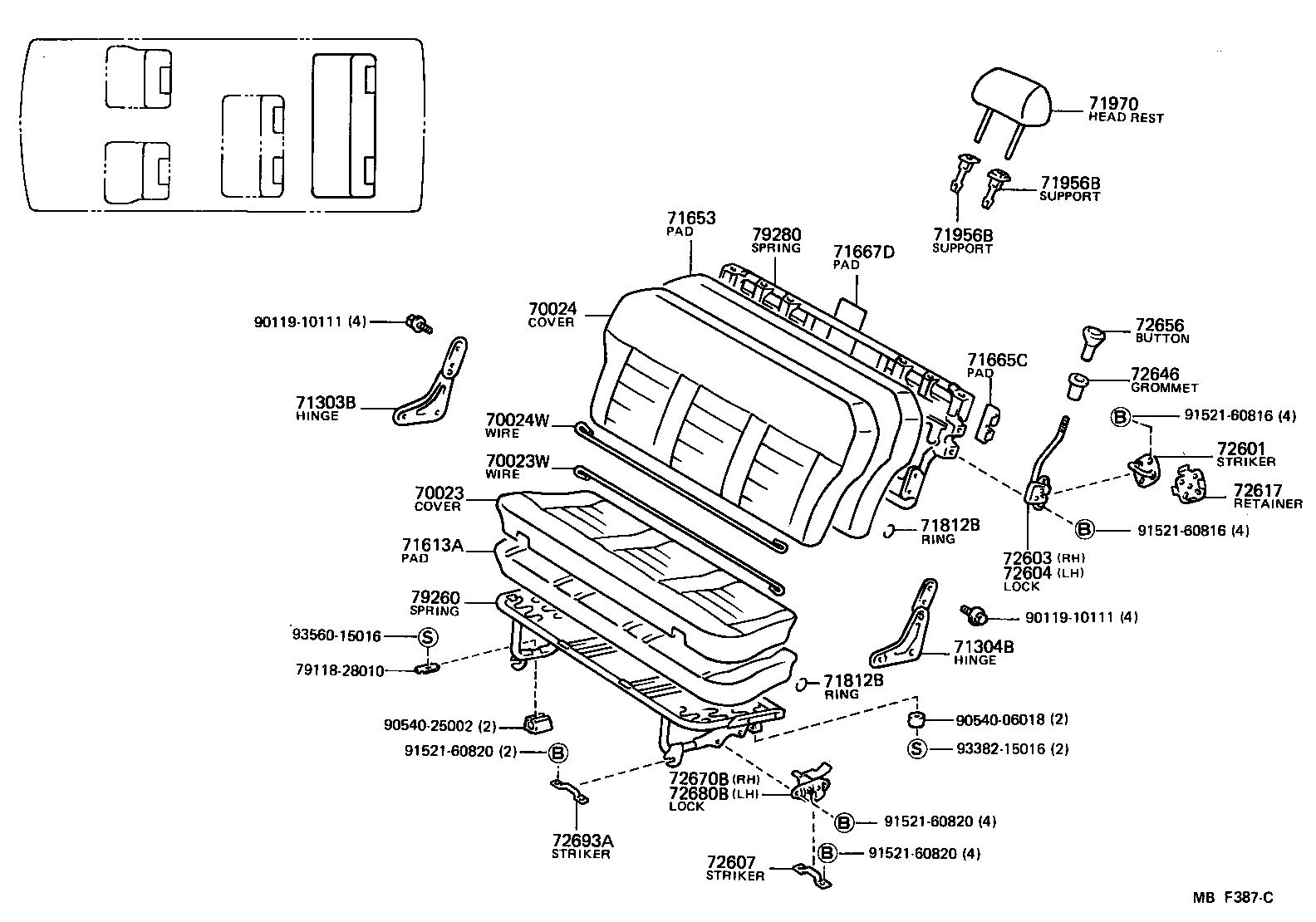

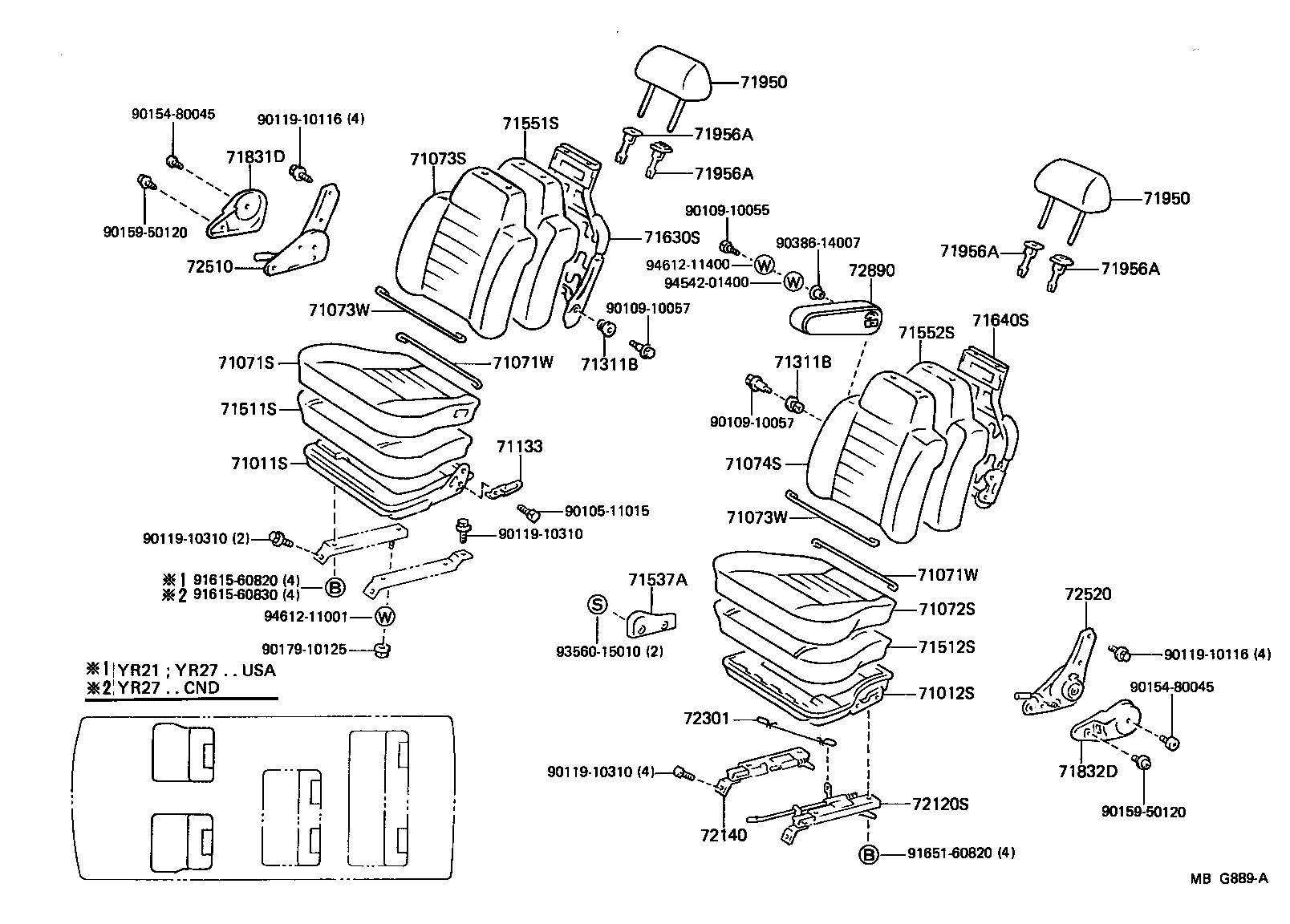

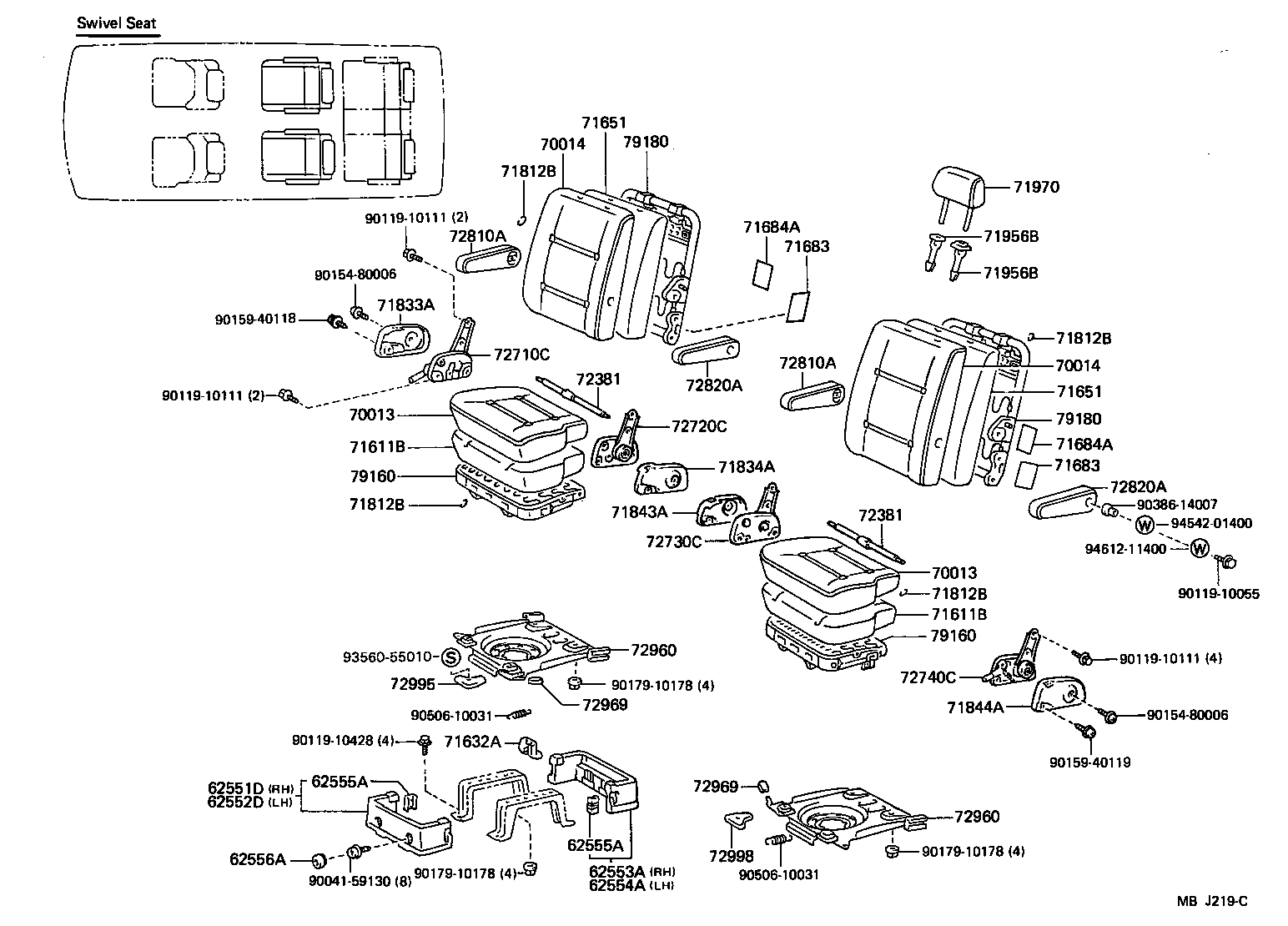

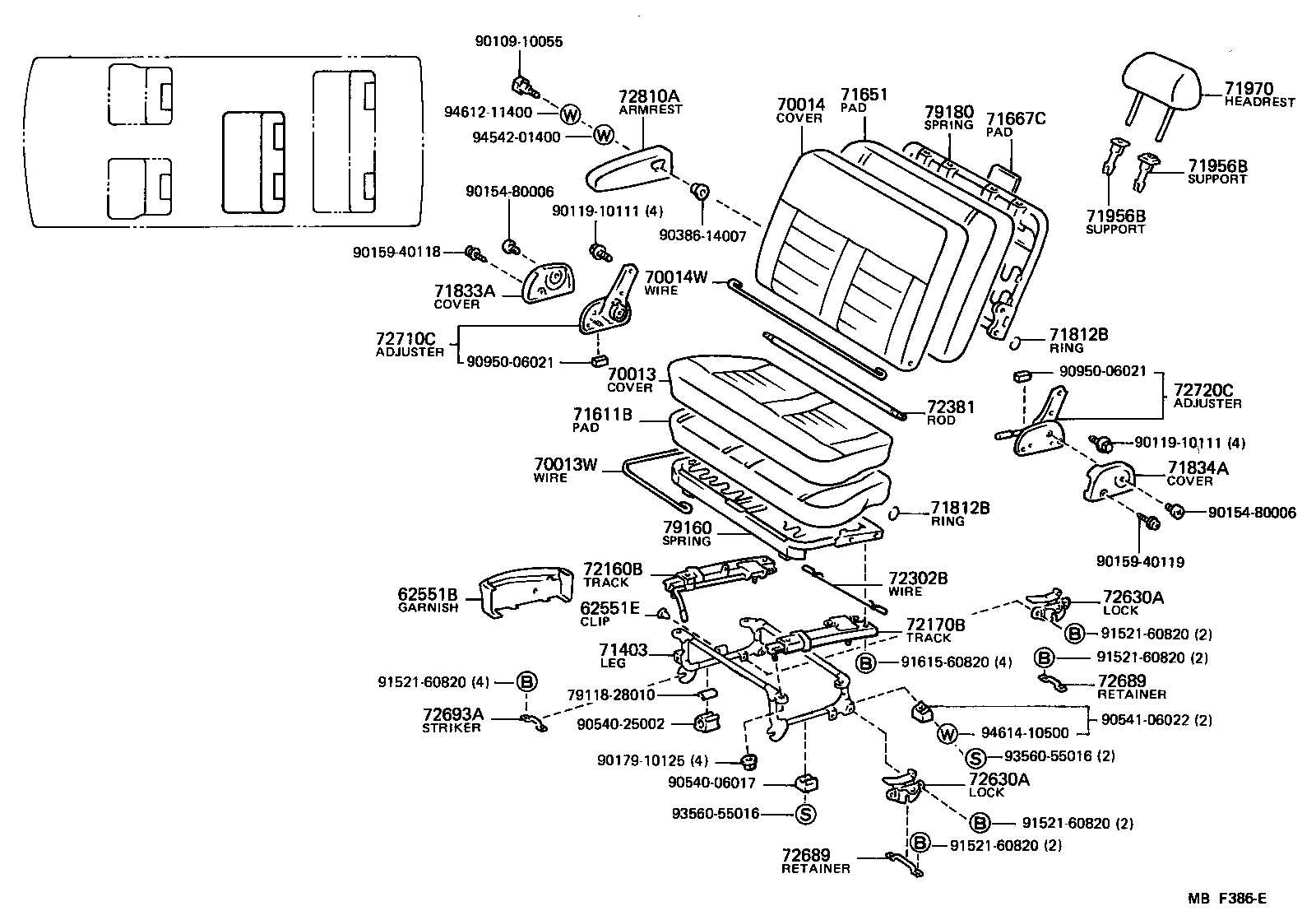

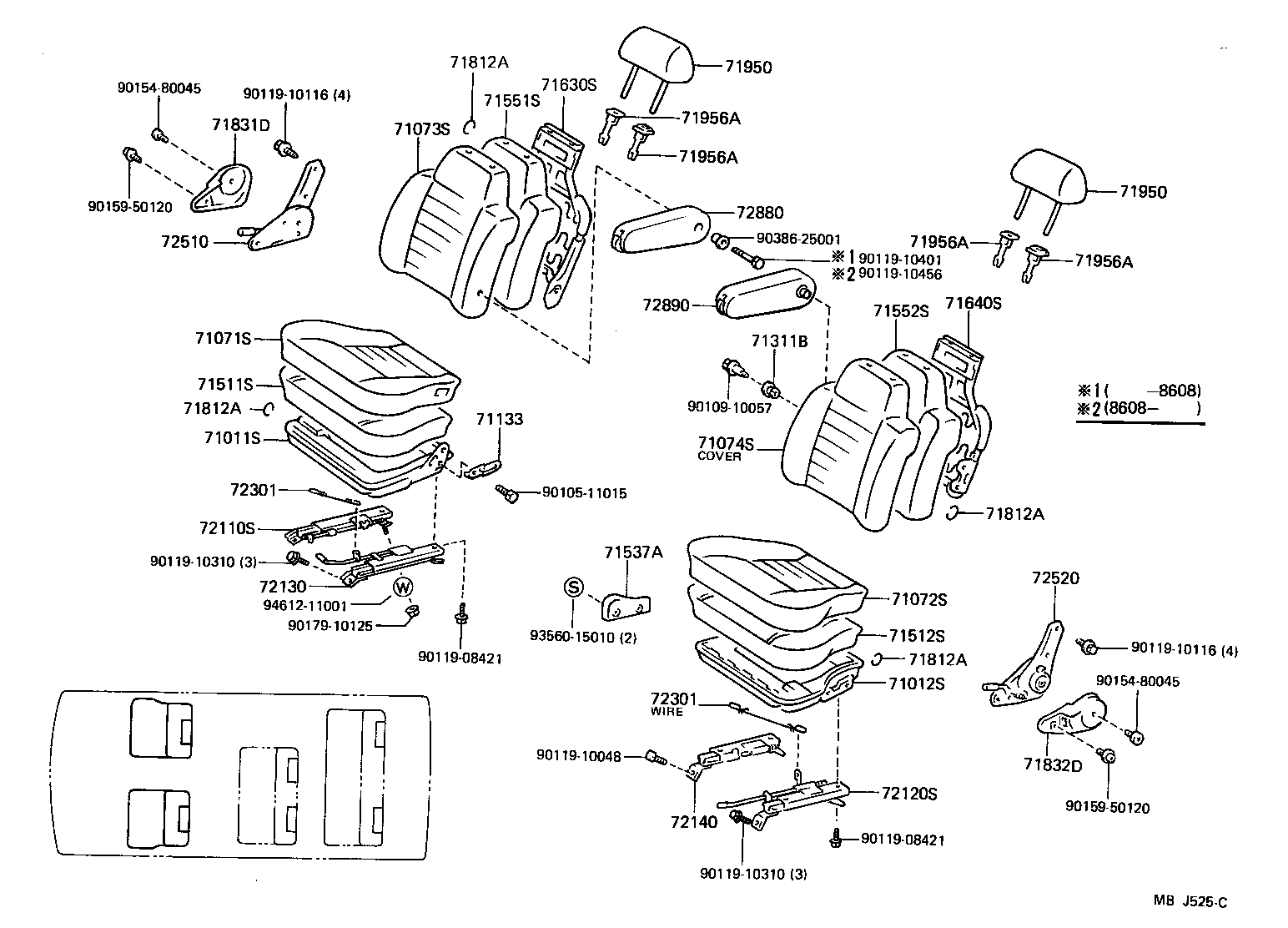

Figure MBF385A MBF385A 1983-08 → 1984-08 Figure MBG889A MBG889A 1984-08 → 1985-08 Figure MBJ525C MBJ525C 1985-08 → — Figure MBF386E MBF386E 1983-08 → — Figure MBJ219C MBJ219C 1985-08 → — Figure MBF387C MBF387C 1983-08 → —

Part groups

PNCDescription
62551B Garnish, Rear Seat Side
62551D Garnish, Rear Seat Side, RH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62552D Garnish, Rear Seat Side, LH
62553A Garnish, Rear Seat Side, NO.2 RH
62554A Garnish, Rear Seat Side, NO.2 LH
62555A Knob, Rear Seat Side Garnish
62556A Cap, Rear Seat Side Garnish
70013 Cover Assy, NO.1 Seat Cushion
70013W Wire, NO.1 Seat Cushion Cover
70014 Cover Assy, NO.1 Seatback
70014W Wire, NO.1 Seatback Cover
70023 Cover Assy, NO.2 Seat Cushion
70023W Wire, NO.2 Seat Cushion Cover
70024 Cover Assy, NO.2 Seatback
70024W Wire, NO.2 Seatback Cover
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071W Wire, Front Seat Cushion Cover
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073W Wire, Front Seatback Cover
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71133 Plate, Front Seat Cushion, NO.3
71303B Hinge Sub-assy, Rear NO.2 Seat, RH
71304B Hinge Sub-assy, Rear NO.2 Seat, LH
71311B Bush (FOR FRONT SEAT HINGE PIN)
71403 Leg Sub-assy, Rear NO.1 Seat
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71611B Pad, Rear NO.1 Seat Cushion
71613A Pad, Rear NO.2 Seat Cushion
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71632A Cover, Rear Seat, Outer
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71651 Pad, Rear NO.1 Seatback
71653 Pad, Rear NO.2 Seatback
71665C Pad, Rear NO.2 Seatback, Side
71667C Pad, Rear NO.1 Seatback, Center
71667D Pad, Rear NO.2 Seatback, Center
71683 Pad, Rear Seatback Corner, C
71684A Pad, Rear Seatback Corner, D
71812A Ring, Hog, Small (FOR FRONT SEAT)
71812B Clip(FOR REAR SEAT CUSHION COVER)
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71970 Headrest Assy, Rear Seat
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72160B Track Assy, Rear NO.1 Seat, RH
72170B Track Assy, Rear NO.1 Seat, LH
72301 Wire Sub-assy, Seat Track Equalizing
72302B Wire Sub-assy, Rear Seat Track Equalizing
72381 Rod, Reclining Adjuster Equalizing, NO.1
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72607 Striker Sub-assy, Rear Seat Cushion Lock
72617 Retainer, Seatback Lock Striker Cover
72630A Lock Assy, Rear NO.1 Seat
72646 Grommet, Rear Seatback Stop Button
72656 Button, Rear Seatback Stop Release
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72689 Retainer, Seatback Lock Striker Cover
72693A Striker, Rear Seat Cushion Lock, NO.3
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72770 Adjuster Assy, Lumbar Support, LH
72791 Lever, Lumbar Support
72791A Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72880 Armrest Assy, Seat, C RH
72890 Armrest Assy, Seat, C LH
72960 Table Assy, Rear Seat Turn
72969 Knob, Rear Seat Turn Lock
72995 Cover, Rear Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
79160 Spring Assy, NO.1 Seat Cushion
79180 Spring Assy, NO.1 Seatback
79260 Spring Assy, NO.2 Seat Cushion
79280 Spring Assy, NO.2 Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
