Toyota Van
1983-08 → 1988-08 · chassis YR2#,3# · catalogue 651420 · United States
Discontinued model
Data version 1988-12
Meter

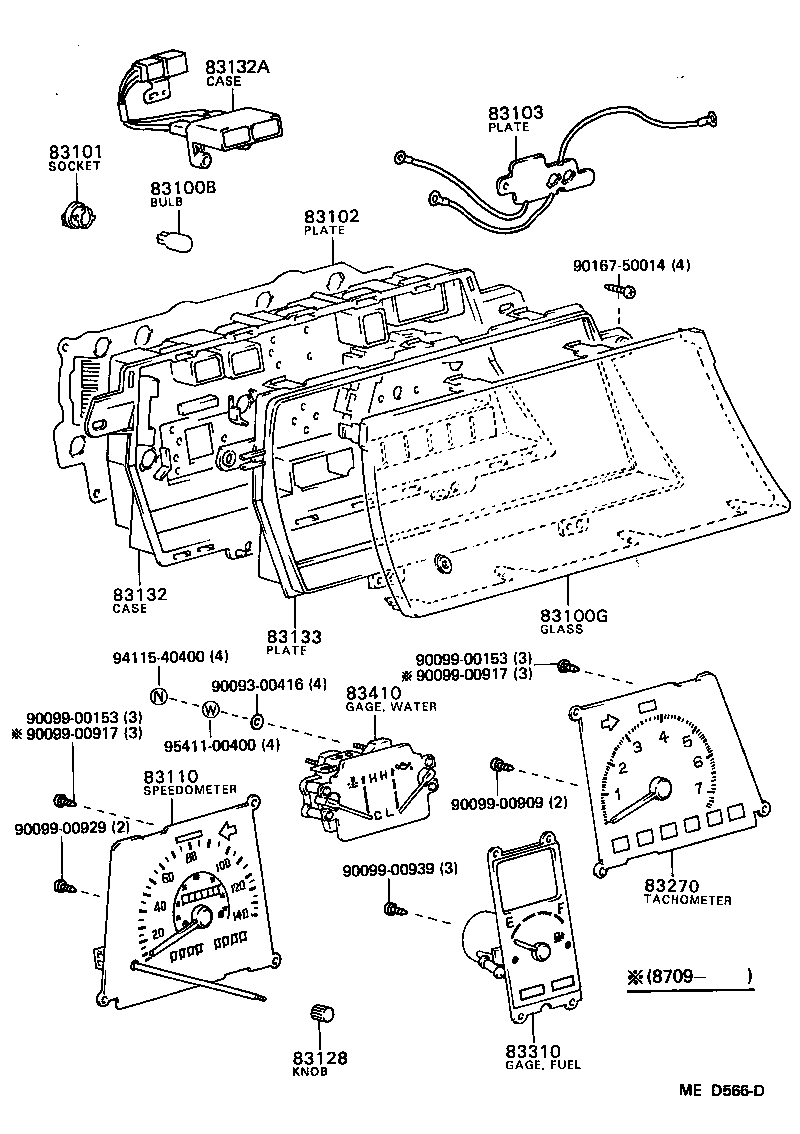

20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83129A | Bulb And Socket |
| 83132 | Case, Combination Meter |
| 83132A | Case, Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83145 | Lens, Meter, NO.1 |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83770 | Adapter Assy, Speedometer Cable |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
