Toyota Van

1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · United States

Discontinued model Data version 1990-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

20 part groups · 2 illustrations

Illustrations

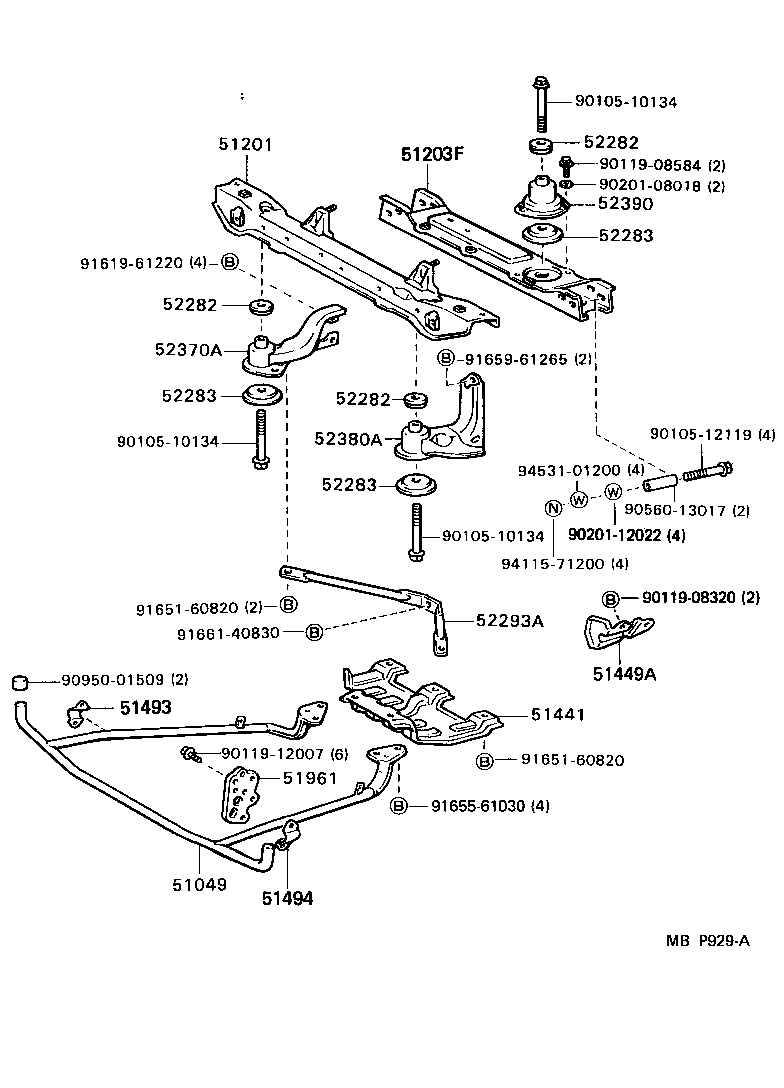

Figure MBP928A MBP928A 1988-08 → — Figure MBP929A MBP929A 1988-08 → —

Part groups

PNCDescription
51049 Bar Sub-assy, Under Guard, Front
51201 Crossmember Sub-assy, Front Suspension
51203F Crossmember Sub-assy, Front Suspension
51215A Reinforcement, Front Suspension Member, RH
51218 Reinforcement, Front Crossmember, Lower LH
51225B Bracket, Front Suspension Member, RH
51226 Bracket, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51449A Cover, Engine Side Under, LH
51493 Bracket, Under Guard
51494 Bracket, Under Guard
51505D Support Assy, Front Suspension RH
51506D Support Assy, Front Suspension, LH
51961 Hook, NO.1
52282 Stopper, Differential Support Member, Upper
52283 Stopper, Differential Support Member, Lower
52293A Brace, Front Differential Support
52370A Support Assy, Front Differential, Front RH
52380A Support Assy, Front Differential, Front LH
52390 Support Assy, Front Differential, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
