Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · United States
Discontinued model
Data version 1990-01

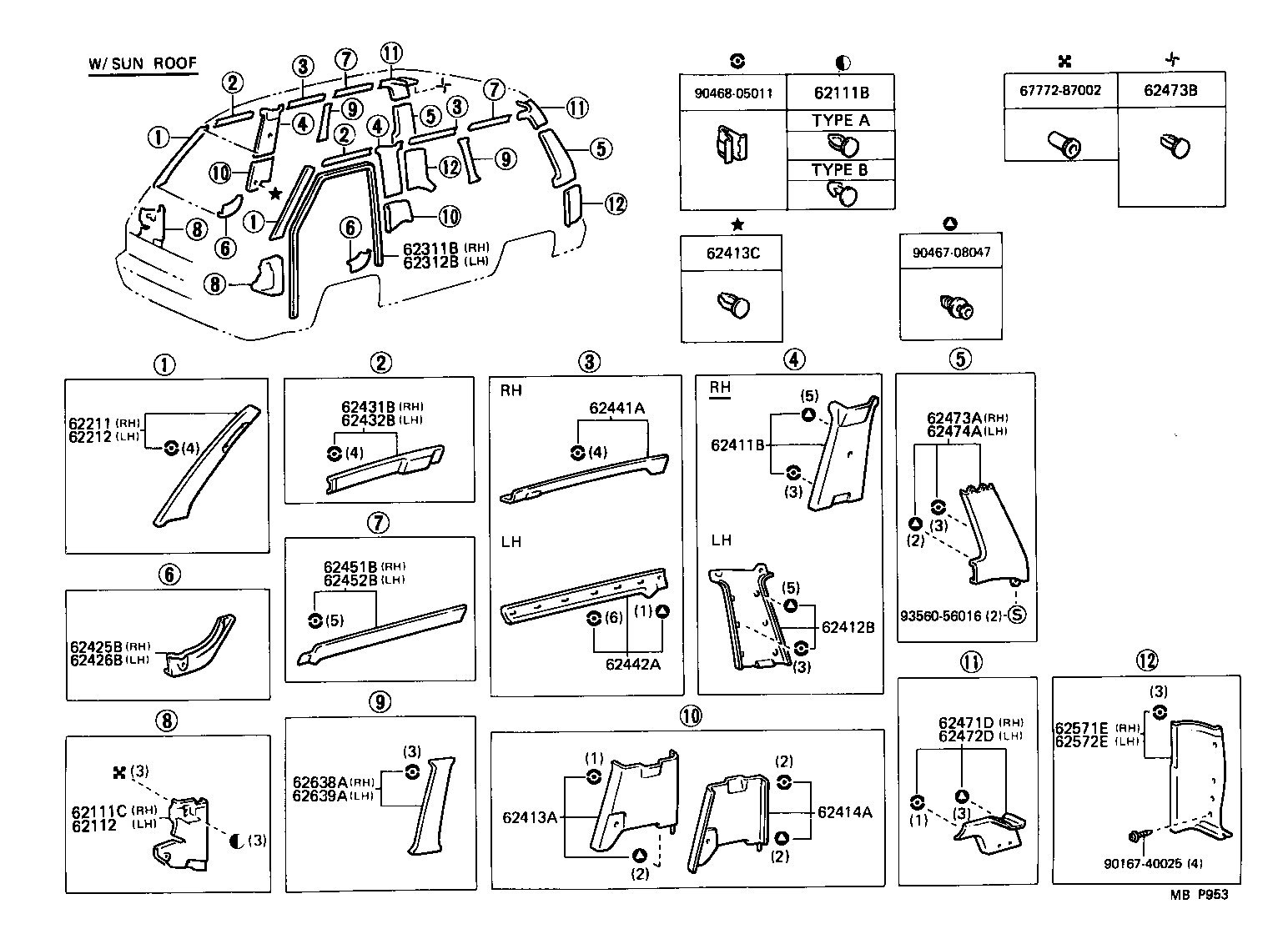

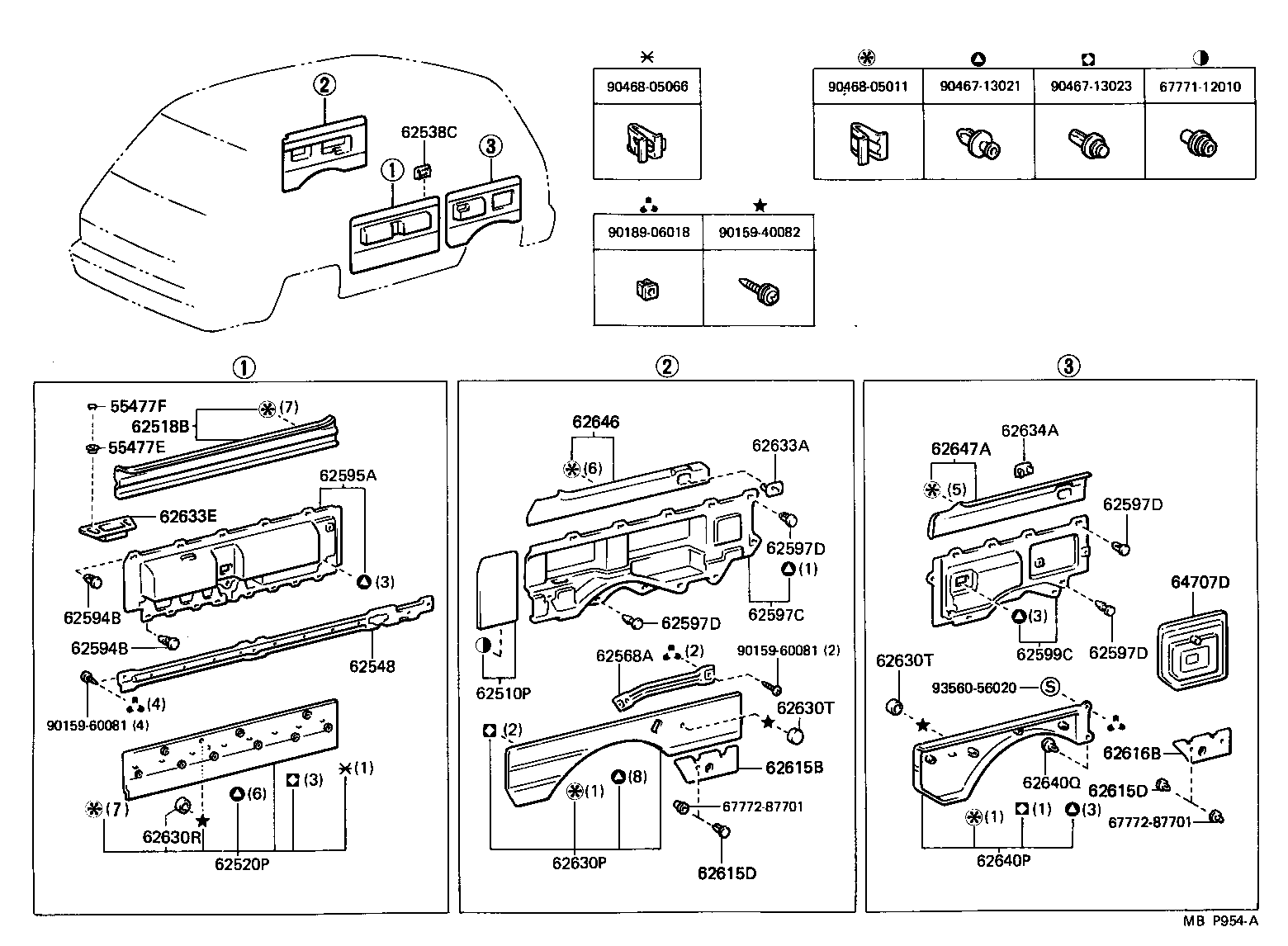

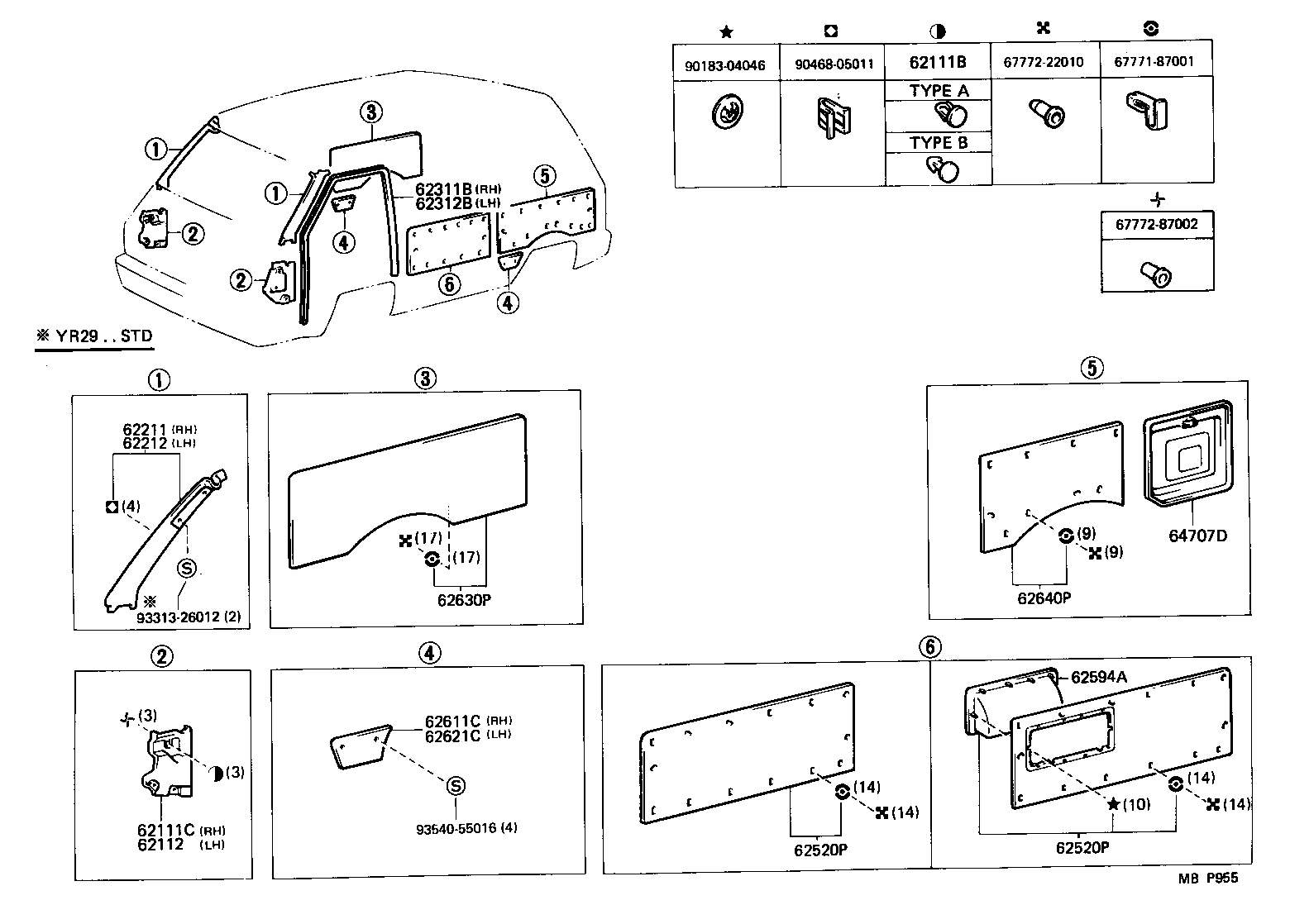

Inside Trim Board
59 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55477E | Bezel, Cigarette Lighter Hole |
| 55477F | Cover, Cigarette Lighter Hole |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62425B | Cover, Center Pillar Garnish, NO.3 RH |
| 62426B | Cover, Center Pillar Garnish, NO.3 LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62441A | Garnish, Roof Side Rail, NO.2 RH |
| 62442A | Garnish, Roof Side Rail, NO.2 LH |
| 62451B | Garnish, Roof Side Rail, NO.3 RH |
| 62452B | Garnish, Roof Side Rail, NO.3 LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62473A | Board, Rear Pillar, RH |
| 62473B | Clip (FOR REAR PILLAR BOARD) |
| 62474A | Board, Rear Pillar, LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62518B | Base, Quarter Trim, Front LH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62538C | Cover, Quarter Trim, Hole |
| 62548 | Reinforcement, Quarter Trim, NO.1 |
| 62568A | Reinforcement, Quarter Trim, NO.3 |
| 62571E | Garnish, Rear Pillar, Lower RH |
| 62572E | Garnish, Rear Pillar, Lower LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 62594B | Clip(FOR QUARTER TRIM POCKET) |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62597C | Pocket, Quarter Trim, NO.3 |
| 62597D | Clip |
| 62599C | Pocket, Quarter Trim, NO.4 |
| 62611C | Board, Side Trim NO.1, RH |
| 62615B | Cover, Quarter Wheel House, Inner RH |
| 62615D | Clip(FOR QUARTER WHEEL HOUSE COVER) |
| 62616B | Cover, Quarter Wheel House, Inner LH |
| 62621C | Board, Side Trim NO.1, LH |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630R | Cap (FOR QUARTER TRIM) |
| 62630T | Cap |
| 62633A | Garnish, Quarter Trim, RH |
| 62633E | Garnish, Front Quarter Trim Side, RH |
| 62634A | Garnish, Quarter Trim, LH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62640Q | Clip (FOR QUARTER TRIM REAR PANEL) |
| 62646 | Moulding Sub-assy, Quarter Trim, Rear RH |
| 62647A | Moulding Sub-assy, Quarter Trim, Rear LH |
| 64707D | Cover Sub-assy, Quarter Trim Jack |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
