Toyota Van
1988-08 → 1990-01 · chassis YR2#,3# · catalogue 651430 · United States
Discontinued model
Data version 1990-01

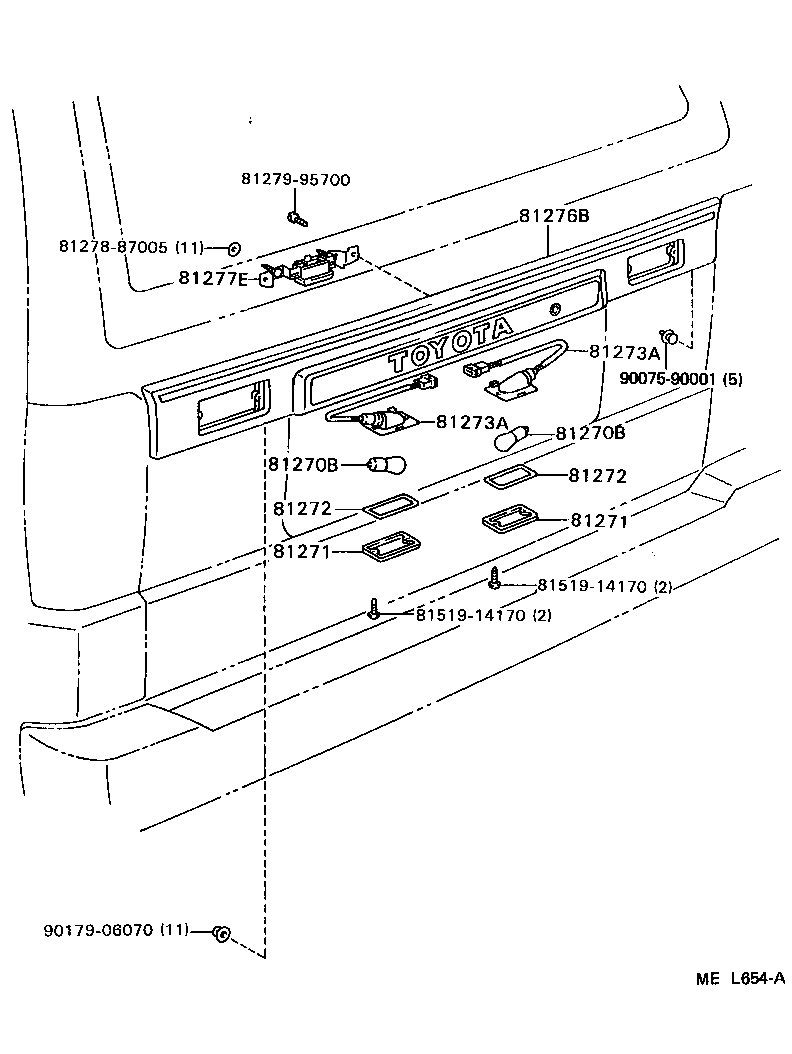

Rear License Plate Lamp
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81273A | Body, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
| 81277E | Handle, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
