Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

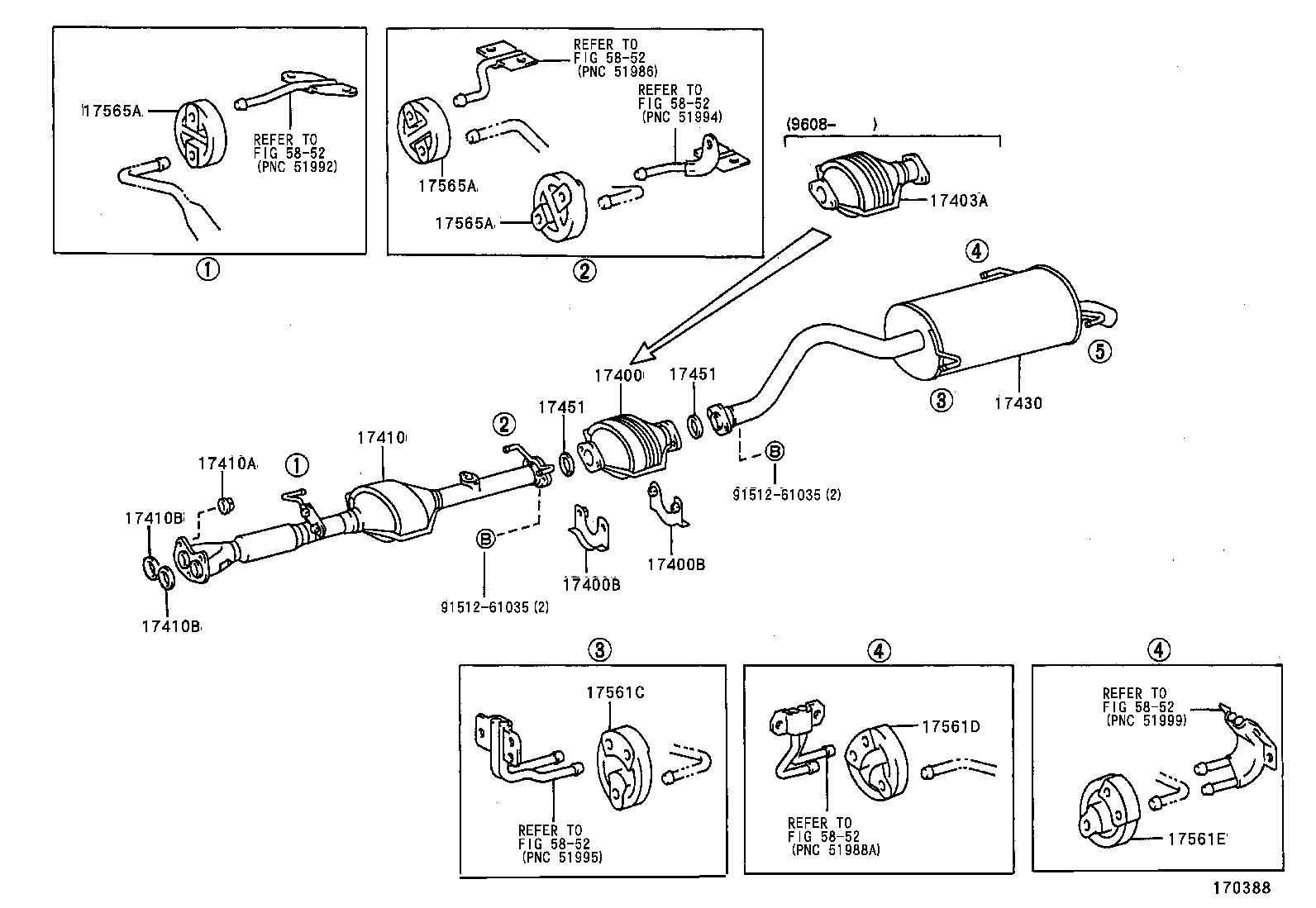

Exploded illustration 170388 5852 — not listed in this catalogue 5852 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (5 parts) 5852 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (5 parts) 17403A — PIPE SUB-ASSY, EXHAUST, CENTER NO.2 (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (5 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17400 — CONVERTER ASSY, W/CATALYST (1 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (7 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (7 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 9151261035 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 17400B — RETAINER, EXHAUST PIPE (1 parts) 17400B — RETAINER, EXHAUST PIPE (1 parts) 9151261035 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (1 parts) 17561C — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 5852 — not listed in this catalogue 17561D — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 5852 — not listed in this catalogue 17561E — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 5852 — not listed in this catalogue
170388 · 17 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
17400 — Converter Assy, W/Catalyst
18450-76120 Converter Assy, W/Catalyst
1994-01 → 1996-08 ended
2TZFZE TCR10,20 —
17400B — Retainer, Exhaust Pipe
18495-76010 Retainer, Exhaust Pipe
1994-01 → 1997-07 ended
2TZFZE TCR10,20 —
17403A — Pipe Sub-assy, Exhaust, Center NO.2
17403-76040 Pipe Sub-assy, Exhaust, Center NO.2
1996-08 → 1997-07 ended
2TZFZE TCR10,20 —
17410 — Pipe Assy, Exhaust, Front
17410-76011 Pipe Assy, Exhaust, Front
1990-01 → 1990-05 ended
2TZFE TCR10;2TZFE TCR20 07S;2TZFE +6 —
17410-76011 Pipe Assy, Exhaust, Front
1990-05 → 1994-12 ended
2TZFE TCR10,20 —
17410-76012 Pipe Assy, Exhaust, Front
1994-12 → 1996-08 ended
2TZFE TCR10,20 —
17410-76130 Pipe Assy, Exhaust, Front
1994-01 → 1994-12 ended
2TZFZE TCR10,20 —
17410-76131 Pipe Assy, Exhaust, Front
1994-12 → 1996-07 ended
2TZFZE TCR10,20 —
17410-76132 Pipe Assy, Exhaust, Front
1996-07 → 1997-07 ended
2TZFZE TCR10,20 —
17410-76140 note Pipe Assy, Exhaust, Front
1993-02 → 1993-08 ended
2TZFE TCR10 07S USA —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1990-01 → 1997-07 ended
2TZ# TCR10,20 —
17410B — Gasket, Exhaust Pipe
90917-06039 Gasket, Exhaust Pipe
1990-01 → 1997-07 ended
2TZ# TCR10,20 —
17430 — Pipe Assy, Exhaust, Tail
17405-76080 Pipe Assy, Exhaust, Tail
1996-08 → 1997-07 ended
2TZFZE TCR10,20 —
17430-76010 Pipe Assy, Exhaust, Tail
1990-01 → 1990-12 ended
2TZFE TCR10,20 —
17430-76011 Pipe Assy, Exhaust, Tail
1990-12 → 1993-08 ended
2TZFE TCR10,20 —
17430-76012 Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR10,20 —
17430-76013 Pipe Assy, Exhaust, Tail
1994-01 → 1996-08 ended
2TZFE TCR10,20 —
17430-76100 Pipe Assy, Exhaust, Tail
1994-01 → 1994-06 ended
2TZFZE TCR10,20 —
17430-76101 Pipe Assy, Exhaust, Tail
1994-06 → 1996-08 ended
2TZFZE TCR10,20 —
17451 — Gasket, Exhaust Pipe
90917-06043 note Gasket, Exhaust Pipe
1994-01 → 1997-07 ended
2TZFZE TCR10,20 —
90917-06054 note Gasket, Exhaust Pipe
1994-01 → 1996-08 ended
2TZFZE TCR10,20 —
90917-06057 Gasket, Exhaust Pipe
1990-01 → 1996-08 ended
2TZFE TCR10,20 —
90917-06057 note Gasket, Exhaust Pipe
1996-08 → 1997-07 ended
2TZFZE TCR10,20 —
17561C — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-01 → 1997-07 ended
2TZ# TCR10,20 —
17561D — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-01 → 1997-07 ended
2TZ# TCR10,20 —
17561E — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-01 → 1997-07 ended
2TZ# TCR10,20 —
17565A — Support, Exhaust Pipe, NO.4
17565-11160 Support, Exhaust Pipe, NO.4
1993-08 → 1996-08 ended
2TZFE TCR10,20 —
17565-11160 Support, Exhaust Pipe, NO.4
1994-01 → 1997-07 ended
2TZFZE TCR10,20 —
17565-76030 Support, Exhaust Pipe, NO.4
1990-01 → 1991-12 ended
2TZFE TCR10,20 —
17565-76030 Support, Exhaust Pipe, NO.4
1991-12 → 1993-08 ended
2TZFE TCR10,20 ATM —
17565-76030 Support, Exhaust Pipe, NO.4
1991-12 → 1993-08 ended
2TZFE TCR10,20 MTM —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
