Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

36 part groups · 3 illustrations

Illustrations

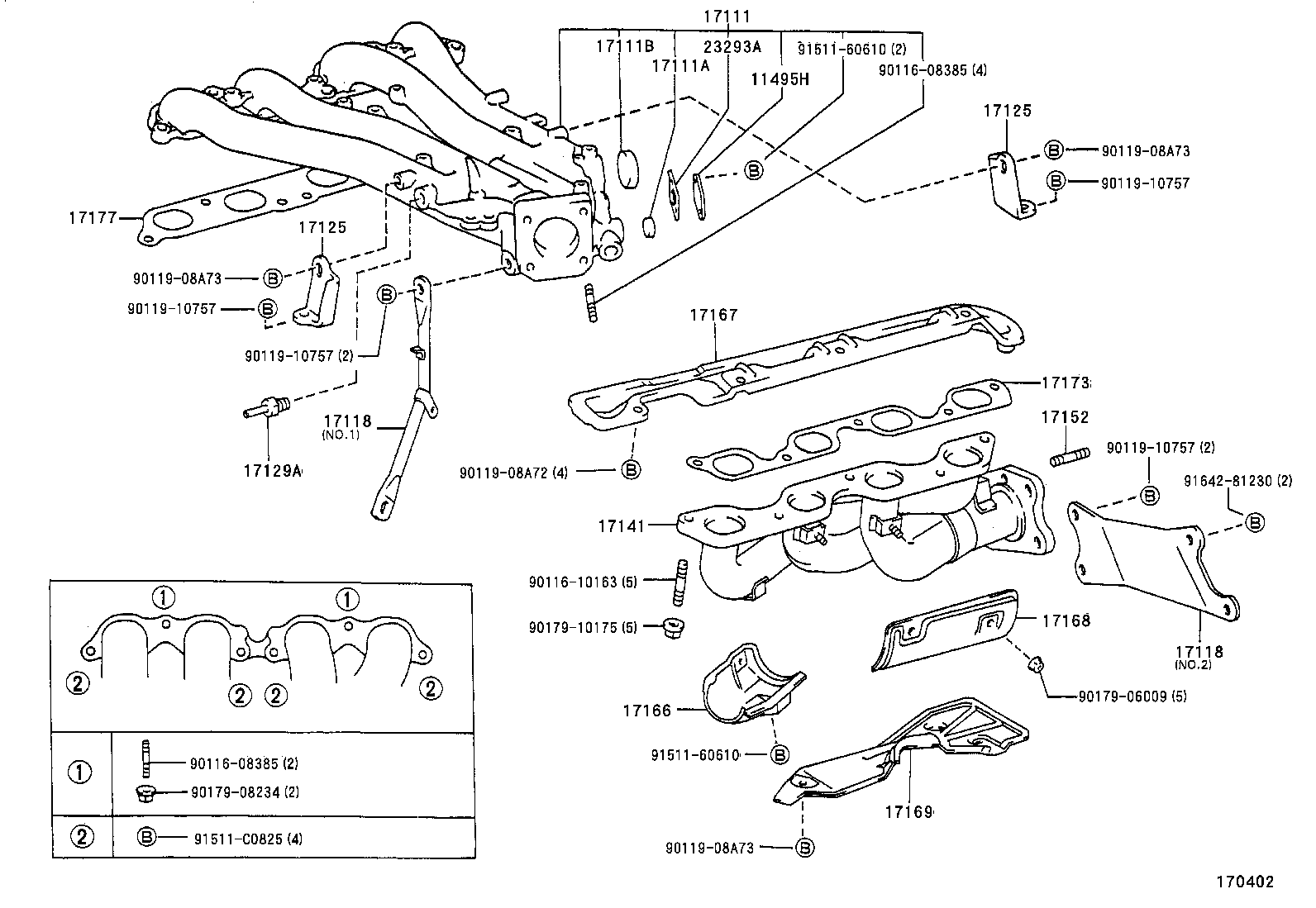

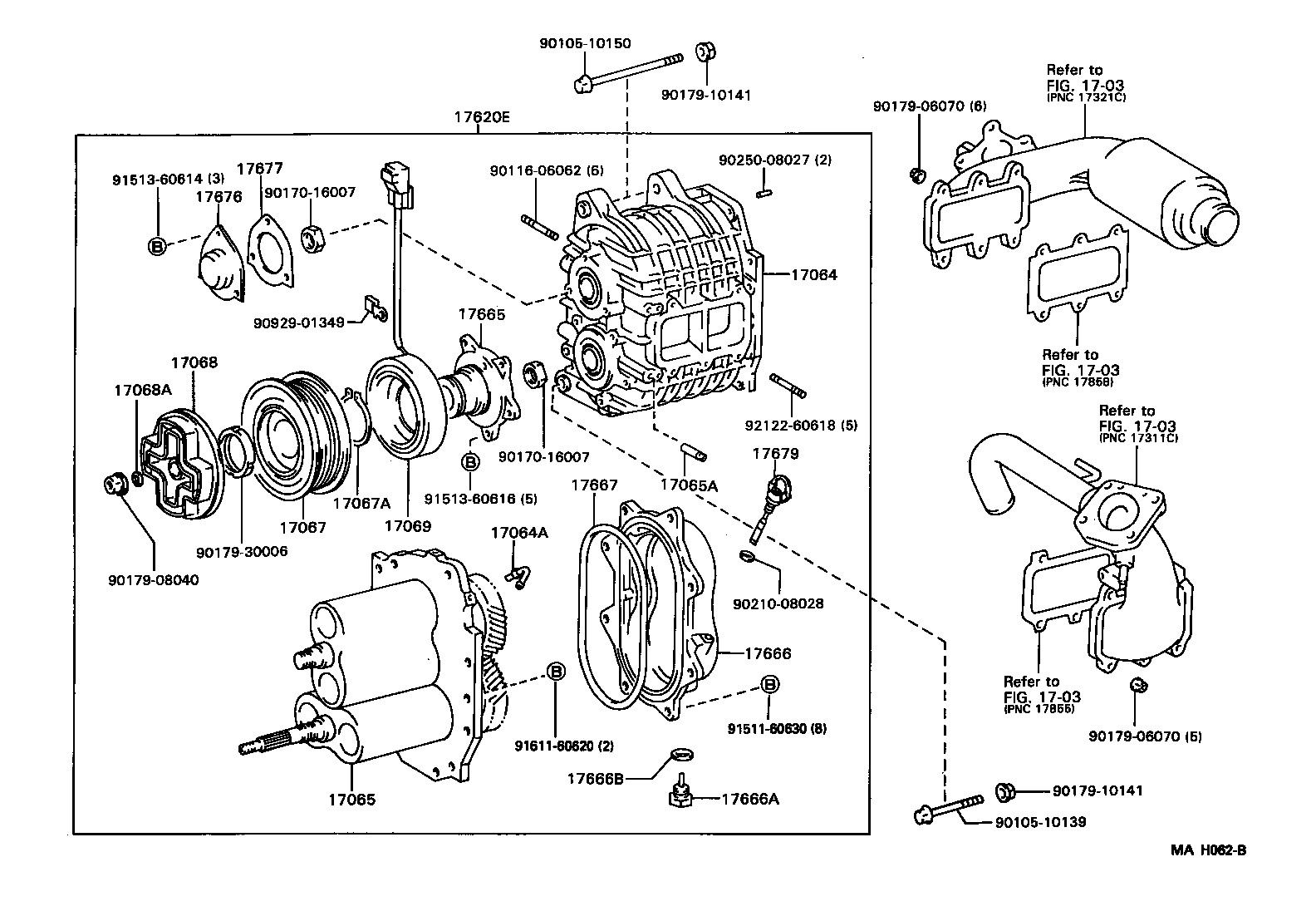

Figure 170403 170403 1990-01 → 1996-08 Figure 170402 170402 1994-01 → — Figure MAH062B MAH062B 1994-01 → —

Part groups

PNCDescription
11495H Plug, Plate(FOR INTAKE MANIFOLD)
17064 Housing Sub-assy, Rotor
17064A Elbow(FOR SUPERCHARGER)
17065 Plate Sub-assy, Rotor Housing, RR
17065A Union(FOR SUPERCHARGER)
17067 Pulley Sub-assy, Clutch
17067A Ring, Shaft Snap(FOR CLUTCH PULLEY SUB-ASSY)
17068 Hub Sub-assy, Clutch
17068A Shim(FOR SUPERCHARGER)
17069 Stator Sub-assy, Clutch
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17118 Stay, Manifold
17125 Stay, Surge Tank, NO.1
17129A Union, NO.1
17141 Manifold, Exhaust
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17620E Supercharger Assy
17665 Flange, Clutch
17666 Cover, Rear(FOR SUPERCHARGER)
17666A Plug Sub-assy, W/Head Straight Screw(FOR SUPERCHARGER)
17666B Gasket, Seat(FOR SUPERCHARGER)
17667 Gasket, Rear Cover(FOR SUPERCHARGER)
17676 Cover, Housing, Front
17677 Gasket, Housing Front Cover
17679 Gage, Supercharger Oil Level
23293A Gasket, Cold Start Fuel Injector
25615 Plate, Egr Hole Cover, NO.1
25627A Gasket, Egr Hole Cover Plate, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
