Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 14 illustrations

Illustrations

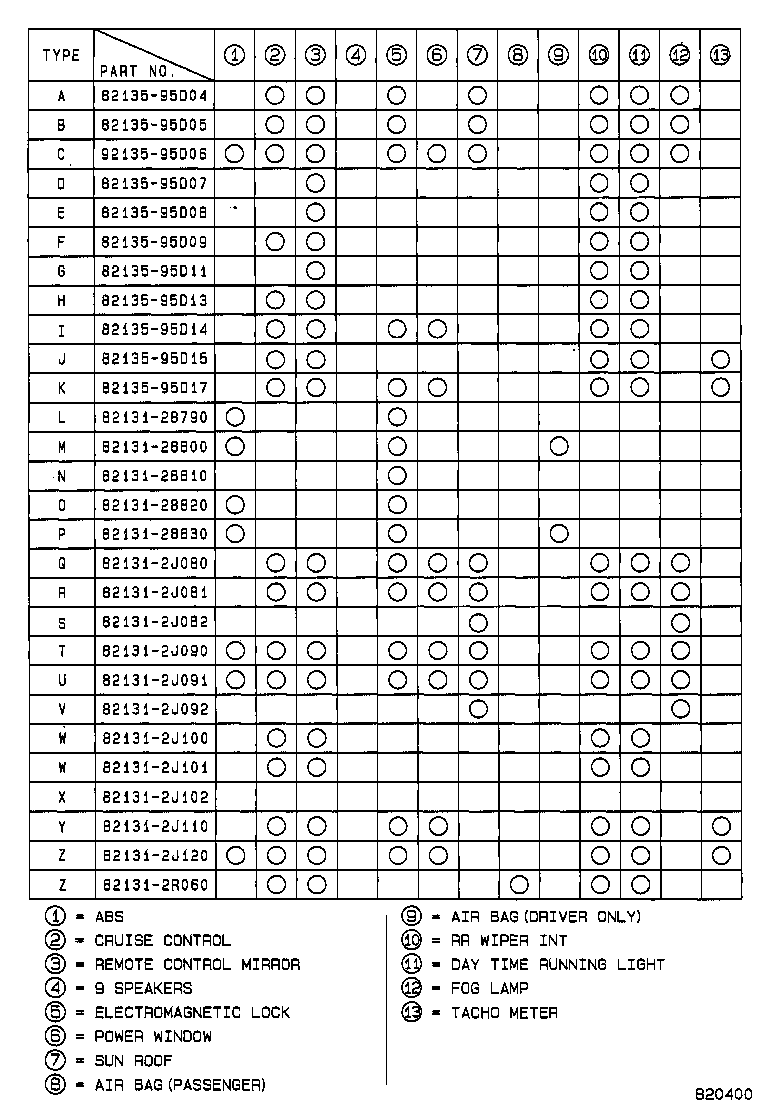

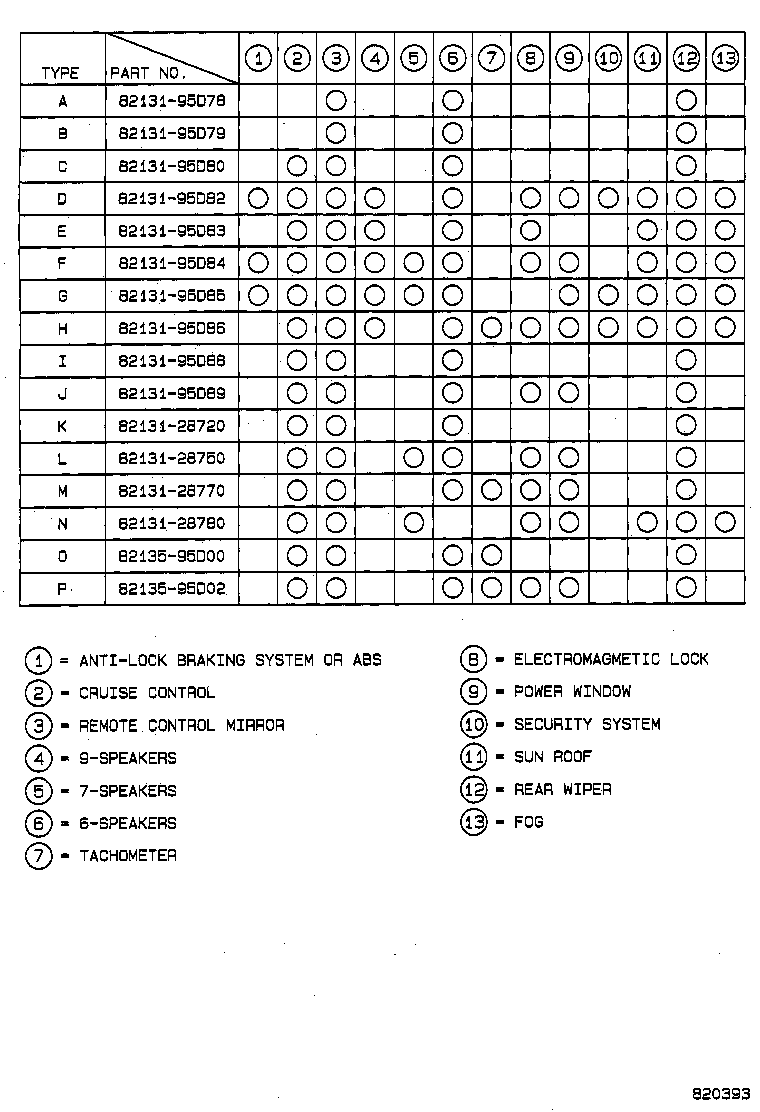

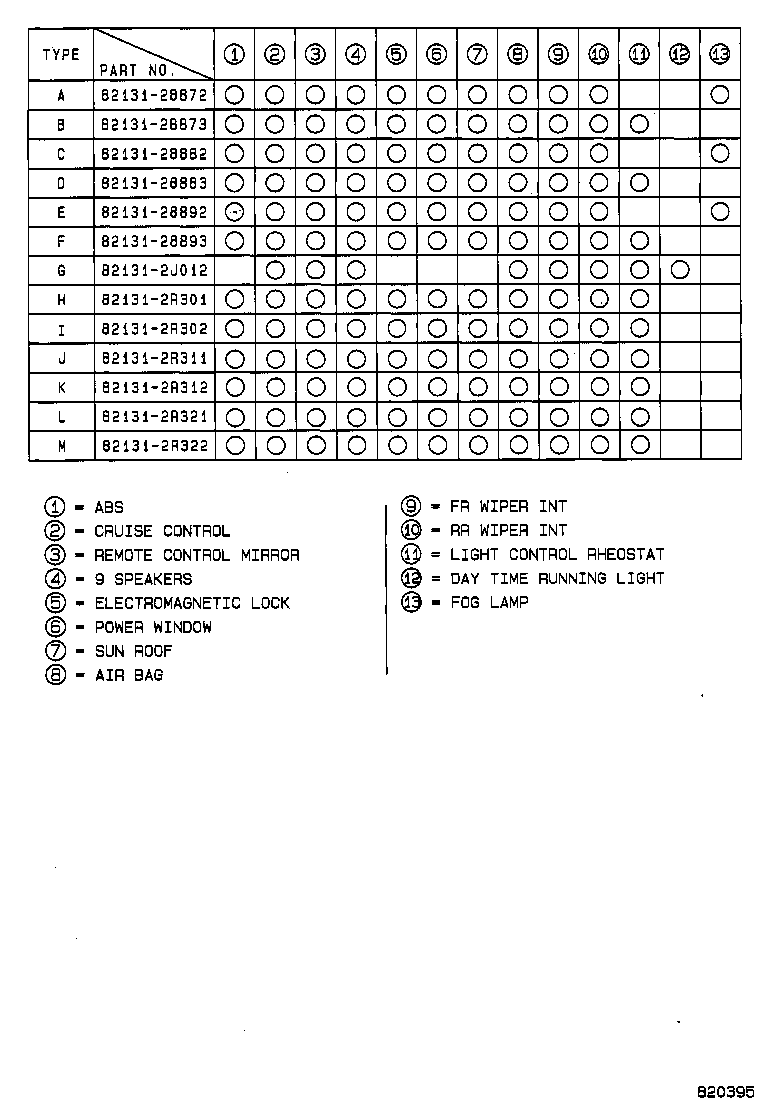

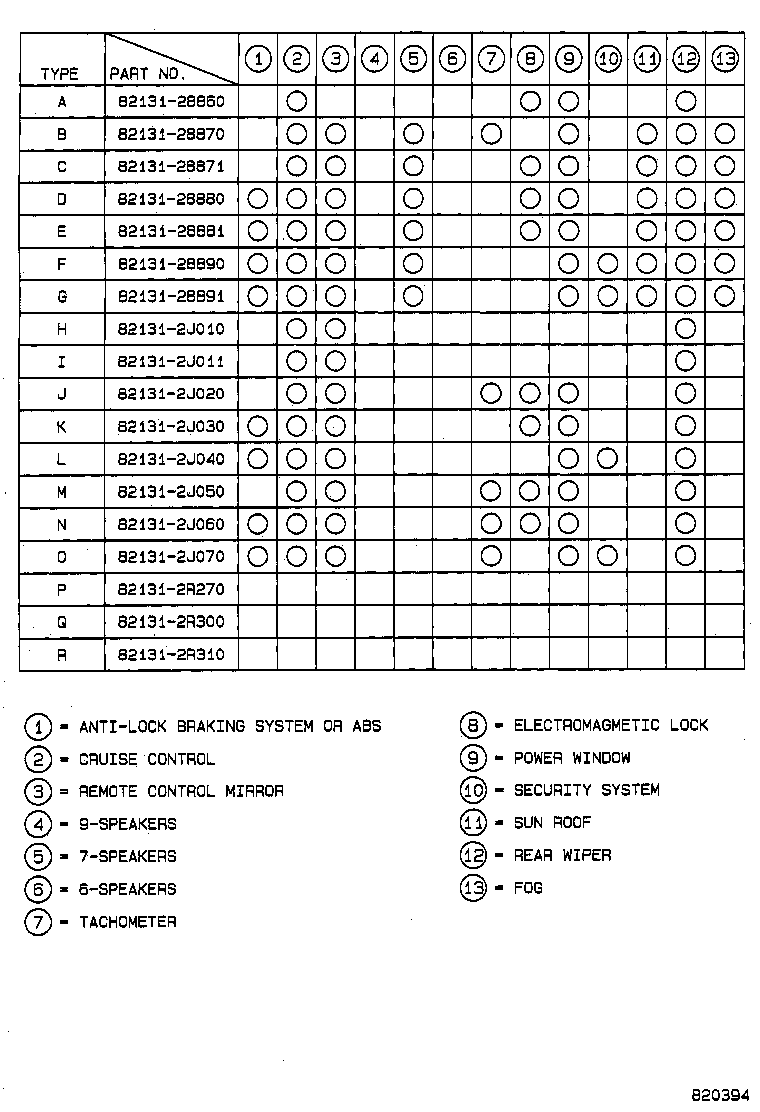

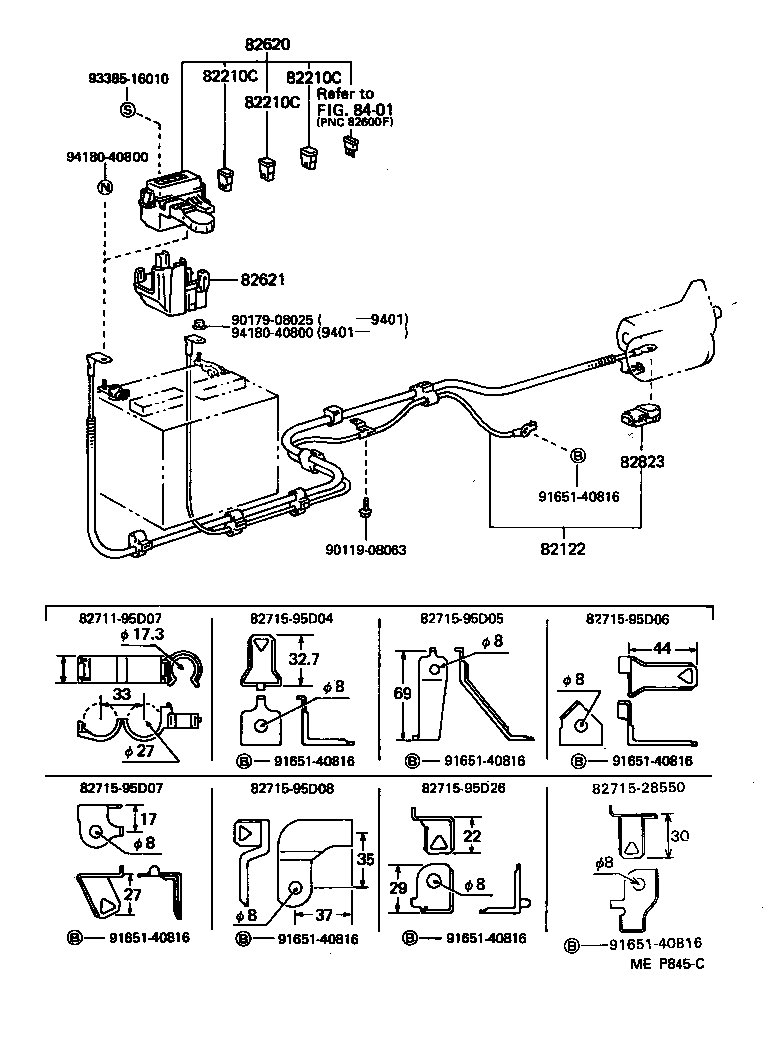

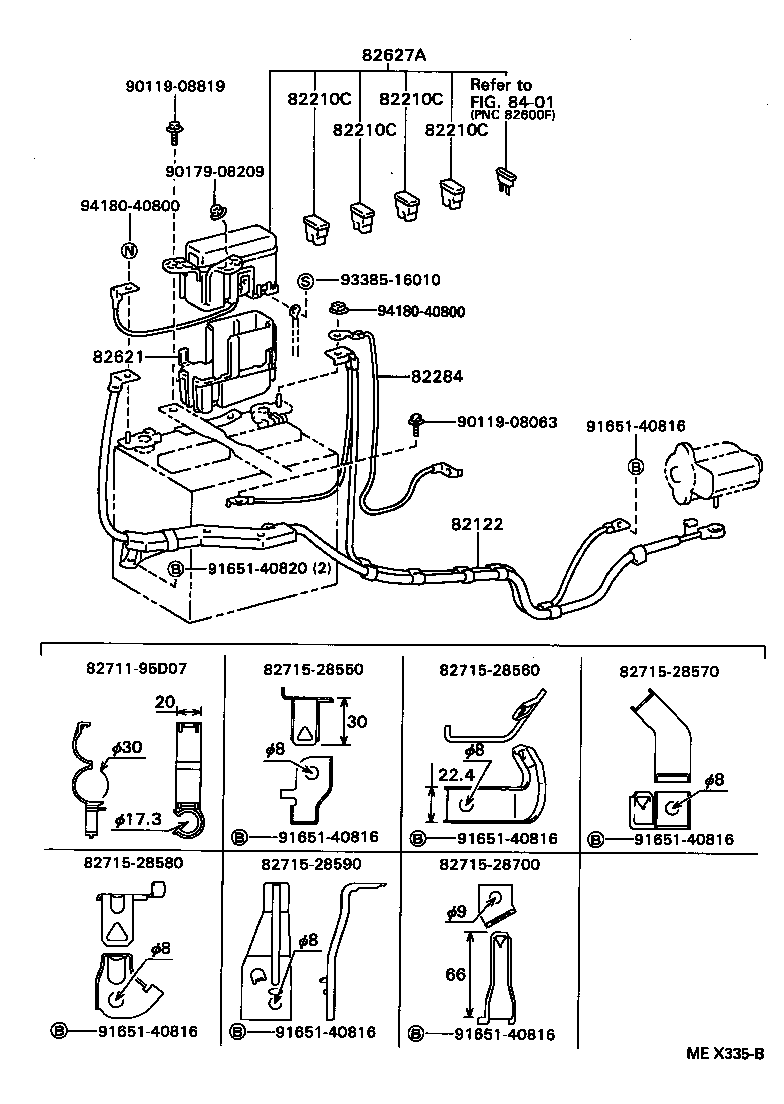

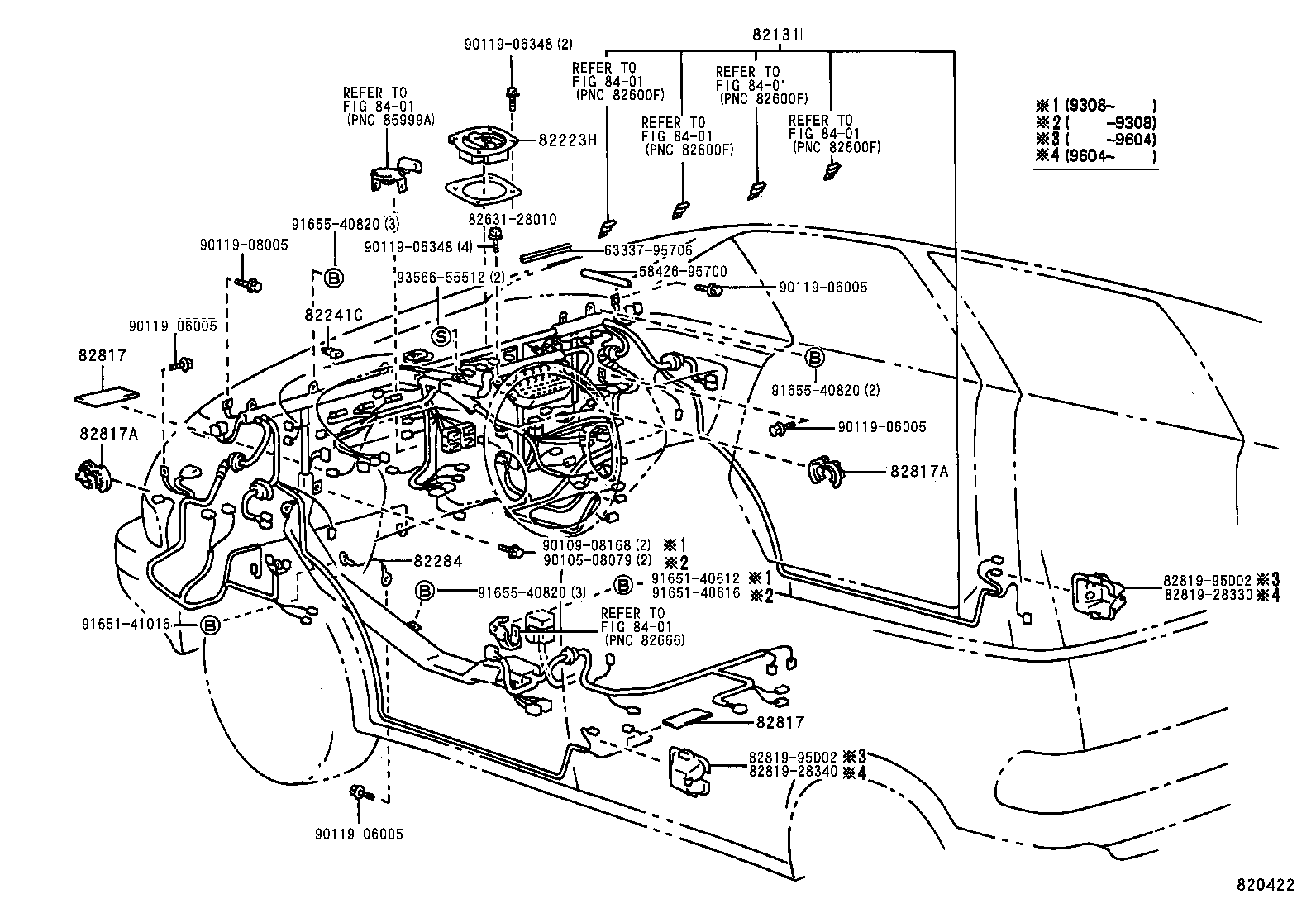

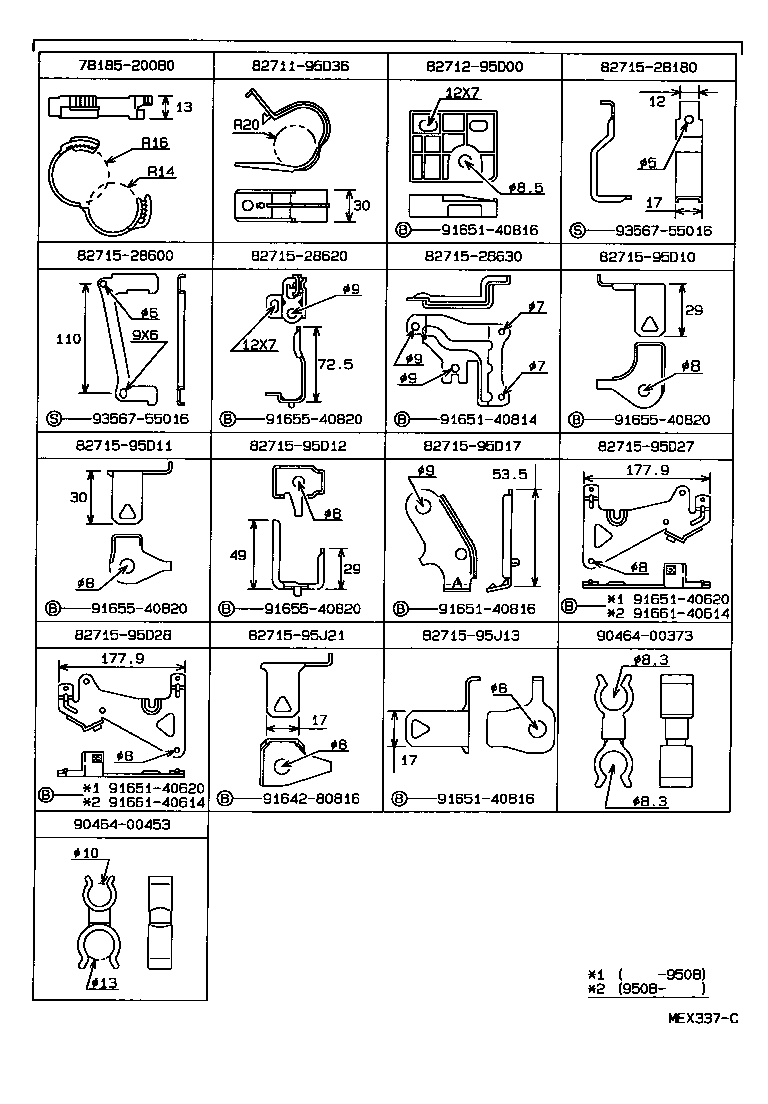

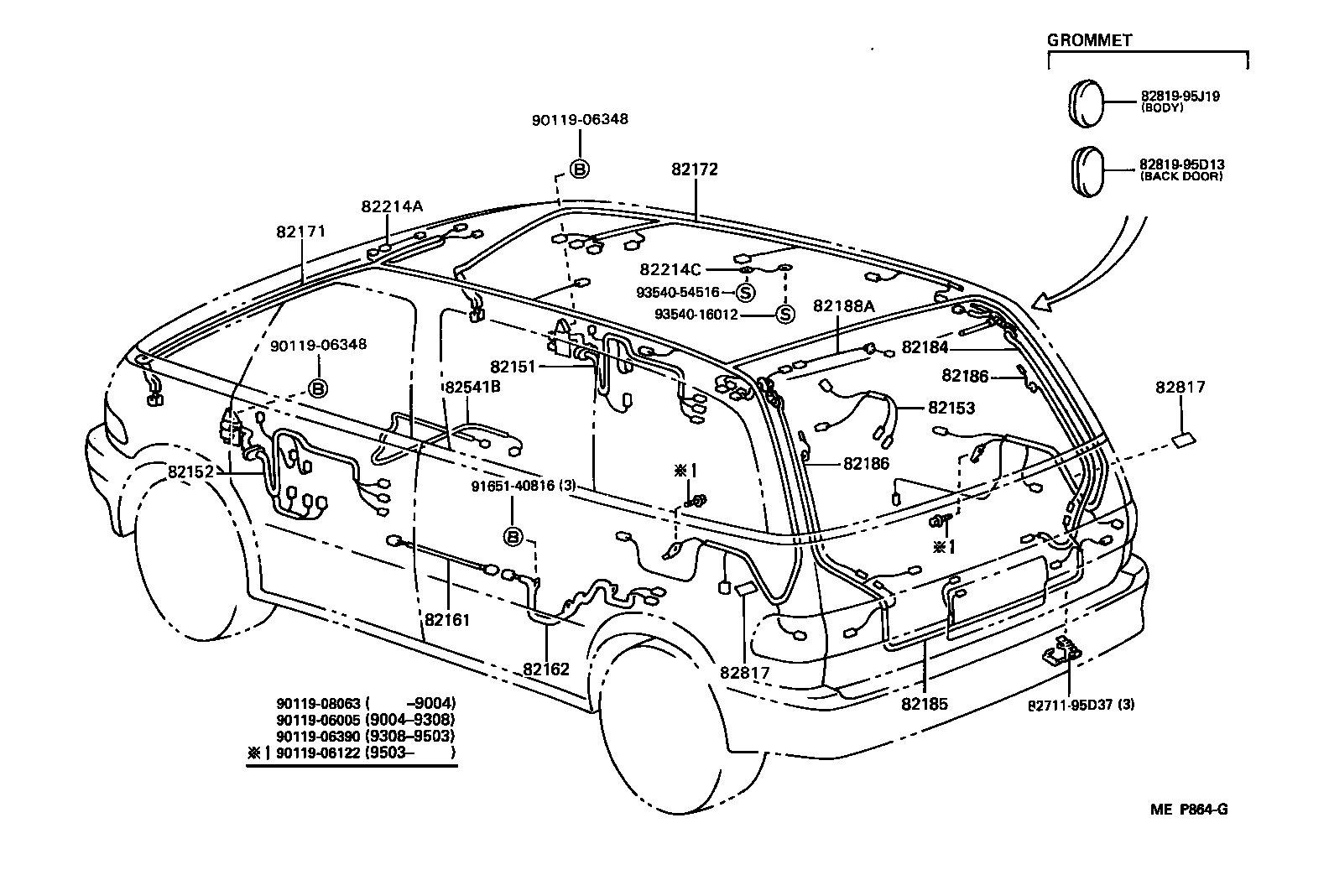

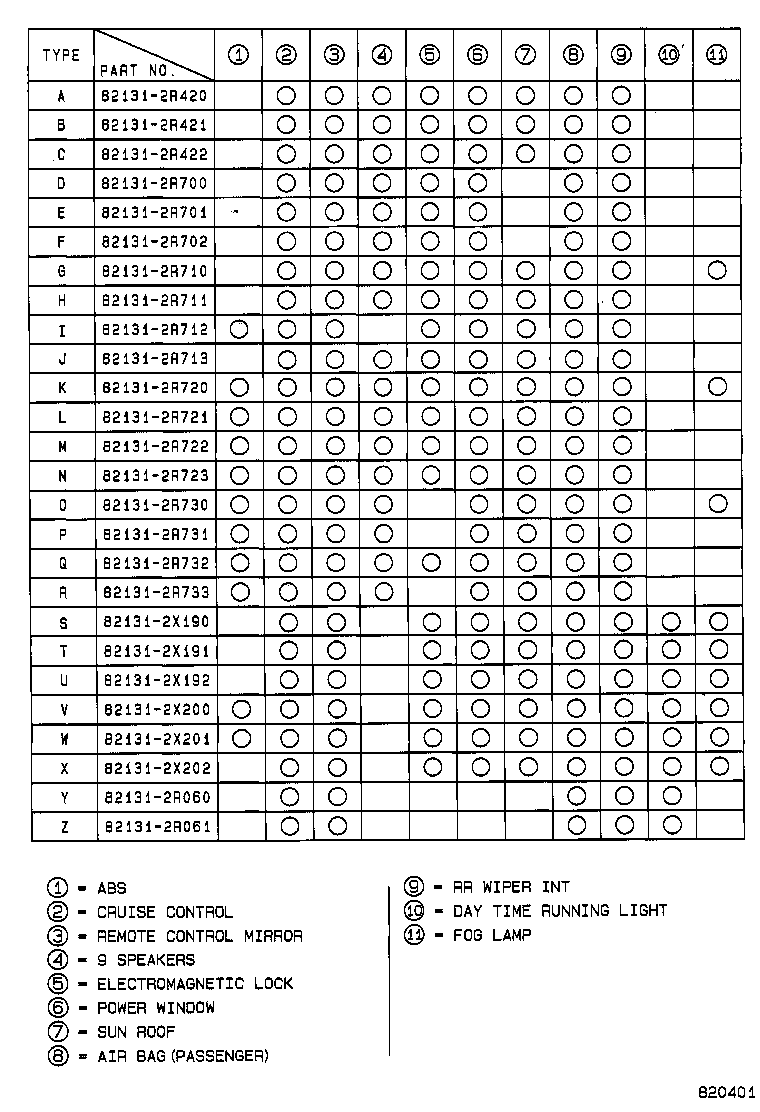

Figure MEX336 MEX336 1990-01 → — Figure MEP845C MEP845C 1990-01 → 1996-08 Figure MEX335B MEX335B 1994-01 → — Figure 820422 820422 1990-01 → — Figure 820393 820393 1990-01 → 1991-08 Figure 820394 820394 1991-08 → 1993-08 Figure 820395 820395 1993-08 → 1995-08 Figure 820396 820396 1995-08 → — Figure 820400 820400 1990-01 → — Figure 820401 820401 1994-01 → — Figure MEX337C MEX337C 1990-01 → — Figure MEP871C MEP871C 1990-01 → — Figure MEP864G MEP864G 1990-01 → — Figure 820412 820412 1990-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82188A Wire, Back Door, NO.3
82210C Fusible Link
82214A Wire, Lamp
82214C Wire, Room Lamp
82223H Wire, Fuse Block
82241C Wire, Relay
82261A Wire, Alternator
82284 Wire, Earth
82345 Diode
82541B Wire, Seat Adjuster
82620 Block Assy, Fusible Link
82621 Cover, Fusible Link
82627A Wire, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
