Toyota Previa
1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States
Discontinued model
Data version 1998-02
Meter
18 part groups · 5 illustrations

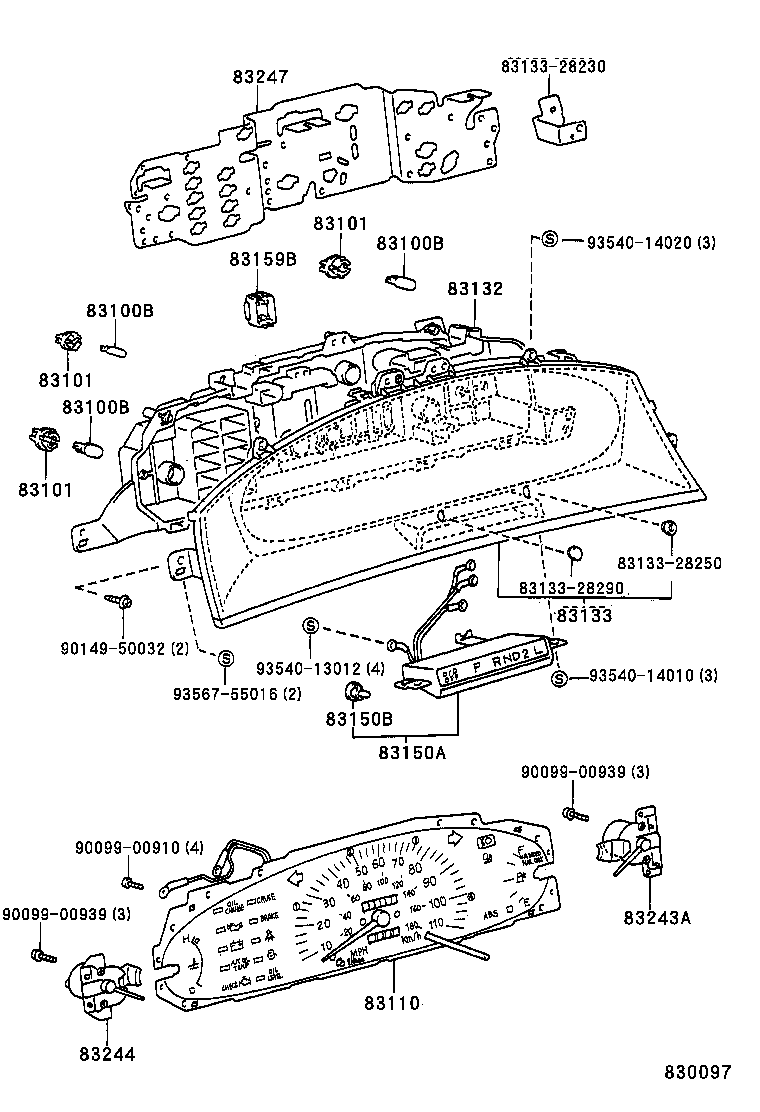

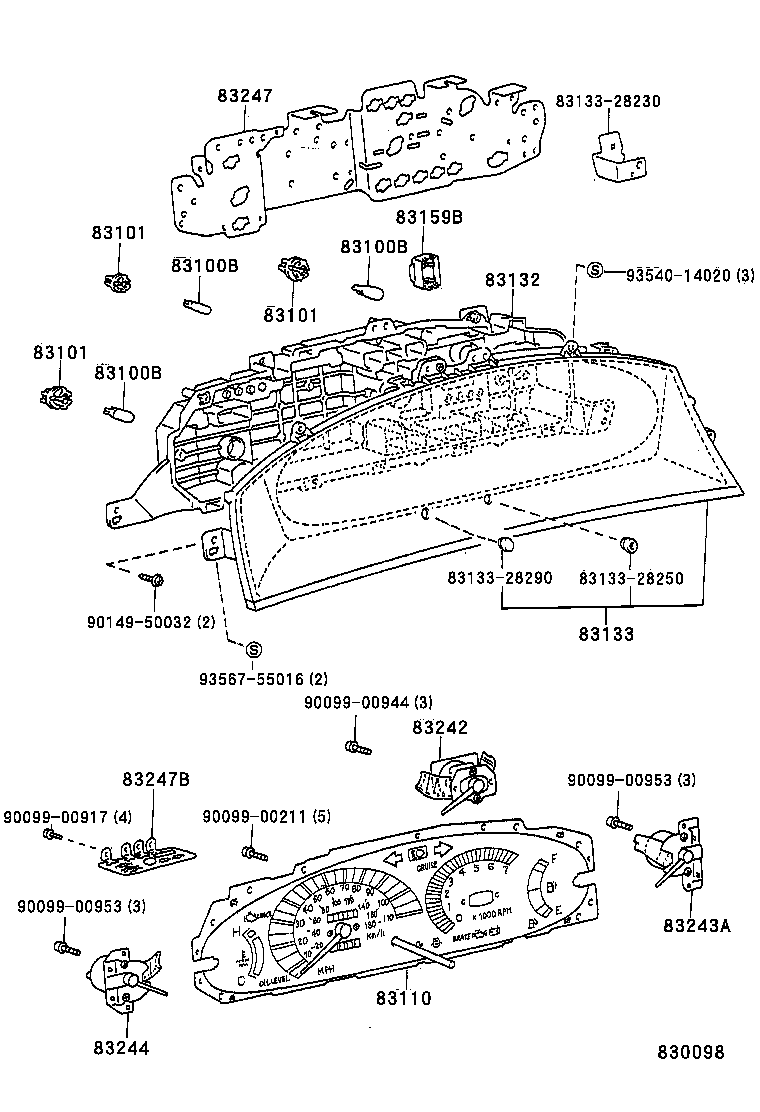

Part groups
| PNC | Description |
|---|---|
| 80310 | Guide Assy, Shift Indicator Control Name |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83150A | Indicator Assy |
| 83150B | Bulb (FOR INDICATOR) |
| 83159B | Relay Assy, Meter |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83783 | Key, Speedmeter Sensor |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
