Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

97 part groups · 8 illustrations

Illustrations

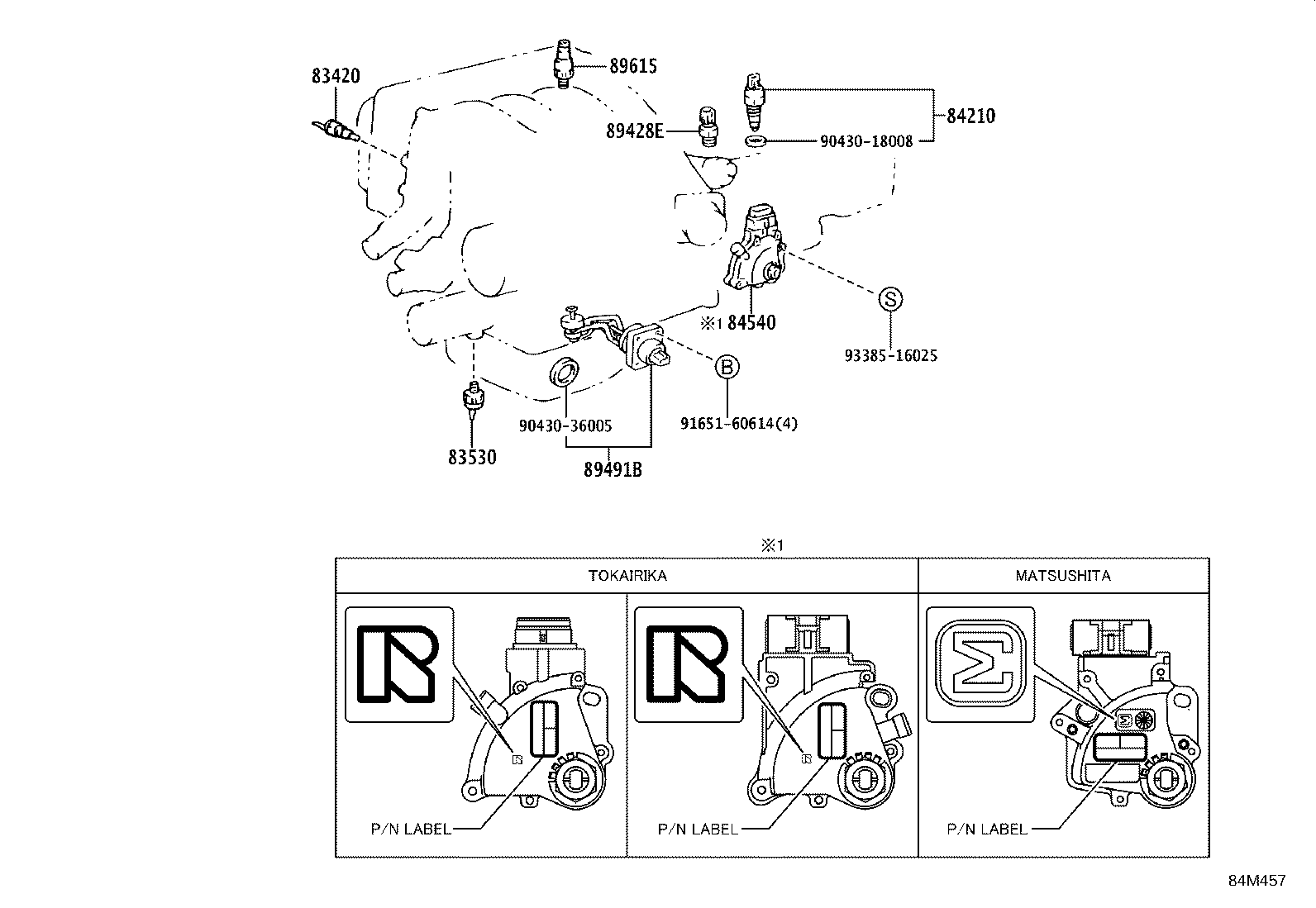

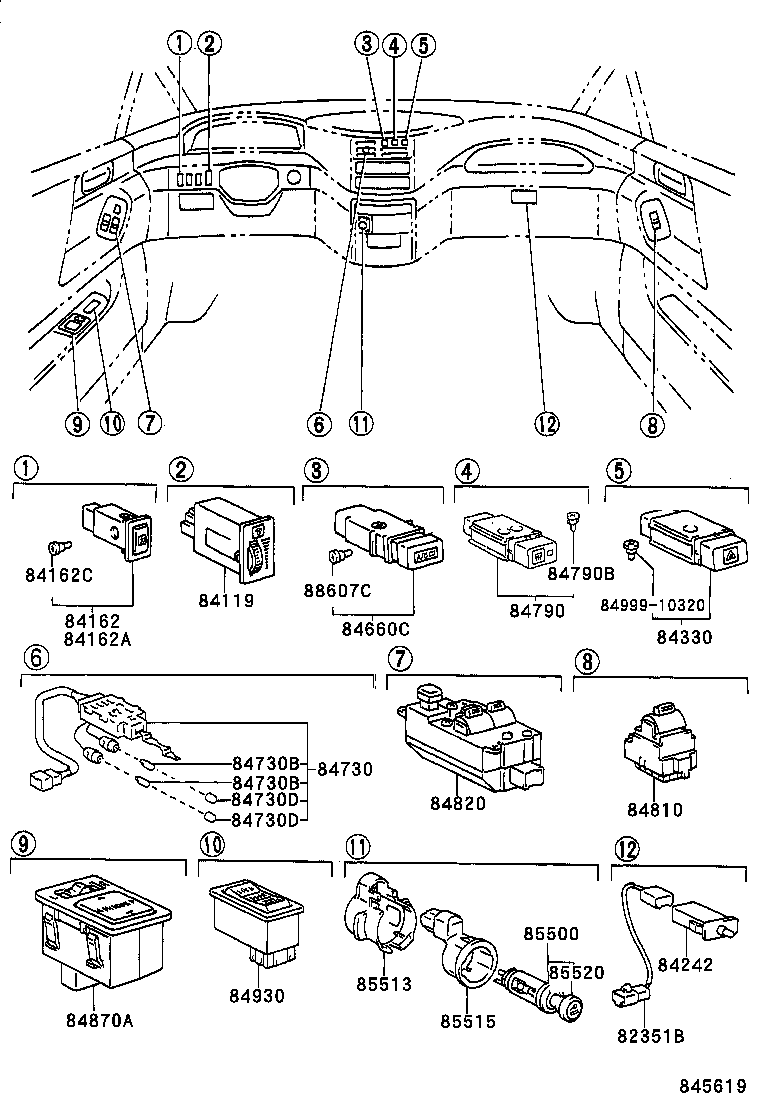

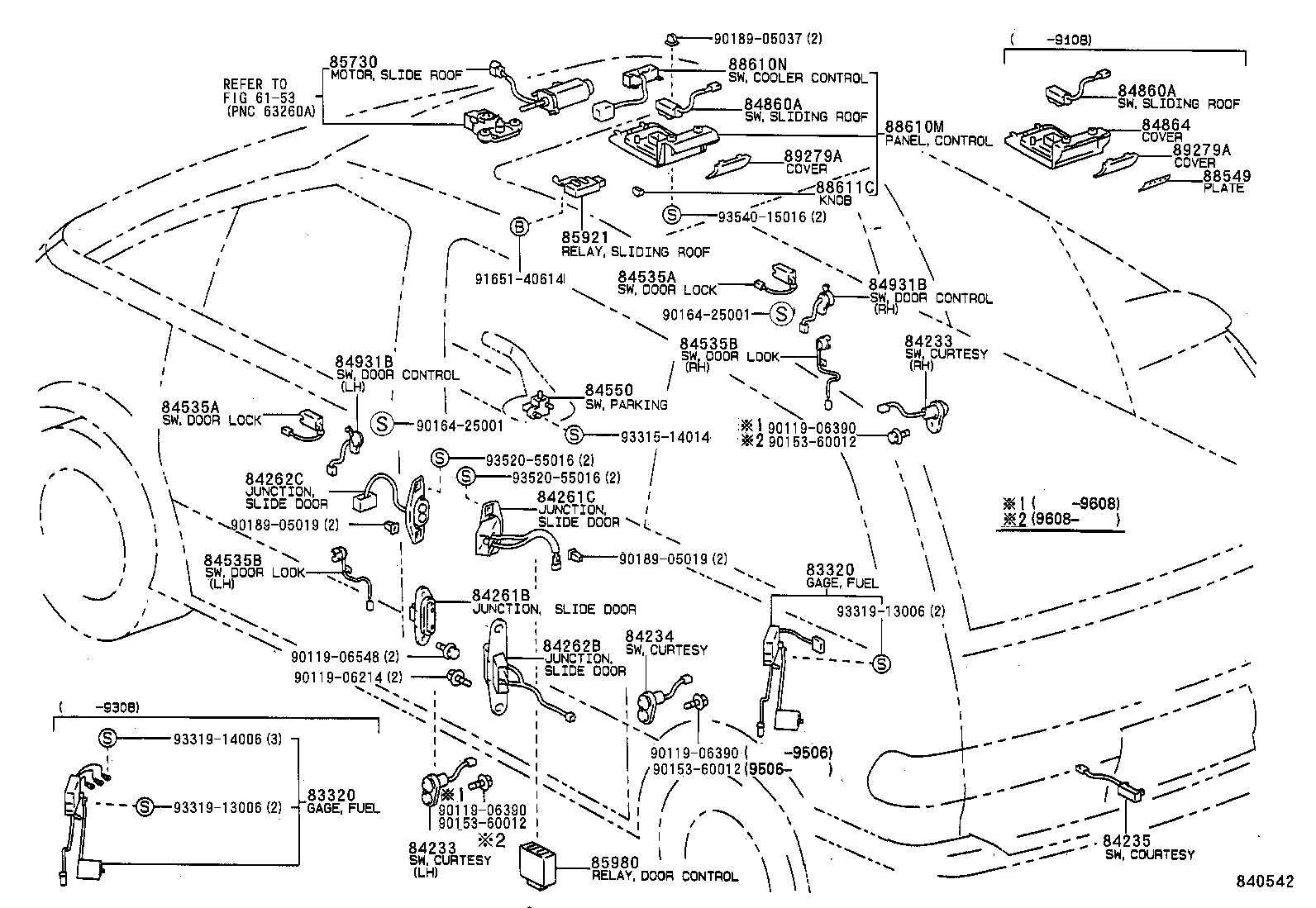

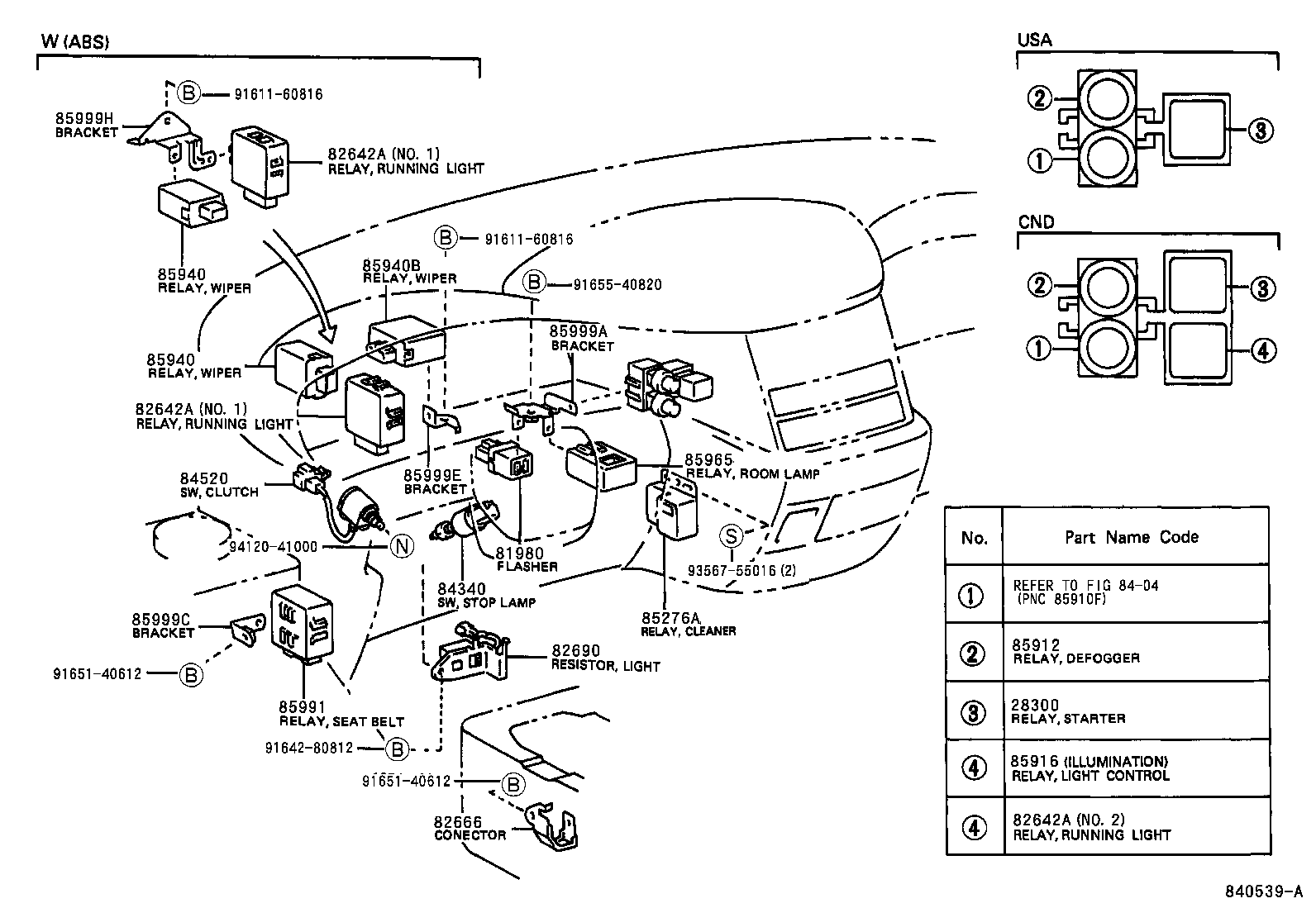

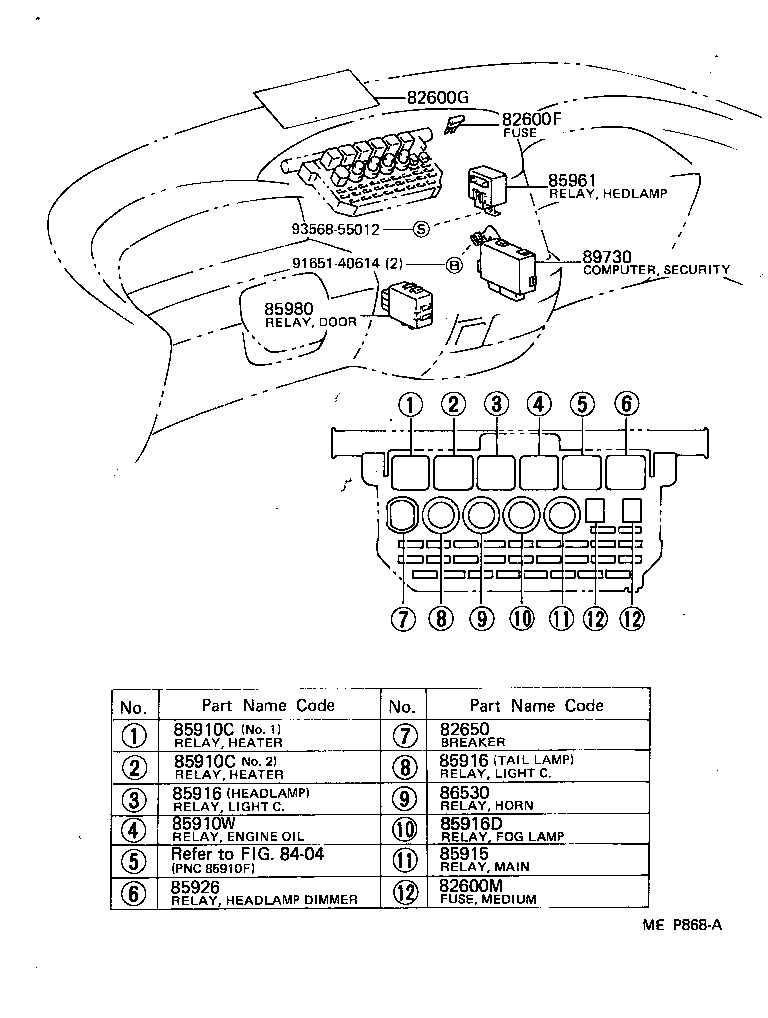

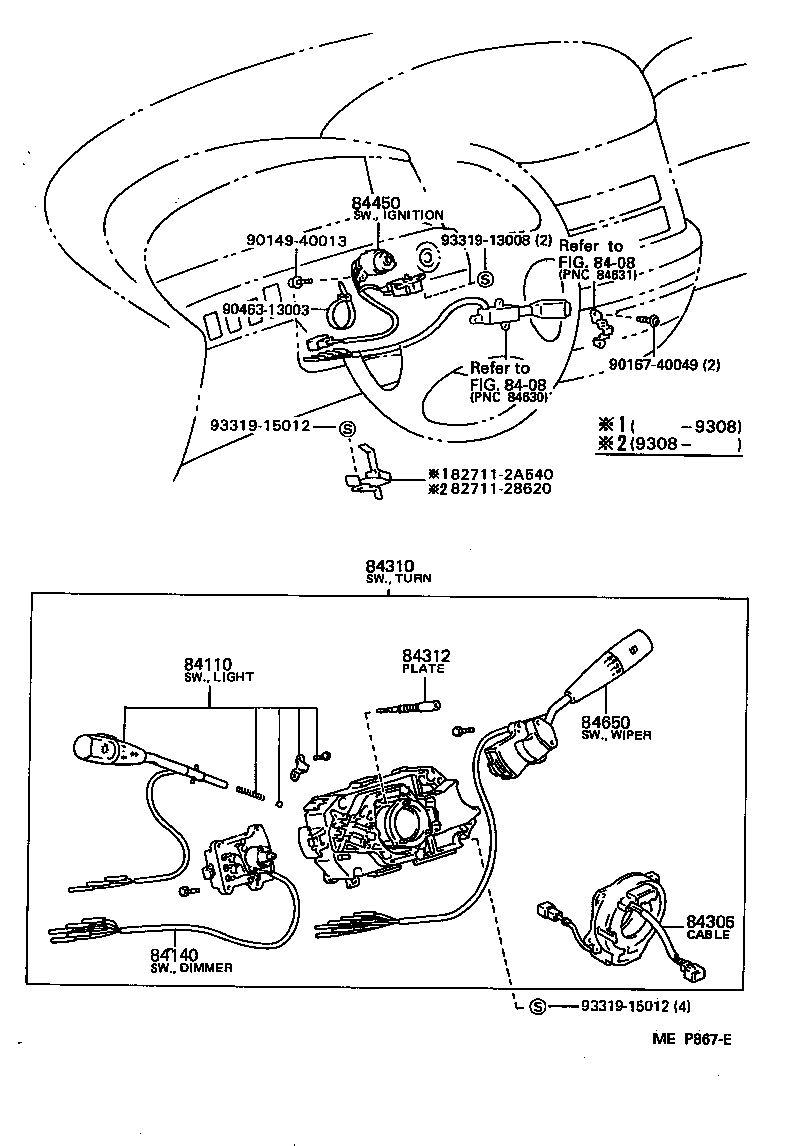

Figure 840538B 840538B 1990-01 → — Figure 84M457 84M457 1990-01 → — Figure 84M454 84M454 1994-01 → — Figure 845619 845619 1990-01 → — Figure MEP867E MEP867E 1990-01 → — Figure MEP868A MEP868A 1990-01 → — Figure 840539A 840539A 1990-01 → — Figure 840542 840542 1990-01 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28380A Resister, Fuel Pump
28380C Relay Assy, Fuel Pump
81980 Flasher Assy, Turn Signal
82351B Wire,Courtesy Lamp
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82642A Relay, Running Light
82650 Breaker Assy, Wiring Circuit, NO.1
82666 Holder, Connector
82690 Resistor Assy, Dim Dip Lamp
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84110 Switch Assy, Light Control, NO.1
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84210 Switch Assy, Back-up Lamp
84231B Switch, Courtesy Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84242 Switch, Glove Box Lamp
84261B Junction, Slide Door Control,Male
84261C Junction, Slide Door Control,Male NO.1
84262B Junction, Slide Door Control, Female
84262C Junction, Slide Door Control, Female, NO.1
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84535A Switch, Door Lock
84535B Switch, Door Lock, NO.2
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84864 Cover, Slide Roof Motor Switch
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84931B Switch, Door Control
85276A Relay, Cleaner Control
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85730 Motor Assy, Slide Roof
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910W Relay, Oil Level
85912 Relay, Defogger
85915 Relay, Main
85916 Relay, Light Control
85916D Relay, Fog Lamp
85921 Relay, Sliding Roof Control
85926 Relay, Headlamp Dimmer
85940 Relay Assy, Windshield Wiper
85940B Relay Assy, Rear Wiper
85961 Relay, Headlamp Retainer
85965 Relay, Room Lamp Control
85980 Relay Assy, Door Control
85991 Relay, Seat Belt Warning
85999A Bracket, Relay, NO.2
85999C Bracket, Relay, NO.3
85999E Bracket, Relay, NO.5
85999H Bracket, Relay
86530 Relay Assy, Horn
88549 Plate, Caution
88607C Lamp Sub-assy, Indicator
88610M Switch Assy, Cooler Control
88610N Switch Assy, Cooler Control
88611C Knob, Cooler Control Switch
89279A Cover, Computer
89428E Switch, Temperature, NO.2 (FOR TRANSMISSION)
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491B Sensor, Engine Oil Level(FOR AUTO FEEDER)
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89730 Computer Assy, Security Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
