Toyota Previa

1990-01 → 1997-07 · chassis TCR1#,2# · catalogue 652440 · United States

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 3 illustrations

Illustrations

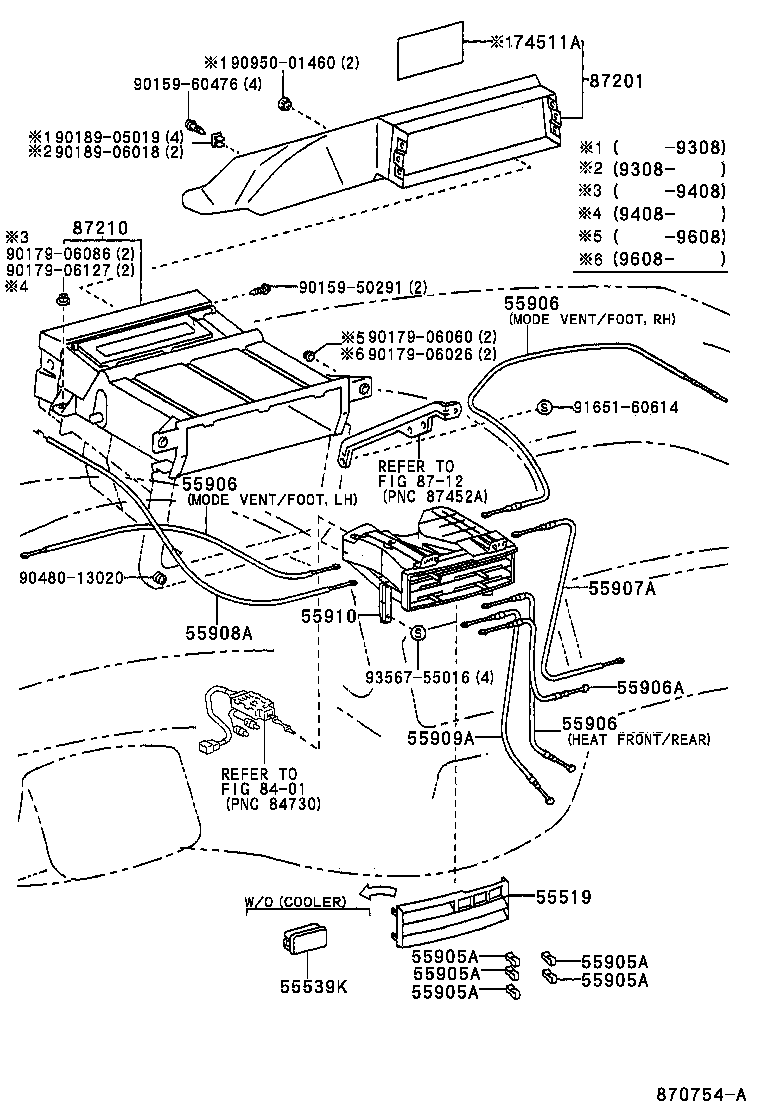

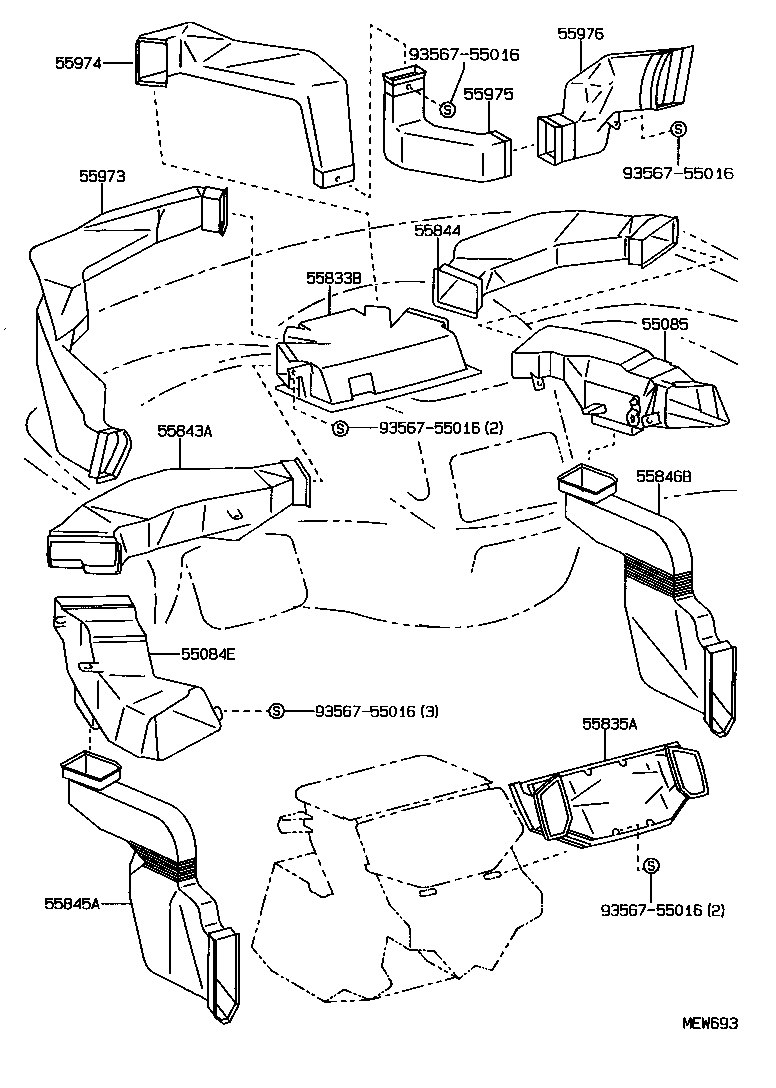

Figure MEP855 MEP855 1990-01 → 1993-08 Figure MEW693 MEW693 1993-08 → — Figure 870754A 870754A 1990-01 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55519 Plate, Heater Control Name
55539K Cover, Spare Switch Hole
55833B Connector, Instrument Panel Register, Center
55835A Duct, Heater TO Register, Center
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846B Duct, Heater TO Register, NO.4
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55973 Duct, Side Defroster Nozzle, NO.3
55974 Duct, Side Defroster Nozzle, NO.4
55975 Duct, Side Defroster Nozzle, NO.5
55976 Duct, Side Defroster Nozzle, NO.6
74511A Plate, Name
87201 Duct Sub-assy, Air, NO.1
87210 Damper Assy, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
