Toyota Rush
2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States
Supported model
Data version 2018-12

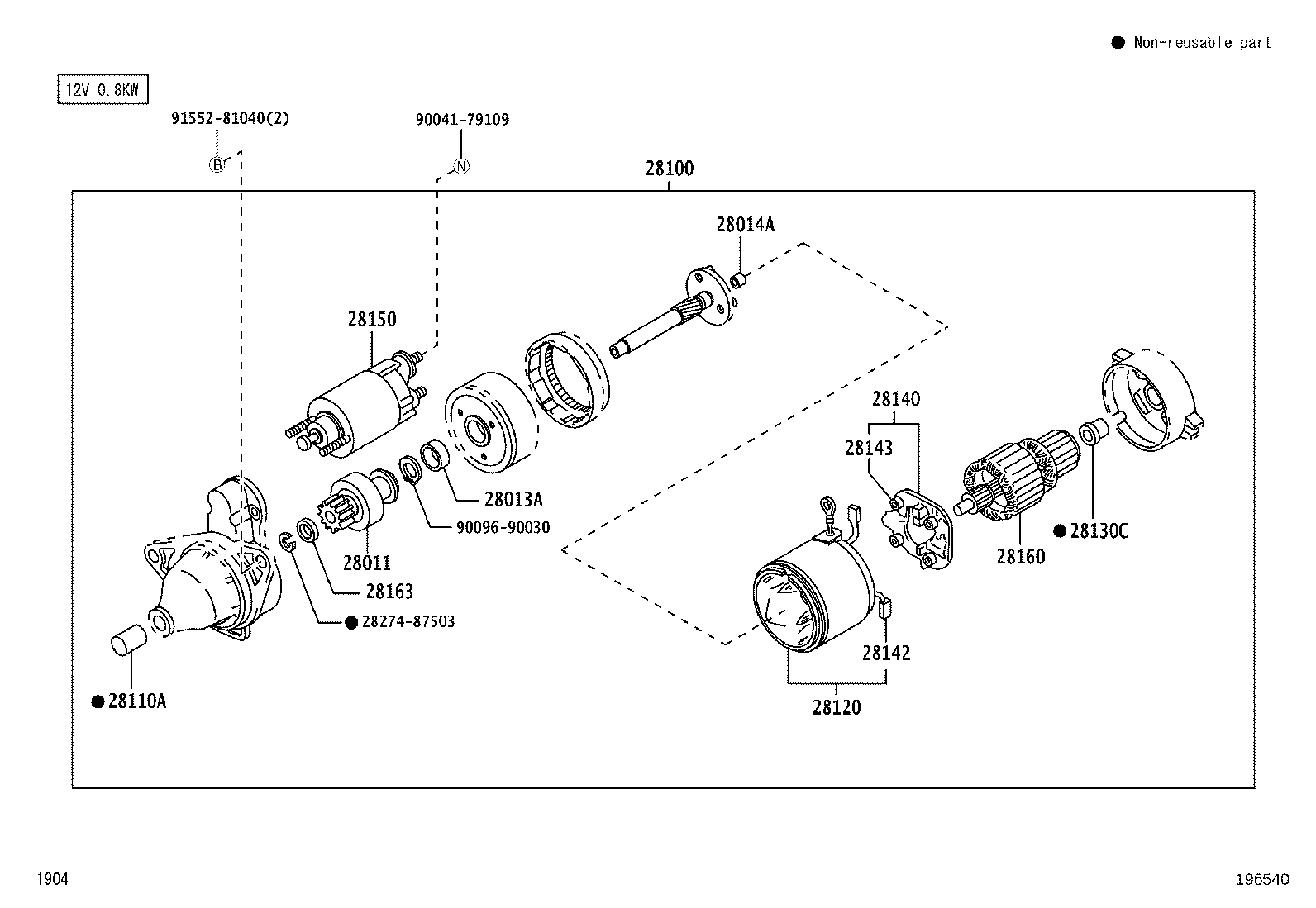

Starter
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28013A | Bearing, Starter Center & Shock Absorber, NO.2 |
| 28014A | Bush OR Bearing, Planet Carrier Shaft |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28110A | Bearing(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28130C | Bearing, Starter Flange |
| 28140 | Holder Assy, Starter Brush |
| 28141 | Insulator, Brush Holder |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28199A | Protector, Dust Starter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
