Toyota Rush
2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States
Supported model
Data version 2018-12

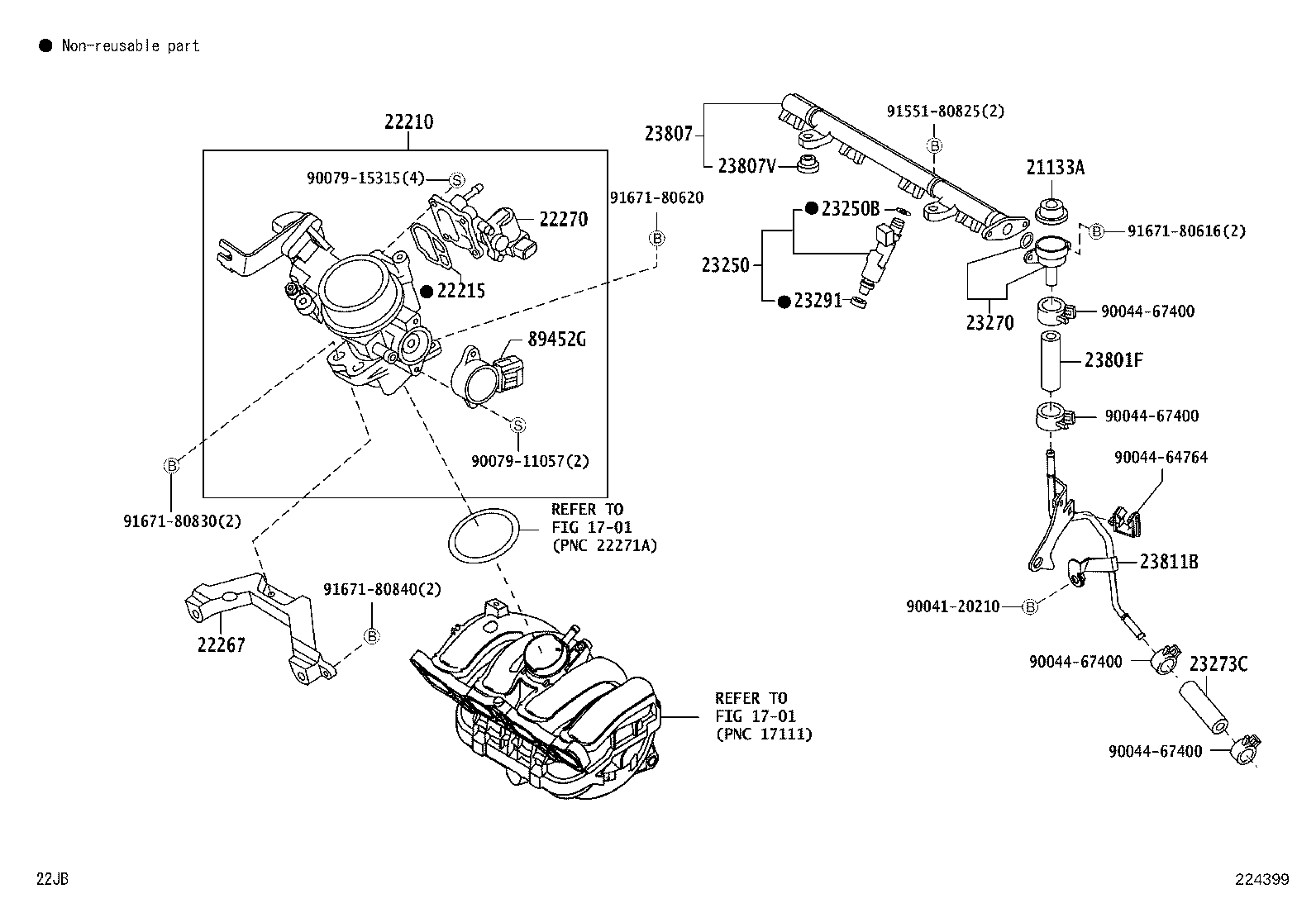

Fuel Injection System
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21133A | Cover, Dust |
| 22210 | Body Assy, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22267 | Bracket, Throttle Body |
| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 23100X | Pump Assy, Fuel (ENGINE ROOM SIDE) |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23217A | Filter, Fuel Pump |
| 23220 | Pump Assy, Fuel W/Filter |
| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23270 | Damper Assy, Fuel Pressure Pulsation |
| 23273C | Hose, Fuel, NO.2 |
| 23291 | Insulator, Injector Vibration |
| 23801F | Hose, Fuel, NO.1 |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
| 23811B | Pipe, Fuel, NO.1 |
| 89452G | Sensor, Throttle Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
