Toyota Rush
2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States
Supported model
Data version 2018-12

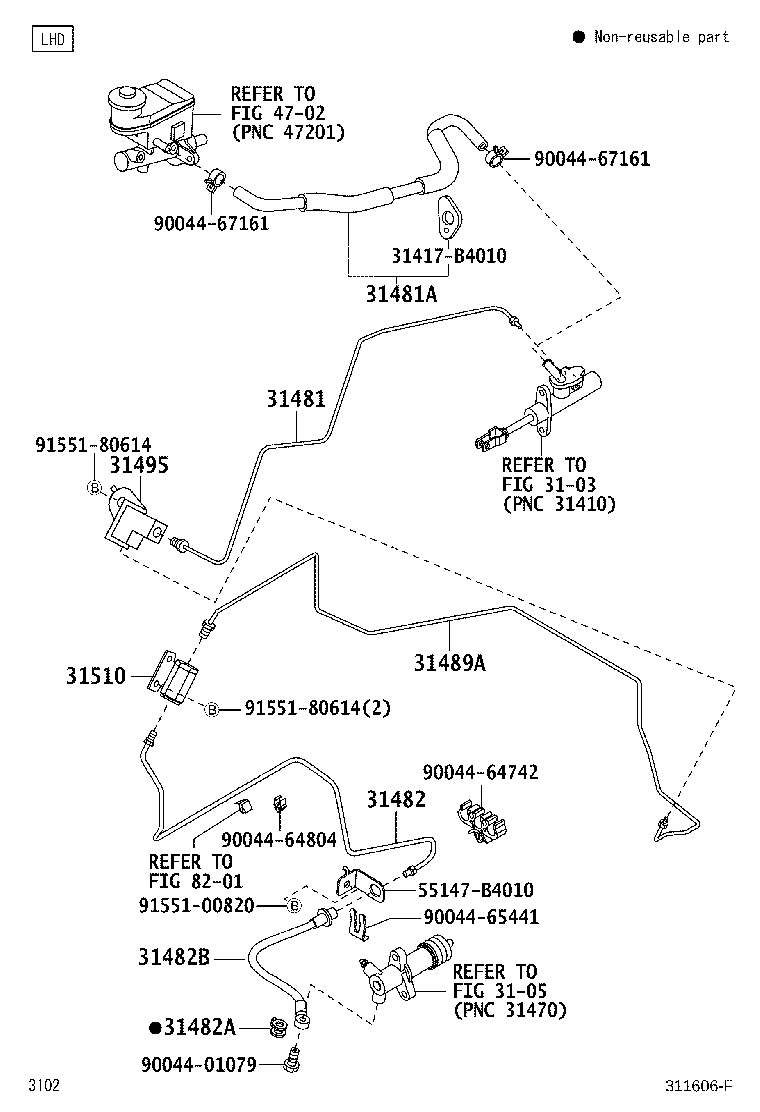

Clutch Pedal & Flexible Hose
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301Q | Bush(FOR CLUTCH PEDAL SPRING) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31481 | Tube, Clutch Master Cylinder TO Flexible Hose |
| 31481A | Hose, Clutch, NO.1 |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31482A | Gasket(FOR CLUTCH RELEASE CYLINDER) |
| 31482B | Hose, Clutch, NO.2 |
| 31489A | Tube, 2 Way TO Flexible Hose |
| 31495 | Way, Clutch Tube |
| 31510 | Orifice Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
