Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

12 part groups · 3 illustrations

Illustrations

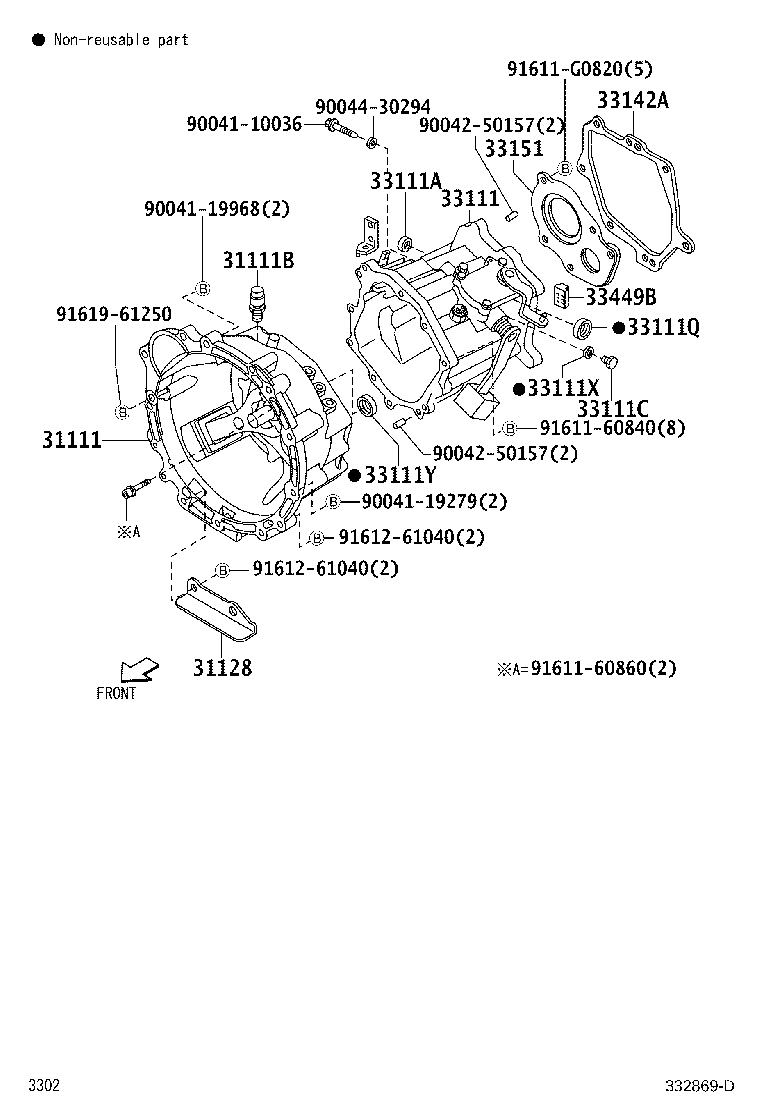

Figure 333757C 333757C 2008-11 → 2009-11 Figure 333757C 333757C 2016-05 → — Figure 332869D 332869D 2016-05 → —

Part groups

PNCDescription
31111 Housing, Clutch
31111B Plug(FOR CLUTCH HOUSING)
31128 Cover, Clutch Housing Under
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111Q Seal, Oil(FOR TRANSMISSION CASE)
33111X Gasket, Transmission Case Plug
33111Y Seal, Oil(FOR TRANSMISSION CASE)
33142A Gasket, Extension Housing
33151 Retainer, Output Shaft Rear Bearing(MTM)
33449B Magnet, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
