Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

12 part groups · 3 illustrations

Illustrations

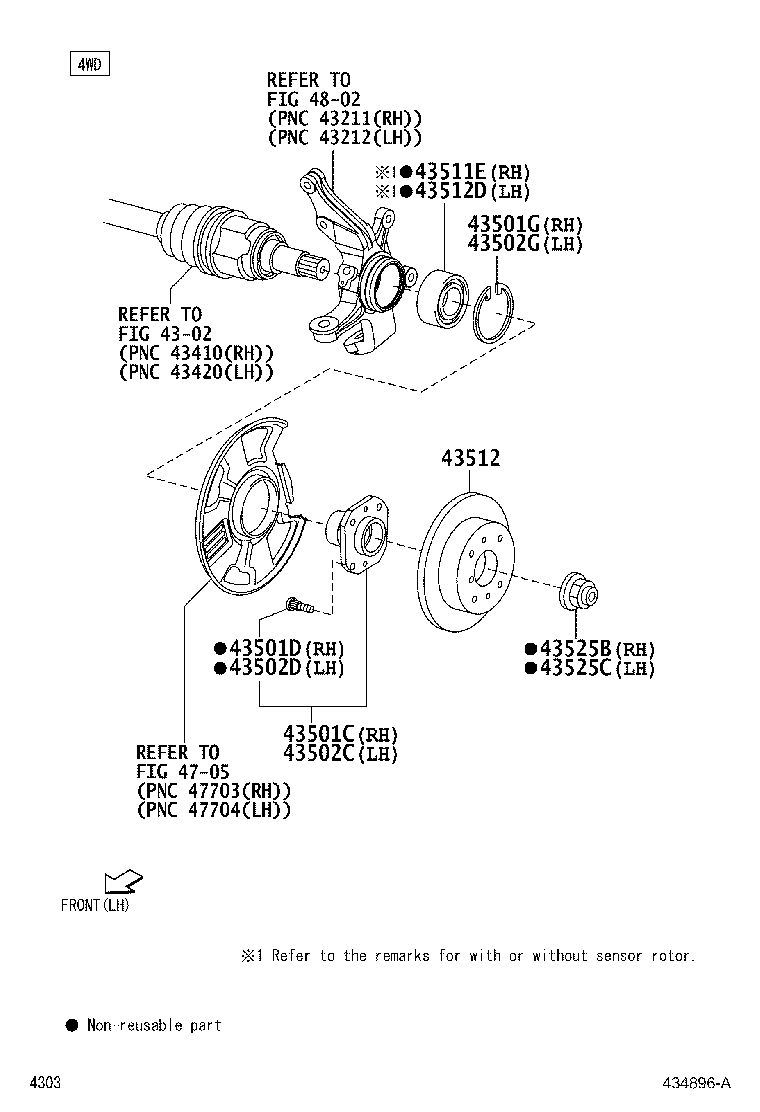

Figure 434895A 434895A 2008-11 → 2009-11 Figure 434895A 434895A 2016-05 → — Figure 434896A 434896A 2016-05 → —

Part groups

PNCDescription
43401D Spindle Sub-assy, Steering Knuckle
43501C Hub Sub-assy, Front Axle, RH
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501G Ring, Hole Snap (FOR FRONT AXLE HUB RH)
43502C Hub Sub-assy, Front Axle, LH
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502G Ring, Hole Snap (FOR FRONT AXLE HUB LH)
43511E Bearing (FOR FRONT AXLE HUB RH)
43512 Disc, Front
43512D Bearing (FOR FRONT AXLE HUB LH)
43525B Cap, Front Wheel Adjusting Lock, RH
43525C Cap, Front Wheel Adjusting Lock, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
