Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

17 part groups · 4 illustrations

Illustrations

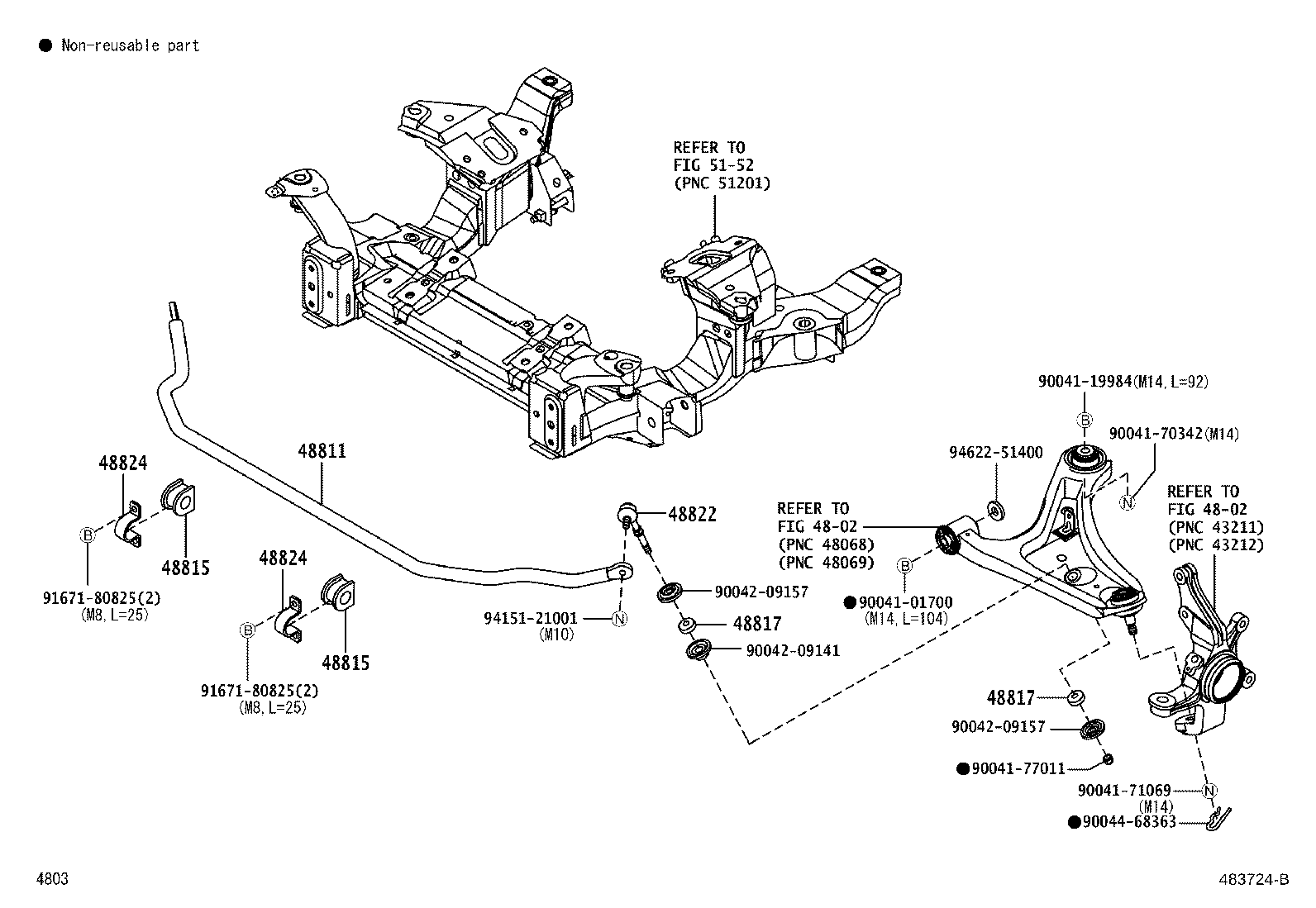

Figure 482769I 482769I 2008-11 → 2009-11 Figure 482769I 482769I 2016-05 → — Figure 483724B 483724B 2008-11 → 2009-11 Figure 483724B 483724B 2016-05 → —

Part groups

PNCDescription
48044 Seat Sub-assy, Front Spring, NO.1
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157 Insulator, Front Coil Spring, Upper
48331 Bumper, Front Spring, NO.1
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48559A Cover, Front Shock Absorber Dust, RH NO.1
48559B Cover, Front Shock Absorber Dust, LH NO.1
48609A Support Sub-assy, Front Suspension
48681 Support, Front Suspension, NO.1
48684 Cover, Bearing Dust
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48822 Rod, Stabilizer Link
48824 Bracket, Stabilizer, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
