Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 4 illustrations

Illustrations

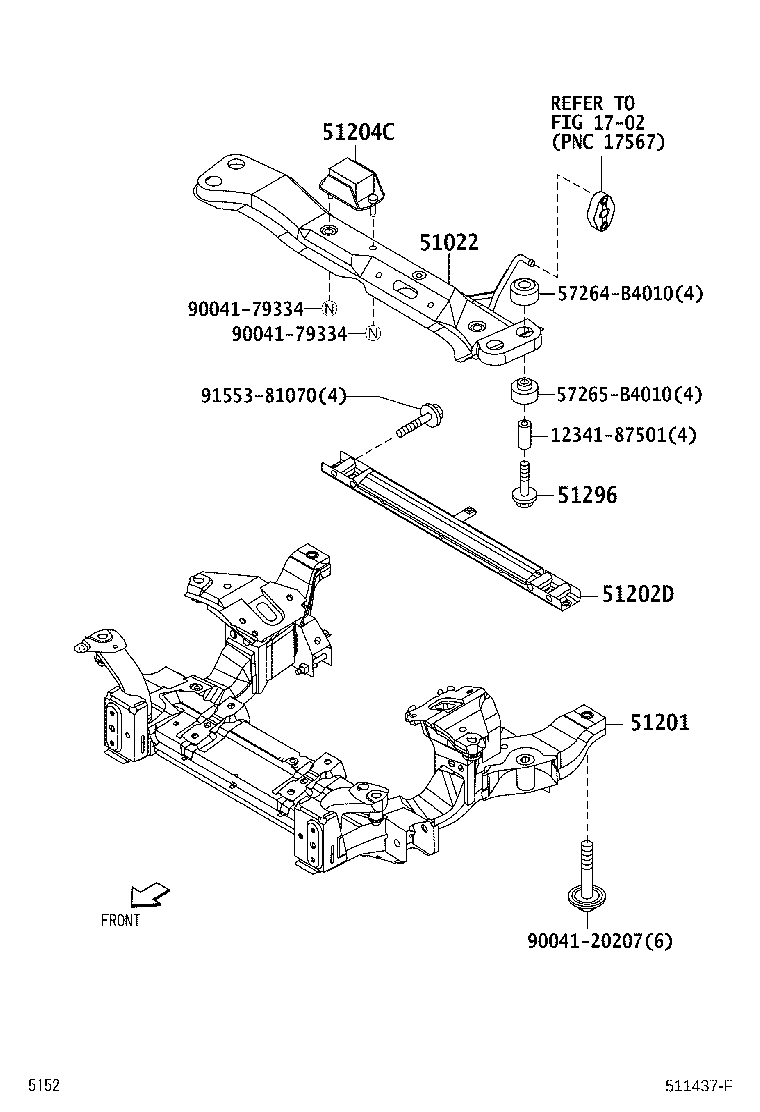

Figure 511420A 511420A 2008-11 → 2009-11 Figure 511420A 511420A 2016-05 → — Figure 511437F 511437F 2008-11 → 2009-11 Figure 511437F 511437F 2016-05 → —

Part groups

PNCDescription
51022 Member Sub-assy, Engine Rear Support
51201 Crossmember Sub-assy, Front Suspension
51202D Crossmenber Sub-assy, Front Suspension, Lower
51204C Damper Sub-assy, Engine Rear Support Member
51296 Bolt, Front Suspension Member Mounting
51441D Cover, Engine Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
