Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

12 part groups · 6 illustrations

Illustrations

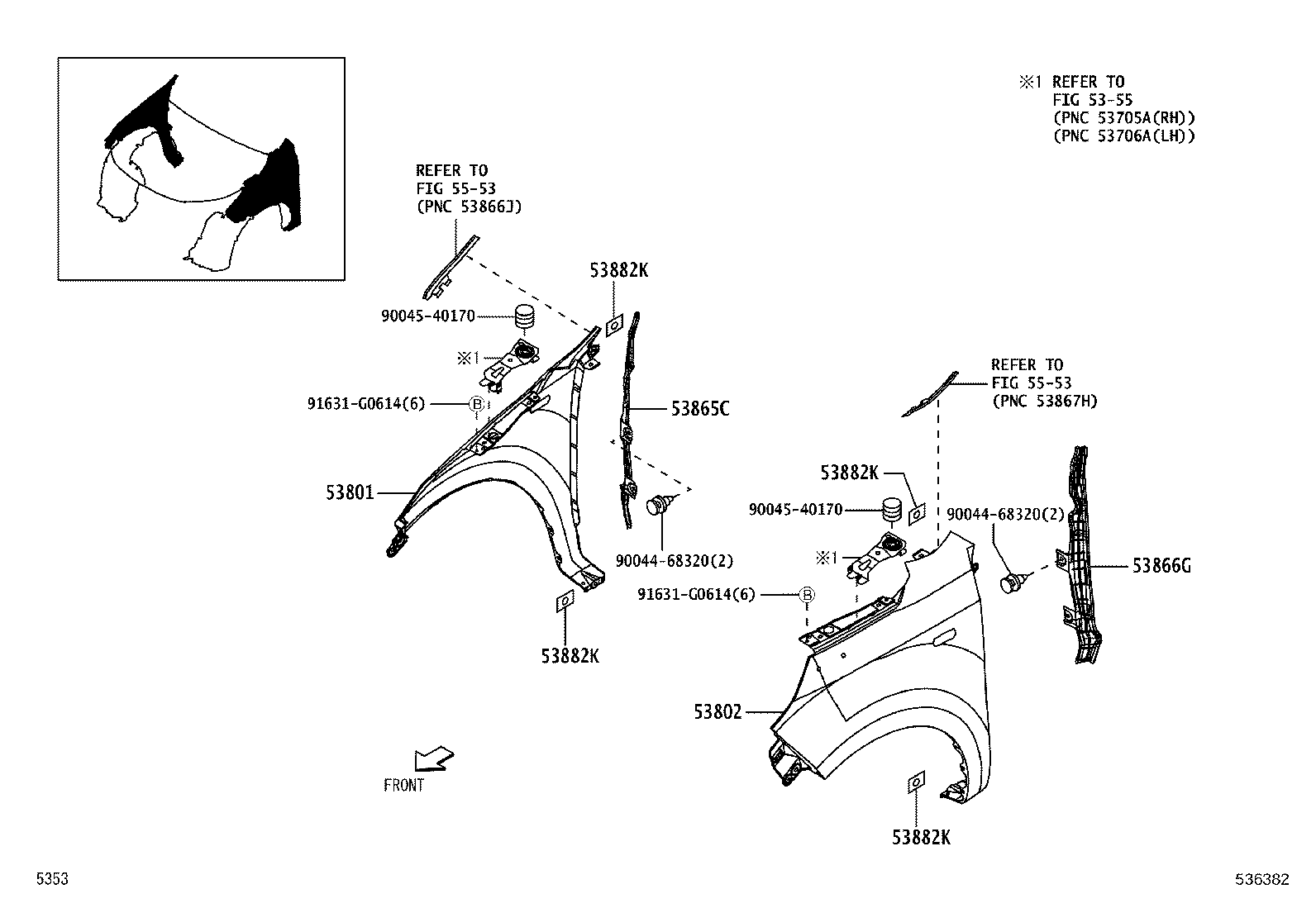

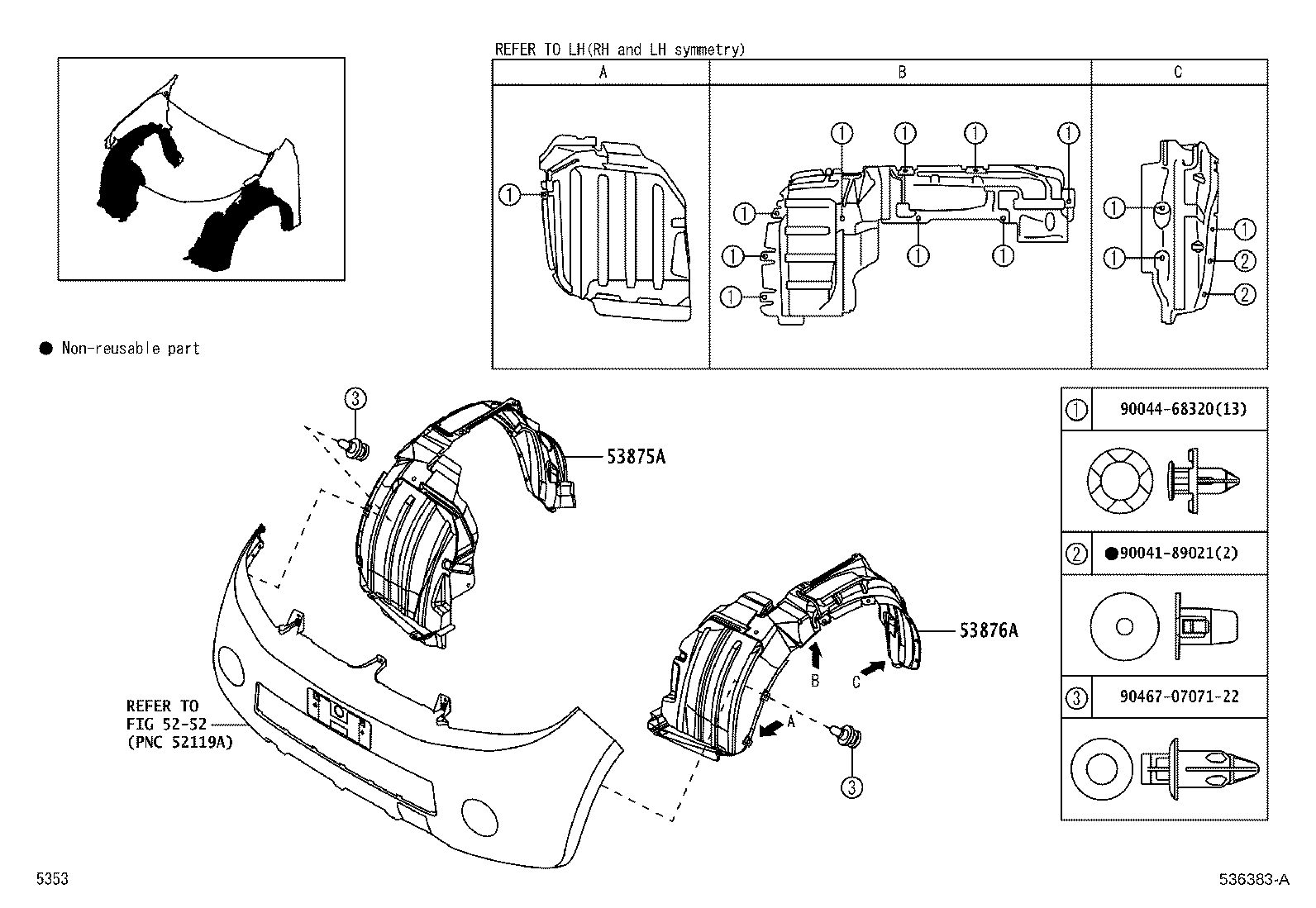

Figure 536380 536380 2008-11 → 2009-11 Figure 536380 536380 2016-05 → — Figure 536383A 536383A 2008-11 → 2009-11 Figure 536383A 536383A 2016-05 → — Figure 536382 536382 2008-11 → 2009-11 Figure 536382 536382 2016-05 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53383C Seal, Hood TO Cowl Top
53384B Cushion, Hood, Center
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53865C Plate, Front Fender Extension, RH
53866G Plate, Front Fender Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
53882K Seal, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
