Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 8 illustrations

Illustrations

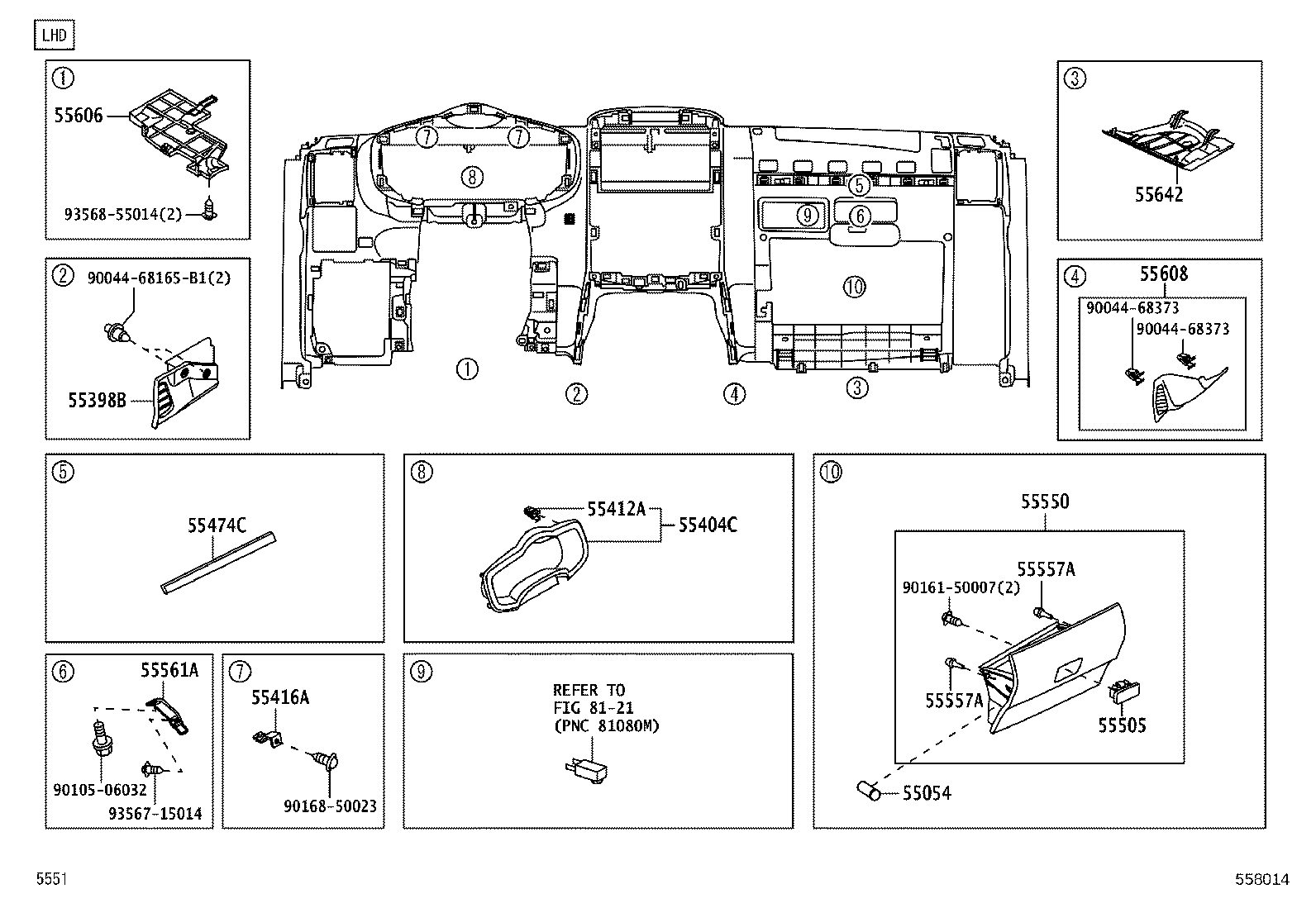

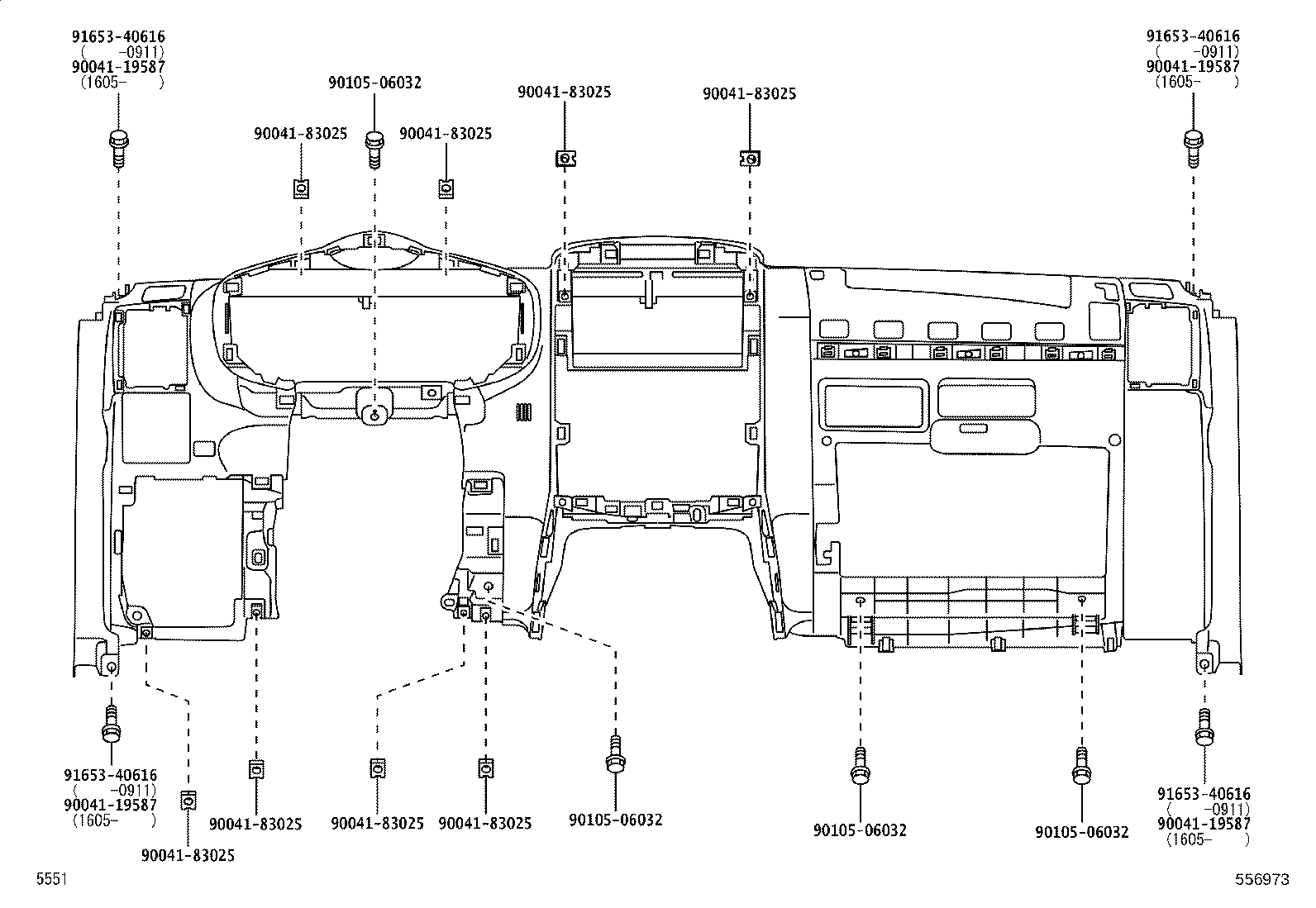

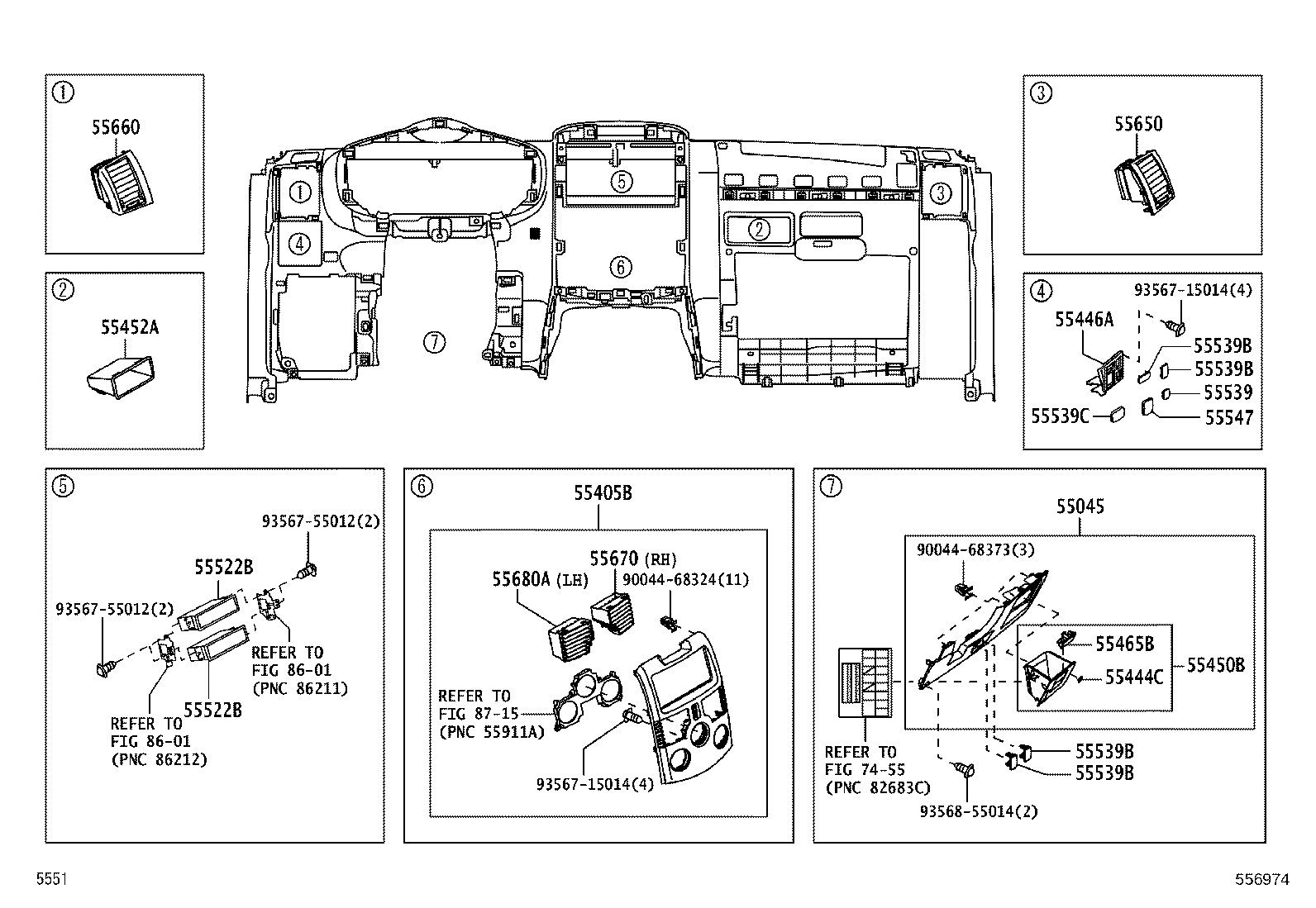

Figure 556972A 556972A 2008-11 → 2009-11 Figure 556972A 556972A 2016-05 → — Figure 556973 556973 2008-11 → 2009-11 Figure 556973 556973 2016-05 → — Figure 556974 556974 2008-11 → 2009-11 Figure 556974 556974 2016-05 → — Figure 558014 558014 2008-11 → 2009-11 Figure 558014 558014 2016-05 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55301 Panel Sub-assy, Instrument
55305C Reinforcement Sub-assy, Instrument Panel
55306A Brace Sub-assy, Instrument Panel, NO.1
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55394B Bolt, Instrument Panel
55398B Cover, Instrument Panel Brace, Inner NO.3
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55412A Clip, Panel, Instrument Cluster Finish, End
55416A Retainer, Meter Hood, NO.1
55444C Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55450B Box Assy, Coin
55452A Box, Instrument Panel, NO.2
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55465B Knob, Instrument Panel Box Lock
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55505 Lock Sub-assy, Glove Compartment Door
55522B Cover, Radio Tuner Opening
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55539C Cover, Spare Switch Hole
55547 Cover, Remote Control Mirror Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55561A Striker, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55608 Cover Sub-assy, Instrument Panel Under, NO.3
55642 Cover, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
