Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

27 part groups · 4 illustrations

Illustrations

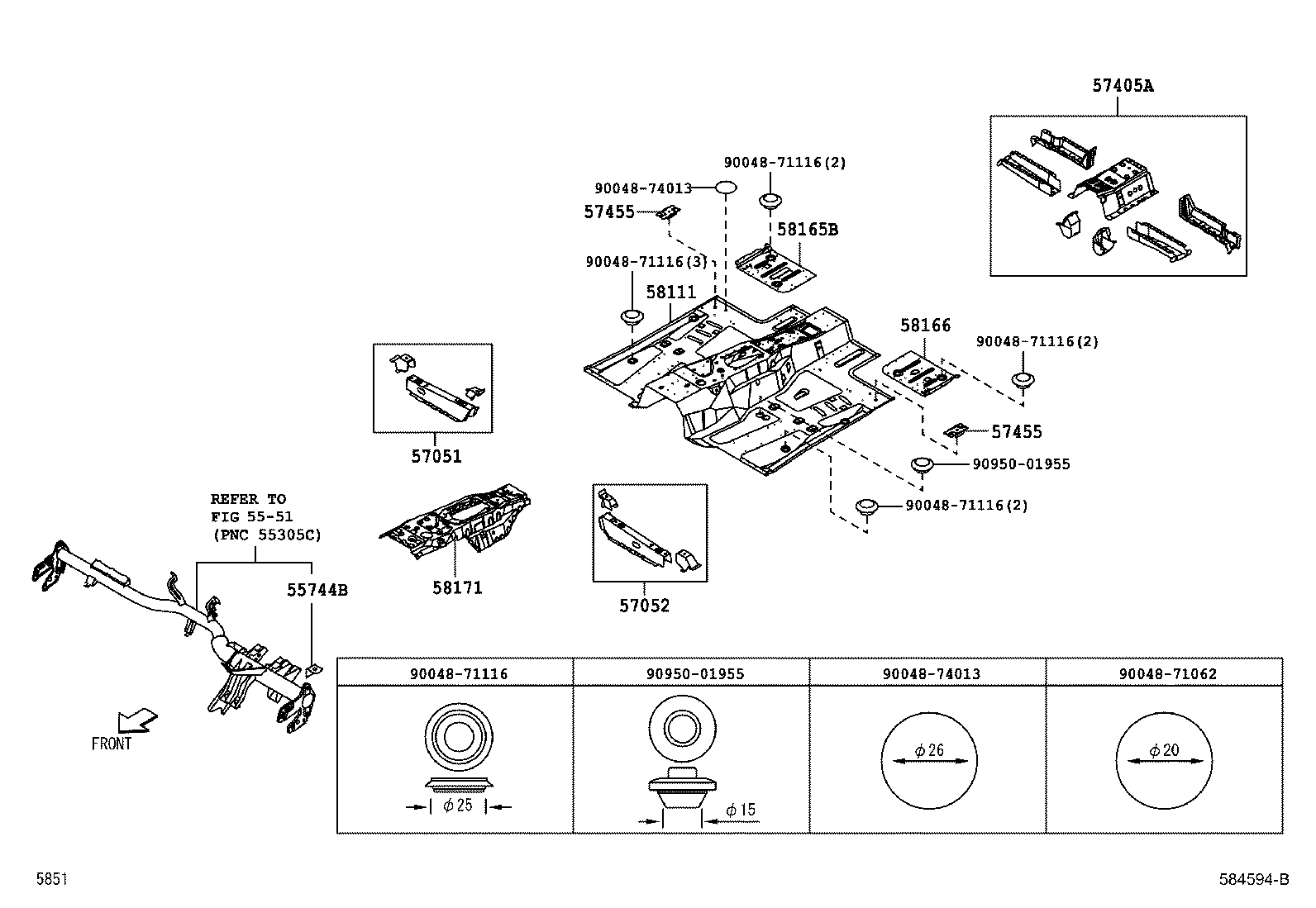

Figure 582557R 582557R 2008-11 → 2009-11 Figure 582557R 582557R 2016-05 → — Figure 584594B 584594B 2008-11 → 2009-11 Figure 584594B 584594B 2016-05 → —

Part groups

PNCDescription
51461A Bracket, Radiator Mounting, Lower RH
51462 Bracket, Radiator Mounting, Lower LH
55744B Bracket, Flasher Set
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57031A Reinforce Sub-assy, Front Side Member, NO.2 RH
57032B Reinforcement Sub-assy, Front Side Member, NO.2 LH
57051 Member Sub-assy, Front Floor Cross, RH
57052 Member Sub-assy, Front Floor Cross, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57111 Member, Front Side, RH
57112 Member, Front Side, LH
57151A Reinforcement, Front Side Member, NO.1 RH
57152 Reinforcement, Front Side Member, NO.1 LH
57301 Outrigger Sub-assy, NO.1 RH
57302D Outrigger Sub-assy, NO.1 LH
57335 Outrigger, NO.2 Front RH
57336B Outrigger, NO.2 Front LH
57401C Member Sub-assy, Floor Side, Inner RH
57402C Member Sub-assy, Floor Side, Inner LH
57405A Member Sub-assy, Center Floor Cross, NO.2
57455 Bracket, Front Seat Mounting, Outside RH
58111 Pan, Front Floor
58165B Cover, Front Floor, RH
58166 Cover, Front Floor, LH
58171 Reinforcement, Parking Brake Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
