Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Floor Panel & Rear Floor Member

17 part groups · 4 illustrations

Illustrations

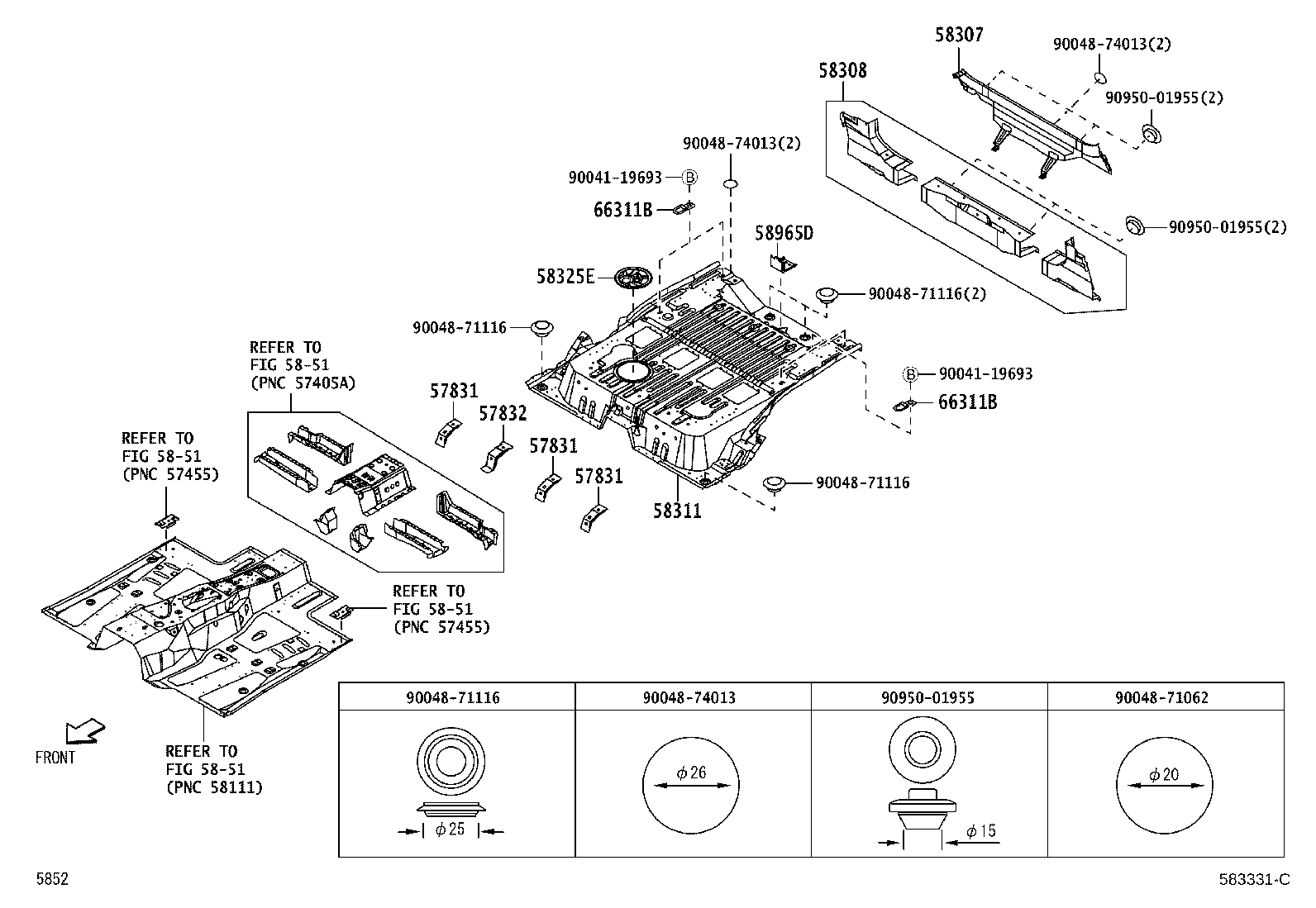

Figure 584611C 584611C 2008-11 → 2009-11 Figure 584611C 584611C 2016-05 → — Figure 583331C 583331C 2008-11 → 2009-11 Figure 583331C 583331C 2016-05 → —

Part groups

PNCDescription
57601A Member Sub-assy, Rear Floor Side, RH
57602A Member Sub-assy, Rear Floor Side, LH
57606C Member Sub-assy, Rear Floor Cross, NO.2
57607A Member Sub-assy, Rear Floor Cross, NO.3
57608B Member Sub-assy, Rear Floor Cross, NO.4
57615A Member, Rear Floor Side, Rear RH
57616A Member, Rear Floor Side, Rear LH
57632 Member, Rear Floor, Center NO.1
57805A Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
57831 Reinforcement, Rear NO.1 Seat Leg, Front NO.1
57832 Reinforcement, Rear NO.1 Seat Leg, Front NO.2
58307 Panel Sub-assy, Body Lower Back
58308 Panel Sub-assy, Body Lower Back, Inner
58311 Pan, Rear Floor
58325E Cover, Rear Floor Service Hole
58965D Bracket, Jack Support
66311B Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
