Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

16 part groups · 5 illustrations

Illustrations

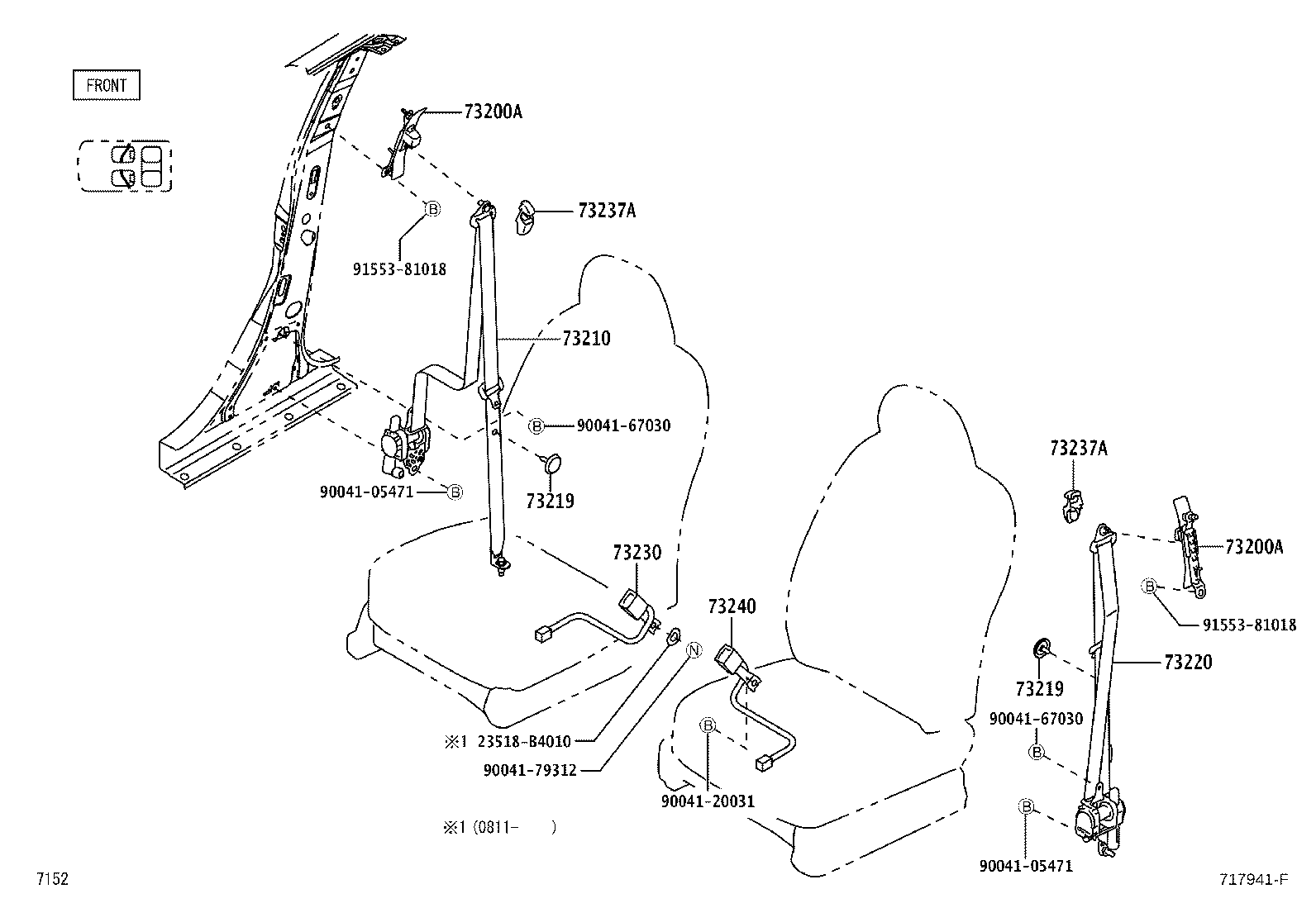

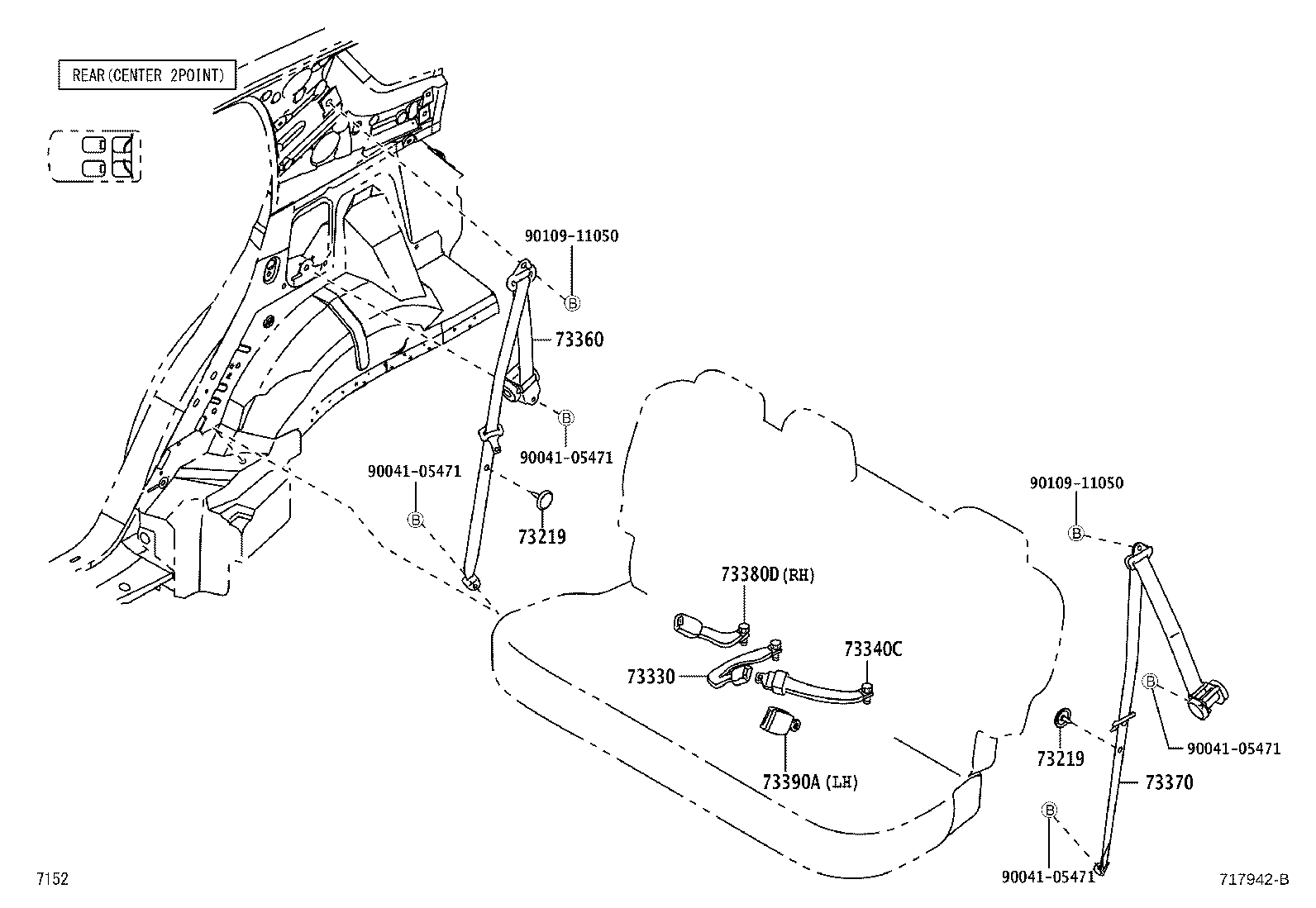

Figure 717940C 717940C 2016-05 → — Figure 717941F 717941F 2008-11 → 2009-11 Figure 717941F 717941F 2016-05 → — Figure 717942B 717942B 2008-11 → 2009-11 Figure 717942B 717942B 2016-05 → —

Part groups

PNCDescription
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223 Cover, Seat Belt Retractor
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380D Belt Assy, Rear Seat, Inner
73390A Belt Assy, Rear Seat, Inner
73680A Bracket Assy, Rear Seat Belt Outer Anchor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
