Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

12 part groups · 5 illustrations

Illustrations

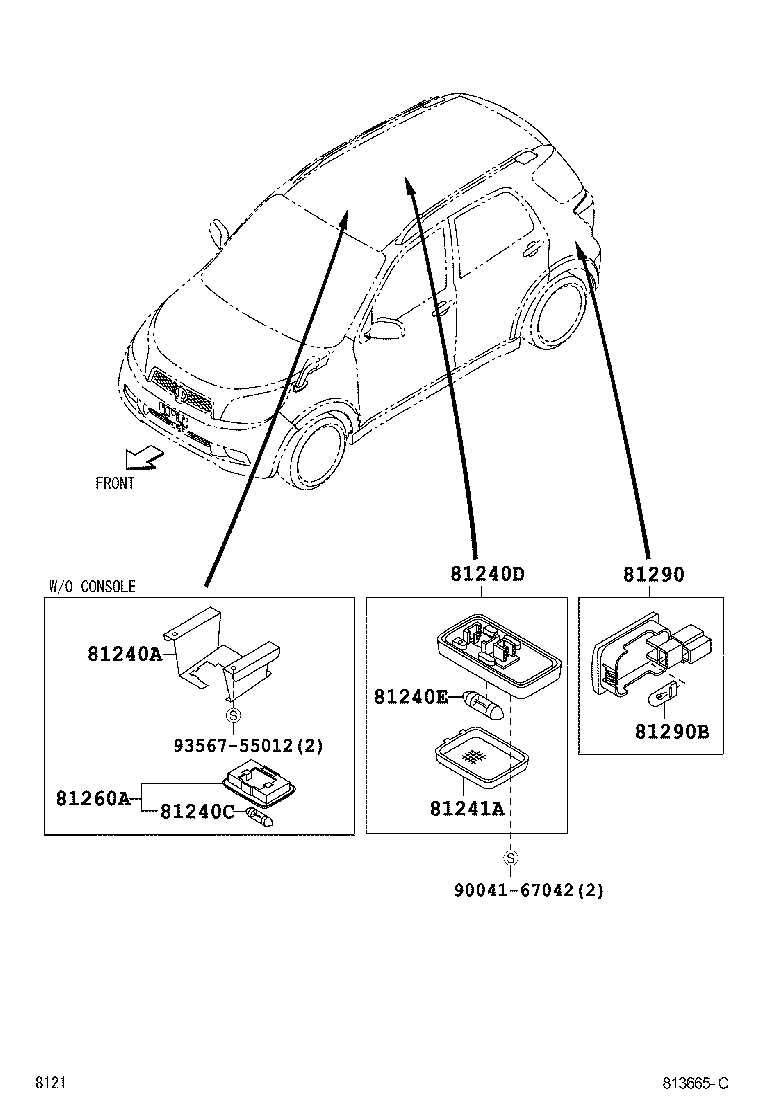

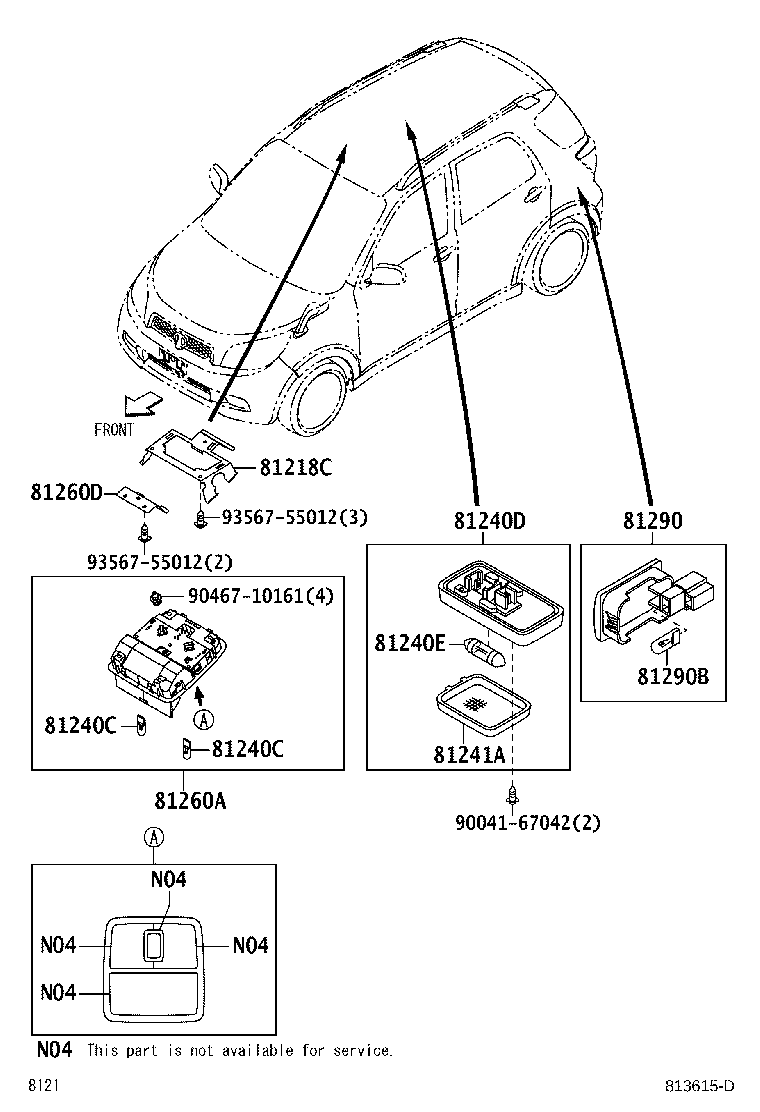

Figure 81A211 81A211 2008-11 → 2009-11 Figure 813615D 813615D 2016-05 → — Figure 813665C 813665C 2016-05 → — Figure 813664 813664 2008-11 → 2009-11 Figure 813664 813664 2016-05 → —

Part groups

PNCDescription
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81218C Bracket, Map Lamp
81240A Bracket Sub-assy, Room Lamp, NO.1
81240C Bulb
81240D Lamp Assy, Room, NO.2
81240E Bulb, Room Lamp, NO.2
81241A Lens, Room Lamp, NO.2
81260A Lamp Assy, Map
81260D Bracket, Map Lamp
81290 Lamp Assy, Room, NO.3
81290B Bulb, Room Lamp, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
