Toyota Rush

2008-11 → 2018-06 · chassis J200E,J210E · catalogue 661340 · United States

Supported model Data version 2018-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 12 illustrations

Illustrations

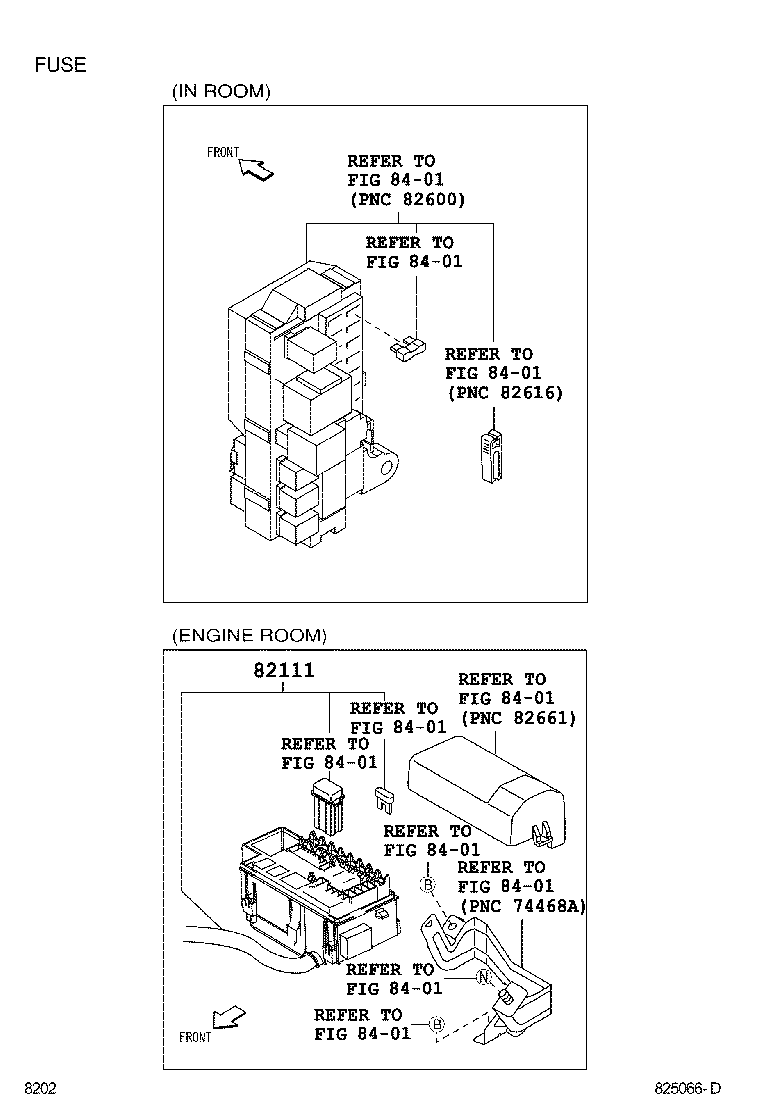

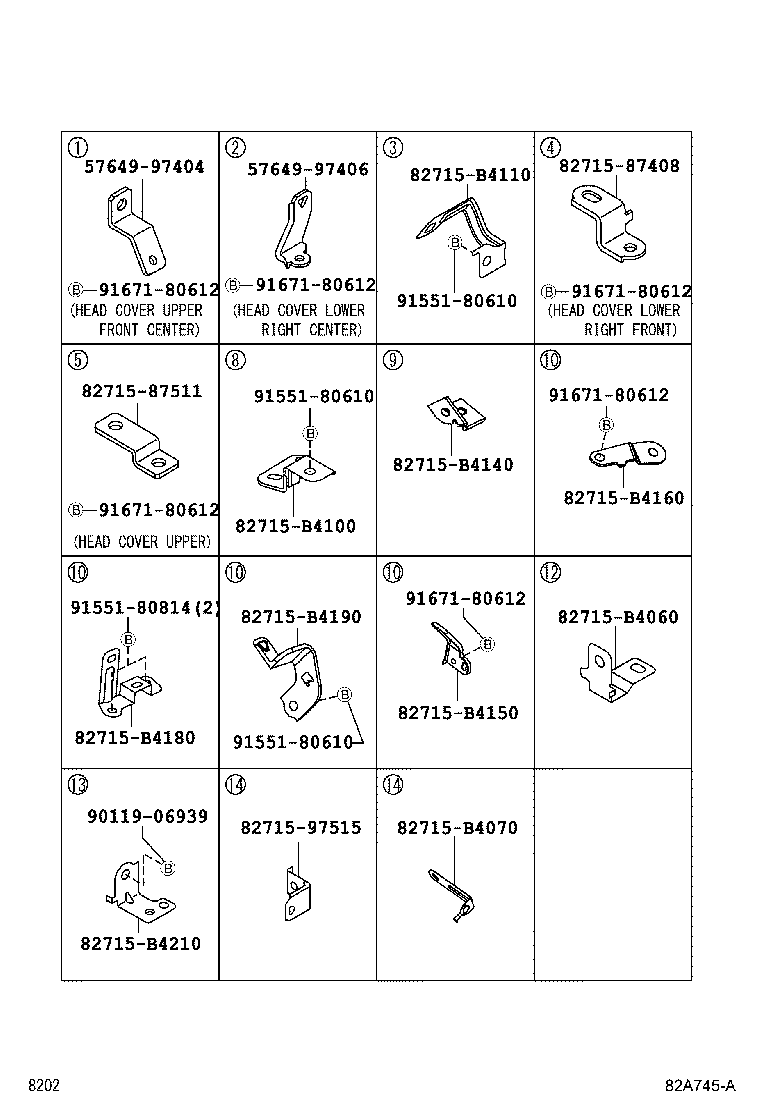

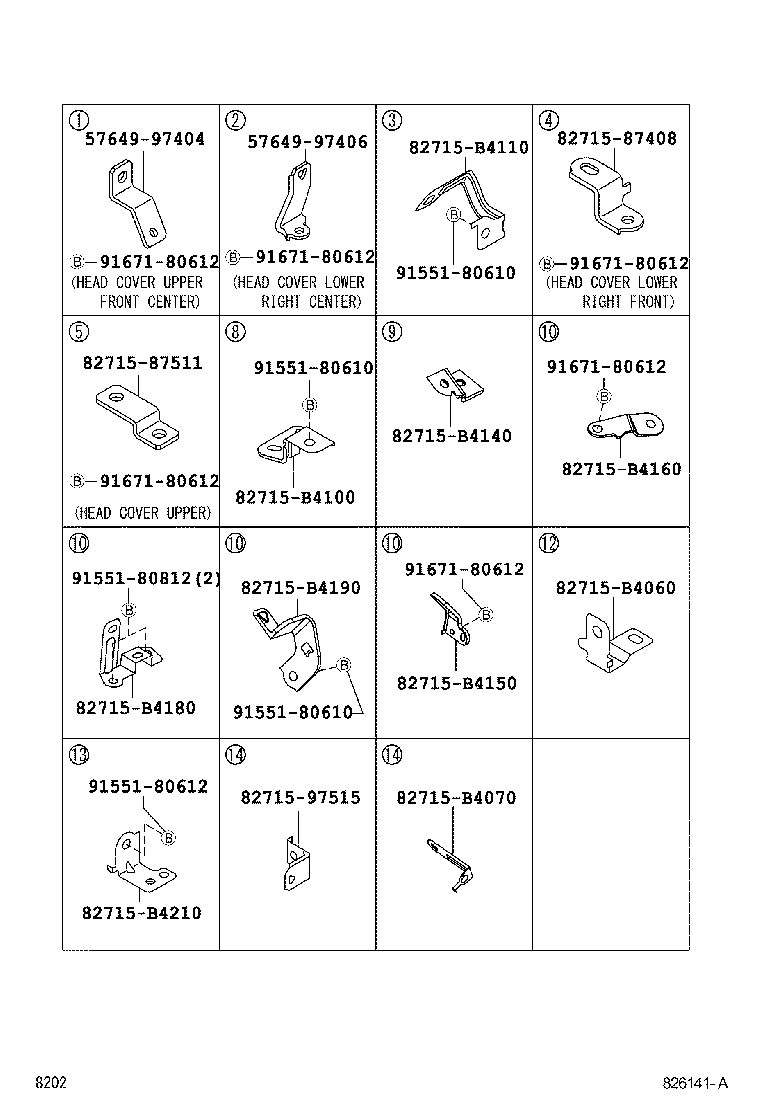

Figure 826140A 826140A 2008-11 → 2009-11 Figure 826140A 826140A 2016-05 → — Figure 828359 828359 2008-11 → 2009-11 Figure 826141A 826141A 2008-11 → 2009-11 Figure 82A745A 82A745A 2016-05 → — Figure 82A746A 82A746A 2016-05 → — Figure 825147A 825147A 2008-11 → 2009-11 Figure 825147A 825147A 2016-05 → — Figure 829369A 829369A 2008-11 → 2009-11 Figure 829369A 829369A 2016-05 → — Figure 825066D 825066D 2008-11 → 2009-11 Figure 825066D 825066D 2016-05 → —

Part groups

PNCDescription
82046D Wire, Body Ground
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82666G Holder, Connector NO.8
82730B Block Assy, Passenger Side Junction
82817M Protector, Wiring Harness, NO.12
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
