Toyota RAV4 (JPP)
2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · United States
Supported model
Data version 2023-10

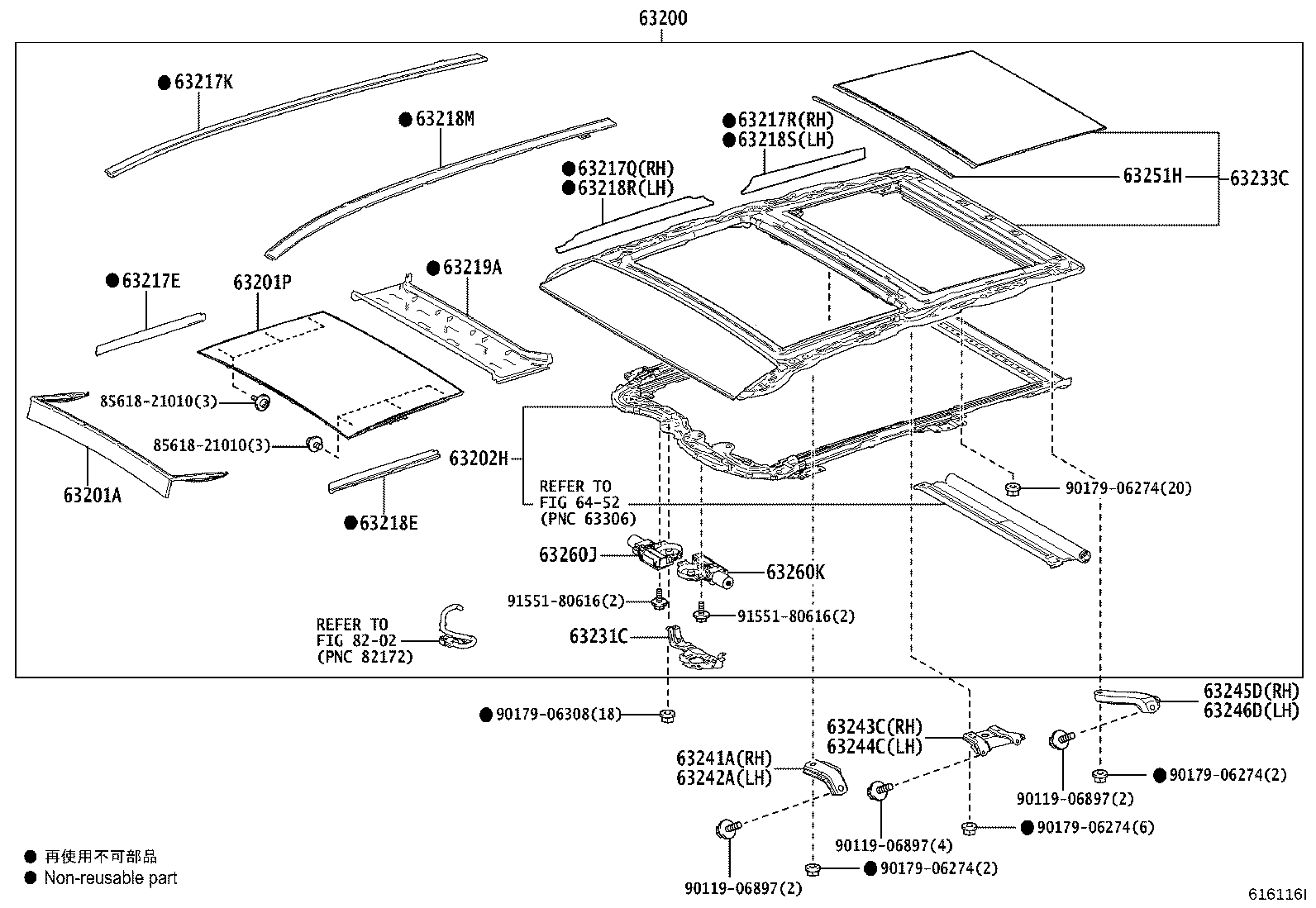

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63200 — Housing Assy, Moon Roof | ||||
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2020-05 → 2020-06
ended
|
AXAL5# M EUR | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2020-06
ended
|
AXAL5# G EUR | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2019-01 → 2020-05
ended
|
MXAA54 SA | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2020-05
ended
|
AXAH52 .G;AXAH52 54 G +21 | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2020-05
ended
|
AXAA54,MXAA54 V (ARL,GCC,GEN) | — | |
| 63200-42160-B1 note |
Housing Assy, Moon Roof
2018-11 → 2020-05
ended
|
AXAH5# M EUR | — | |
| 63200-42160-C1 note |
Housing Assy, Moon Roof
2018-11 → 2020-05
ended
|
AXAA54,MXAA54 V (ARL,GCC,GEN) | — | |
| 63200-42160-C1 note |
Housing Assy, Moon Roof
2018-11 → 2020-06
ended
|
AXAL5# M EUR | — | |
| 63200-42160-C1 note |
Housing Assy, Moon Roof
2018-11 → 2020-05
ended
|
AXAH5# M EUR | — | |
| 63200-42161-B1 note |
Housing Assy, Moon Roof
2020-06 → 2020-07
ended
|
AXAA54,MXAA54 V | — | |
| 63200-42161-B1 note |
Housing Assy, Moon Roof
2020-06 → 2020-07
ended
|
MXAA5# M EUR | — | |
| 63200-42161-B1 note |
Housing Assy, Moon Roof
2020-06 → 2020-07
ended
|
AXAH5#,AXAL5# M EUR | — | |
| 63200-42161-B1 note |
Housing Assy, Moon Roof
2020-06 → 2020-07
ended
|
AXAA5#,MXAA5# JPP G;AXAH5#,AXAL5# G +1 | — | |
| 63200-42161-C1 note |
Housing Assy, Moon Roof
2020-06 → 2020-07
ended
|
AXAH5#,AXAL5# M EUR | — | |
| 63200-42162 note |
Housing Assy, Moon Roof
2020-08 → 2020-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63200-42162-B1 note |
Housing Assy, Moon Roof
2020-08 → 2020-11
ended
|
AXAH5#,AXAL5#,MXAA5# M EUR | — | |
| 63200-42162-B1 note |
Housing Assy, Moon Roof
2020-08 → 2020-11
ended
|
AXAA52 A) LHD G;MXAA5# +4 | — | |
| 63200-42162-B1 note |
Housing Assy, Moon Roof
2020-08 → 2020-11
ended
|
AXAA54 LHD V GEN;MXAA54 +4 | — | |
| 63200-42163 note |
Housing Assy, Moon Roof
2020-12 → 2021-06
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63200-42163-B1 note |
Housing Assy, Moon Roof
2020-12 → 2021-06
ended
|
AXAH5#,AXAL5#,MXAA5# M EUR | — | |
| 63200-42163-B1 note |
Housing Assy, Moon Roof
2020-12 → 2021-06
ended
|
AXAA52 A) LHD G;MXAA5# +4 | — | |
| 63200-42163-B1 note |
Housing Assy, Moon Roof
2020-12 → 2021-06
ended
|
AXAA54 LHD V GEN;MXAA54 +4 | — | |
| 63200-42164 note |
Housing Assy, Moon Roof
2021-07 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-12 → 2022-10
ended
|
MXAA54 SA;AXAA54 V (ARL,GCC) | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-12 → 2022-10
ended
|
AXAH54 G GCC;AXAA5# G +3 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-07 → 2022-10
ended
|
AXAH5#,AXAL5#,MXAA5# (M,V) EUR | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-07 → 2022-10
ended
|
AXAA52,MXAA54 LHD G (EUR,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52 +2 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-07 → 2021-12
ended
|
MXAA54 SA;AXAA54 V (ARL,GCC) | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-07 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA5#,AXAH54 G +1 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2021-07 → 2022-10
ended
|
MXAA54 V GEN;AXAA54 LHD +2 | — | |
| 63200-42164-C1 note |
Housing Assy, Moon Roof
2021-12 → 2022-10
ended
|
AXAH5#,AXAL5# P (EUR,GEN) | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
AXAA54,MXAA54 V (ARL,GCC,SA) | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → —
|
MXAA5# G EUR | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → —
|
MXAA5# M EUR | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA52 G +1 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
AXAH5#,AXAL5# (M,V) EUR | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
MXAA5# G GEN;AXAA54,AXAH5#,AXAL5# G +1 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
AXAA54,MXAA54 V GEN | — | |
| 63200-42164-C1 note |
Housing Assy, Moon Roof
2022-10 → 2023-10
ended
|
AXAH5#,AXAL5# P (EUR,GEN) | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD G EUR | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → —
|
MXAA52 G SA;AXAA54 V +3 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → —
|
MXAA52 G ARL;AXAA5#,AXAH54 G +1 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → —
|
AXAH54 LHD G EUR;AXAH54,MXAA5# +4 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → —
|
AXAL5# M,V;AXAH5# LHD (M,V) +1 | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → —
|
AXAA54,MXAA54 V GEN | — | |
| 63200-42164-B1 note |
Housing Assy, Moon Roof
2023-10 → 2024-10
ended
|
AXAH5# RHD (M,V) EUR | — | |
| 63200-42164-C1 note |
Housing Assy, Moon Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD P EUR | — | |
| 63200-42164-C1 note |
Housing Assy, Moon Roof
2023-10 → —
|
AXAH54 LHD P;AXAH52,AXAL5# P +1 | — | |
| 63201A — Panel Sub-assy, Sliding Roof OR Removable Roof | ||||
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63201-42150 note |
Panel Sub-assy, Sliding Roof OR Removable Roof
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63201P — Glass Sub-assy, Sliding Roof | ||||
| 63201-42160 note |
Glass Sub-assy, Sliding Roof
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63201-42160 note |
Glass Sub-assy, Sliding Roof
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63201-42160 note |
Glass Sub-assy, Sliding Roof
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63201-42180 note |
Glass Sub-assy, Sliding Roof
2019-02 → 2020-07
ended
|
AXAH54 LHD G GEN | — | |
| 63201-42230 note |
Glass Sub-assy, Sliding Roof
2018-11 → 2020-07
ended
|
AXAA5# LHD G GEN | — | |
| 63201-42160 note |
Glass Sub-assy, Sliding Roof
2020-08 → 2021-06
ended
|
AXAH52 EUR;AXAA5#,MXAA5# G JPP +7 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2021-07 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2021-07 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2021-07 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63201-42180 note |
Glass Sub-assy, Sliding Roof
2020-08 → 2021-08
ended
|
AXAH54 LHD G GEN | — | |
| 63201-42181 note |
Glass Sub-assy, Sliding Roof
2021-09 → 2022-10
ended
|
AXAH54 LHD (G,P) GEN | — | |
| 63201-42230 note |
Glass Sub-assy, Sliding Roof
2020-08 → 2021-08
ended
|
AXAA5# LHD G GEN | — | |
| 63201-42231 note |
Glass Sub-assy, Sliding Roof
2021-09 → 2022-10
ended
|
AXAA5# LHD G GEN | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63201-42181 note |
Glass Sub-assy, Sliding Roof
2022-10 → 2023-10
ended
|
AXAH54 LHD GEN | — | |
| 63201-42231 note |
Glass Sub-assy, Sliding Roof
2022-10 → 2023-10
ended
|
AXAA54 LHD G GEN | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63201-42161 note |
Glass Sub-assy, Sliding Roof
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63201-42181 note |
Glass Sub-assy, Sliding Roof
2023-10 → 2024-11
ended
|
AXAH54 P GEN | — | |
| 63201-42181 note |
Glass Sub-assy, Sliding Roof
2023-10 → —
|
AXAH54 LHD G GEN | — | |
| 63201-42231 note |
Glass Sub-assy, Sliding Roof
2023-10 → —
|
AXAA54 LHD G GEN | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2020-07
ended
|
AXAH5# M EUR | — | |
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2020-05 → 2020-07
ended
|
AXAL5# M EUR | — | |
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2020-07
ended
|
MXAA52 .G 54,MXAA54 M +21 | — | |
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2020-07
ended
|
AXAA54,MXAA54 V | — | |
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63202-42100-B1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63202-42100-C1 note |
Rail Sub-assy, Slide Roof
2018-11 → 2020-07
ended
|
AXAH5#,AXAL5# M EUR | — | |
| 63202-42101-B1 note |
Rail Sub-assy, Slide Roof
2020-08 → 2021-11
ended
|
AXAA54,MXAA54 V | — | |
| 63202-42101-B1 note |
Rail Sub-assy, Slide Roof
2020-08 → 2021-11
ended
|
MXAA5# M EUR | — | |
| 63202-42101-B1 note |
Rail Sub-assy, Slide Roof
2020-08 → 2021-11
ended
|
AXAH5#,AXAL5# M EUR | — | |
| 63202-42101-B1 note |
Rail Sub-assy, Slide Roof
2020-08 → 2021-11
ended
|
AXAA5#,MXAA5# JPP G;AXAH5#,AXAL5# G +1 | — | |
| 63202-42101-C1 note |
Rail Sub-assy, Slide Roof
2020-08 → 2021-11
ended
|
AXAH5#,AXAL5# M EUR | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
AXAH54 G GCC;AXAA5# G +3 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
MXAA54 SA;AXAA54 V (ARL,GCC) | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
MXAA54 V GEN;AXAA54 LHD +2 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
AXAA52,MXAA54 LHD G (EUR,GEN);AXAA54,AXAH5#,AXAL5#,MXAA52 +2 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
AXAH5#,AXAL5#,MXAA5# (M,V) EUR | — | |
| 63202-42102-C1 note |
Rail Sub-assy, Slide Roof
2021-12 → 2022-10
ended
|
AXAH5#,AXAL5# P (EUR,GEN) | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
AXAA54,MXAA54 V GEN | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
MXAA5# G GEN;AXAA54,AXAH5#,AXAL5# G +1 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
AXAH5#,AXAL5# (M,V) EUR | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
AXAA54,MXAA54 V (ARL,GCC,SA) | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA52 G +1 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
MXAA5# M EUR | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2022-10 → —
|
MXAA5# G EUR | — | |
| 63202-42102-C1 note |
Rail Sub-assy, Slide Roof
2022-10 → 2023-10
ended
|
AXAH5#,AXAL5# P (EUR,GEN) | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → 2024-10
ended
|
AXAH5# RHD (M,V) EUR | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
MXAA52 G SA;AXAA54 V +3 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
MXAA52 G ARL;AXAA5#,AXAH54 G +1 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
AXAH54 LHD G EUR;AXAH54,MXAA5# +4 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
AXAL5# M,V;AXAH5# LHD (M,V) +1 | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
AXAA54,MXAA54 V GEN | — | |
| 63202-42102-B1 note |
Rail Sub-assy, Slide Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD G EUR | — | |
| 63202-42102-C1 note |
Rail Sub-assy, Slide Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD P EUR | — | |
| 63202-42102-C1 note |
Rail Sub-assy, Slide Roof
2023-10 → —
|
AXAH54 LHD P;AXAH52,AXAL5# P +1 | — | |
| 63217E — Garnish, Sliding Roof, Front RH | ||||
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63217-42010 note |
Garnish, Sliding Roof, Front RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217K — Garnish, Sliding Roof Side, RH | ||||
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2019-09
ended
|
MXAA52 6F G SA | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-07
ended
|
AXAH5# .M AXAL5#,MXAA52 G +13 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-10
ended
|
AXAL5# G ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2021-12 → 2022-10
ended
|
AXAA54 V ARL;MXAA52 G +1 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, RH
2021-12 → 2022-10
ended
|
AXAA54 V ARL;AXAH5#,MXAA52 G +1 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, RH
2021-10 → 2022-10
ended
|
AXAH54 V ARL;AXAL5# G +1 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2022-10
ended
|
MXAA54 F (GCC,SA) SA;AXAH5# +17 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-12
ended
|
AXAA54 (M,V) ARL;AXAH5#,MXAA52 (G,M) +1 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-11
ended
|
AXAA54 G ARL;AXAL5# M +8 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
MXAA5# ,V) M (EUR,GEN);AXAH52,AXAL5# +8 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAA54,MXAA52 (G,V) ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH5# MXAA54 P (G,M,V) +6 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAA54,AXAH5#,MXAA52 (G,V) ARL | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63217-42040 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAA54,AXAH5#,MXAA52 (G,V) ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAA54,AXAH52,MXAA5# (GCC,SA) M GEN;AXAA5#,MXAA52 +3 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAA54,MXAA52 (G,V) ARL | — | |
| 63217Q — Garnish, Sliding Roof Side, RH | ||||
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63217-42020 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217R — Garnish, Sliding Roof Side, RH | ||||
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63217-42030 note |
Garnish, Sliding Roof Side, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218E — Garnish, Sliding Roof, Front LH | ||||
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63218-42020 note |
Garnish, Sliding Roof, Front LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218M — Garnish, Sliding Roof Side, LH | ||||
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-07
ended
|
AXAH5# .M AXAL5#,MXAA52 G +13 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2019-09
ended
|
MXAA52 6F G SA | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-10
ended
|
AXAL5# G ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-11
ended
|
AXAA54 G ARL;AXAL5# M +8 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-12
ended
|
AXAA54 (M,V) ARL;AXAH5#,MXAA52 (G,M) +1 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2021-12 → 2022-10
ended
|
AXAA54 V ARL;MXAA52 G +1 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2022-10
ended
|
MXAA54 F (GCC,SA) SA;AXAH5# +17 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, LH
2021-12 → 2022-10
ended
|
AXAA54 V ARL;AXAH5#,MXAA52 G +1 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, LH
2021-10 → 2022-10
ended
|
AXAH54 V ARL;AXAL5# G +1 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAA54,AXAH5#,MXAA52 (G,V) ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH5# MXAA54 P (G,M,V) +6 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAA54,MXAA52 (G,V) ARL | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
MXAA5# ,V) M (EUR,GEN);AXAH52,AXAL5# +8 | — | |
| 63217-47020 |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAA54,AXAH5#,MXAA52 (G,V) ARL | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAA54,AXAH52,MXAA5# (GCC,SA) M GEN;AXAA5#,MXAA52 +3 | — | |
| 63217-47020 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAA54,MXAA52 (G,V) ARL | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63218-42050 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218R — Garnish, Sliding Roof Side, LH | ||||
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63218-42030 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218S — Garnish, Sliding Roof Side, LH | ||||
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63218-42040 note |
Garnish, Sliding Roof Side, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63219-42010 note |
Garnish, Sliding Roof, Rear
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63231C — Bracket, Room Lamp | ||||
| 63231-42050 note |
Bracket, Room Lamp
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63231-42050 note |
Bracket, Room Lamp
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63231-42050 note |
Bracket, Room Lamp
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63231-42050 note |
Bracket, Room Lamp
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-42060 note |
Panel, Sliding Roof Housing
2018-11 → 2020-05
ended
|
MXAA52 G ,V) M +20 | — | |
| 63233-42060 note |
Panel, Sliding Roof Housing
2018-11 → 2020-06
ended
|
AXAL5# (G,M) EUR | — | |
| 63233-42060 note |
Panel, Sliding Roof Housing
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63233-42060 note |
Panel, Sliding Roof Housing
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63233-42061 note |
Panel, Sliding Roof Housing
2020-06 → 2020-07
ended
|
MXAA5# EUR M EUR;AXAH5# +5 | — | |
| 63233-42061 note |
Panel, Sliding Roof Housing
2020-08 → 2020-11
ended
|
AXAH52 EUR;AXAA5#,MXAA5# G JPP +7 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2020-12 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2020-12 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2020-12 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63233-42062 note |
Panel, Sliding Roof Housing
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63242A — Bracket, Sliding Roof Housing Front Mounting, LH | ||||
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63241-42100 note |
Bracket, Sliding Roof Housing Front Mounting, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-42050 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2018-11 → 2020-06
ended
|
MXAA52 .M A5# M +20 | — | |
| 63243-42050 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63243-42050 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63243-42050 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2020-08 → 2020-11
ended
|
AXAH52 EUR;AXAA5#,MXAA5# G JPP +7 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2020-12 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63243-42051 note |
Bracket, Sliding Roof Housing Center Mounting, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-42030 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63244-42030 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63244-42030 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2018-11 → 2020-06
ended
|
MXAA52 .M A5# M +20 | — | |
| 63244-42030 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2020-08 → 2020-11
ended
|
AXAH52 EUR;AXAA5#,MXAA5# G JPP +7 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2020-12 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63244-42031 note |
Bracket, Sliding Roof Housing Center Mounting, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63245D — Bracket, Sliding Roof Housing Rear Mounting, RH | ||||
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63245-42070 note |
Bracket, Sliding Roof Housing Rear Mounting, RH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63246D — Bracket, Sliding Roof Housing Rear Mounting, LH | ||||
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63246-42040 note |
Bracket, Sliding Roof Housing Rear Mounting, LH
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-42050 note |
Weatherstrip, Sliding Roof
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63251-42050 note |
Weatherstrip, Sliding Roof
2020-08 → 2020-11
ended
|
AXAH52 EUR;AXAA5#,MXAA5# G JPP +7 | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2020-12 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2020-12 → 2022-10
ended
|
AXAA54 ,SA);AXAH52,AXAL5# ARL,EUR,GEN,SA);AXAA52,AXAH52 LHD +17 | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2022-10 → 2023-10
ended
|
AXAH54 ,P,V) G EUR;AXAA5#,MXAA5# +8 | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63251-42051 note |
Weatherstrip, Sliding Roof
2023-10 → —
|
AXAL5# EN);AXAH54 G,M,P,V;AXAH52 LHD +11 | — | |
| 63260J — Gear Assy, Sliding Roof Drive | ||||
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63260-42130 note |
Gear Assy, Sliding Roof Drive
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63260K — Gear Assy, Sliding Roof Drive | ||||
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2020-04
ended
|
AXAA54 EUR;AXAH52 RHD G +1 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2020-07
ended
|
MXAA52 .M A5# M +20 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2018-11 → 2019-09
ended
|
MXAA5# 6F G (GEN,SA) | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2021-11
ended
|
AXAA52 RHD;AXAA54 G ARL;MXAA54 +5 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2021-12
ended
|
MXAA52 G (ARL,SA);AXAA54,MXAA54 V +3 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2020-08 → 2022-10
ended
|
AXAA54 # LHD (G,M,P,V) +12 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2021-12 → 2022-10
ended
|
AXAH54 SA) G GCC;MXAA52 +6 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2022-10 → 2023-10
ended
|
AXAH54 G,P,V) (G,M,P,V) GEN +4 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2022-10 → 2023-10
ended
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2022-10 → —
|
MXAA5# (G,M) EUR | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2023-10 → 2024-10
ended
|
AXAH54 RHD EUR;AXAH52 RHD +2 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2023-10 → —
|
AXAL5# P,V) G,M,P,V;AXAH52 EUR;AXAA54,AXAH52 +9 | — | |
| 63260-42140 note |
Gear Assy, Sliding Roof Drive
2023-10 → —
|
AXAH54 G GCC;AXAA5#,MXAA5# (G,V) +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
