Toyota RAV4 (JPP)

2018-11 → present · chassis AXAA5#,AXAH5#,AXAL5#,MXAA5# · catalogue 662250 · United States

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 7 illustrations

Illustrations

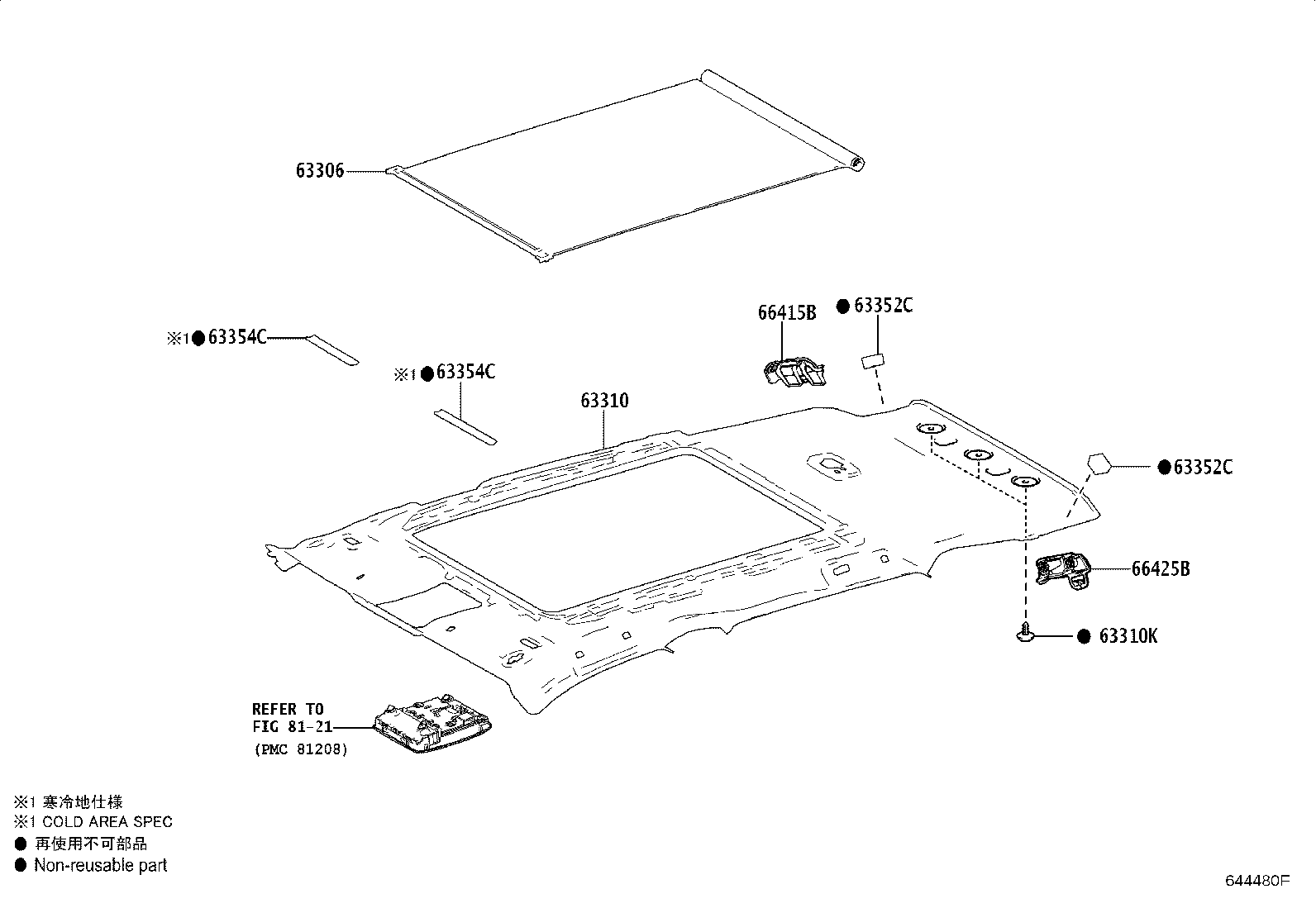

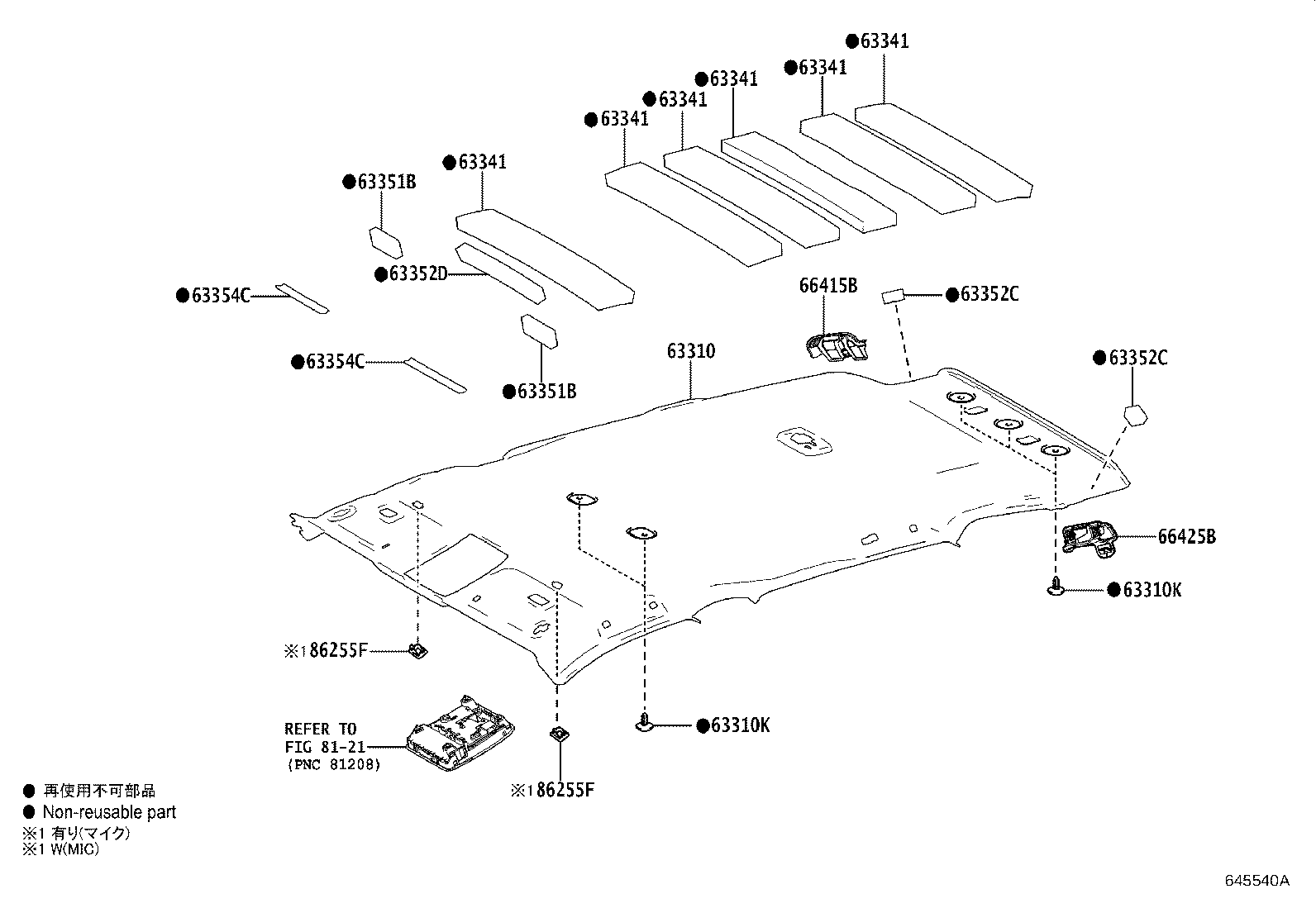

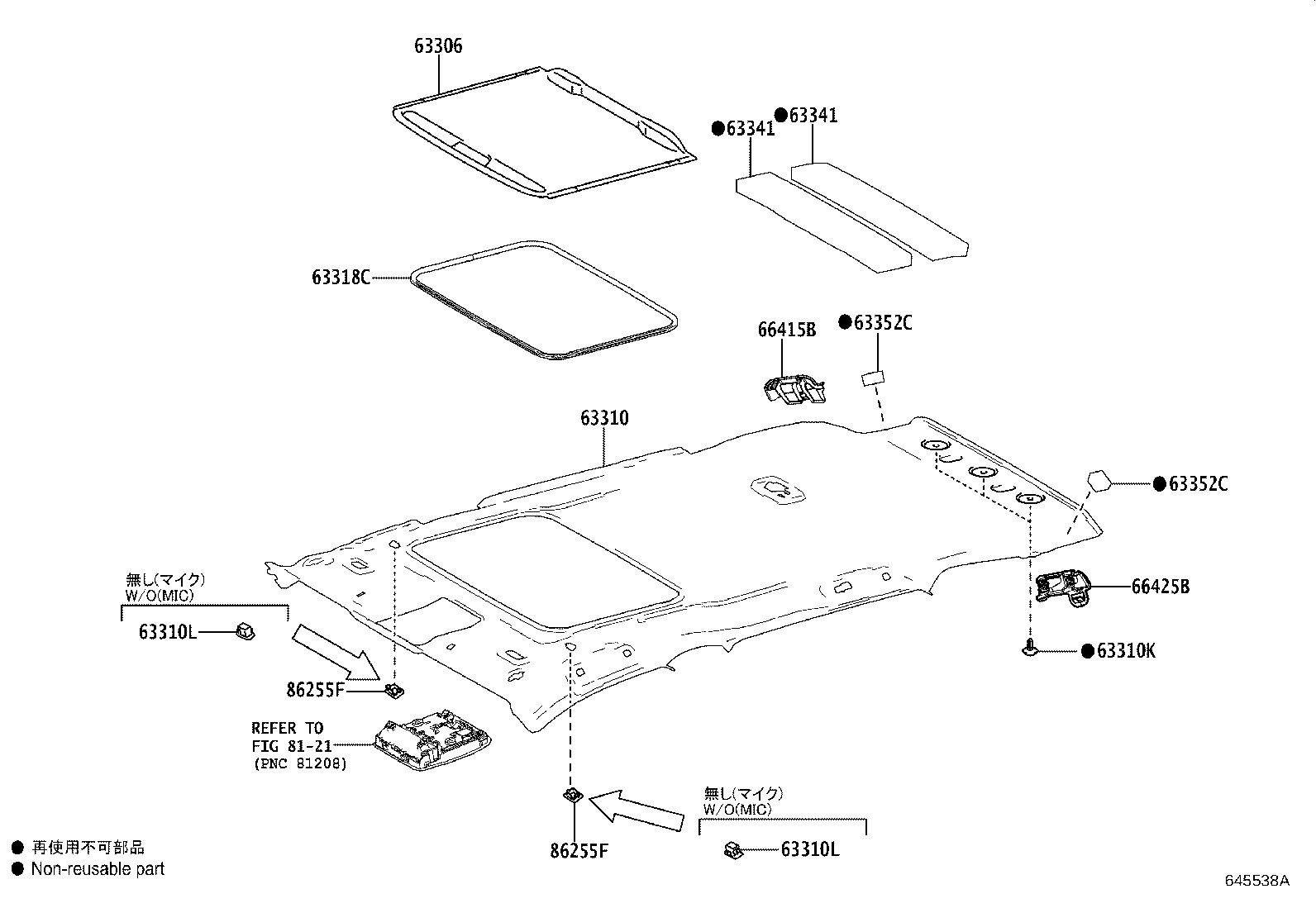

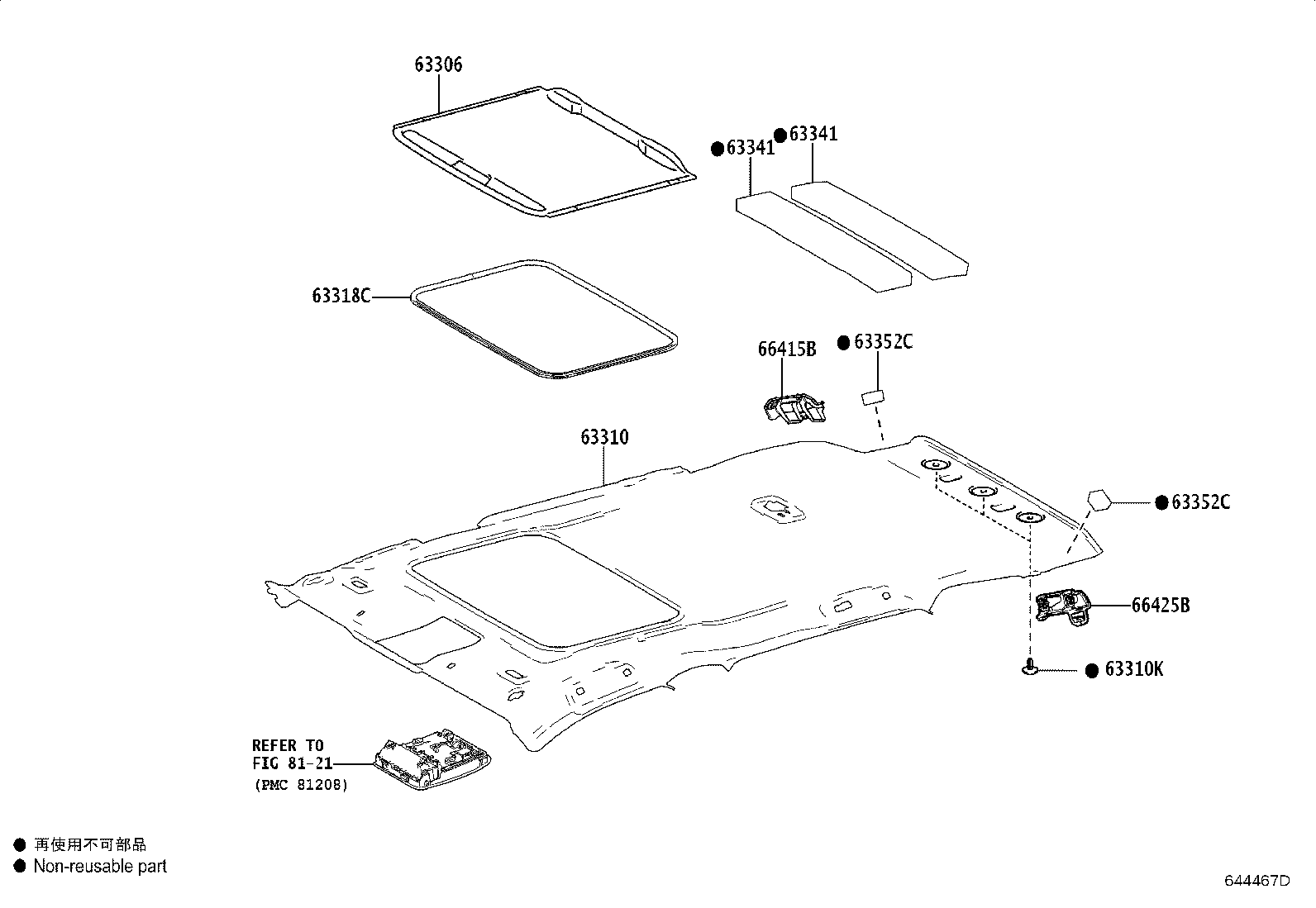

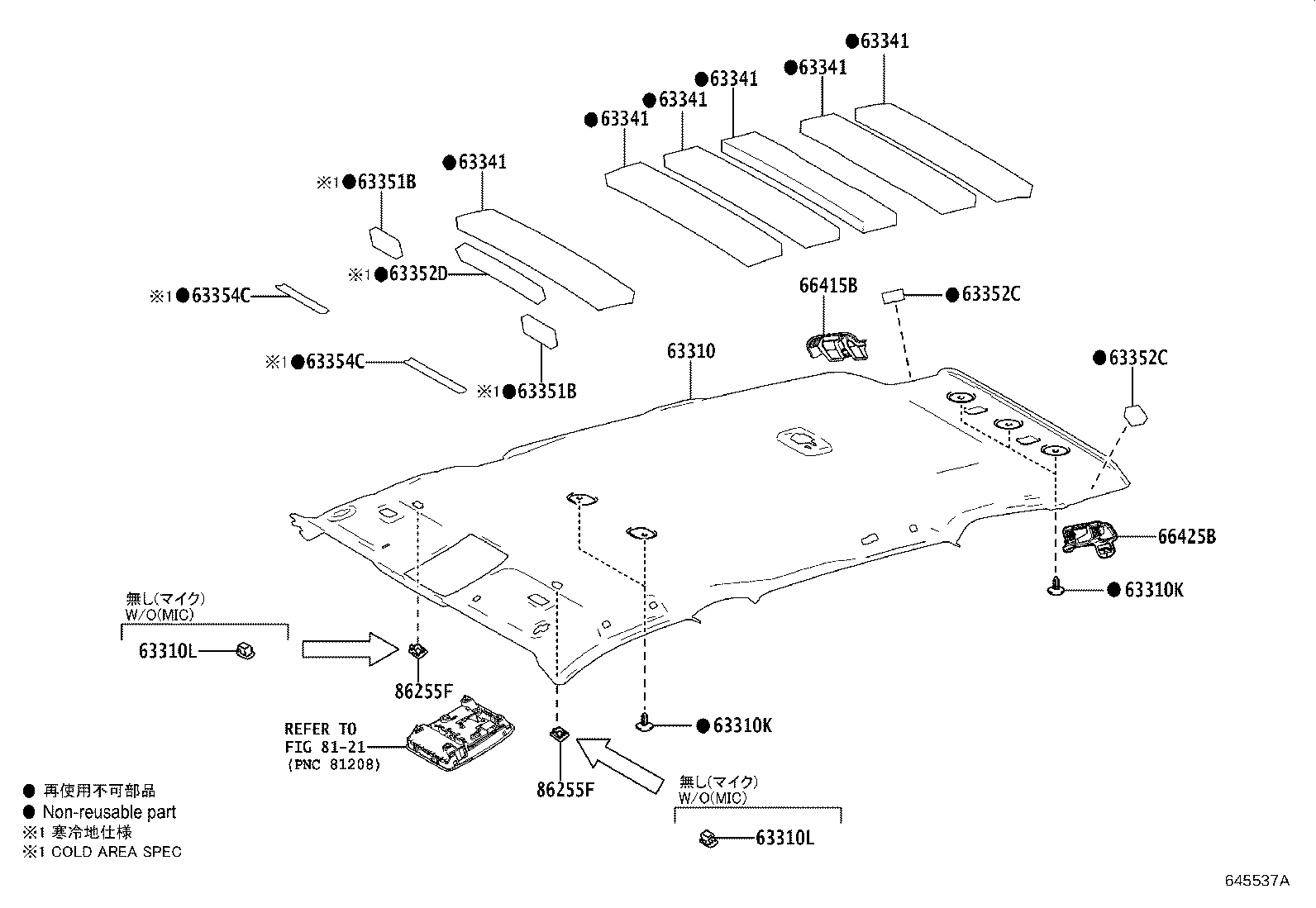

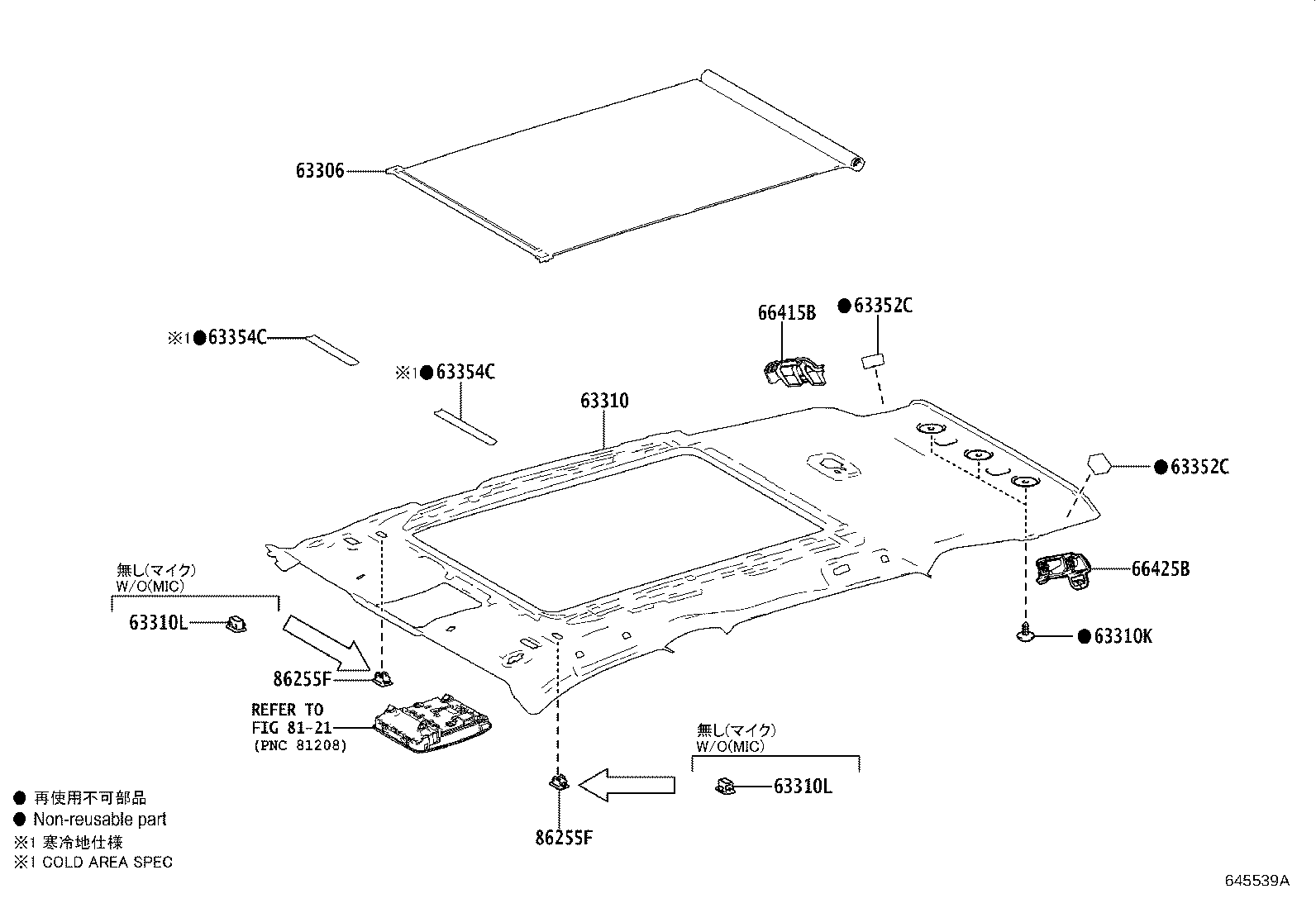

Figure 644479F 644479F 2018-11 → 2022-10 Figure 644467D 644467D 2018-11 → 2022-10 Figure 644480F 644480F 2018-11 → 2022-10 Figure 645537A 645537A 2022-10 → — Figure 645538A 645538A 2022-10 → — Figure 645539A 645539A 2022-10 → — Figure 645540A 645540A 2022-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63310L Cap(FOR ROOF HEADLINING)
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63345D Pad, Roof Silencer, Center
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
