Toyota RAV4

2000-08 → 2005-11 · chassis ACA2# · catalogue 662420 · United States

Discontinued model Data version 2006-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 2 illustrations

Illustrations

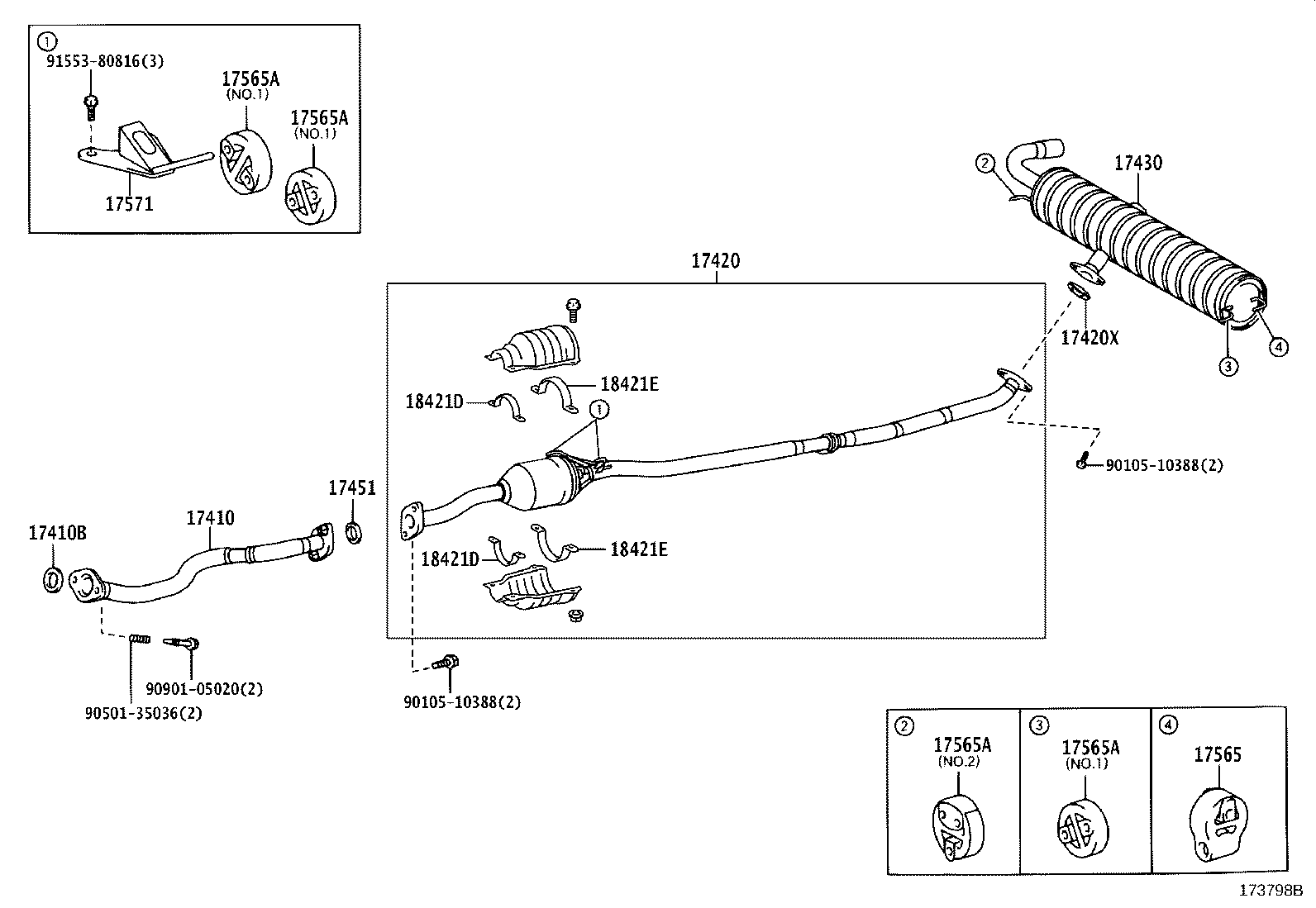

Figure 172649C 172649C 2000-08 → 2003-07 Figure 173798B 173798B 2003-07 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17513 Insulator, Exhaust Pipe, Lower NO.1
17521 Protector, Exhaust Pipe, Front NO.1
17541 Stay, Exhust Pipe Protector, NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
18421D Stay, Converter Protector, Center, NO.1
18421E Stay, Converter Protector, Center, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
