Timing Gear Cover & Rear End Plate

16 part groups · 3 illustrations

Illustrations

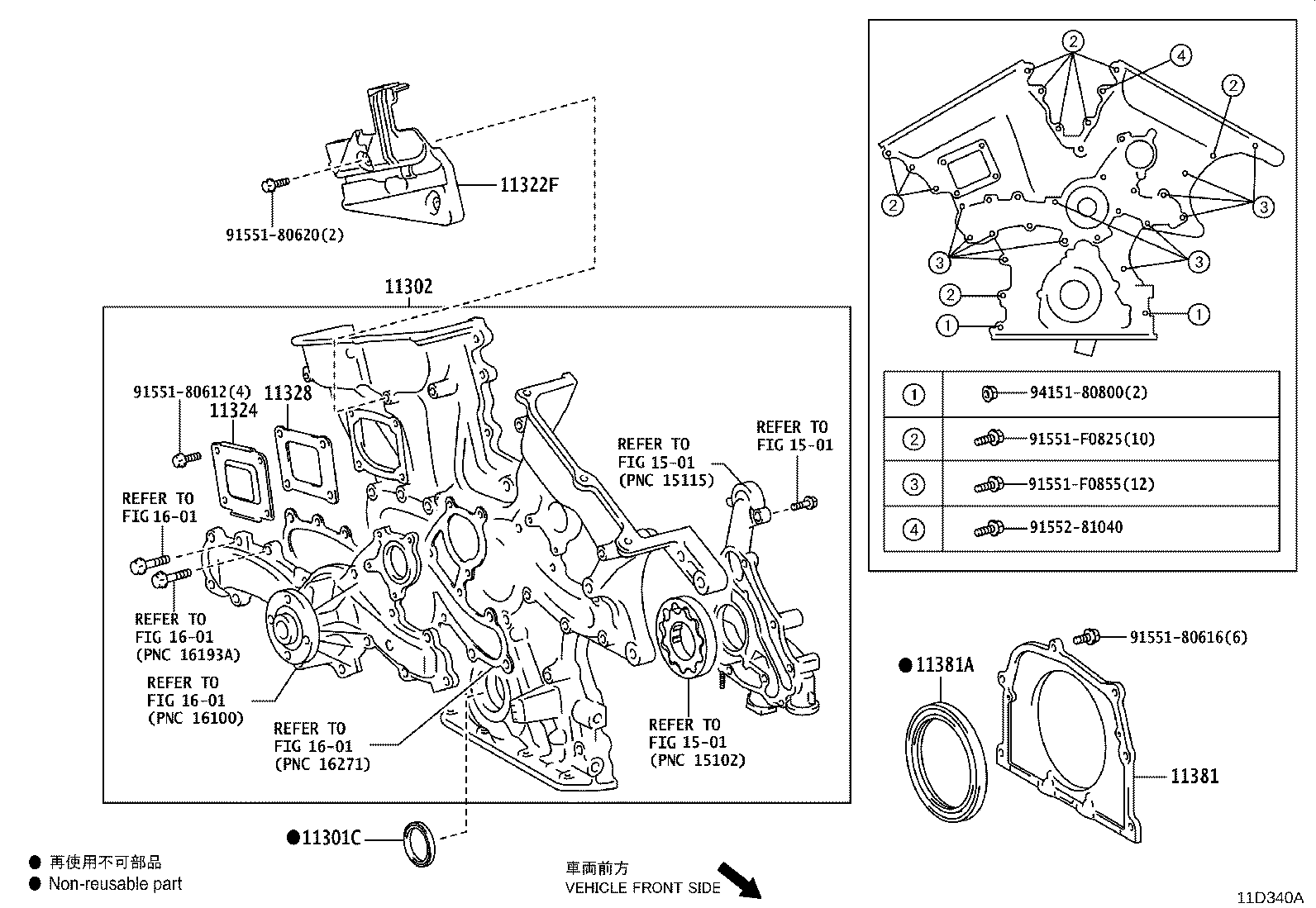

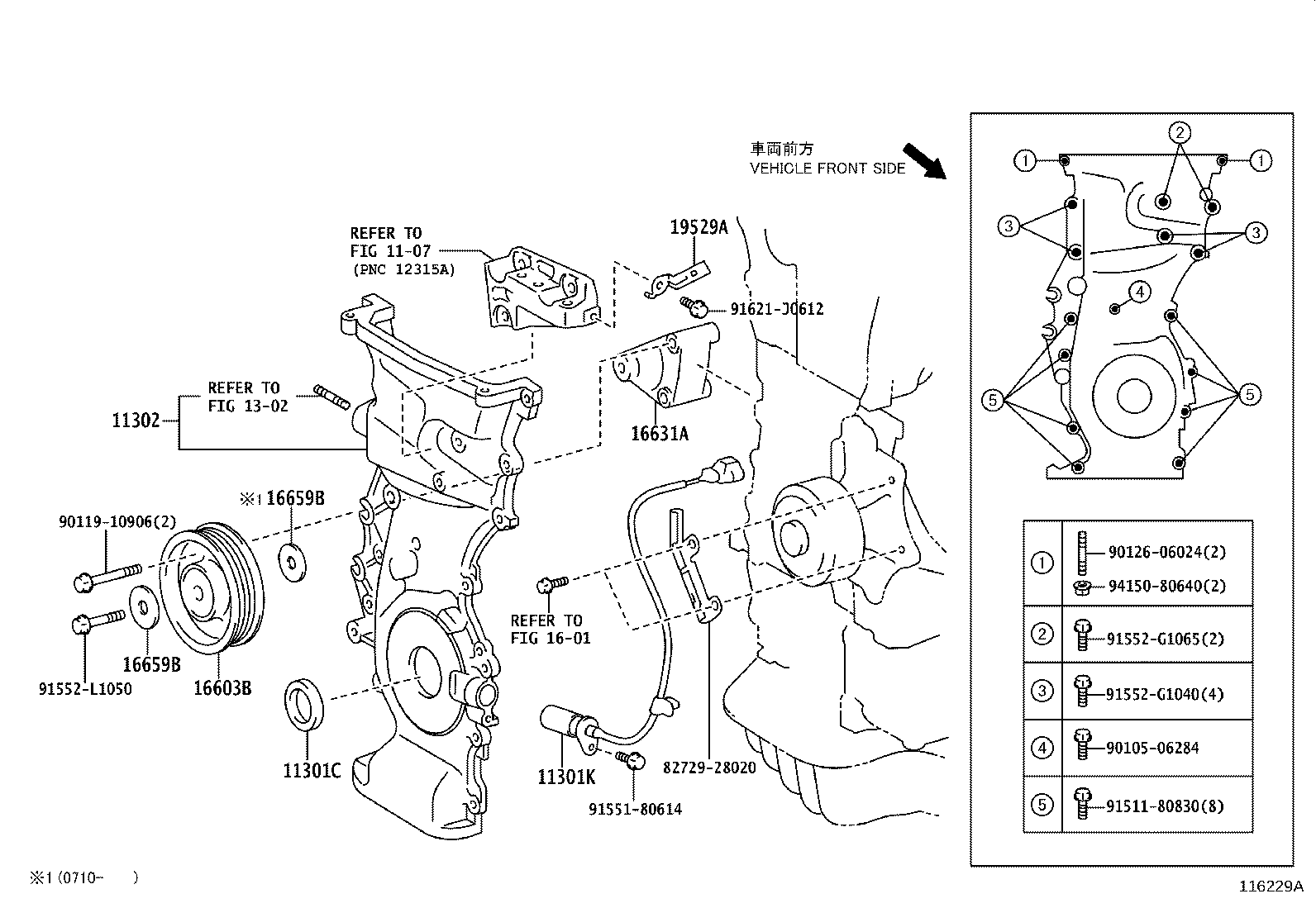

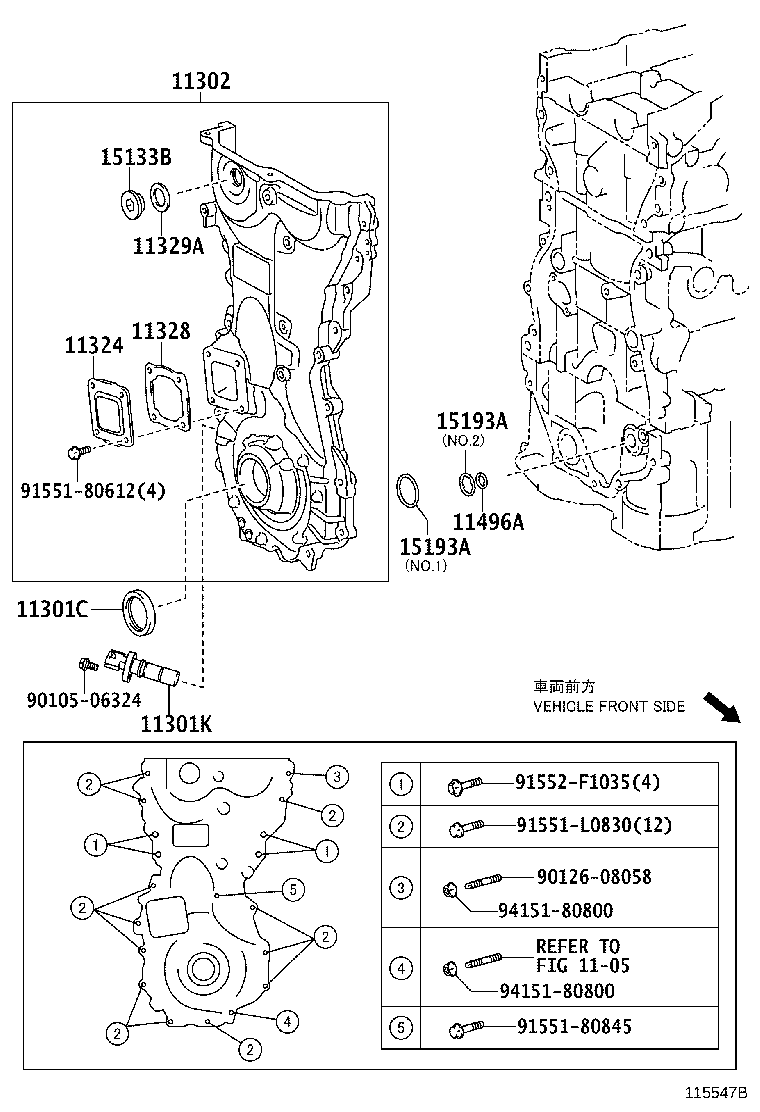

Figure 116229A 116229A 2005-11 → 2008-08 Figure 115547B 115547B 2008-08 → — Figure 11D340A 11D340A 2006-01 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11496A Gasket, Oil Hole Cover
15133B Plug, Oil Pump Relief Valve
15193A Gasket, Oil Pump
16603B Pulley Sub-assy, Idler
16631A Bracket, Idler Pulley
16659B Plate, Idler Pulley Cover, NO.2
19529A Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
