Engine Oil Cooler

5 part groups · 1 illustrations

Illustrations

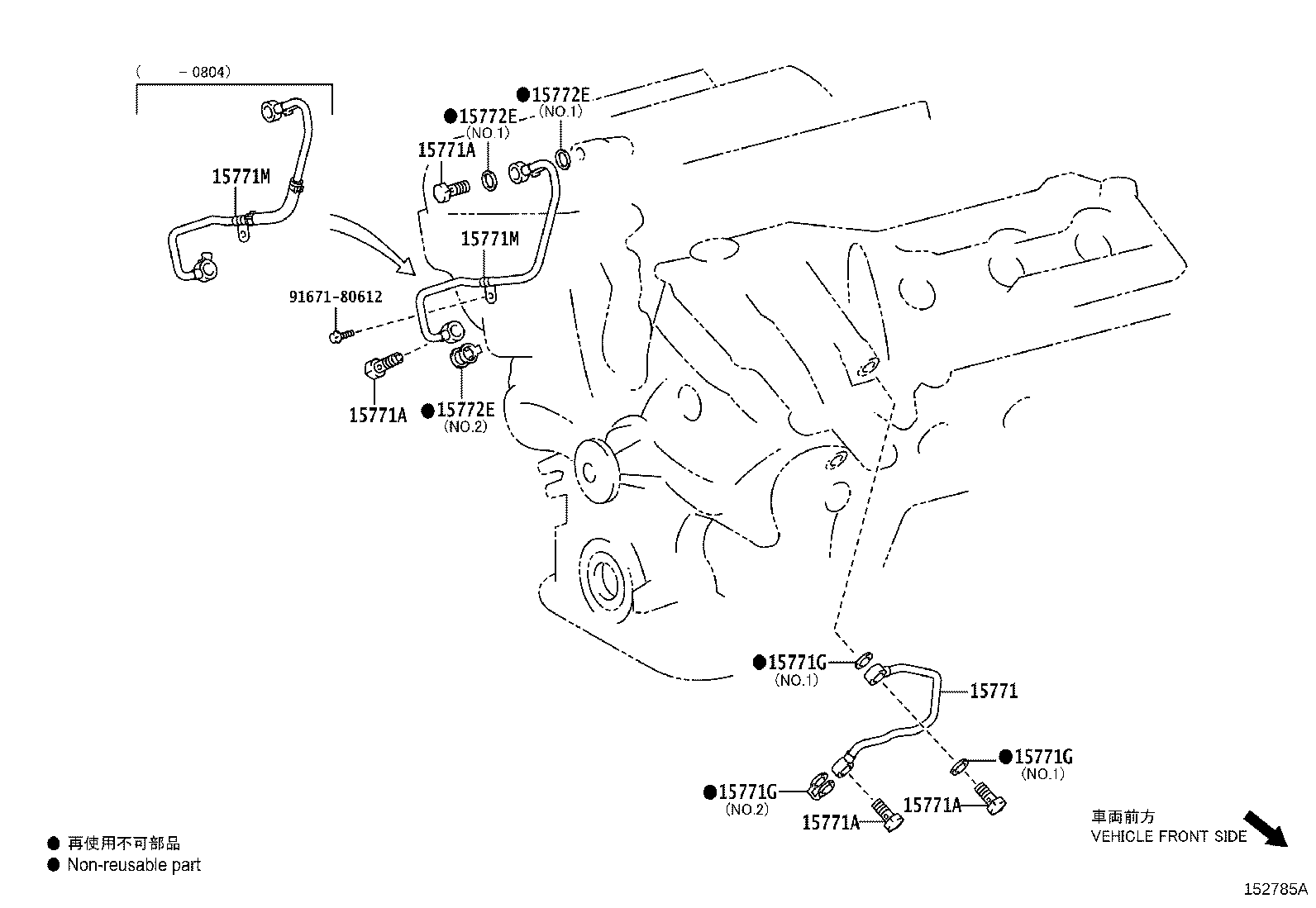

Figure 152785A

152785A 2006-01 → —

Part groups

PNC	Description
15771	Pipe, Oil, NO.1
15771A	Union(FOR OIL PIPE)
15771G	Gasket
15771M	Pipe, Oil
15772E	Gasket(FOR OIL PIPE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
