Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 4 illustrations

Illustrations

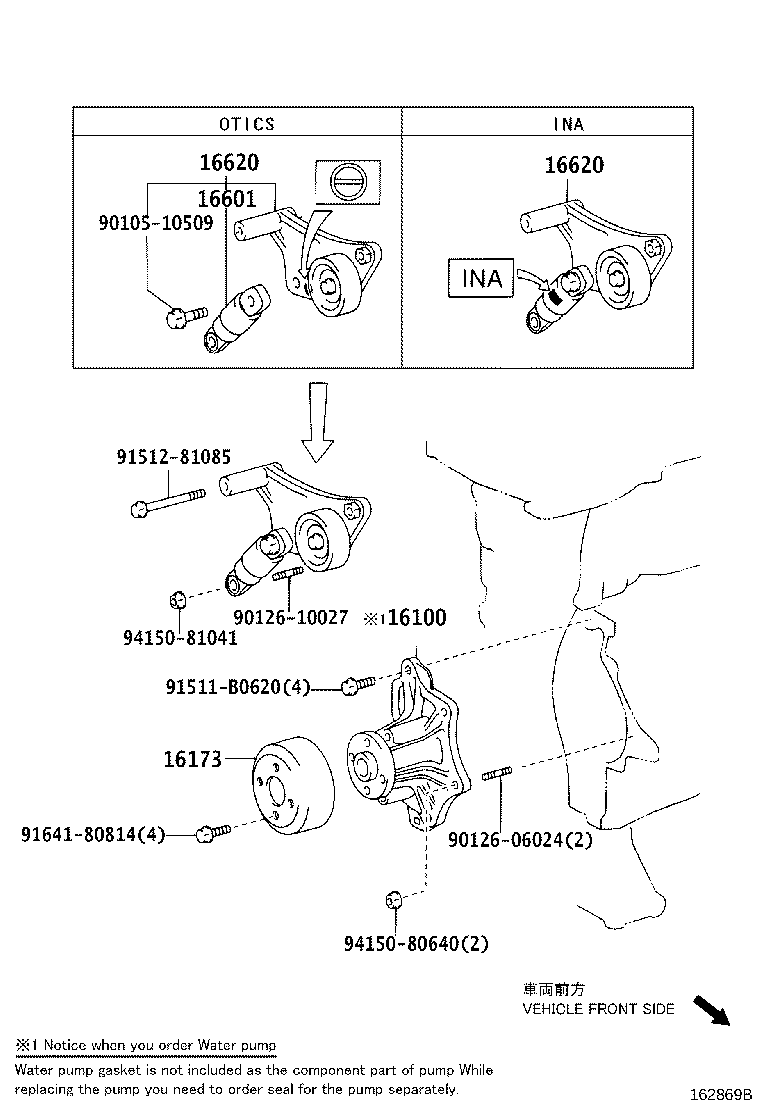

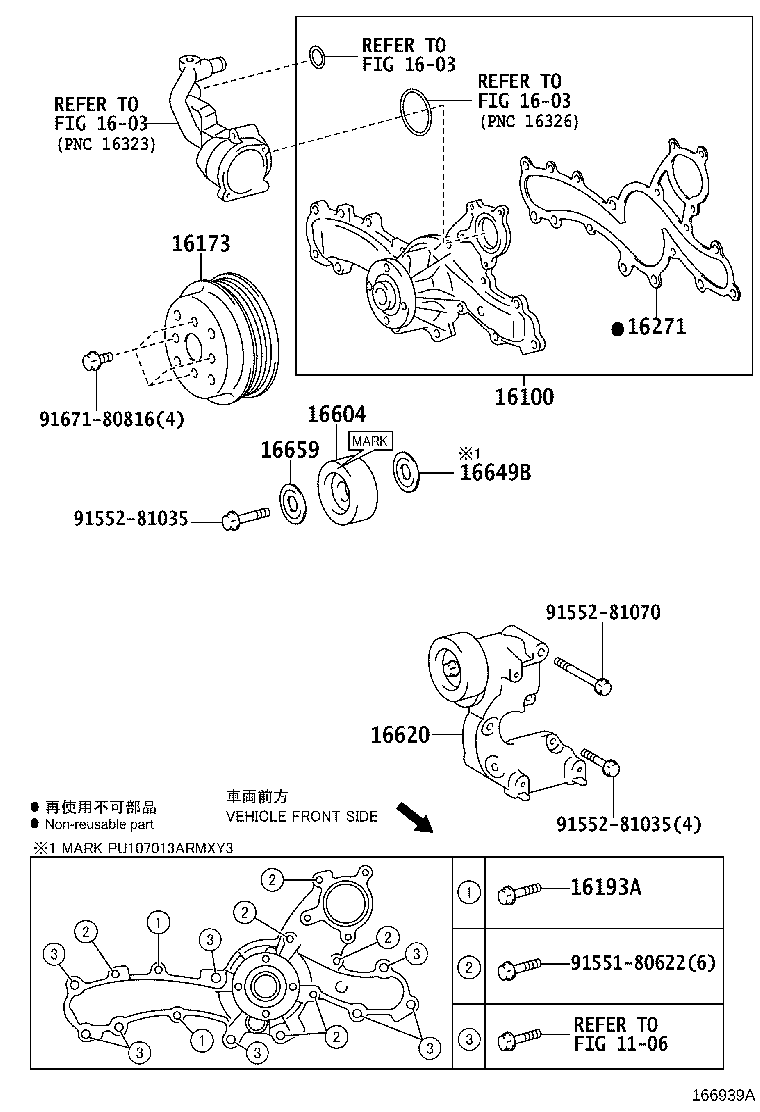

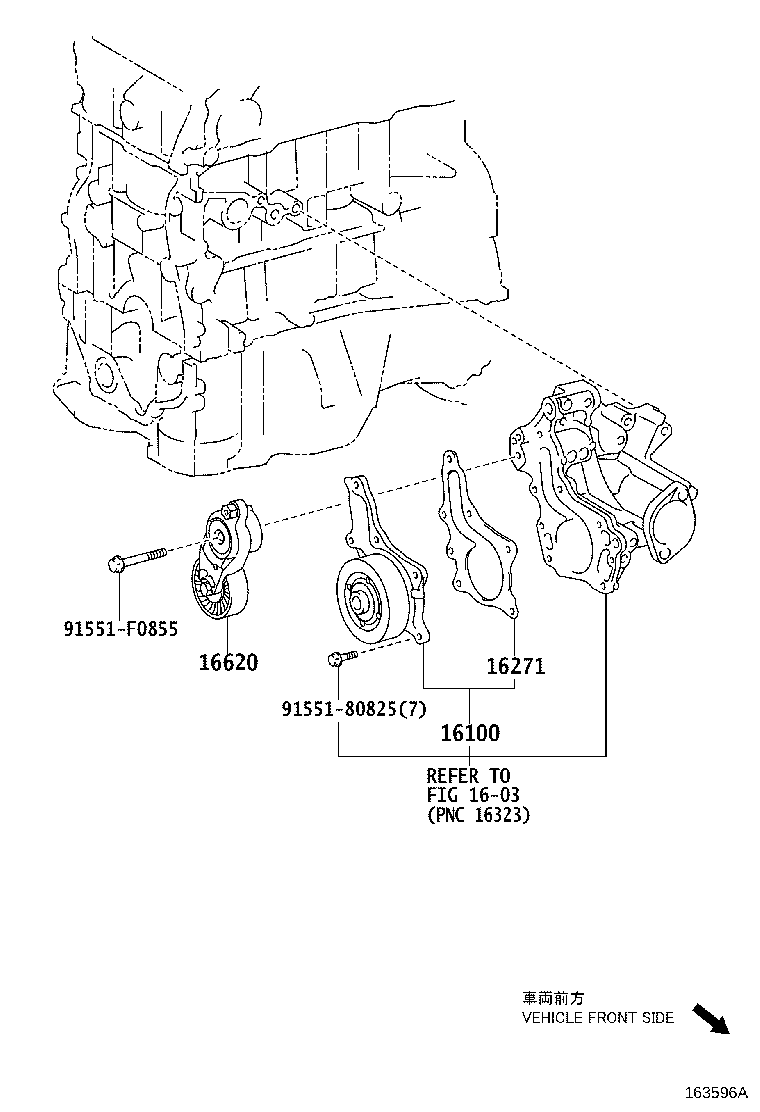

Figure 162869B 162869B 2005-11 → 2008-04 Figure 163469B 163469B 2008-04 → 2008-08 Figure 163596A 163596A 2008-08 → — Figure 166939A 166939A 2006-01 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
