Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

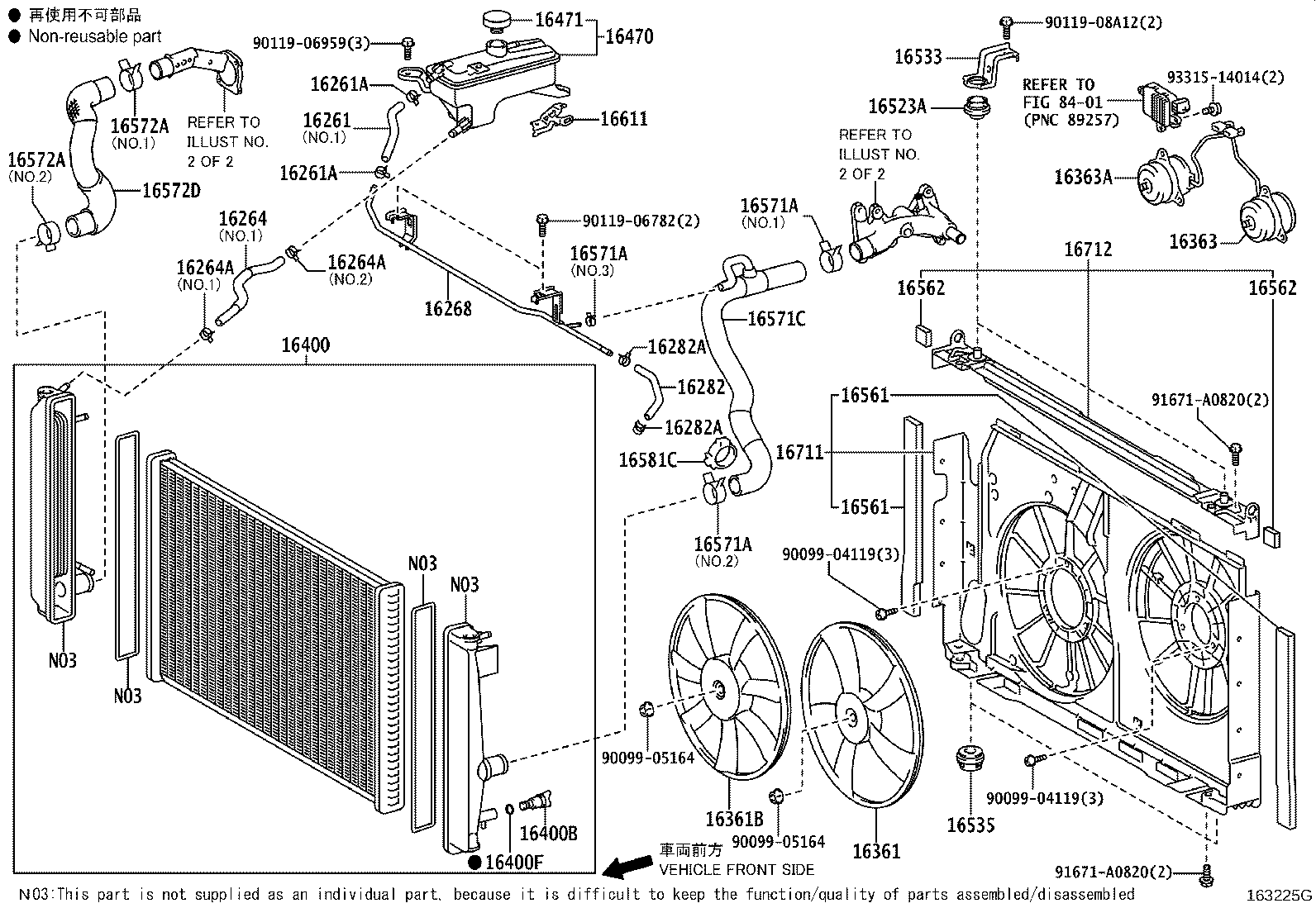

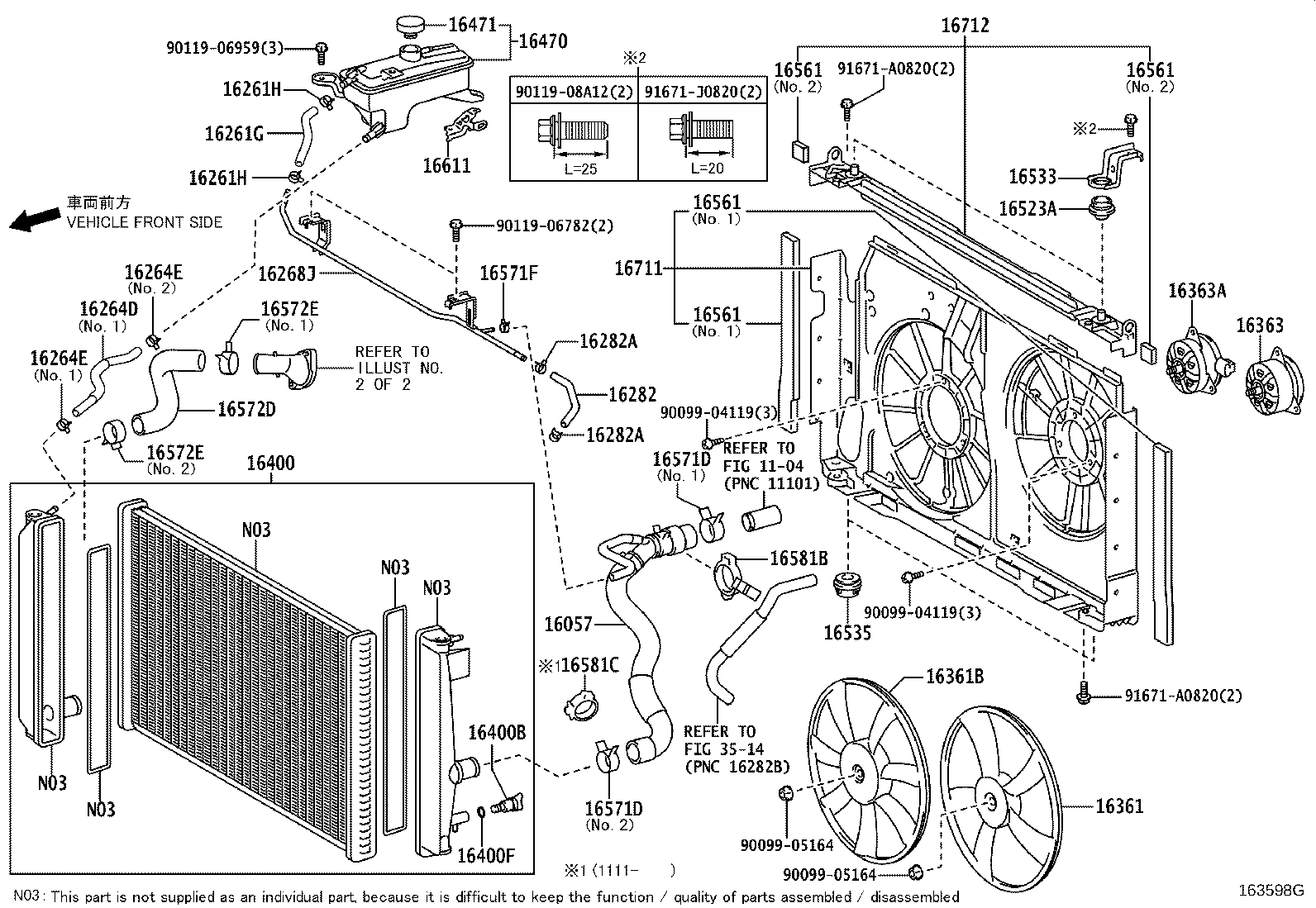

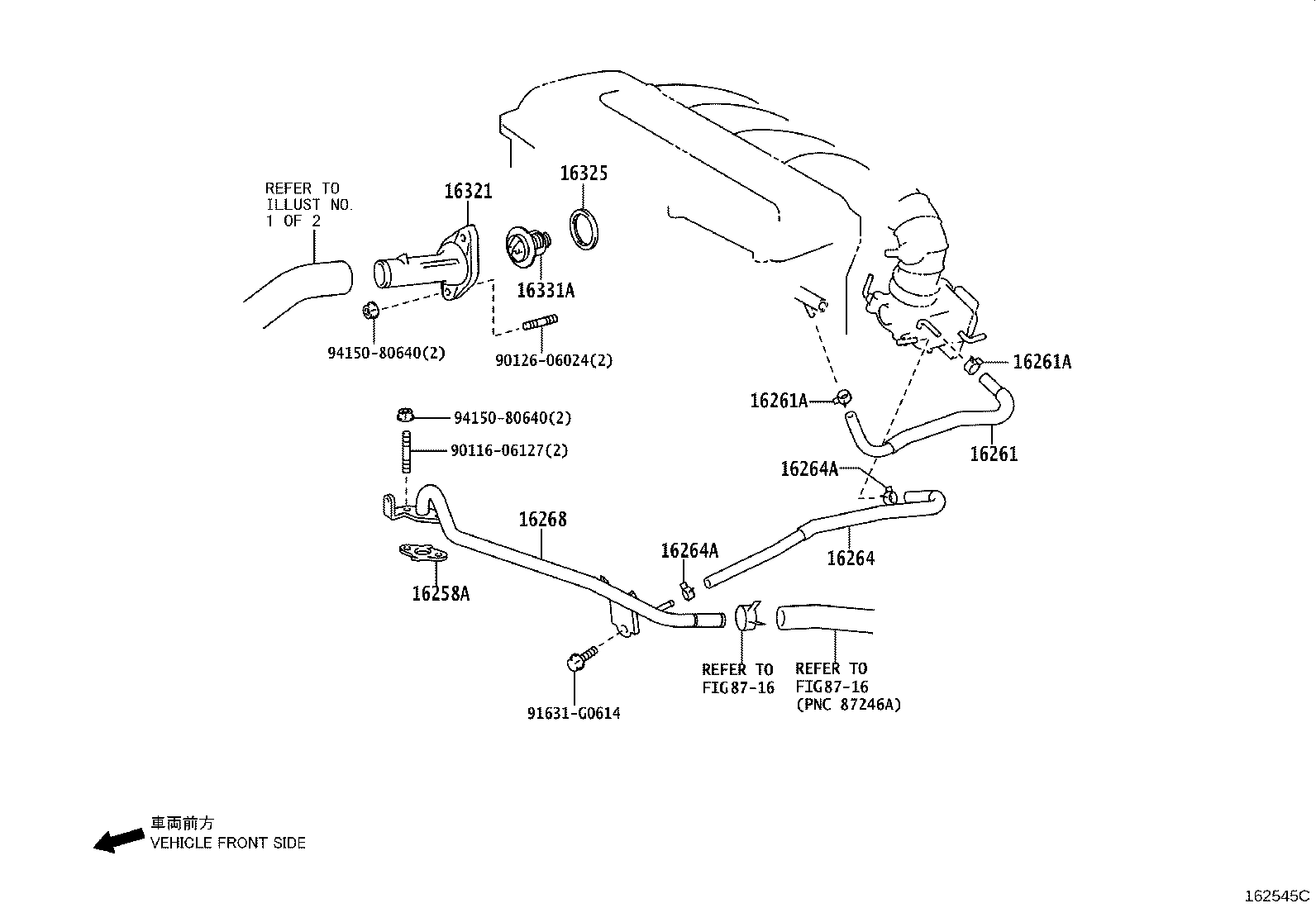

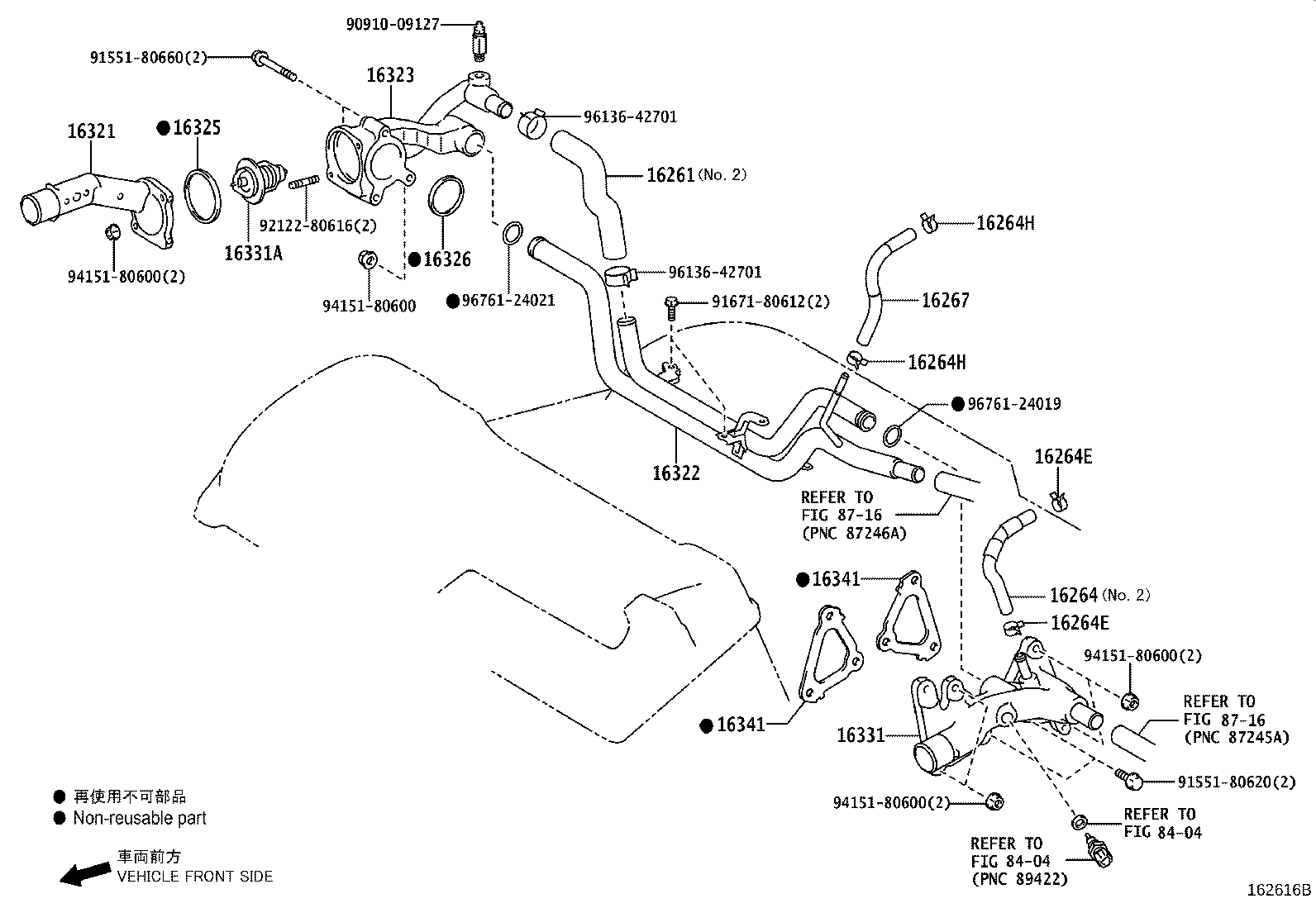

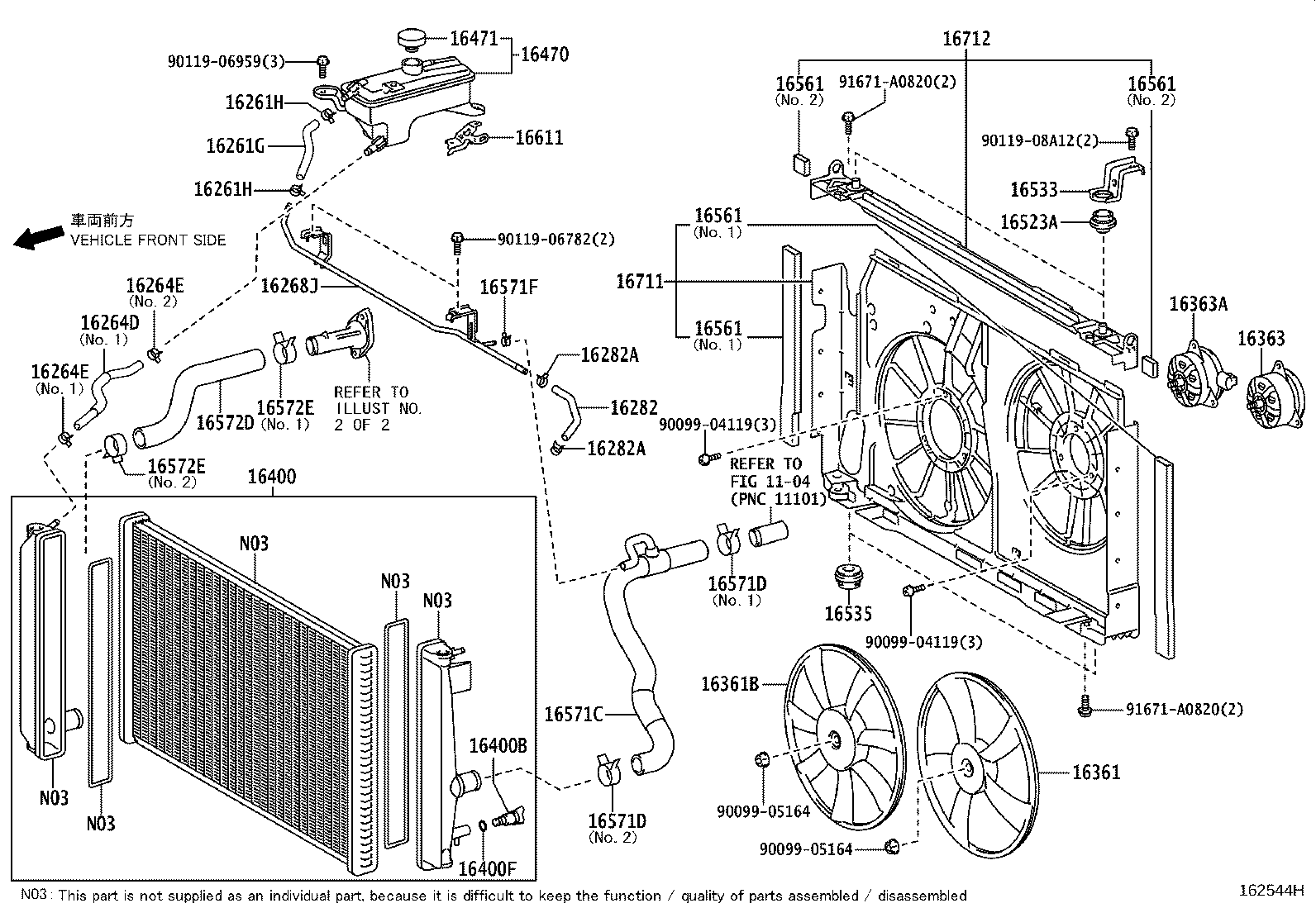

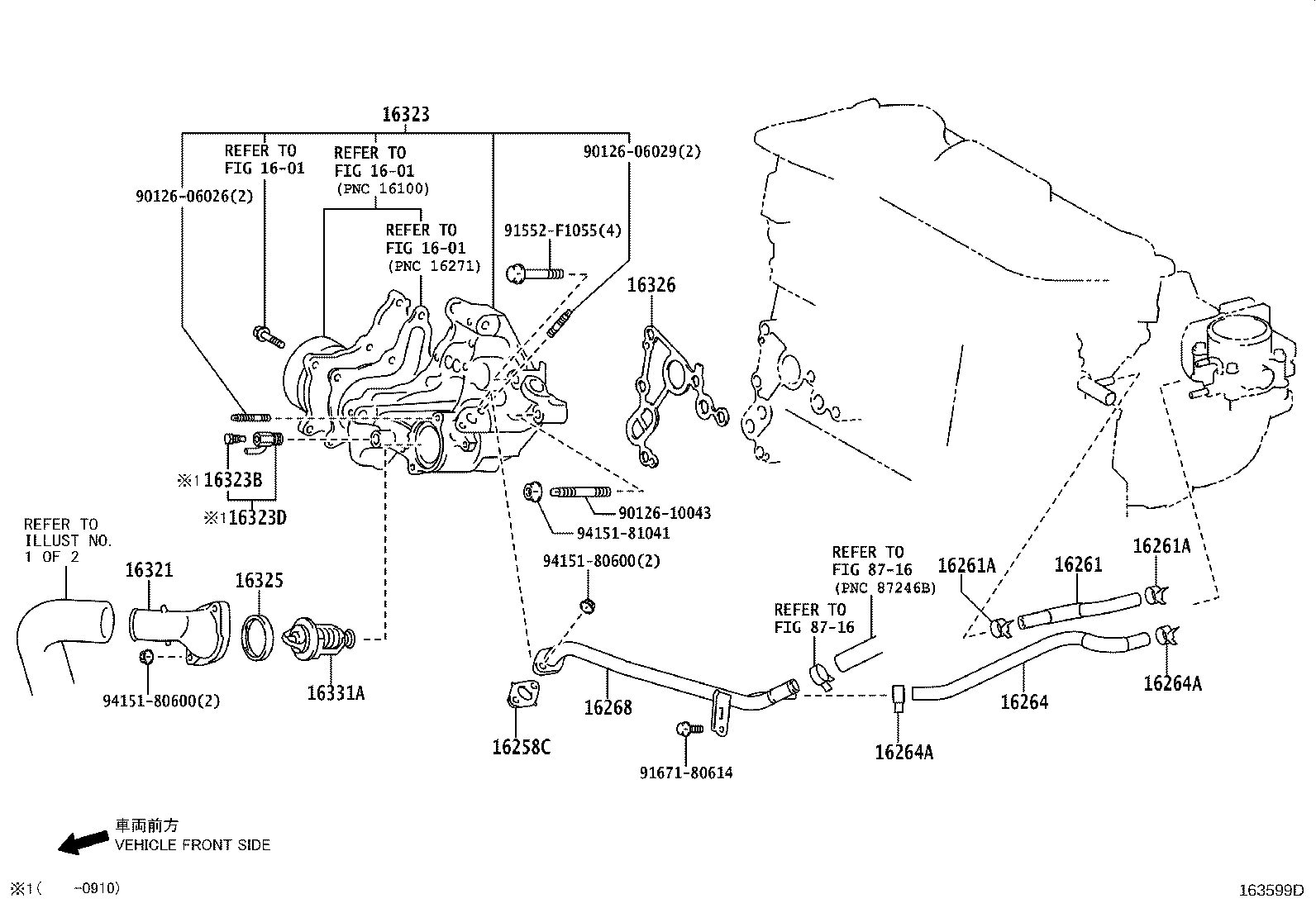

Radiator & Water Outlet
53 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 16057 | Hose Sub-assy, Radiator |
| 16258A | Gasket(FOR HEATER RETURN) |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268J | Pipe, Water By-pass, NO.5 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16321 | Inlet, Water |
| 16322 | Pipe, Water Inlet |
| 16323 | Housing, Water Inlet |
| 16323B | Plug(FOR WATER INLET HOUSING) |
| 16323D | Cock Assy, Drain(FOR WATER INLET HOUSING) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16341 | Gasket, Water Outlet |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16363A | Motor, Cooling Fan, NO.2 |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16571F | Clamp OR Clip(FOR WATER HOSE) |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16581C | Clamp, Hose(FOR RADIATOR HOSE NO.2) |
| 16611 | Bracket, Radiator Reserve Tank |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
