Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

10 part groups · 2 illustrations

Illustrations

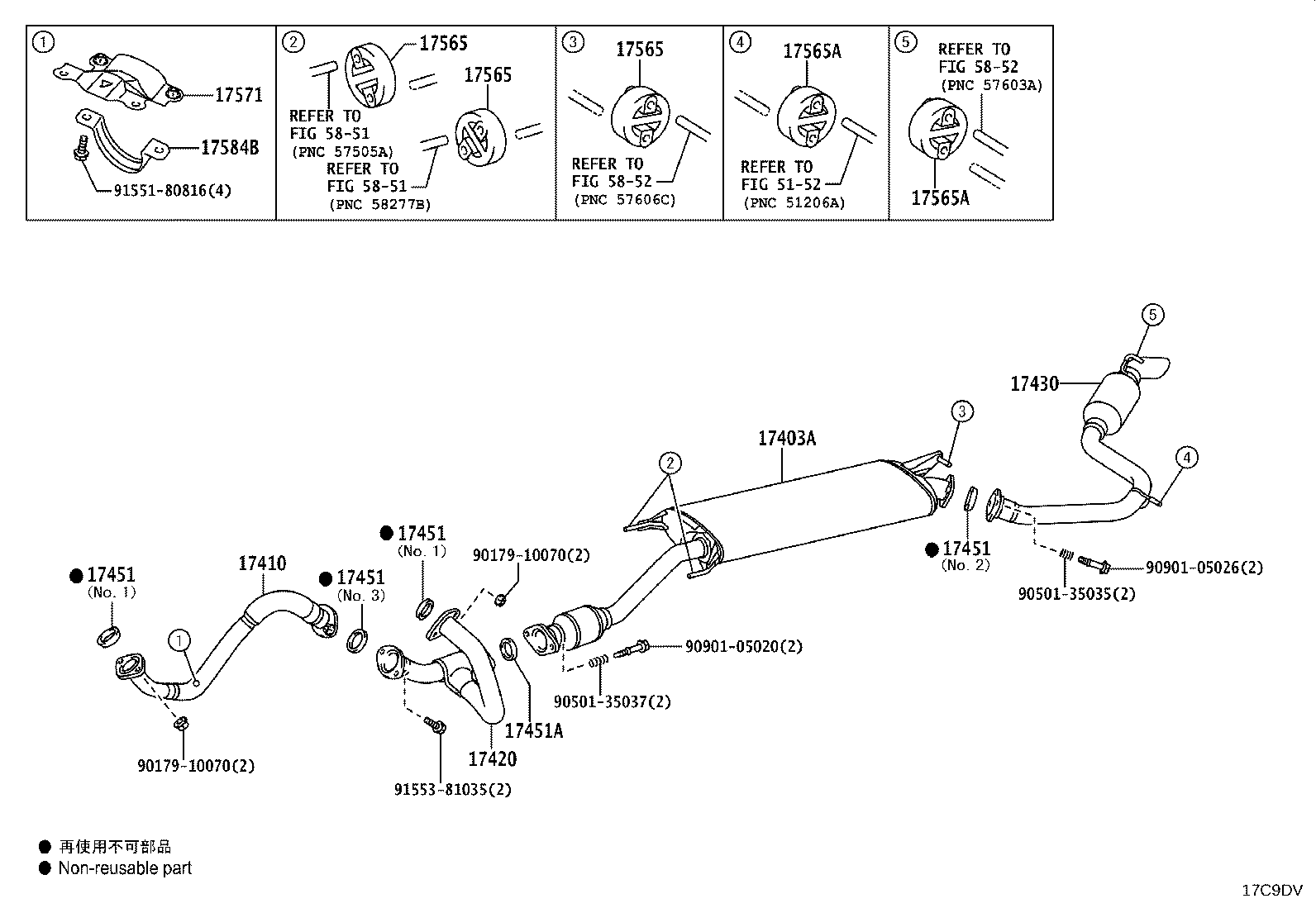

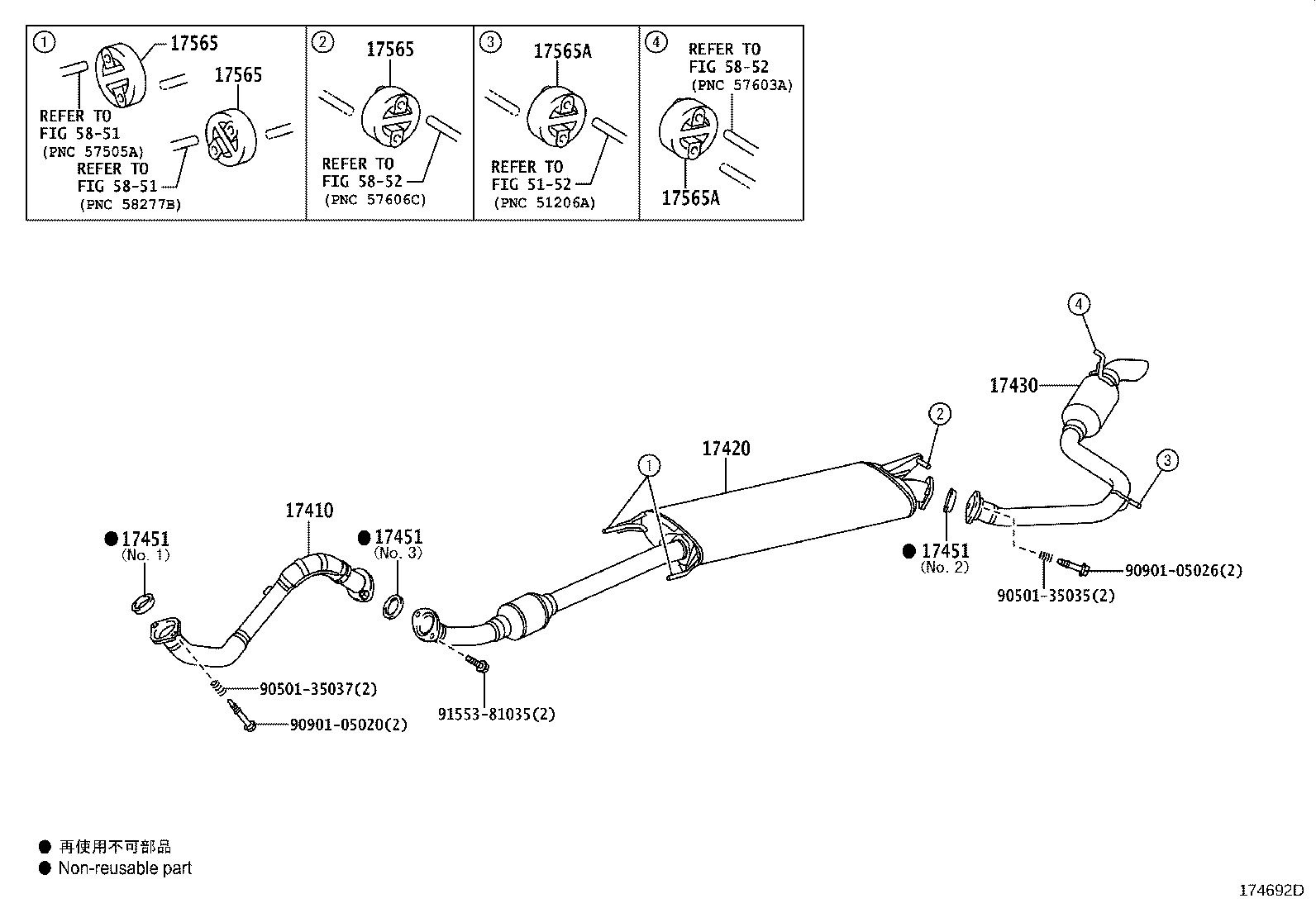

Figure 174692D 174692D 2005-11 → — Figure 17C9DV 17C9DV 2006-01 → —

Part groups

PNCDescription
17403A Pipe Sub-assy, Exhaust, Center NO.2
17410 Pipe Assy, Exhaust, Front
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17584B Bracket, Exhaust Pipe NO.1 Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
