Toyota RAV4 (JPP)

2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States

Supported model Data version 2013-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 3 illustrations

Illustrations

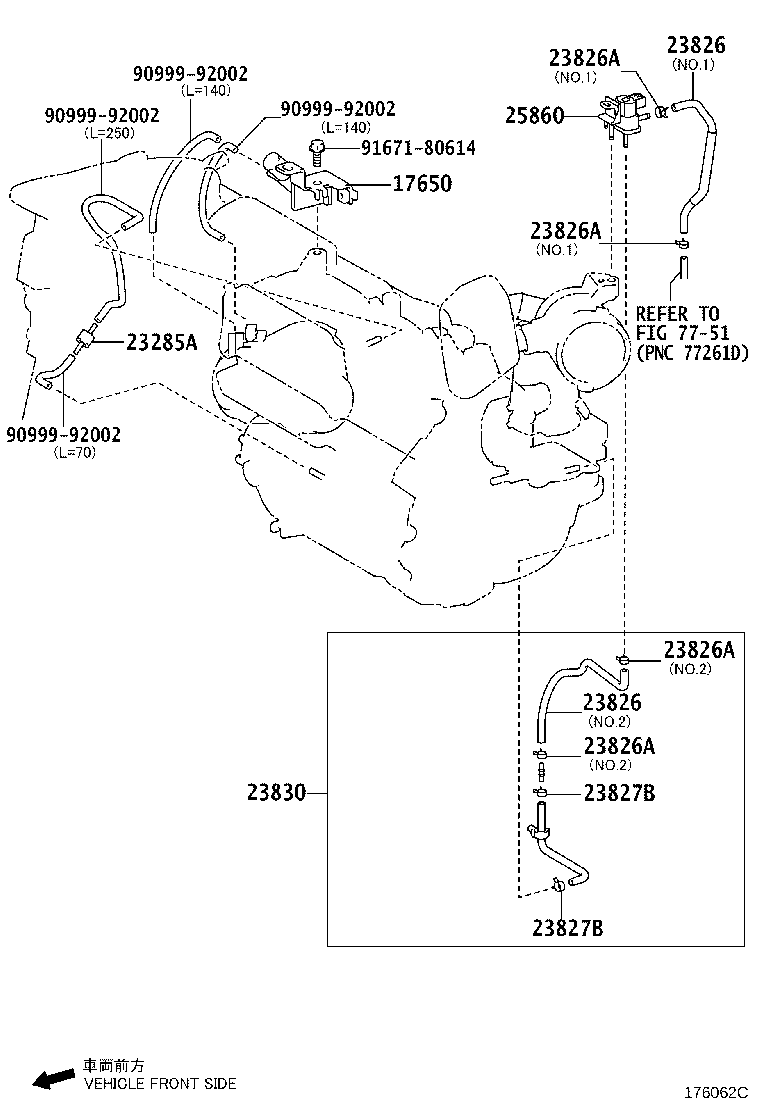

Figure 174674B 174674B 2005-11 → 2008-08 Figure 176062C 176062C 2008-08 → — Figure 174800D 174800D 2006-01 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
