Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

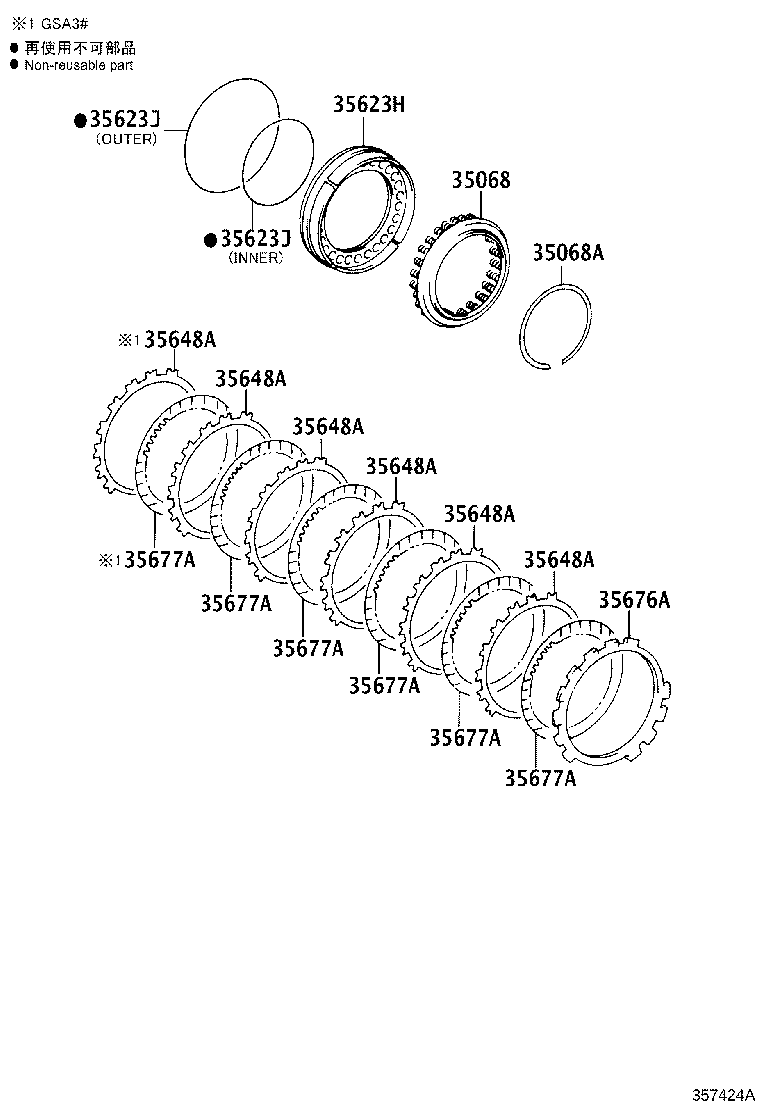

Brake NO.3, 1ST & Reverse Brake (ATM)
7 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 35068 | Spring Sub-assy, 1ST & Reverse Brake Return |
| 35068A | Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING) |
| 35623H | Piston, 1ST & Reverse Brake |
| 35623J | Ring, O (FOR 1ST & REVERSE BRAKE) |
| 35648A | Plate, Clutch (FOR 1ST & REVERSE BRAKE) |
| 35676A | Flange, Brake (FOR 1ST & REVERSE BRAKE) |
| 35677A | Disc, Clutch (FOR 1ST & REVERSE BRAKE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
