Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07
Steering Wheel
6 part groups · 1 illustrations

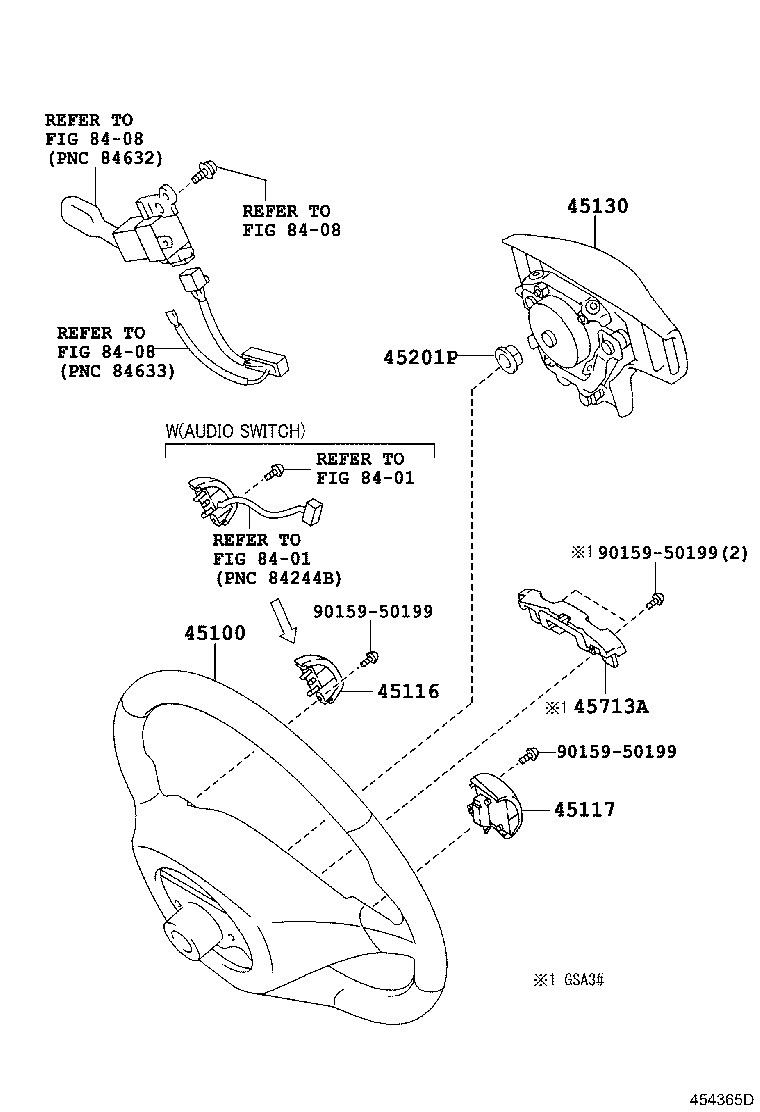

Illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45117 | Ornament, Steering Wheel, NO.2 |
| 45130 | Button Assy, Horn |
| 45201P | Nut, Steering Wheel Set |
| 45713A | Damper, Steering Shake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
