Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

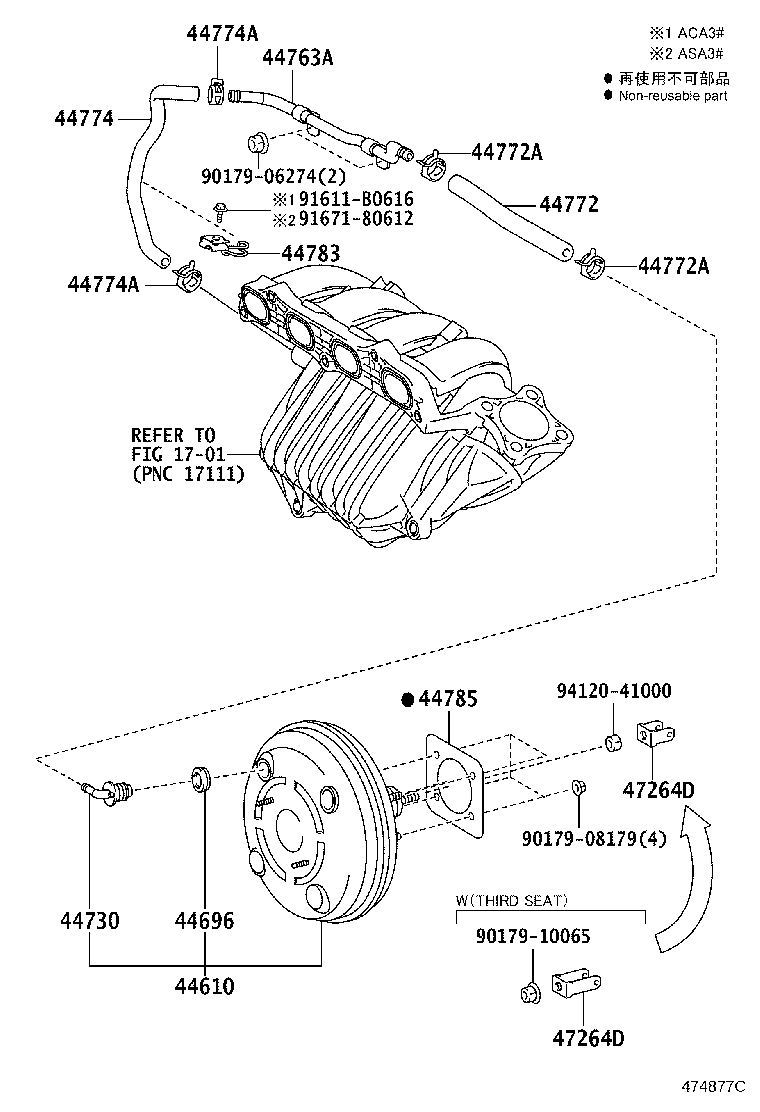

Brake Booster & Vacuum Tube
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
