Toyota RAV4 (JPP)
2005-11 → 2012-12 · chassis ACA3#,ASA3#,GSA3# · catalogue 662430 · United States
Supported model
Data version 2013-07

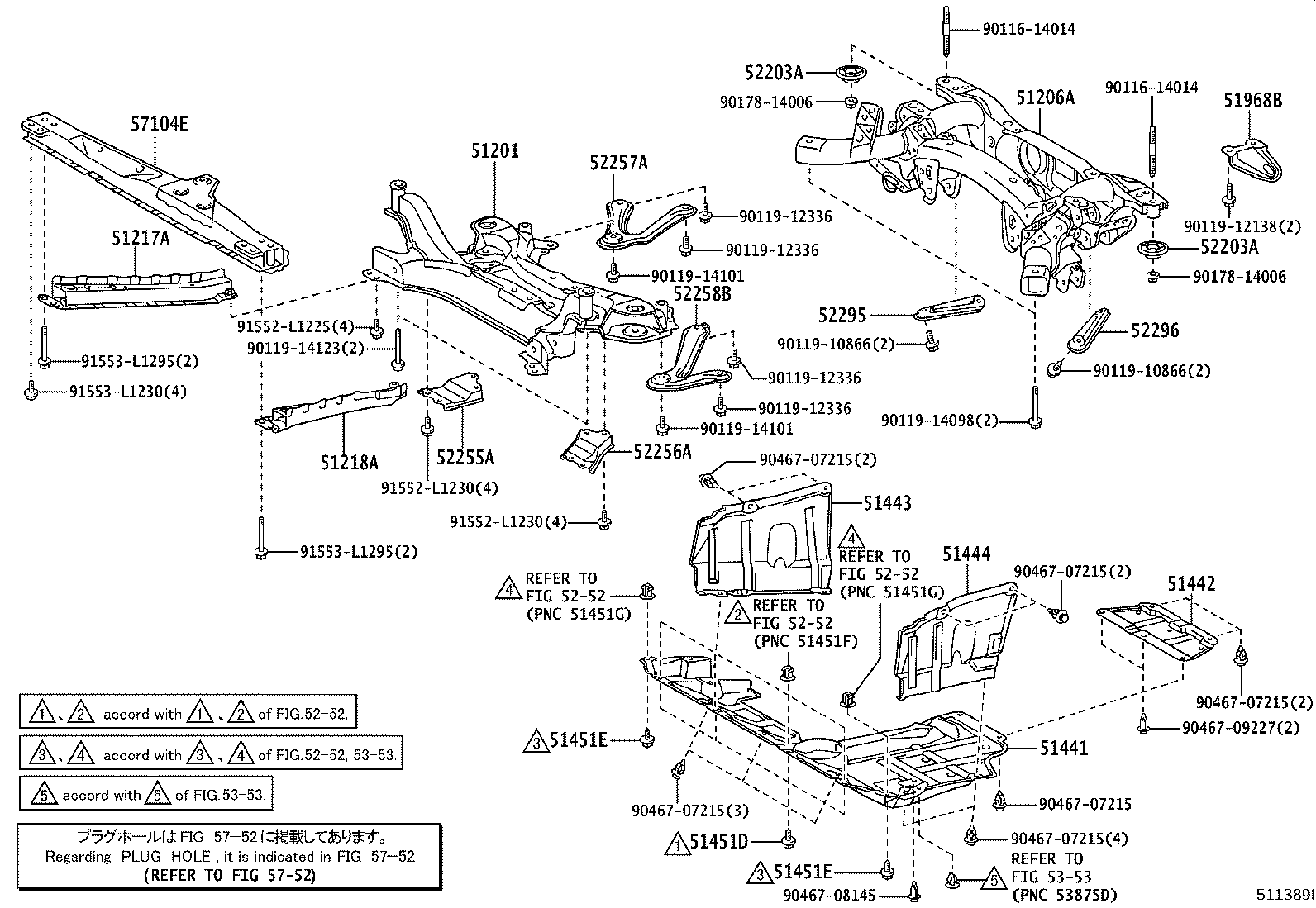

Suspension Crossmember & Under Cover
19 part groups · 1 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51217A | Reinforcement, Front Suspension Member, RH |
| 51218A | Reinforcement, Front Suspension Member, LH |
| 51441 | Cover, Engine Under, NO.1 |
| 51442 | Cover, Engine Under, NO.2 |
| 51443 | Cover, Engine Under, Rear RH |
| 51444 | Cover, Engine Under, Rear LH |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51968B | Hook, Transport, Rear LH |
| 52203A | Cushion Sub-assy, Body Mounting, Rear Upper |
| 52255A | Brace, Front Suspension Member, Front RH |
| 52256A | Brace, Front Suspension Member, Front LH |
| 52257A | Brace, Front Suspension Member, Rear RH |
| 52258B | Brace, Front Suspension Member, Rear LH |
| 52295 | Brace, Rear Suspension Member, RH |
| 52296 | Brace, Rear Suspension Member, LH |
| 57104E | Member Sub-assy, Front Cross |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
